GL-13121 T strap hinge

GL-13121 T strap hinge

3 month ago

12 0

Jiaxing Ganland Auto Parts Co., Ltd.

 8 year year

Product details

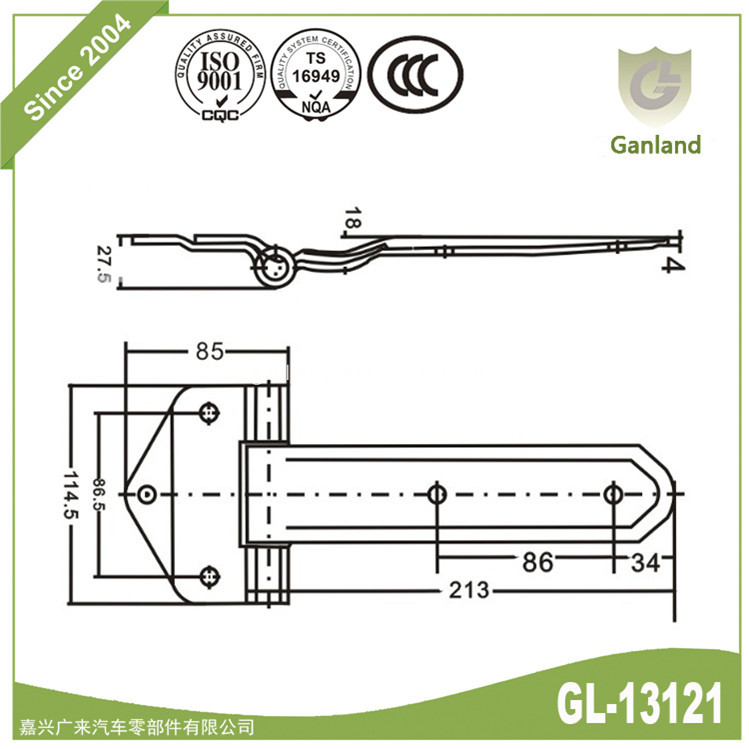

Wide Bracket Strap Hinge for Enclosed Trailer Doors is usded for doors of enclosed trailer, truck, barn, etc. Heavy duty application, Length 213MM, thickness 4 mm, zinc plated finish, zinc thickness>7mm salt spray test 48h without rest rust.

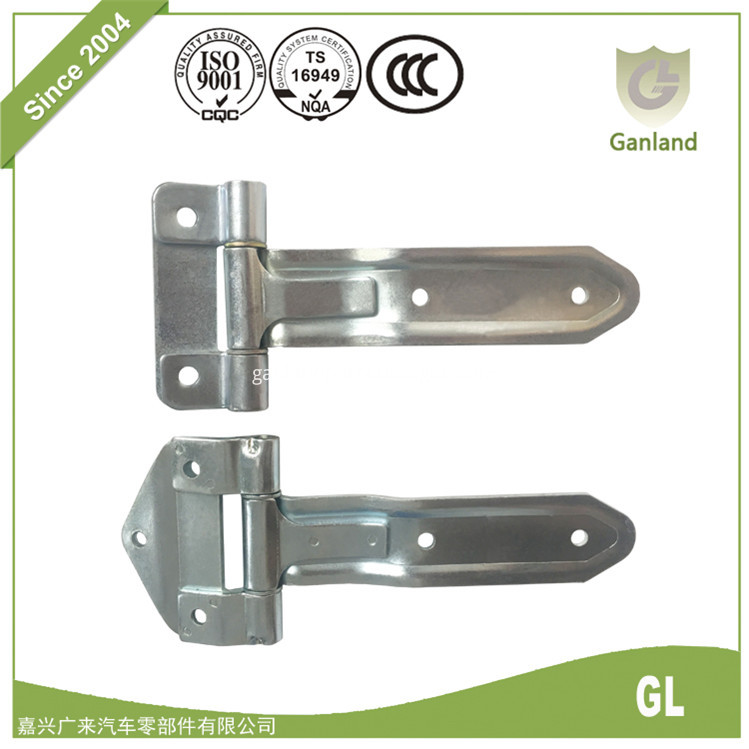

Same shape as our style GL-13120, but length in 320mm

Pictures:

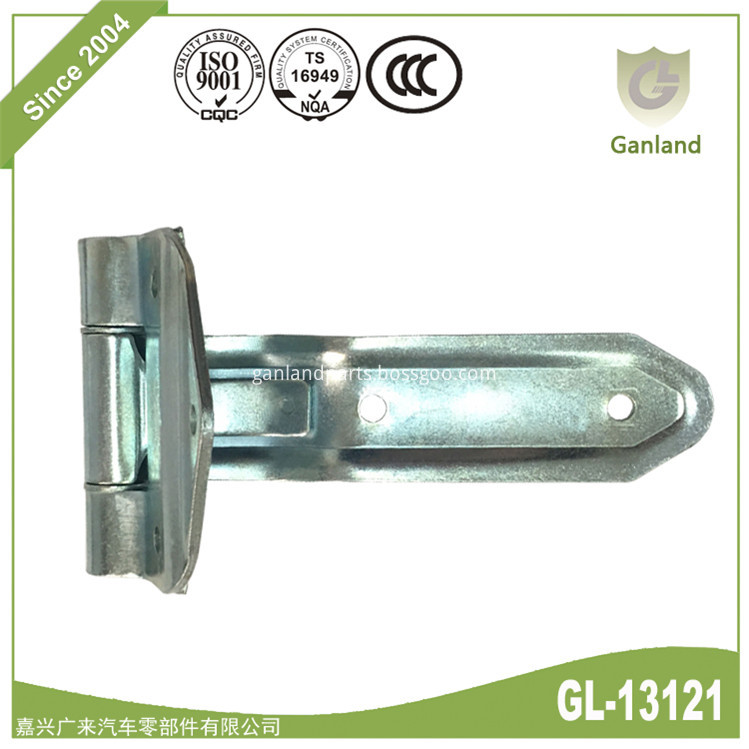

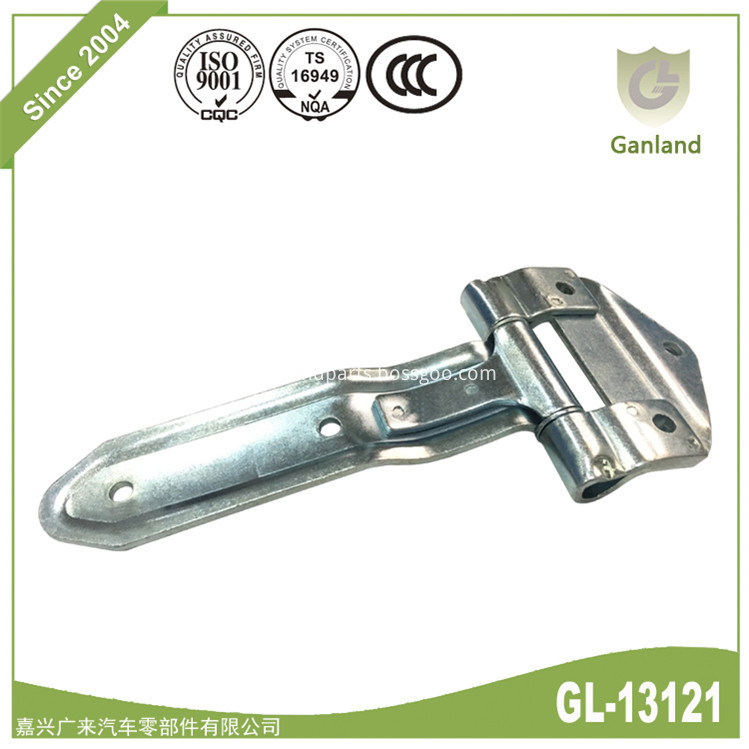

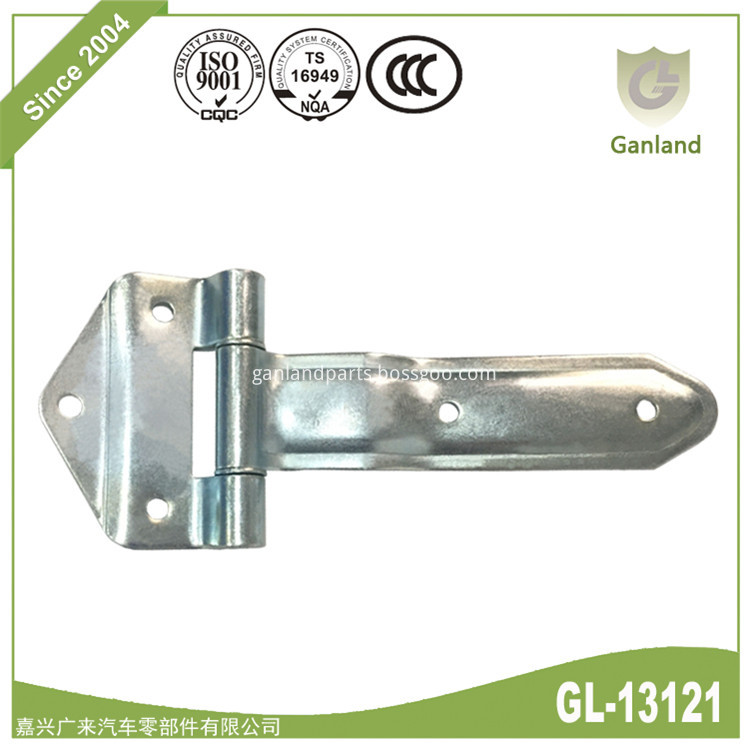

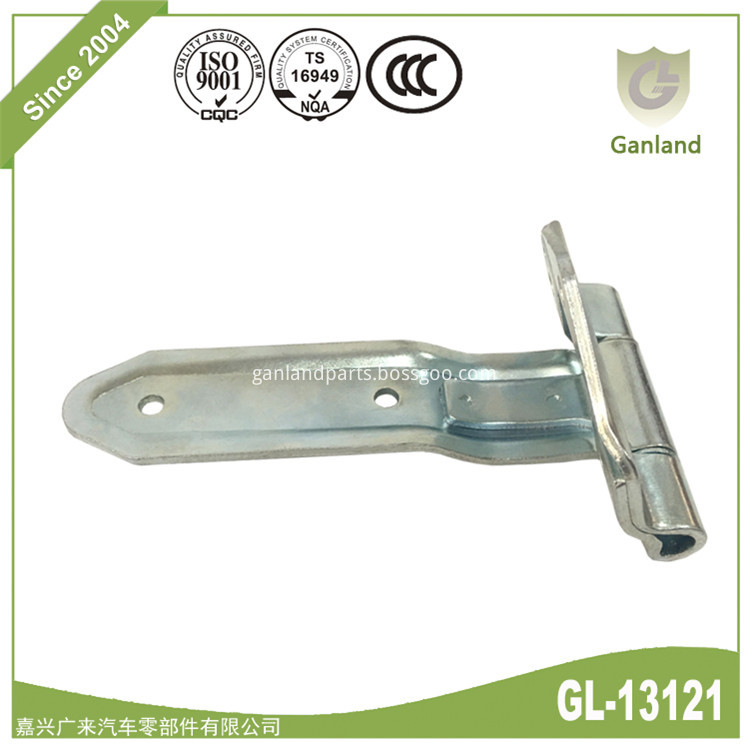

Wide Bracket Strap Hinge For Enclosed Cargo Trailer Doors Trailer Door Hinges Gl 13121z5 13121

Item No	GL-13121
Item	Wide Bracket Strap Hinge for Enclosed Trailer Doors
Surface	Zinc Plated
Weight	0.8kg
Length	8"
Thickness	4mm
MOQ	1 pc
Packing	Customized
Features	Strap hinge lets your side or rear trailer door swing open 180 degrees Heavy duty 8-gauge steel provides durability Zinc plating resists corrosion Brass spacers between moving parts reduce wear

Specs:

Overall length: 9-5/8"
Bracket dimensions: 1-5/8" long x 4-1/2" wide
- Measures 3-1/4" from top mounting hole to bottom mounting hole
Strap dimensions: 8" long x 2" wide
- Measures 2-7/16" from mounting hole to mounting hole
Pin diameter: 1/2"
Mounting hole diameter:
- Strap hole diameter: 11/32"
- Bracket hole diameter: 13/32"

Note: OEM, ODM welcome, as customer request

Jiaxing Ganland Auto Parts Co., Ltd. is a professional manufacturer specializes in designing and producing different types of machinery parts for trucks and other commercial vehicles. Our main products include Truck Door Locks, Truck Door Hinges, Truck Door Seals, Cargo Control, E-track, Wing Opening Van Parts, aluminum profile, curtainsider truck parts, Fastener Serie, Toolbox Serie, Trailer Mudguard, Other Hardware And Accessories, Etc.
