Product details

Rotary drive slewing drive worm gear is a perfect combination of turbine worm products, worm ring surface envelope form, its tooth contact area is large, so the transmission torque is large, stable operation.

1. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems (QMS) of ISO 9001:2015 and GB/T19001-2008.

2. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements.

3. With abundant raw materials and high production efficiency, the company can supply products to customers as quickly as possible and shorten the time for customers to wait for products.

4. Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. The company has complete testing equipment and advanced testing method.

5. Strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.

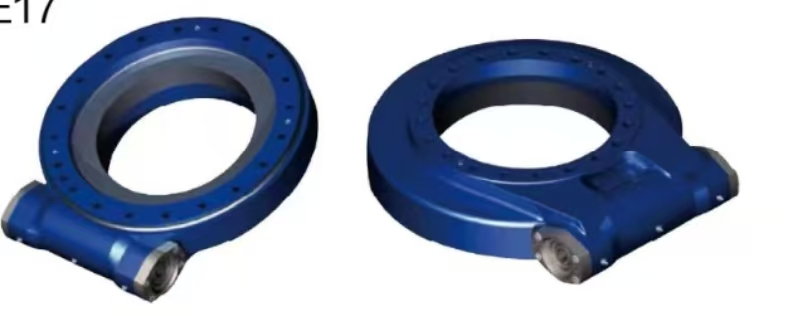

SE17 Slewing Bearing: Technical Overview & Application Guide

I. Product Overview

TheSE17 slewing bearingis aheavy-duty, large-diameter turntable bearingdesigned forapplications requiring high load capacity, extreme durability, and long-term reliability. It features atriple-row roller design(axial/radial/tilting moment support),ruggedized sealing, andmodular gearing options, making it ideal foroffshore cranes, mining machinery, and large-scale wind turbines.

------

II. Core Parameters & Performance

【表格】

Specification Technical Details Explanation

Bearing Type Triple-Row Roller (Axial + Radial + Tilt Moment) Independent roller paths for optimized load distribution.

Outer Diameter (D) 1500–5000 mm (customizable) Designed for ultra-large equipment (e.g., offshore cranes, wind turbines).

Bore Diameter (d) 800–2500 mm Matches heavy-duty shafts and gearboxes.

Height (H) 150–350 mm Thicker design for extreme load resistance.

Dynamic Load Rating 5000–50,000 kN (axial/radial) Handles severe cyclic loads (e.g., mining excavators).

Static Load Rating 10,000–100,000 kN (axial/radial) Supports massive stationary loads (e.g., offshore platforms).

Gear Type External/Internal Gear (Module 8–16) External gear for high-torque drive systems; internal for compactness.

Sealing System Triple-lip metal seals + labyrinth Prevents water/salt ingress (IP67/IP68 optional).

Lubrication Method Grease (manual/centralized) + Oil Bath Required for low-speed/high-load applications (up to 150°C).

Material 42CrMo4/34CrNiMo6 alloy steel Ultra-high-strength, case-hardened steel for shock resistance.
