Reliable Industrial Toggle Switch For High-Current Circuits

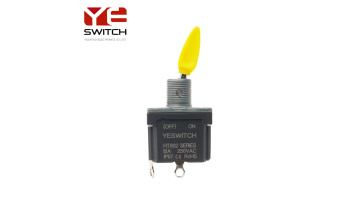

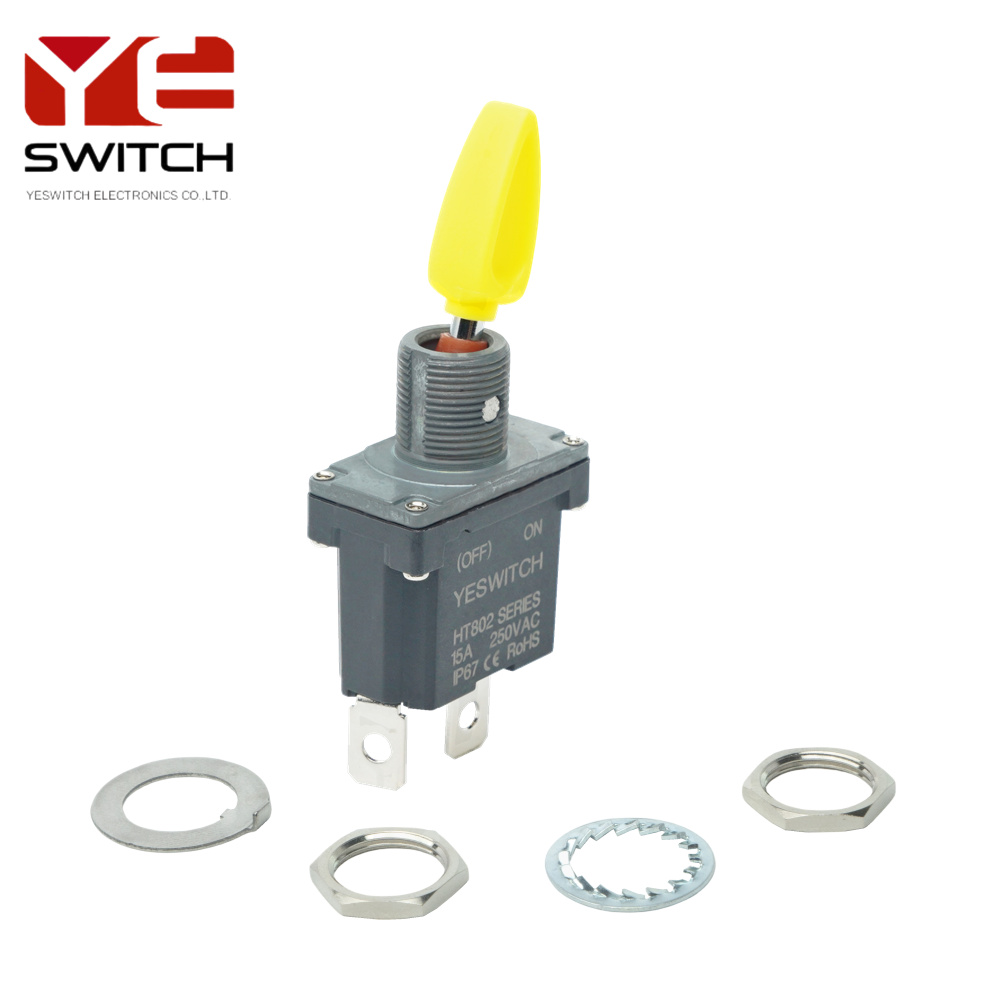

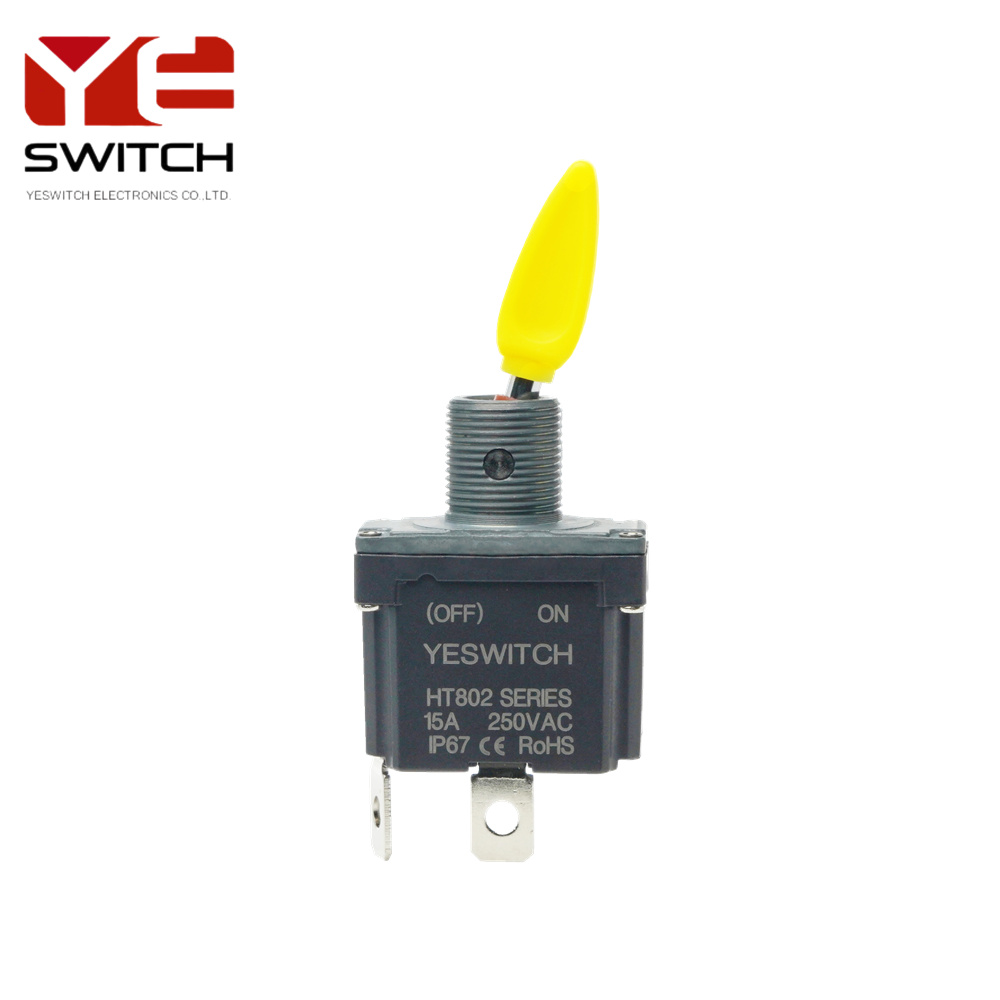

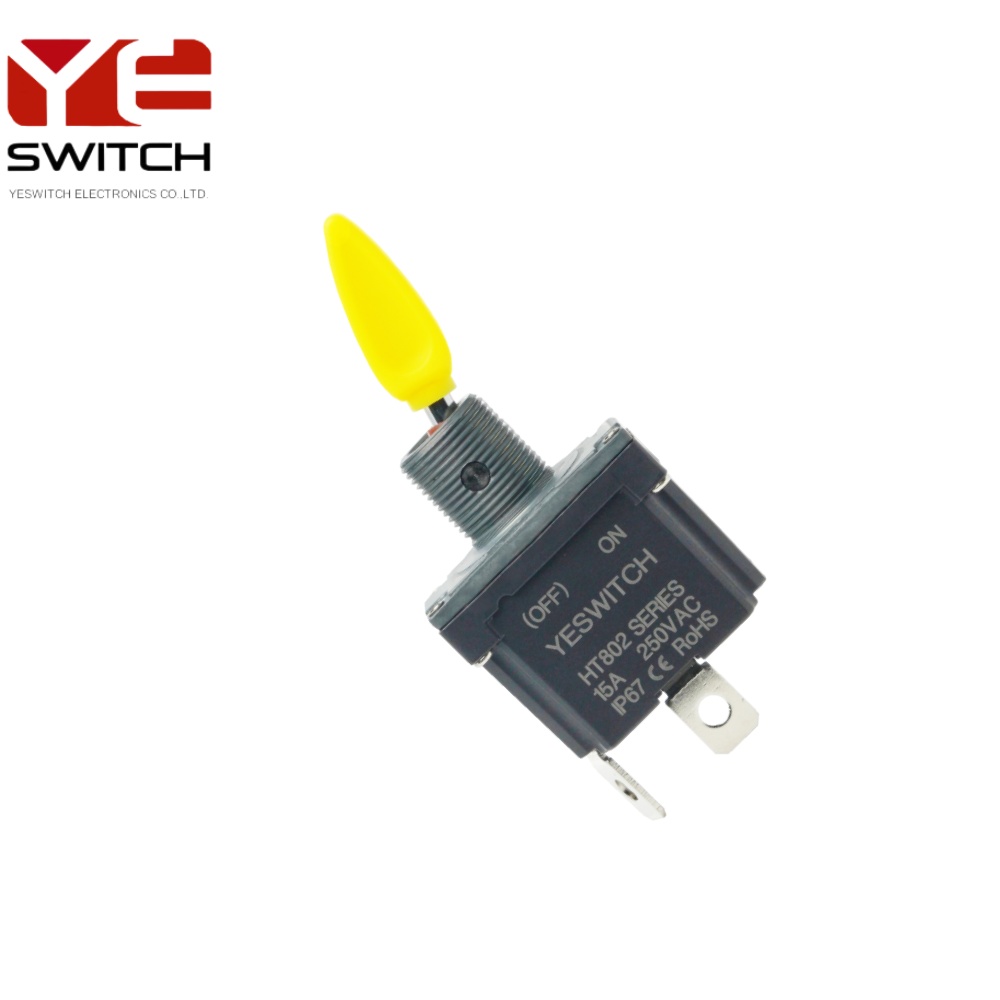

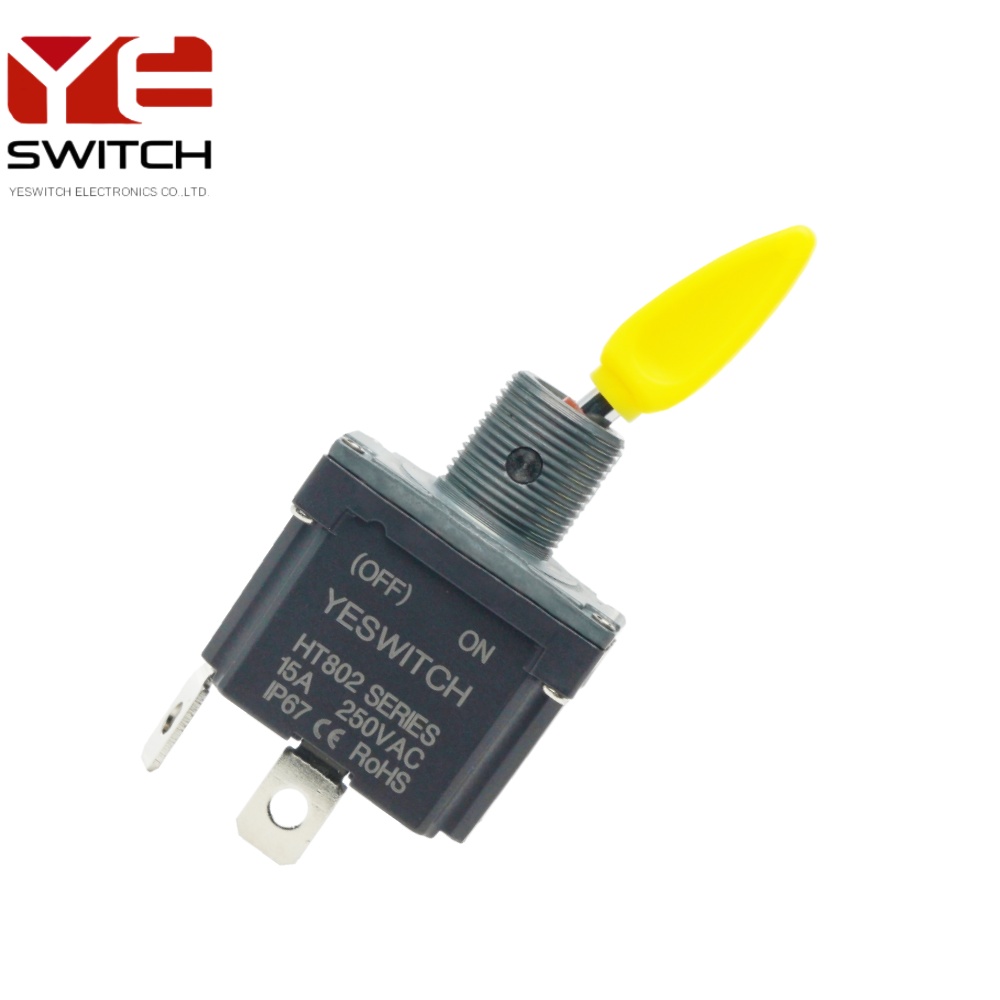

The YESWITCH HT802 Series is a robust,high-performance toggle switch designed for heavy-duty machinery and industrial equipment requiring reliable power control under extreme conditions.Engineered to meet the rigorous demands of aerial work platforms (AWPs) and similar applications, this switch combines durability,safety,and versatility, making it an ideal replacement for leading brands such as Honeywell,NKK,C&K,and APEM.

Key Features

High-Current Capacity

Rated for heavy-duty current loads,the HT802 ensures stable performance in high-power circuits,perfect for demanding environments like construction machinery and aerial platforms.

SPST (OFF)-ON Functionality

Simplified Single-Pole Single-Throw (SPST) operation with an intuitive (OFF)-ON configuration for straightforward power control.

Enhanced Durability

Reinforced construction with high-quality materials to withstand vibrations,shock,and harsh environmental conditions (e.g.,moisture,dust,and temperature fluctuations).

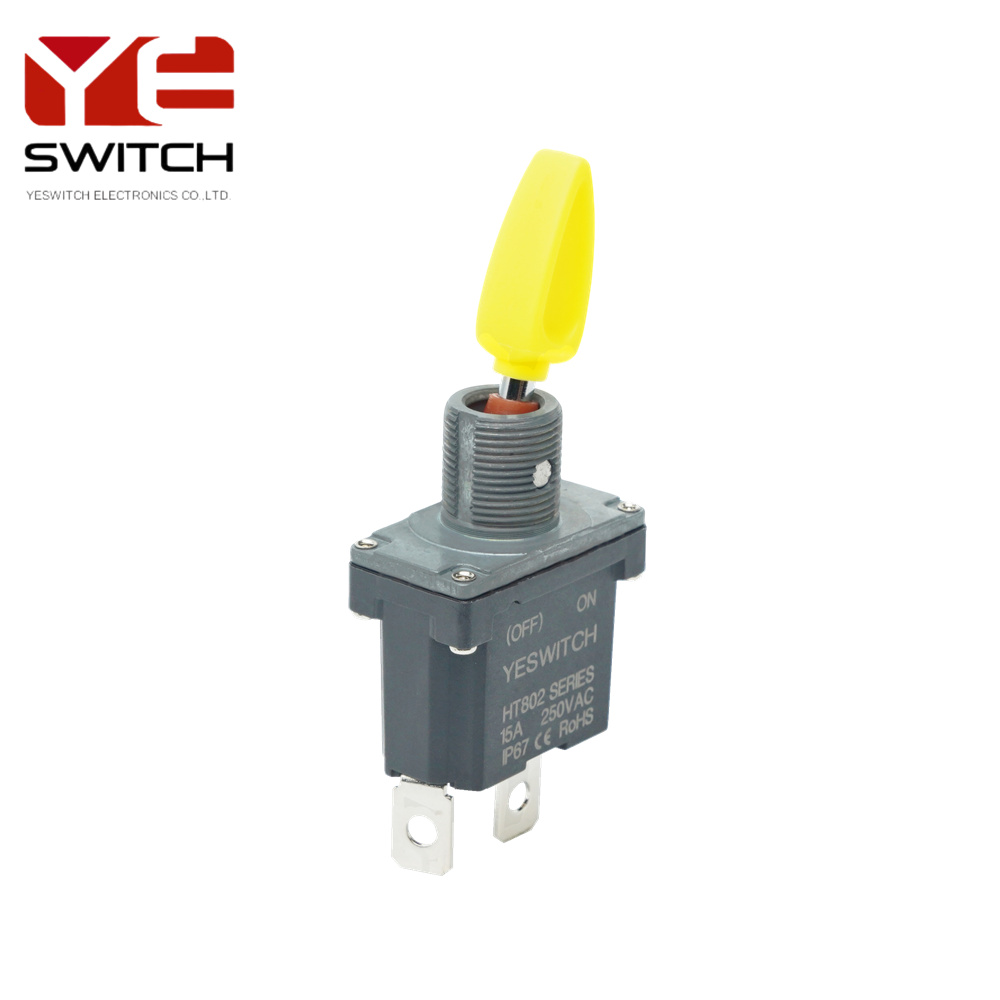

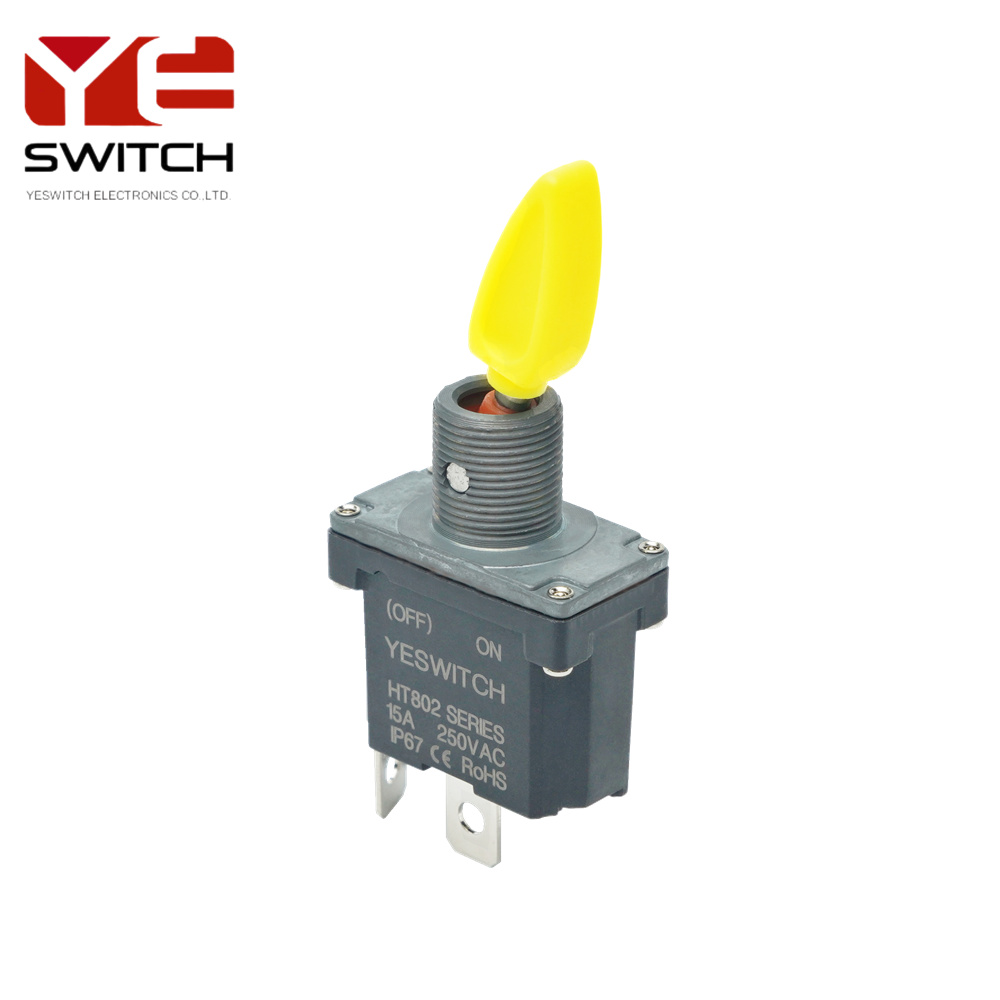

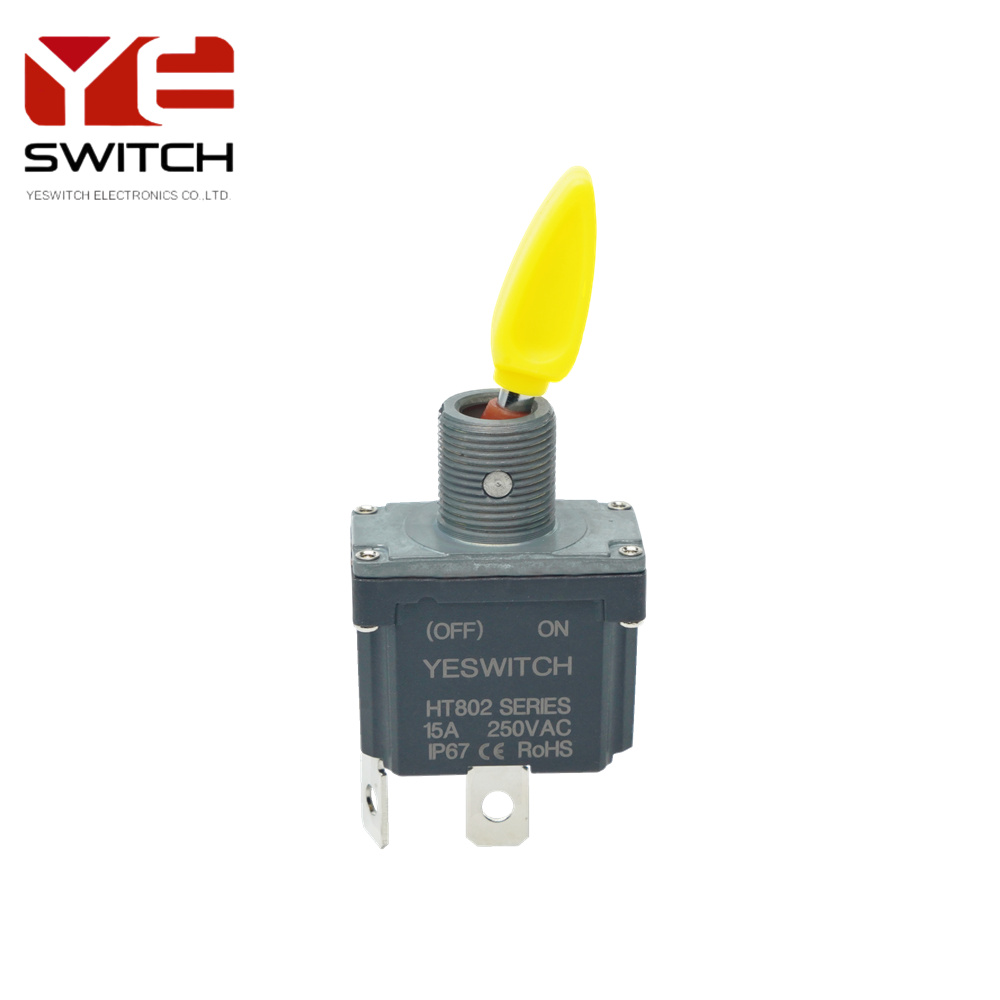

Bright Yellow Booted Handle

High-visibility yellow handle with a protective rubber boot for improved grip,operator safety, and resistance to wear,oil,and chemical.

Blade Terminal Design

Quick-connect blade terminals enable secure,tool-free wiring,reducing installation time and ensuring reliable electrical connection.

Universal Compatibility

Direct replacement for switches used in major AWP brands,including JLG,Skyjack,Genie,UpRight,Haulotte,and Hatower.

Replacement For

Honeywell Toggle Switches

NKK Toggle Switches

C&K Heavy-Duty Toggles

APEM Industrial Switches

Applications

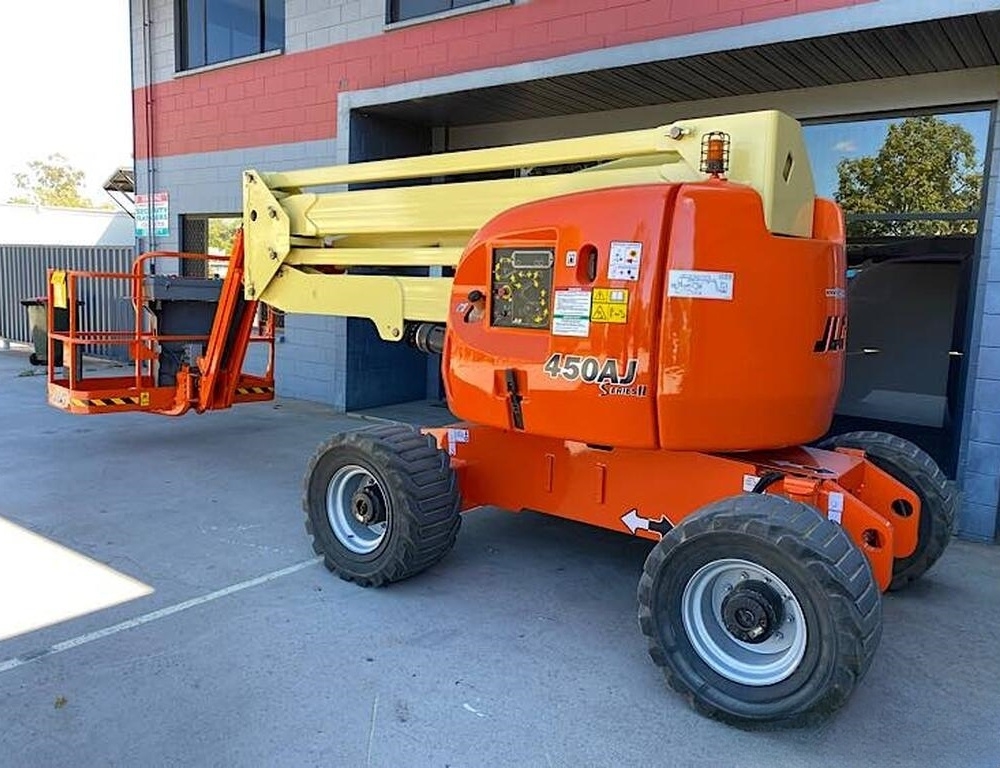

Aerial Work Platforms (AWPs):Engineered for scissor lifts,boom lifts,and telehandlers.

Construction & Material Handling Equipment:Excavators,cranes,and loaders.

Agricultural & Mining Machinery:Heavy vehicles requiring robust electrical switching.

SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

RATING

RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC

MATERIAL

ACTUATOR:COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
