Product details

Product Advantages

Product Features: The Enlio Olympic Volleyball Special Netting is a specially designed netting court based on the characteristics of tennis. The netting is assembled in a modular combination method, which enables early assembly and installation, significantly shortening the on-site construction period; the standard grid-shaped netting provides better light transmission and ventilation, and the overall style of the court becomes more grand and unified.

Hot Dipped Galvanizing Technology: The product's columns and beams are made using hot dipping galvanizing technology, enhancing acid and alkali resistance, as well as weather resistance and aging resistance. After thoroughly treating the rust layer on the steel surface and immersing it in high-temperature zinc liquid, the zinc layer adheres tightly to the inner and outer walls of the steel, avoiding direct contact between the steel and the air, thereby improving the acid and alkali resistance and weather resistance of the product, and achieving the best anti-corrosion and rust prevention and aging resistance from the source.

Spray Coating Process for Comprehensive Anti-Rust and Anti-Aging: All-weather, all-round, 360⁰ comprehensive anti-rust and anti-aging. After the hot-dip galvanized steel surface undergoes shot blasting treatment, under the action of high-voltage electrostatic force, pure polyester plastic powder is sprayed onto the surface of the steel, and the powder will be evenly adsorbed to form a powder coating layer; after the powder coating layer is baked at a high temperature (180-200℃) for leveling and curing, the plastic powder particles will melt into a dense protective coating firmly adhering to its surface. This comprehensively enhances the acid and alkali resistance and weather resistance of the product, truly achieving all-weather, all-round, 360⁰ comprehensive anti-rust and anti-aging.

Modular Assembly: Convenient and Stable: Using a modular assembly structure, it can be assembled on-site for construction and transportation, with convenient construction and transportation, stable and firm structure, and beautiful and durable appearance.

model

Composition and Parameters

specification

unit

Y-PC002

1. Netting dimensions: Length 20 meters * Width 10.8 meters * Height 3 meters
2. Column parameters:
Corner column size: 80mm × 80mm × 2mm × Height 3000mm * 4 pieces
Normal column size: 80mm × 60mm × 2mm × Height 3000mm * 20 pieces
Gate column size: 80mm × 60mm × 2mm × Height 3000mm * 2 pieces
Light pole size: 80mm × 60mm × 2mm × Height 6000mm * 4 pieces
Note: All columns are made of high-quality steel pipes, and the surface is treated with electrostatic spraying technology. The color is customized according to requirements.
3. Net frame 30 pieces: Frame steel pipe size: 30mm × 50mm × 2mm, wire diameter is 4mm, mesh size is 50mm × 50mm; The wire ends have protective measures to prevent scratches and hooking, and all pipe surfaces are electrostatic powder coated, smooth and fine, durable and elegant.
4. Stadium gate 1 set: Gate frame steel pipe size: 50mm × 50mm × 2mm, wire diameter is 4mm, mesh size is 50mm × 50mm. The wire ends have protective measures to prevent scratches and hooking, and all pipe surfaces are electrostatic powder coated, smooth and fine, durable and elegant.
5. Accessories: All connecting screws are made of 304 stainless steel, which will never rust, remain firm and unchanged in shape, and have a beautiful craftsmanship.
6. Lighting: LED 200W 8 lamps
7. Picketball pole 1 set

length:20m

width:10.8m

Company Introduction

We are one of the supplier that provides products to three Olympic Games, respecticely 2020 Toyko, 2024 Paris and upcoming 2028 L.A.

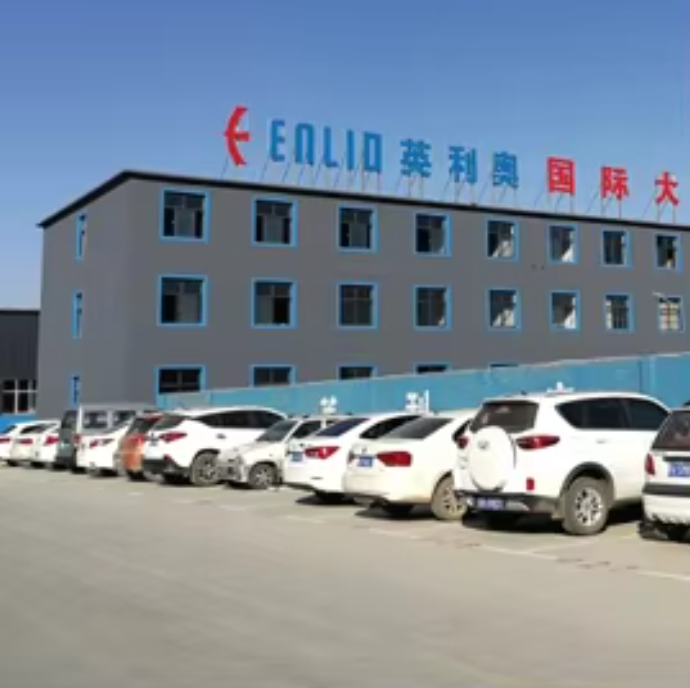

Hebei Enlio Sports Goods Co., LTD is situated in City of Shijiazhuang, Hebei Province integrated with research & development, produce, sales, installation and after-sales service since 2007, Enlio possesses of biggest logistics warehouse management, and have topmost sales on PVC sports flooring and modular court tiles in China.

Enlio company has two brands of "Enlio" and 'Alite" , specialized in sport surfaces including PVC sports flooring, modular court tiles, wet area mats, kids flooring, dancing flooring, multi-use commercial flooring, covers more than 100 types, applicable to Badminton court, Table Tennis court, Basketball court, Tennis court, Volleyball court,Gymnasium, Dance room, Kindergarten, Swimming pool surrounds, hotels, etc. Enlio sports flooring has been exported to more than 80 countries, and have won Hebei province Famous Trademark. Enlio have been adhering to the management system of "Quality First, Services First" from the beginning, and possesses of full set of advanced test equipments, in order to provide excellent sports flooring to the customers.

Furthermore, Enlio sports flooring has been approved by BWF, ITTF, ITF CE and SGS, ISO9001, ISO14001, OHSAS18001, CE, SGS, etc. Meantime Enlio flooring have been involved and will be involved in 2014/2015-2015/6 CBA League, 2016/2019-2020 ITTF Word Table Tennis Championships, 2013-2020 ITTF Men’s and Women’s World Cup, 2014-2017 ITTF World Tour China Open, 2013 The National Aerobics Dance Contest, 2015 CFA FUTSAL International Tournament, FIB3X3 World Tour-China Zone, 2014 CBA 3X3 National Youth Basketball Games, etc.

FAQ

1. Are you manufacturer or trading company?
We are manufacturer with our own facilities and warehouse.
2. Can I customize my court size, color and logo?
Yes! We can do court design, color and logo customize as you wish.
3. Can you draw the court lines for me?
Yes! Auto lines marking service at factory is available for customers.
4. Can you provide warranty?
Yes! We provide 5 years' quality warranty and 10 years' backup support.
5. Can I get your samples?
Yes! You just pay for the express freight for small samples.
