KY-CB Ultra Thin Heat Shrink Tubing

Product Overview

KY-CB Ultra Thin Heat Shrink Tubing is engineered with an exceptionally thin wall structure, drastically reducing shrinkage temperature and time for efficient installation. Specifically designed for electronics, wires, and connectors that require rapid processing or are sensitive to prolonged heat exposure, this tubing ensures minimal interference with component dimensions while providing robust insulation and protection. Its ultra-thin profile makes it ideal for tight spaces and high-density wiring harnesses in audio equipment, consumer electronics, and precision devices.

Key Features

Low-Temperature Shrinkage: Starts contracting at 70°C and completes at 100°C, enabling quick deployment without damaging heat-sensitive components.

Ultra-Thin & Flexible: Extremely thin wall design (≤0.15mm) offers high flexibility for easy wrapping around complex shapes.

Flame Retardancy: Meets UL94 VW-1 standards (except transparent variants), ensuring safety in electrical applications.

Environmental Compliance: Halogen-free, RoHS 2.0 certified, and compliant with Sony’s green standards, suitable for eco-friendly and high-fidelity audio cable manufacturing.

Shrink Ratio: 2:1 with ≤±5% longitudinal shrinkage, ensuring consistent sealing and mechanical stability.

Technical Specifications

Temperature Range:

Working: -55°C to 125°C (transparent: -55°C to 105°C)

Shrinkage: Starts at 70°C, completes at 100°C

Electrical Rating: 300V, compliant with UL224 125°C standards.

Customization & Colors

Available in Black, White, Red, Blue, Yellow, Green, and Transparent. Offered in custom sizes with tailored cutting services to meet specific project requirements.

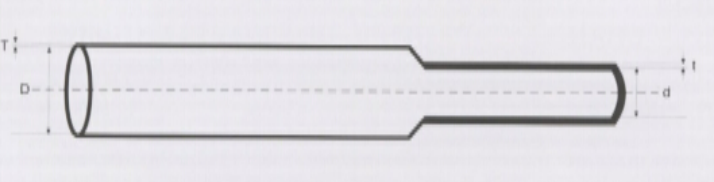

Product illustration

Average wall thickness = (wall thickness at the highest point + wall thickness at the lowest point) ÷ 2

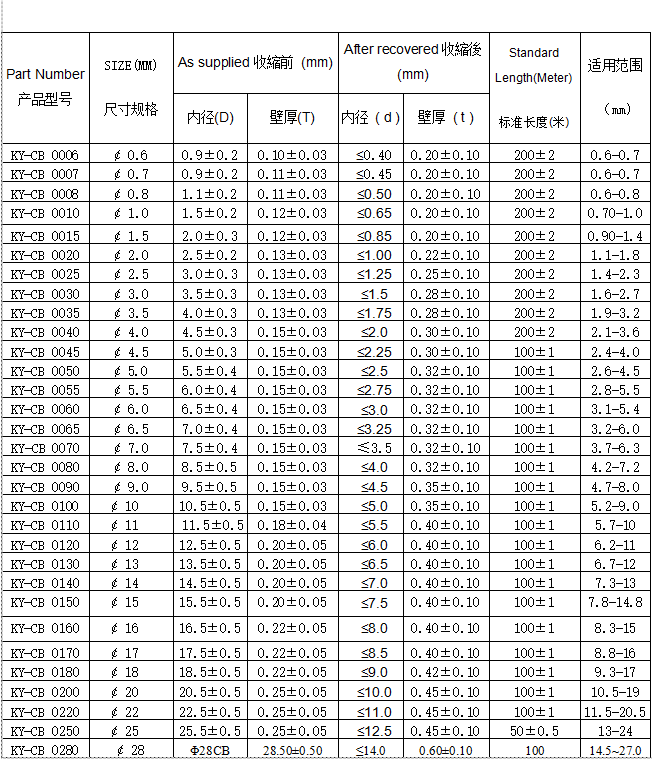

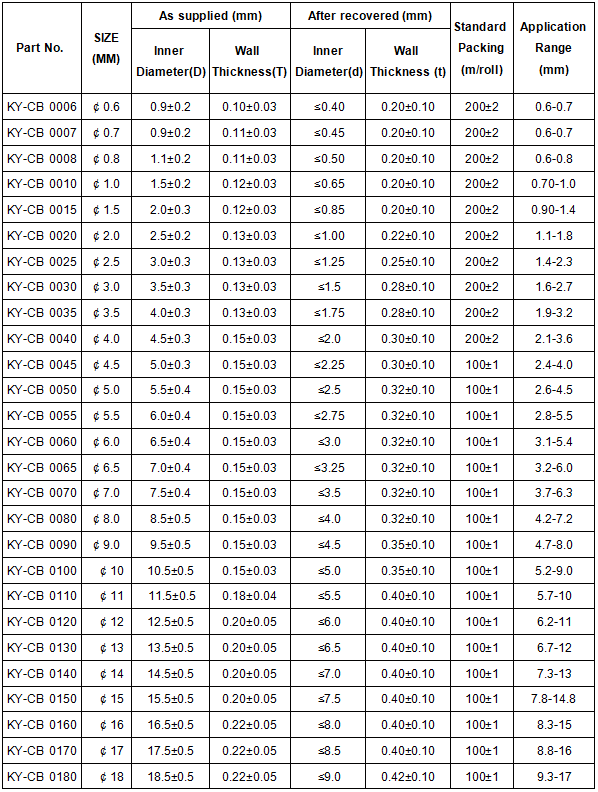

Product Specification

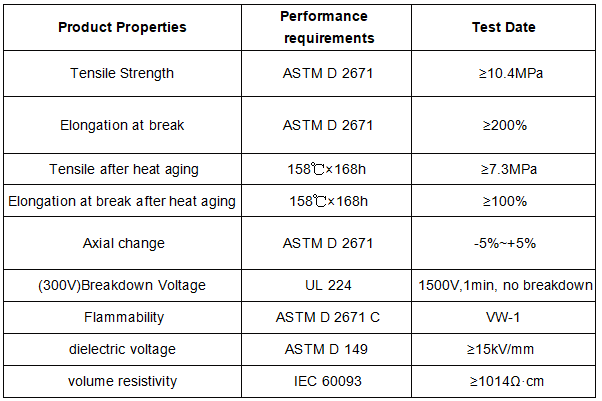

Technical performance
