Servo motor paper core loading machine

Servo motor paper core loading machine

6 month ago

18 0

NINGBO HAISHU TAIGANG MACHINERY CO.,LTD

 3 year year

Product details

The Automatic Paper Core Loading Machine with Servo Motor, with the precise control of the servo motor and the automatic core loading function, has become a key equipment for improving the efficiency and accuracy of paper core loading in tape production. It works in coordination with various tape processing machines. Inject efficient impetus into the production process.

In the Slitting stage of Tape production, Bopp Tape Slitting Machine, Special Tape Slitting Machine and conventional tape slitting Machine each perform their own duties. Handle the slitting work of BOPP material, special specifications and standardized tapes respectively. And before these slit tapes enter the Tape Rewinding Machine for winding, the paper cores need to be loaded first. The Automatic Paper Core Loading Machine with Servo Motor can accurately identify paper cores of different specifications. Through the stable drive of the servo motor, it automatically and accurately loads the paper cores onto the winding shaft, avoiding the possible deviations that may occur during manual loading. Ensure that the paper core fits perfectly with the winding shaft to provide a stable foundation for the tight winding of the subsequent Tape Rewinding Machine and reduce problems such as loose and offset tape winding caused by improper loading of the paper core.

When the Tape enters the Cutting stage after slitting and winding, the efficient operation of the Tape Cutting Machine and the Automatic Cutting Machine is also inseparable from the stable paper core loading in the early stage. The Paper Core loaded by the Automatic Paper Core Loading Machine with Servo Motor can ensure that the tape roll is subjected to uniform force during the cutting process, making the cutting smoother, the cut edge neater, and further improving the cutting accuracy and efficiency.

Whether cooperating with the Bopp Tape Slitting Machine to handle BOPP Tape or collaborating with the Special Tape Slitting Machine to deal with the production of special specification tapes, The Automatic Paper Core Loading Machine with Servo Motor can all demonstrate its automated and high-precision core loading capabilities. Seamlessly connect with equipment such as Tape Slitting Machine, Tape Cutting Machine, Tape winding Machine, Automatic Cutting Machine, etc., optimize the production process and reduce labor costs. Provide strong support for the efficient and stable production of adhesive tapes.

Servo Motor Peper Core Loading Machine

Specification	Measurement LWH	Source	N.W	Power
1300MM (other size can be customized)	13709001400 30003001100	4W 3P 380V/50HZ	400KG	2.3KW

Servo Motor Drive

Advantage:

1. High displacement accuracy, rapid response

2. Long service life, the lifespan is three times longer than that of the cylinder pulling machine.

3. Easy to operate, with data storage function,easy to change mold.

4.More energy-efficient than cylinder threading machines

Opreating system

Features a 7 " color touch screen

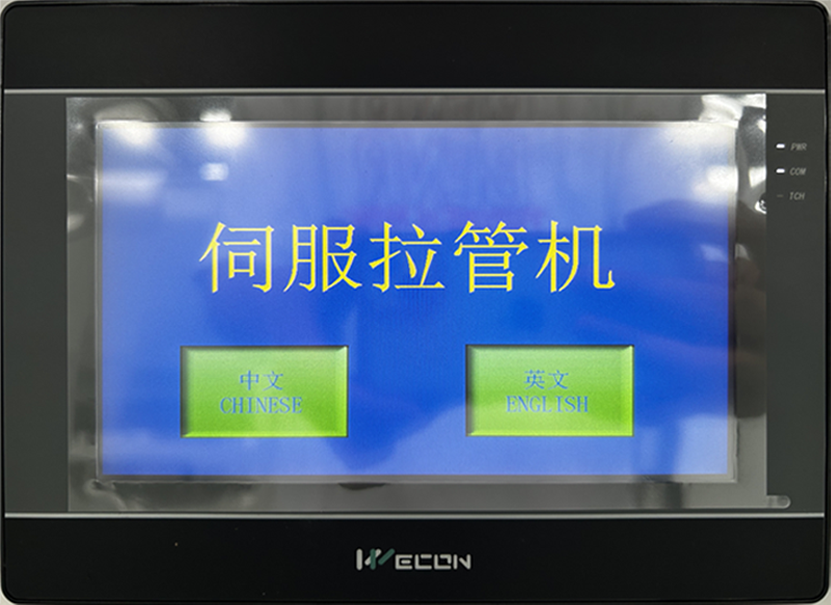

	1. Language Support Chinese and English

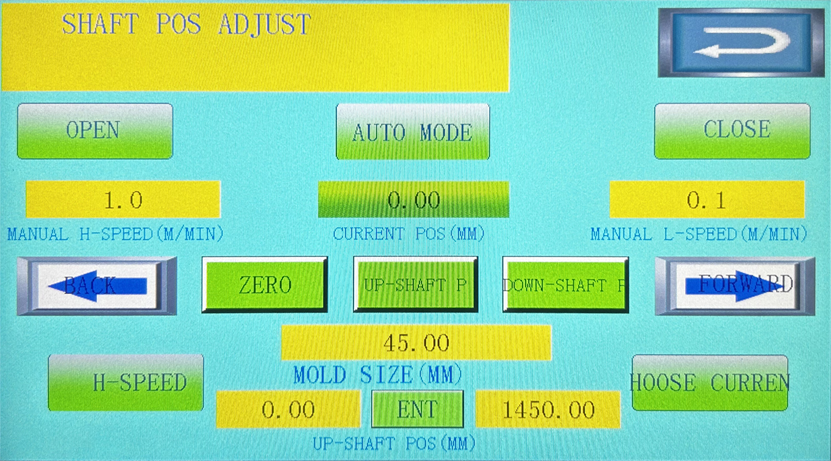

2. Intelligently adjust the movement position on the touch screen Compared with the adjusting screw limit, the touchscreen operation is more convenient and accurate, and it can also save the position data of the upper and lower shafts.

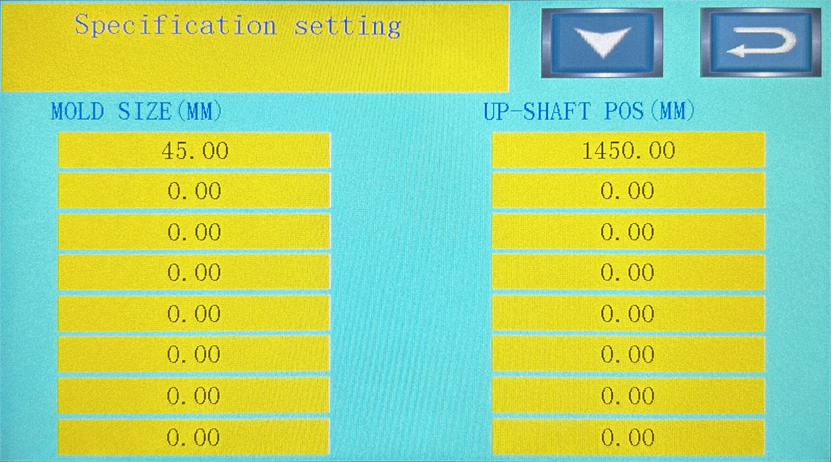

	3. Date saving The system can store 18 mold sizes。 Save data automatically when shaft position adjust completes. After the mold is replaced, the saved positioning can be used directly, dont need to adjust again.

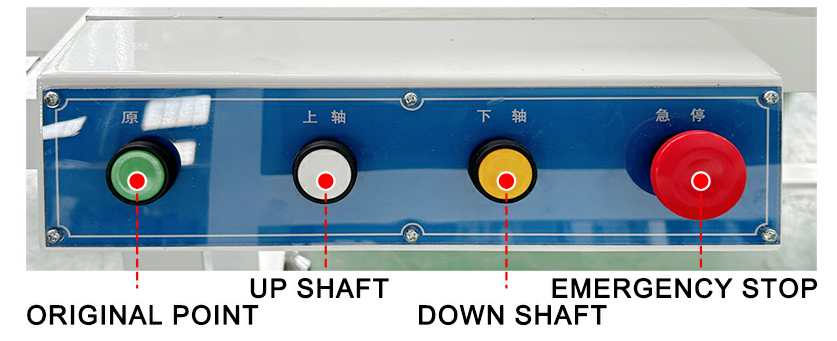

Control Panel

Compared with the old cylinder paper core loading machine,the operation is more convenient.
