I. Product Overview

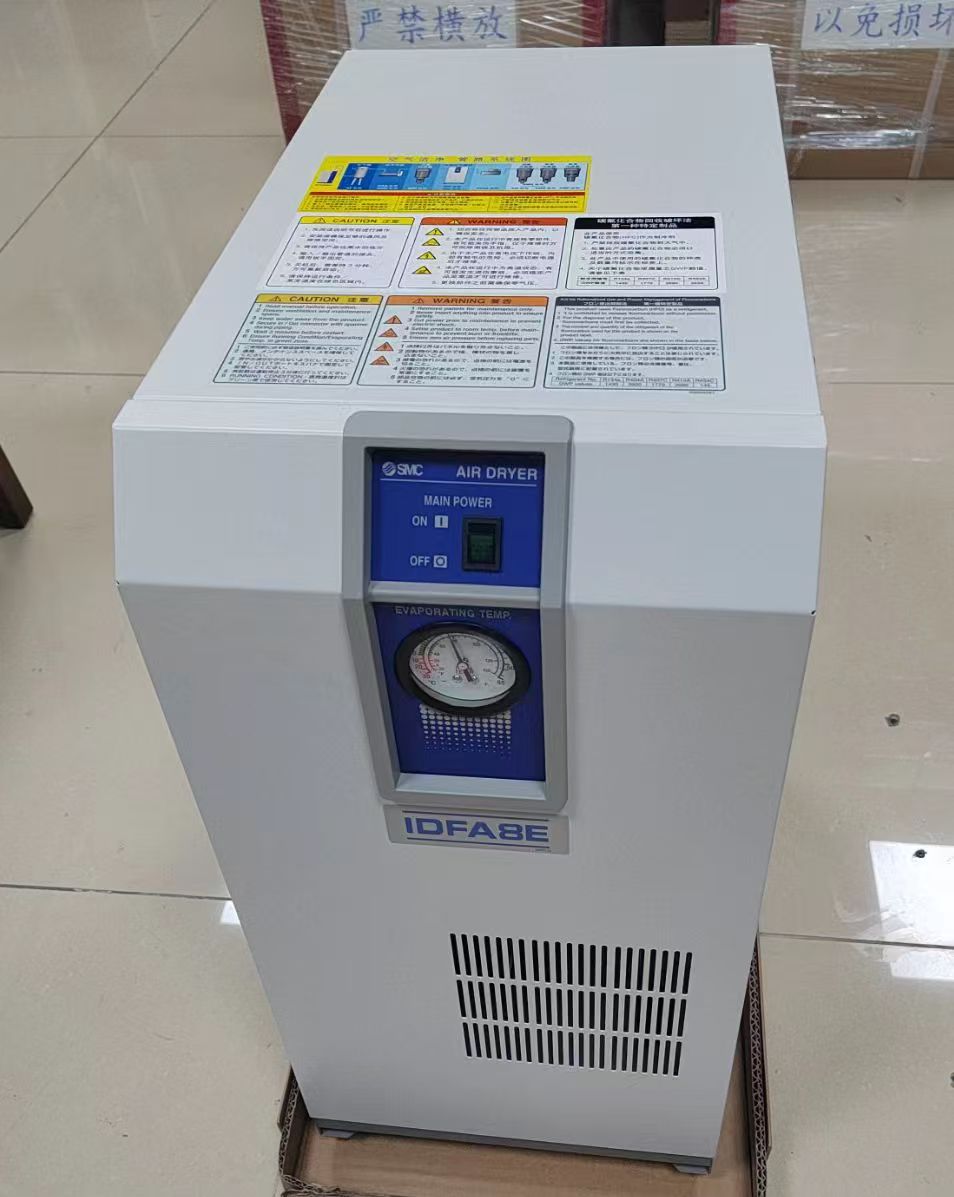

TheSMC IDFA8E-23is arefrigerated air dryermanufactured by SMC Corporation, primarily designed for moisture removal in compressed air systems. By utilizing refrigeration technology, it cools compressed air below its dew point to condense water vapor into liquid form, which is then discharged via a drainage system. This ensures the delivery of dry, clean compressed air, preventing condensation-related damage to pipelines, valves, and end-use equipment.

------

II. Key Functions and Features

1. Efficient Dew Point Control

• Cools compressed air to3~5°C(specific dew points vary by model), condensing water vapor into liquid for drainage.

• Outputs compressed air with apressure dew point (PDP)typically ranging from+2°C to +10°C(adjustable based on environment and configuration), meeting most industrial requirements.

2. Energy-Saving Design

• Integrates aheat exchangerto recover partial cold energy, reducing power consumption.

• Some models supportsmart temperature control(optional) for dynamic refrigeration power adjustment based on load.

3. Compact Structure

• Integrated design with a small footprint, facilitating installation at the end of compressed air systems.

• Modular structure for easy maintenance (e.g., filter replacement, drain valve maintenance).

4. High Reliability

• Core components (e.g., compressor, condenser) are sourced from renowned brands to ensure long-term stable operation.

• Equipped with anautomatic drain valve(electronic or float-type) to prevent water backflow.

------

III. Technical Specifications (Example: IDFA8E-23)

【表格】

Parameter Typical Value

Flow Capacity 8 m³/min (confirm model for exact flow)

Inlet Air Temperature Range 5~50°C

Inlet Air Pressure Range 0.7~1.0 MPa (G)

Pressure Dew Point +2°C to +10°C (standard models)

Power Supply 380V/50Hz (three-phase)

Noise Level ≤65 dB(A)

------

IV. Applications

1. Industrial Manufacturing

• Supplies dry air for pneumatic tools and automation equipment in automotive, electronics, and food industries.

2. Medical Equipment

• Provides dry air for laboratory instruments, ventilators, and other moisture-sensitive devices.

3. Other Fields

• Spray painting, printing, textiles, and other applications requiring high-quality compressed air.

------

V. Model Selection Guidelines

1. Flow Rate Matching

• Select a model based on the system's compressed air flow demand (e.g., IDFA8E-23 handles 8 m³/min).

2. Dew Point Requirements

• For lower dew points (e.g., below -20°C), opt for adesiccant dryer.

3. Environmental Adaptability

• Strengthen cooling design or select models with air/water-cooled options for high-temperature or high-humidity environments.

------

VI. Maintenance and Precautions

1. Regular Drainage

• Check the automatic drain valve for blockages to prevent water accumulation affecting drying efficiency.

2. Filter Replacement

• Replace pre-filters every 3~6 months (recommended) to prevent particulate ingress into the dryer.

3. Condenser Cleaning

• Regularly clean the condenser surface to maintain heat dissipation performance.
