JY-T260℃ Tefulong Tubing (Non-heat shrinkable)

Product Description:

Tefulong tubes are made of polytetrafluoroethylene (PTFE) and have the characteristics of high temperature resistance (260℃), corrosion resistance, high insulation, high strength, etc.

Product Application:

The products are used in important scientific and technological industries such as electronics, computers, electric heating, aerospace, military, and communications, such as micro transformers, special sensors, and artificial blood vessels.

Common characteristics:

Voltage level: JY-TL (150V), JY-TT (300V), JY-TS (600V)

Withstand voltage 150V-600V

Working temperature: -65℃~ +280℃

Melting point: 327℃

Flame retardancy: VW-1

Breakdown strength: 45KV/mm

Color: transparent, black.

Operating temperature: -200 degrees to 260 degrees

Easy to process: can be flanging

Aging resistance: can be exposed to ozone and sunlight for a long time without aging

High transparency: the lowest refractive index among all plastics, the flow of the medium in the cleaning pipe can be very intuitive

Corrosion resistance: can withstand all strong acids, strong oxidants, strong reducing agents and various organic solvents except molten alkali metals, fluorinated media and those above 300°

Uncommon characteristics:

Density: 2.16-2.20g/cm3

Volume resistance>1×1018

Surface resistance>2×1013

Arc resistance>165 seconds without leakage

Low water absorption: water absorption rate <0.1%

Minimum friction coefficient: minimum friction coefficient

Surface non-stickiness: known solid material heads cannot adhere to the surface

Non-flammability: will not burn in the air, meeting the requirements of places with strict fire protection

Non-toxicity: non-toxic and tasteless, physiologically inert, no harm to people and the environment

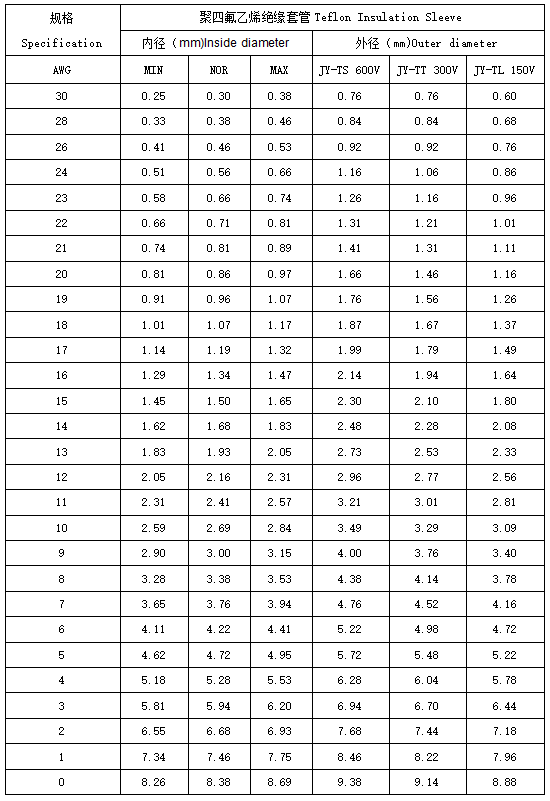

Product Specifications:

JY-T260℃ Tefulong Tubing (Non-heat shrinkable)

Product performance:

Packaging and delivery:

Our services:

FAQ:
