Product details

I. Equipment Function Description

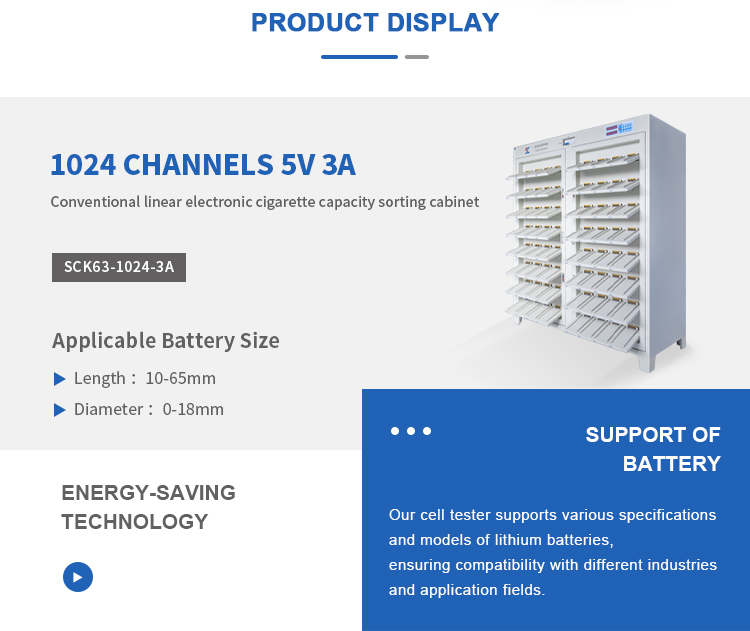

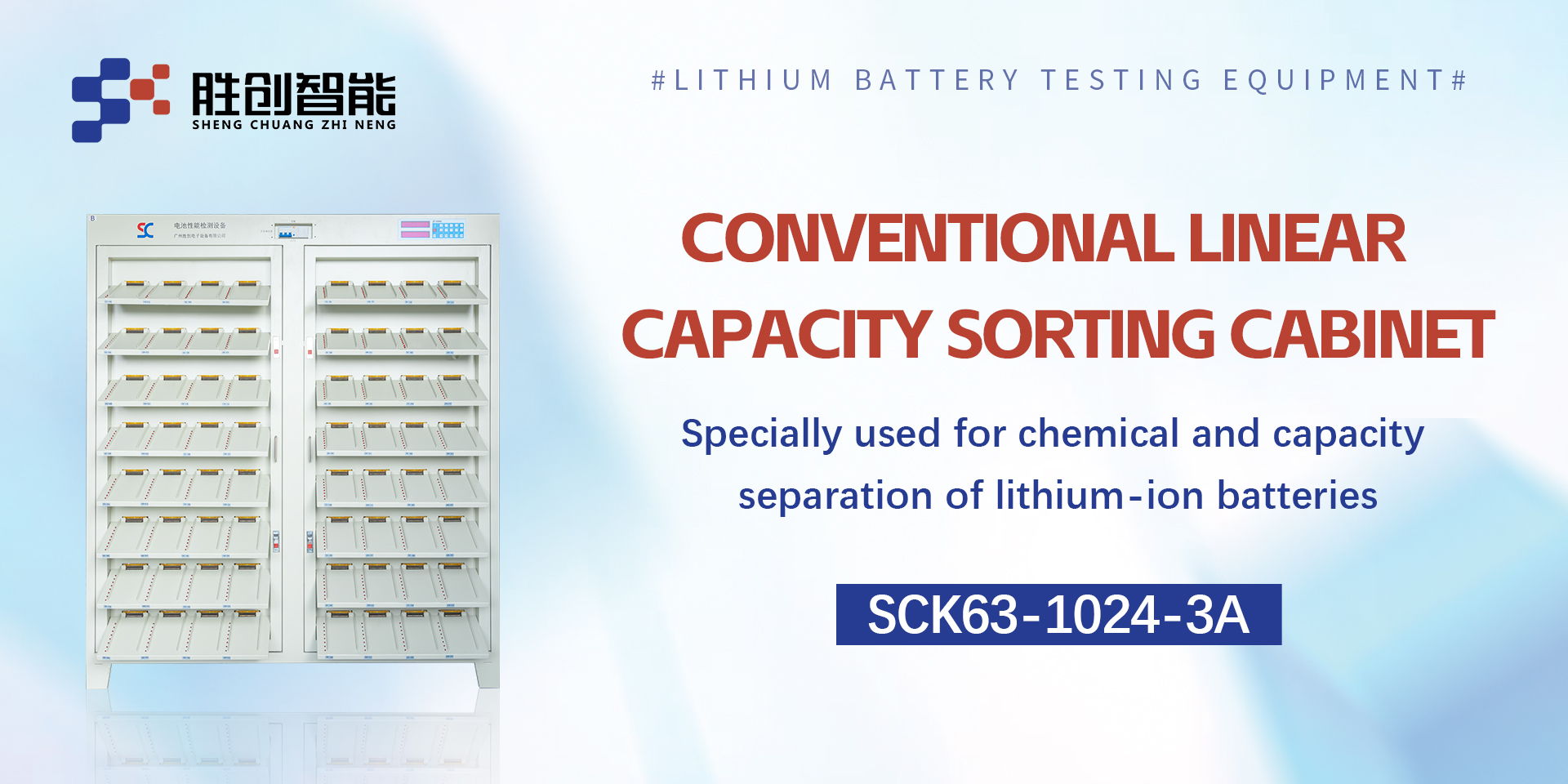

The SCK63 - 1024 - 3A conventional linear electronic cigarette grading cabinet is a piece of Equipment for Lithium-Ion Cell Formation specifically designed for electronic cigarette batteries, combining battery formation with grading, testing, and data analysis. The main function of the equipment is testing the voltage and capacity for each battery. It is able to do this via independent constant current and voltage source technology and providing a seamless CCCV transition in both charging and discharging modes in order to ensure battery performance without equipment current surges damaging batteries. The operation of the equipment is controlled by the STM32 single-chip microcomputer in conjunction with a computer, however, when necessary, it can still be operated manually through it is own independent keyboard operation. Each channel/battery was monitored to real-time with safety mechanisms that will power failure protect and alarm on abnormal shutdown. Four wire testing interfaces, which are modular, can be relied on for measurement to maintain accuracy and allow for reliable and simple maintenance procedures. The software system allows for processes setting up to 32 steps and up to 256 cycles, which will automatically generate all data reports and curves to meet the production side production grading/requirements and data traceability.

charging and discharging of lithium ion battery

II. Core Advantages

Independent Control for Precision and Stable Testing Results: Each channel has an independent constant current and voltage source that inhibits interference from other channels and consistent testing results.

Use Intelligent Software Overall Process Management: The software includes barcode scanning, data-point-break resolution, and multi-format report export features to optimize lithium battery testing equipment from the production end.

Robust Hardware Design: Modular design that uses field effect transistors which is appropriate for low voltage discharge applications and reduces maintenance burden as well.

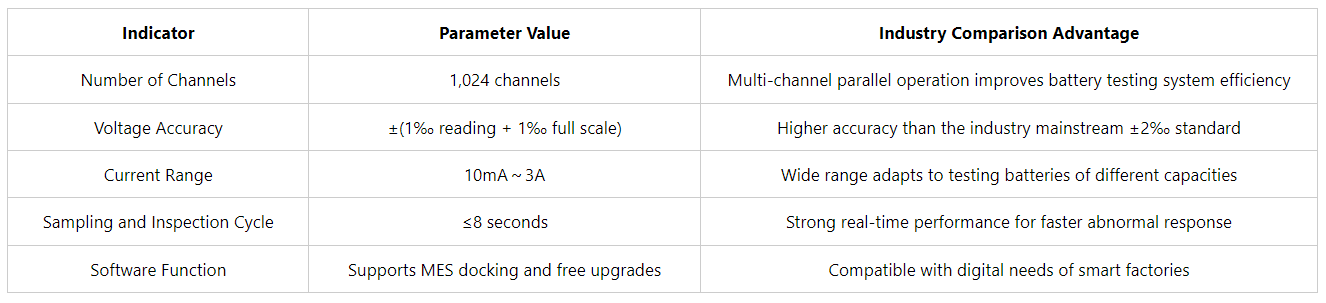

III. Technical Parameter

IV. Application Scenario Advantages

Electronic Cigarette Battery Production Lines: Battery size 0-18 mm diameter and length 10-65 mm is compatible with the equipment. The equipment can accommodate battery with special plug-in fixtures and the grading and sorting of large batches of batteries was rapid and faster than expected. Thus maximizing battery grading across the production lines with a high level of accuracy.

Battery R&D Laboratories: The equipment has process customization with 32 steps + it real-time chosen current data curve displays will allow R&D personnel to accurately adjust charging and discharging parameters and analyze performance characteristics specific to batteries, while speeding up new product development.

Large Scale Battery Production Workshops: The battery testing system supports up to 10 devices for online operation. By also incorporating UPS protection to protect power supply protection and low failure rate <1%, the battery test equipment can function and run under -10～40℃ in a stable operational state under high intensive production environments, to minimize losses for both corrected production downtimes and maintenance.
