50mm POM Rod Acetal Delrin Extruded Plastic Rod

50mm POM Rod Acetal Delrin Extruded Plastic Rod

3 week ago

2 0

Foshan Anheda New Material Co., Ltd

 3 month year

Product details

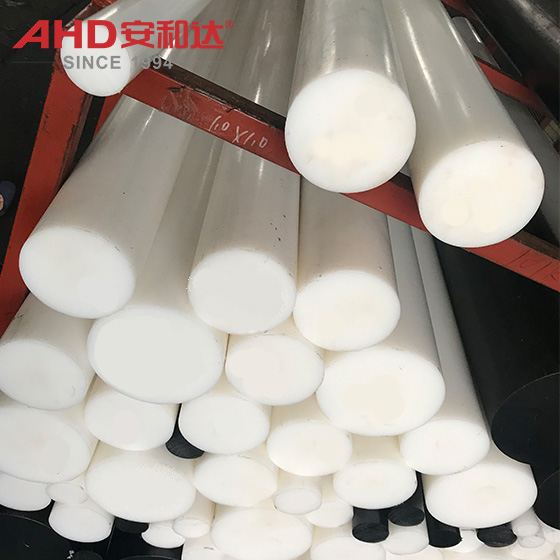

15mm 50mm POM Rod Acetal Delrin Extruded Plastic Rod

POM rod (Polyoxymethylene Rod) is a rod-shaped engineering plastic formed by extrusion or injection molding with polyoxymethylene (POM) as the base material. POM is a linear polymer polymerized by formaldehyde under the action of a catalyst. Its molecular chain is composed of repeated -CH₂-O- units and has a highly regular crystalline structure (crystallinity is as high as 75%-85%). According to the different polymerization methods, POM can be divided into homopolyoxymethylene (POM-H) and copolymer polyoxymethylene (POM-C):

Homopolyoxymethylene (POM-H): It is polymerized by a single formaldehyde monomer. There is no stable group at the end of the molecular chain. It shows higher rigidity, hardness and creep resistance, but slightly lower impact resistance;

Copolymer polyoxymethylene (POM-C): It is formed by copolymerization of trioxymethylene and a small amount of dioxolane. The end of the molecular chain contains a stable group (such as an ester bond). It has better impact resistance, but slightly inferior rigidity and creep resistance. POM rods combine the characteristics of high rigidity, low friction coefficient, excellent dimensional stability, etc., and are widely used in precision machinery, automotive parts, electronic and electrical fields, becoming an indispensable functional material in high-end equipment manufacturing.

50mm POM Rod Acetal Delrin Extruded Plastic Rod1

pom material

Properties	Standard	Unit	Test Data
Specific gravity	ISO 1183	g/cm3	1.41
Water absorption	ISO 62	%	0.2
Flammability	UL94		HB
Mechancial Properties
Yield stress	ISO 527	Mpa	68.5
Elongation at break	ISO 527	%	10
Tensile modulus of elasticity	ISO 527	Mpa	2890
Notched impact strength	ISO 179	kJ/m2	6.93
Flexural strength	ISO 178	Mpa	104
Flexural modulus	ISO 178	kJ/m2	3270
Shore hardness	ISO 868	scale D	88

Application areas

Precision machinery and transmission parts

(1) Gears and bearings

Plastic gears: POM rods are made into gears through injection molding or machining, and the noise is lower than that of metal gears;

Bearing bushings: High-rigidity POM rods are used for sliding bearing bushings, and the friction coefficient is low.

(2) Screws and fasteners

Ball screw nuts: POM rods are used for precision screw nuts, and creep resistance ensures long-term accuracy;

Bolts and nuts: Fasteners made of high-strength POM rods have better fatigue resistance than nylon.

Automobiles and transportation

(1) Automotive parts

Door lock system: POM rods are used for door lock gears, and wear resistance ensures 100,000 opening and closing times without failure;

Seat adjustment mechanism: High-rigidity POM rods are used for seat slides, and dimensional stability ensures long-term use without loosening.

(2) Rail transit and aviation

Subway door guide rails: POM rods are used for subway door sliding guide rails, and the friction and weather resistance meet the working conditions of -40℃ to +80℃;

UAV arm: Lightweight POM rods (30% GF reinforcement) are used for UAV structural parts.

Electronic and electrical appliances

(1) Electronic connectors and switches

Connector housing: POM rods are made into connector housings by injection molding;

Switch lever: Low friction POM rods are used for electrical switch levers, with an operating life of ≥100,000 times.

(2) Home appliance parts

Washing machine gearbox: POM rods are used for washing machine reduction gears, which are resistant to chemical corrosion;

Refrigerator rails: High-rigidity POM rods are used for refrigerator drawer rails, and the dimensional stability ensures long-term push and pull without jamming.

50mm POM Rod Acetal Delrin Extruded Plastic Rod

POM sheet and rod

Industrial and civil facilities

(1) Industrial valves and pump bodies

Valve bushings: POM rods are used for chemical valve bushings, which are resistant to chemical corrosion;

Water pump impellers: Lightweight POM rods (30% GF reinforced) are used for small water pump impellers.

(2) Civil tools and furniture

Tool handles: Anti-slip textured POM rods are used for screwdriver and wrench handles, which are comfortable to hold and wear-resistant;

Furniture connectors: High-rigidity POM rods are used for furniture hinges, and their dimensional stability ensures long-term opening and closing without loosening.
