Sowing motor

Sowing motor

3 week ago

0 0

Jinan Keya Electron Science And Technology Co., Ltd.

 6 year year

Product details

Poduct performance

Our DC servo seeding motor integrated machine is designed for the precision agriculture industry and is used for agricultural seeding operations (such as corn and soybeans). It perfectly fits all types of agricultural machinery equipment, including tractors, planters, and combine harvesters, and can be installed and used immediately without any additional modifications. The IP65 protection level is suitable for harsh field environments such as high temperatures, humidity, and dust. The product has passed strict CE certification and fully complies with the safety, health and environmental protection standards of the European Union, ensuring the compliance of your equipment.

Specification

Rated voltage	DC 12V
Rated current	5.8A
Rated torque	4N.m
Rated speed	63RPM
Contral single	CAN
Contral mode	Speed mode,Torque mode,Position mode
Protection level	IP65
Weight	0.85Kg
Protective properties	Dust-proof,Moisture-proof,Salt Spray-proof

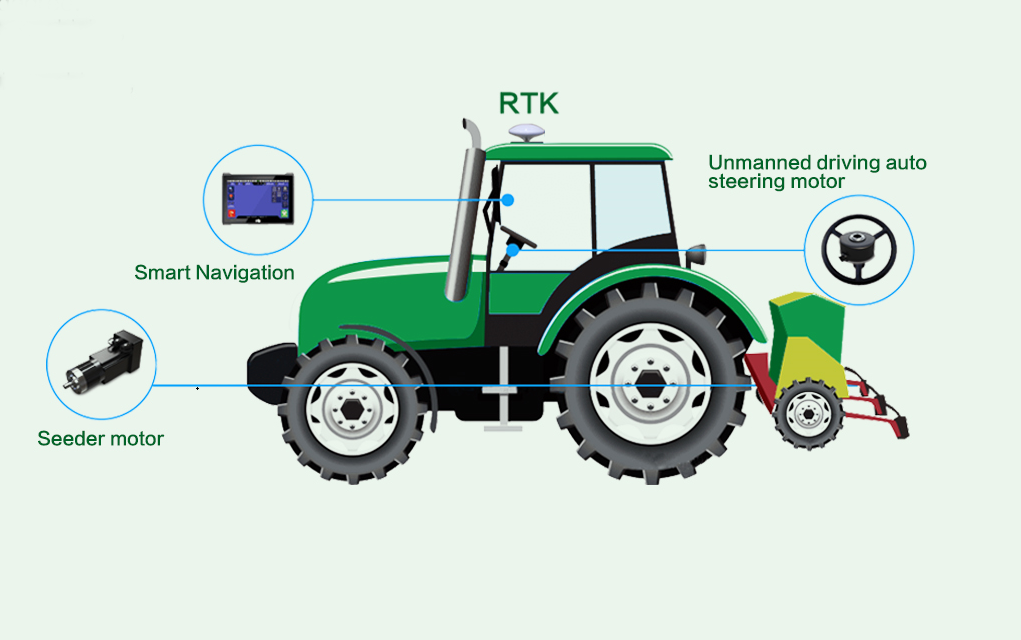

Details and Application

FAQ

1.Does the motor come with the corresponding Deutsch DT04-4P connector, or do we need to purchase it separately?

We can match the Deutsch DT04-4P connector.

2.Is it possible to extend the cable length, or is it possible to request a version with a custom cable?

It can be customized.

3.Is there an option for firmware update or remote parameter configuration (for example, via USB-CAN adapter)?

Yes

4.Is the integrated controller in SG-6010D already configured by default (such as CAN ID, baud rate, control mode)?

Or do we need to set it through software or serial commands (as required by other manufacturers)?

It is already set by default. If you need to modify it, do it through the software.

5.Do you offer output gearboxes with higher rotational speeds?

Yes, customization is available.

6.Is the USB to CAN adapter (for the Keya Tool software) included with the motor, or do you need to purchase it separately?

CAN card, type C port data cable, purchased separately, total 25 USD

7.What are the purposes of these two cables? Are all functions (power supply + CAN communication) included in a 4-pin Deutsch connector?

The motor has a positive and negative power supply connected by a 2-wire cable, and CANH and CANL are also connected by a 2-wire cable, which are finally connected to a Deutsch connector.

8.It is impossible to change "can msg" from the standard format to the extended format. Is there any command that can achieve this?

It cannot be modified. Even with a CAN card, it cannot be modified.
