Mobile banquet cars are usually modified from large single axle chassis or rear double axle or semi-trailer chassis:
This type of vehicle, also known as a mobile hotel vehicle, mobile banquet vehicle, mobile restaurant, mobile kitchen, etc., as the name suggests, is a door-to-door service vehicle that brings hotels, restaurants, and banquet halls to the vehicle. Compared to manually setting up tents, its convenience is more significant. The purpose of producing and manufacturing this mobile kitchen truck is to improve the quality of life and convenience, allowing mobile hotels to provide doorstep services!
This multi-functional mobile hotel car can also be used as a mobile convenience store, coffee shop, command center, cultural tourism lounge, reception room, summer camp outdoor restaurant, outdoor simple bathroom, mobile sales mall, and other purposes.
This mobile banquet car adopts Dongfeng chassis: equipped with Yunnei 292 horsepower engine, China VI emission standard, fast 8-speed gearbox, D916 red, four point suspension, airbag seats, 160L aluminum alloy fuel tank, camel battery Ruili brake valve, new regulations, air conditioning, electric lifting and turning. The overall dimensions of the chassis are 11710m, with a wheelbase of 1995+5055mm.
This 9.6-meter-long mobile hotel car has internal dimensions of 11 meters wide, 8.5 meters long, and 3.8 meters high, with an internal usable area of 93 square meters. It can accommodate 10-12 tables (the actual number of tables depends on their size), and can also accommodate approximately 120-140 people for dining.
We also considered the durability of the dining car, so we reinforced the carriage structure:

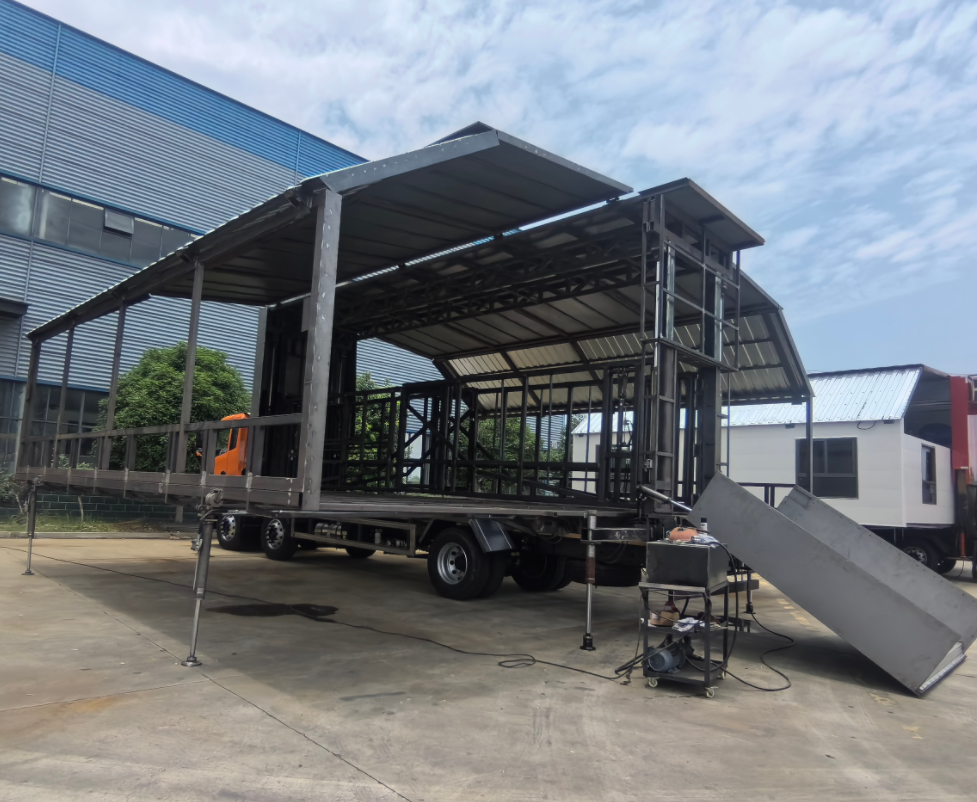

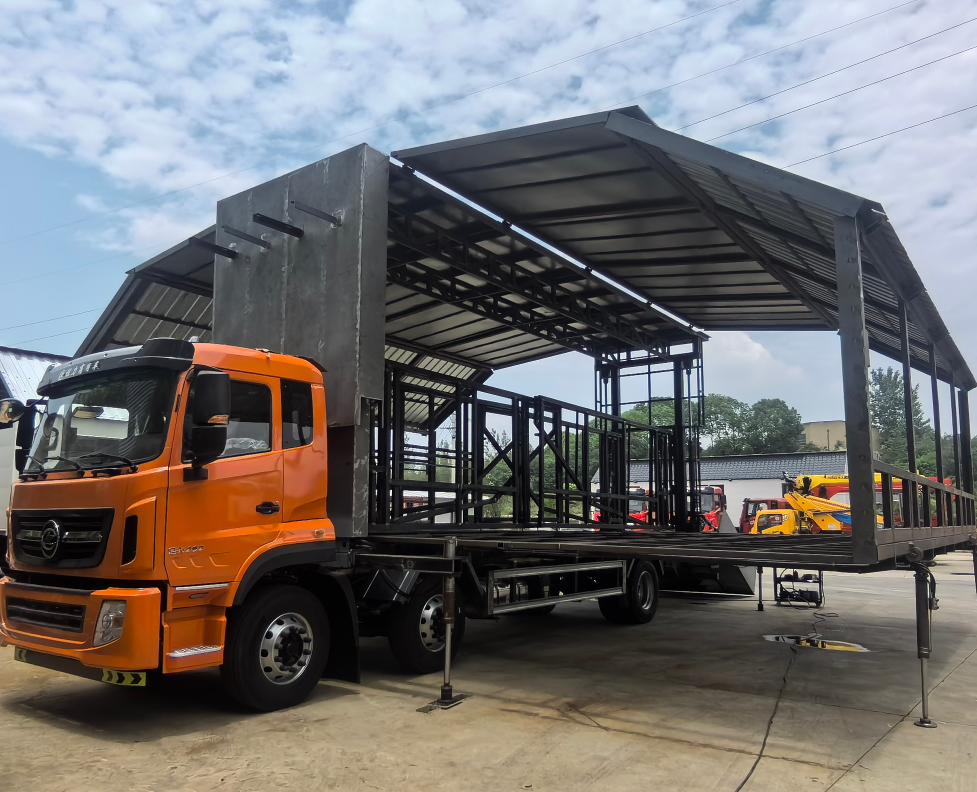

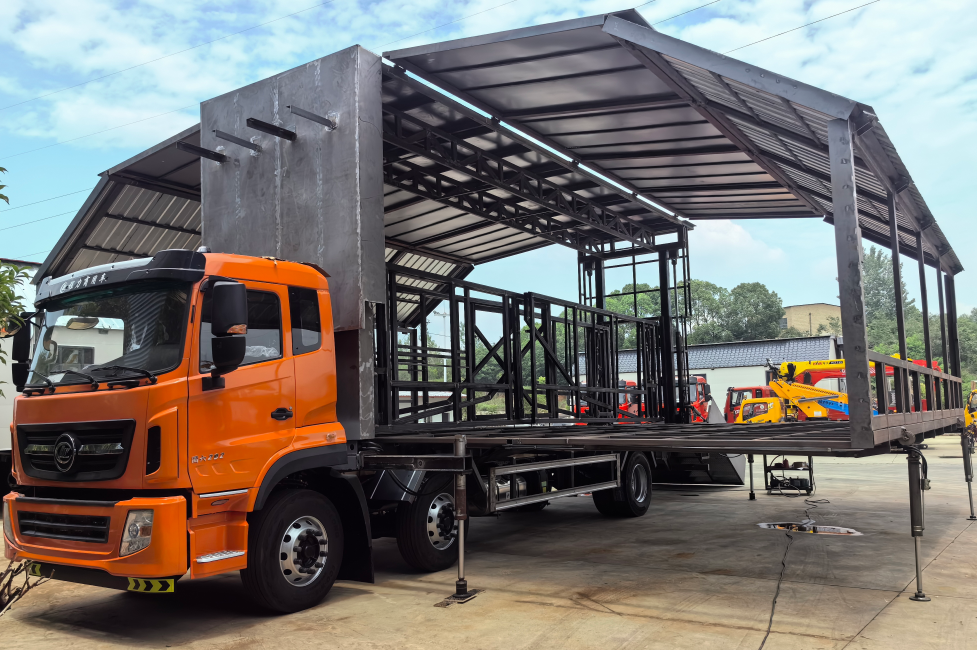

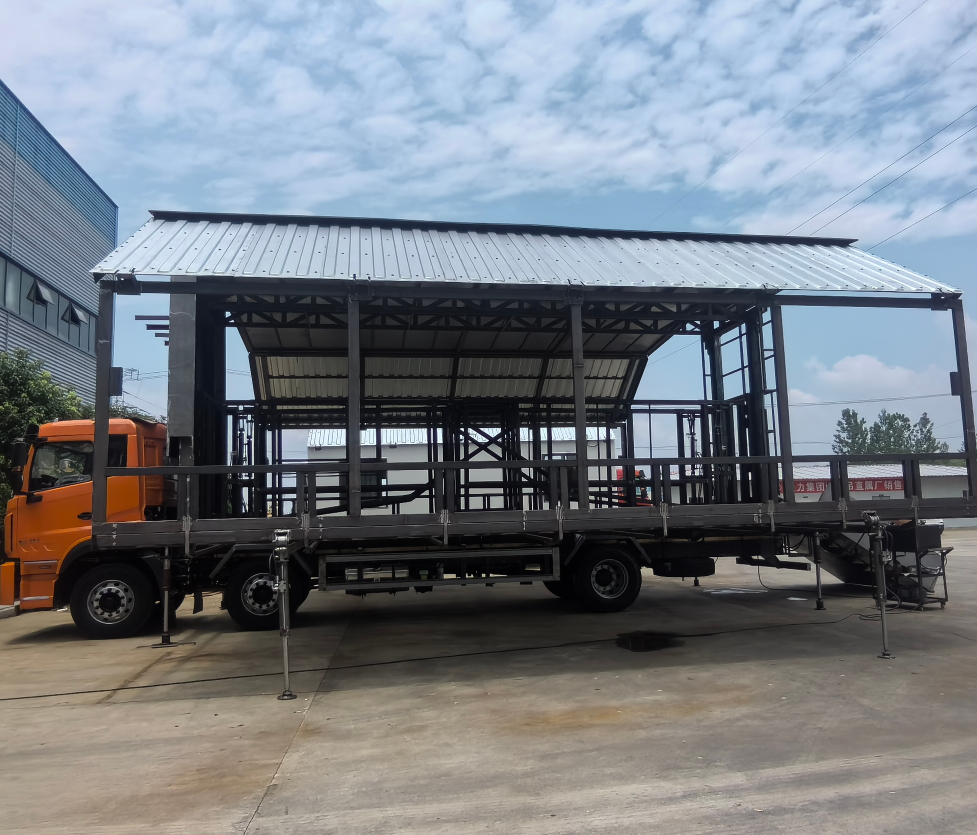

The box adopts a high-quality steel frame structure that meets national standards, consisting of Q235 carbon steel and Q345 manganese steel. The main beam adopts national standard I-beam/square tube/channel steel, with strong bearing capacity. The slide rail is made of track steel. The connecting components are made of manganese steel, and all shaft sleeves are machined and thickened to improve wear resistance. All connectors are manufactured using laser cutting technology.
At the same time, we also considered the thermal insulation performance of this mobile banquet car:
The interior of the carriage is insulated with 3-kilometer insulation cotton and polyurethane aluminum plate. The side panel is made of heat-insulating carved board, and the top gap is waterproof. The whole box is equipped with sealing strips, which have good insulation effect.
In terms of decorative style:
The interior of this mobile banquet car adopts a new Chinese style color blocking decoration style, which can also be selected from Chinese, European, American and other styles. LED lighting fixtures, quantified exterior door lighting, ambient lighting, dual row fans, internal colors can be matched according to customer requirements, and the floor is made of composite wood or optional stainless steel patterned panels.
Circuit:
The wire adopts national standard harness, 220V voltage (can be customized according to needs), standardized harness layout, with leakage protection, safe and reliable, and standard 30 meter external wiring.
Sound system:
By using well-known domestic brand ceiling mounted dual speakers, as well as a song ordering screen and two LED TVs, karaoke and phone screen mirroring can be achieved.
Operation method:
Optional wireless proportional remote control+button remote control operation, or manual operation, allowing one person to complete vehicle deployment and retraction.
air conditioner:
Gree/Midea, ceiling machine/air duct machine, 3 horsepower power supply with 220V voltage.
External color of the box:
Customizable freely (such as red, green, blue, engineering yellow, etc.)
Regarding the customization of this mobile dining cart:
Users can purchase the entire car, customize the export smart box, and carry their suitable second-hand truck directly on the tablet. We also offer customized expandable container enclosed kitchens.
