Industrial-Grade Distance Sensor Laser for Precision Measurement – 100m Red Laser

Overview

This industrial-grade distance sensor laser is engineered for high-accuracy distance measurement tasks in challenging industrial environments. With a maximum range of 100 meters and millimeter-level precision, it utilizes a visible red laser in the 610–690nm spectrum to ensure easy targeting and visual alignment. Housed in an IP67-rated enclosure, it offers exceptional protection against dust, moisture, and harsh weather.

default name

Working Principle

The sensor operates based on the phase-shift measurement principle, where the phase difference between the emitted and reflected laser signal is calculated to determine the exact distance to the target. This method allows for high-speed and high-precision readings even on surfaces with variable reflectivity.

Key Features

  • 610–690nm visible red laser for easy targeting

  • Measurement range up to 100 meters

  • Accuracy up to ±1mm

  • IP67-rated industrial housing for durability

  • Compact design with mounting flexibility

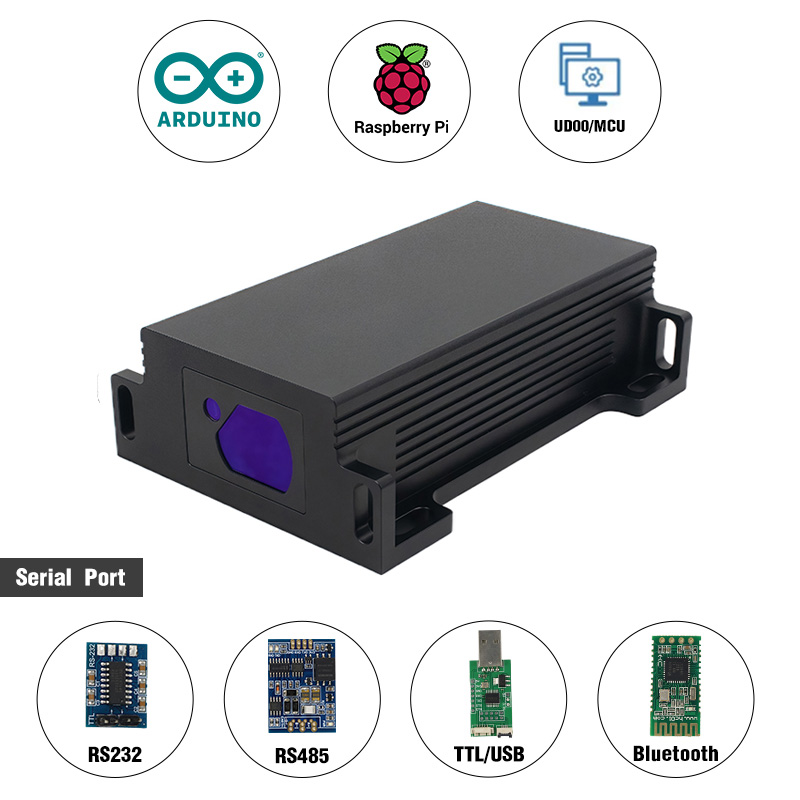

  • Supports TTL, RS232, RS485 communication (optional)

  • Low power consumption, suitable for embedded systems

Technical Specifications

Parameter Value
Measurement Principle Phase-Shift
Measuring Range 0.05 – 100 m
Accuracy ±1 mm
Laser Type Red, 610–690nm, Class II
Protection Level IP67
Interface Options TTL / RS232 / RS485
Operating Temperature -20°C to +60°C
Power Supply DC 9–24V
IP67-02

Application Scenarios

  • Automated production lines

  • Industrial robotics and AGVs

  • Smart warehouses and logistics

  • Elevator and crane positioning

  • Safety distance monitoring

IP67-03

Installation & Integration

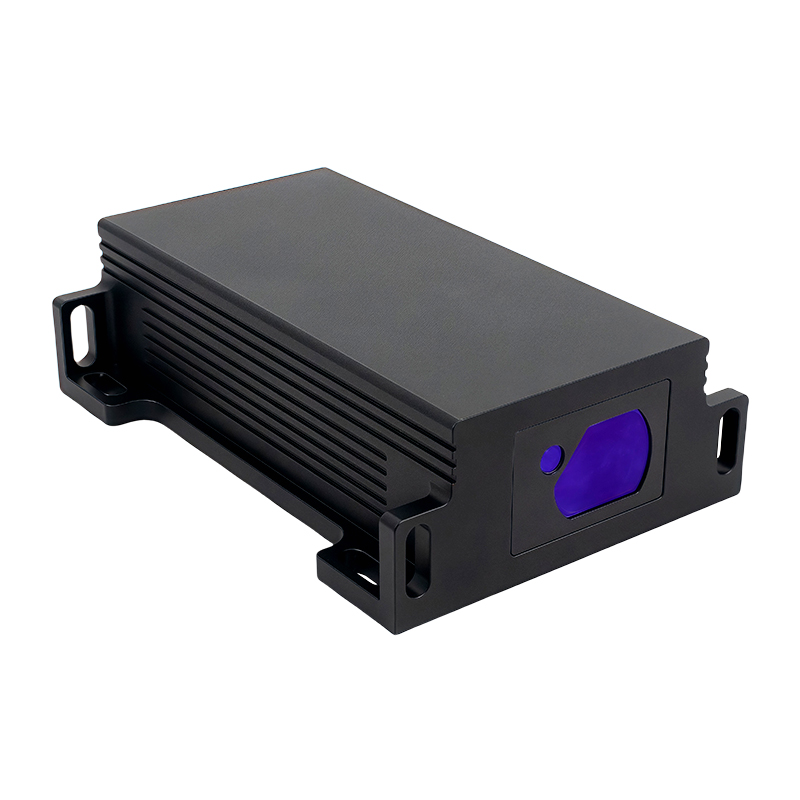

The sensor is designed for easy integration with PLCs, industrial PCs, and embedded systems. Its lightweight yet rugged enclosure includes pre-drilled mounting holes for rapid deployment. The output format and baud rate are configurable via serial commands.

FAQs

Q: Can it work outdoors?
A: Yes, its IP67 enclosure and visible laser make it suitable for both indoor and outdoor use.

Q: Does it support continuous measurement?
A: Yes, the sensor can output real-time distance data continuously or on command.

Get a Quote or Sample

For OEM integration or bulk purchase inquiries, contact us here. Our team will respond within 24 hours.
