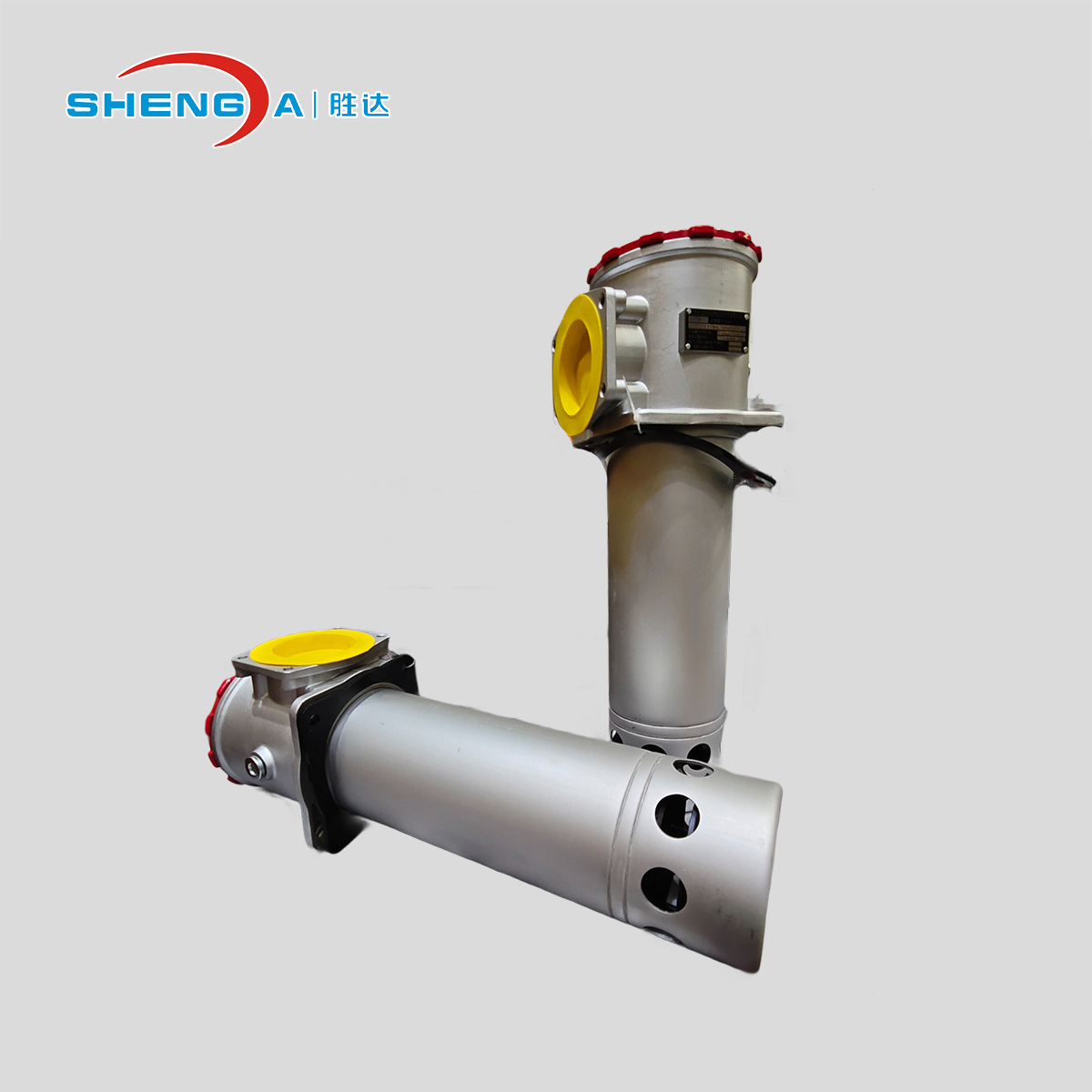

SD TF 400*20F Suction Filter

SD TF 400*20F Suction Filter

3 week ago

4 0

Xinxiang Shengda Filtration Technique Co., Ltd.

 7 year year

Product details

1. Product Overview

The TF series filters are high-performance hydraulic system filtration devices developed by Shengda Filtration. Widely used in industrial hydraulic systems, lubrication systems, and fluid purification, these filters effectively remove solid particles, colloidal substances, and contaminants from working media, ensuring cleanliness and protecting critical components to extend equipment lifespan.

2. Key Features

High-Performance Filtration

Utilizes deep-pleated filter elements and nanofiber media, offering filtration precision from 1μm to 100μm and achieving oil cleanliness levels above NAS 6.

Unique graded pore structure design balances deep filtration and high dirt-holding capacity, extending filter life by 30%.

Structure & Materials

Constructed from high-strength aluminum alloy or stainless steel, with lightweight and corrosion-resistant properties, suitable for extreme temperatures from -40°C to +120°C.

Modular filter element installation supports online replacement without system shutdown, improving maintenance efficiency by 50%.

Monitoring & Safety

Optional differential pressure indicators and clogging alarms provide real-time filter status monitoring and early clogging warnings.

Integrated bypass valve and check valve ensure dual protection against system overpressure and oil backflow, safeguarding equipment.

3. Applications

Construction Machinery: Hydraulic systems in excavators and cranes, preventing valve sticking and pump wear caused by oil contamination.

Metallurgical Equipment: Hydraulic circuits in continuous casters and rolling mills, adapting to high-temperature and high-load environments.

Marine Propulsion: Hydraulic systems in steering gears and anchor winches, meeting corrosion-resistance requirements in marine environments.

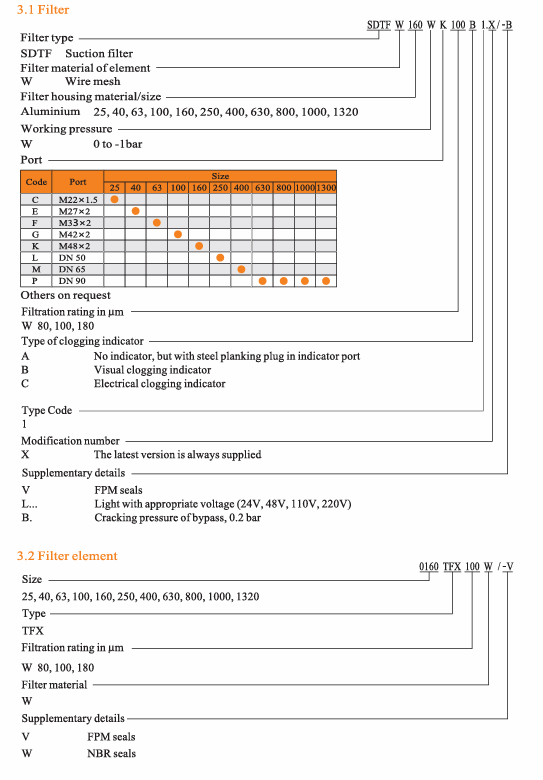

4. Technical Specifications
