Flat Key Shaft Hydraulic External Gear Pump1

3 week ago
2 0
Product details


hydraulic gear pump hydraulic pump gear pump hydraulic motor hydraulic power unit electric hydraulic pump piston pump hydraulic oil pump hydraulic piston pump small hydraulic pump hydraulic hand pump  hydraulic pump hydraulic piston vane pump  pump hydraulic vane pump 12 volt hydraulic pump gear oil pump hydraulic gear motor hydraulic gear pump manufacturers hydraulic parts external gear pump  pump hydraulic pump system hydraulic pump motor  hydraulic pumps high pressure hydraulic pump oil gear pump hydraulic water pump hydraulic pumps for sale air hydraulic pump hydraulic pump unit  pump electric over hydraulic pump internal gear pump

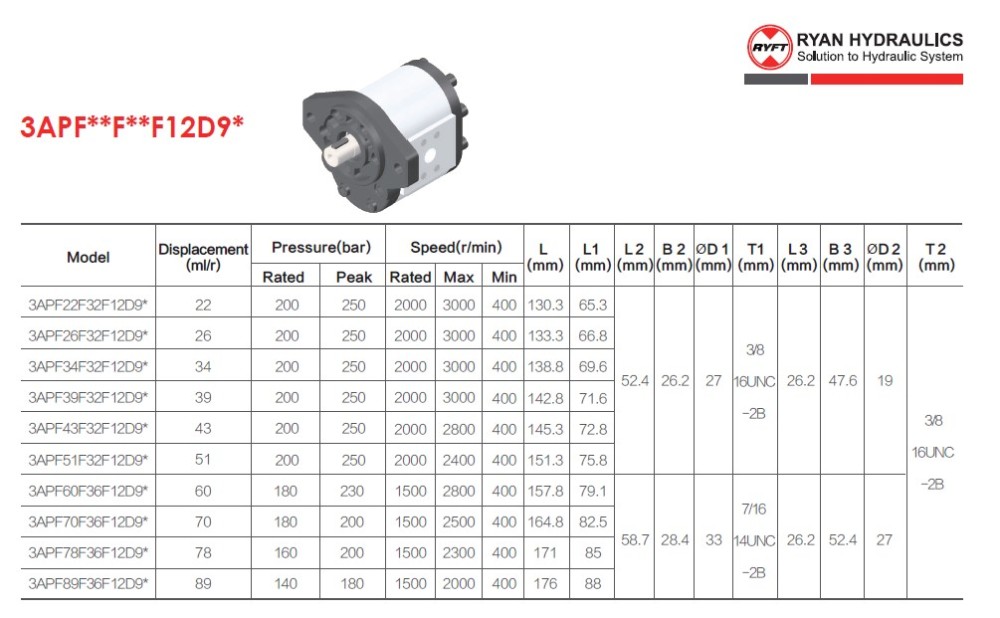

Gear Pump Series
0P, 1P, 1.5P, 2P, 2.5P, 2.8P, 3P, 3.5P, 4P
Pressure
Two pressure ratings, F and G
Efficiencies
Volumetric up to 98%, mechanical up to 93%
Mountings
Flanges, shaft ends and ports
Seals
Viton,buna and EPR
Integrate
All pumps can be odered with relief valve and check valve


1. Introduction


External gear pumps from Ryan Hydraulics have a floating bushing feature with automatic axial clearance compensation.


2. Recommendation


· Hydraulic Fluid: Specifically for hydraulic equipment, foamless, anticorrosive, noncorrosive.
(Recommend use: GB11118-94: L-HM46 or equate NFE-603/DIN51524Ⅱ-85)
· Minimum working speed: 0P=800RPM, 1P/3.5P/4P=600RPM, 1P~2.5P=500RPM, 3P=400RPM.
· Fluid speed: 1.6~5 ft/s (0.5~1.5m/s) in the inlet line,
6.5~20 ft/s (2~6m/s) in the delivery line,
5~10 ft/s (1.5~3m/s) in the return line.
· Fluid Cleanliness: By far largest number of premature failures of gear pumps are due to contamination, filtering with clogging indicating and alarms is recommended. The initial contamination of the fluid must not exceed class 10 NAS 1638.
