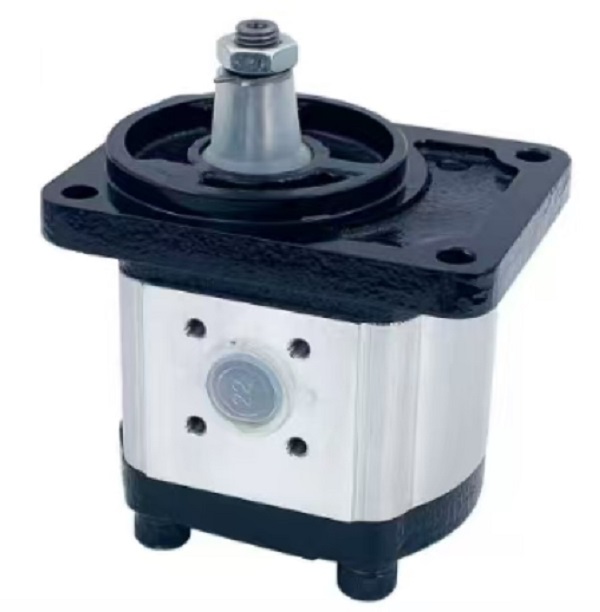

External Gear Pump AZPF Series: Overview and Key Features
TheAZPF Series External Gear Pumpis a high-performance hydraulic pump designed for industrial applications requiring reliable fluid transfer, precise pressure control, and efficient operation. Below is a detailed breakdown of its specifications, advantages, and typical use cases.
------
1. Product Overview
• Type: External Gear Pump (two meshing gears – one driving, one driven)
• Series: AZPF (manufacturer-specific designation, often indicating advanced features like pressure balancing or noise reduction)
• Application: Hydraulic systems in machinery (e.g., construction equipment, industrial presses, injection molding machines, agricultural machinery)
------
2. Key Features
A. Performance
• High Efficiency:
• External gear pumps typically achieve volumetric efficiencies of85–95%under normal operating conditions.
• The AZPF Series optimizes this further with precision-machined gears and minimal internal leakage.
• Pressure Rating:
• Standard models support pressures up to250–300 bar(depending on configuration).
• Some variants may offer higher ratings for specialized applications.
• Flow Rate:
• Adjustable displacement options (e.g., 5–100 cc/rev) to suit varying system demands.
B. Design Advantages
• Compact & Lightweight:
• Reduces installation space and weight in hydraulic systems.
• Low Noise Operation:
• Helical gears (if used) or optimized gear profiles reduce vibration and noise compared to standard spur gear pumps.
• Robust Construction:
• High-strength cast iron or aluminum housing for durability in harsh environments.
C. Maintenance & Reliability
• Long Service Life:
• Hardened gears and bearings minimize wear and extend operational intervals.
• Easy Repairability:
• Modular design allows for quick replacement of wear parts (e.g., seals, gears).
------
3. Technical Specifications (Example Range)
【表格】
Parameter Range
Displacement 5–100 cc/rev (customizable)
Max. Operating Pressure 250–300 bar (depending on model)
Max. Speed 3000–4000 RPM
Fluid Temperature Range -20°C to +120°C
Viscosity Range 10–400 cSt
Mounting Options SAE flange, ISO, or custom
Note: Specific values may vary by manufacturer and model. Always refer to the product datasheet.
------
4. Applications
The AZPF Series is ideal for:
• Mobile Machinery:
• Excavators, loaders, and agricultural tractors.
• Industrial Equipment:
• Plastic injection molding machines, presses, and material handling systems.
• Marine & Offshore:
• Hydraulic steering systems and deck machinery.
------
5. Comparison with Other Pump Types
【表格】
Feature External Gear Pump (AZPF) Internal Gear Pump Vane Pump
Efficiency at High Pressure Good Excellent Moderate
Noise Level Moderate (helical gears reduce noise) Quietest Moderate
Cost Lower Higher Moderate
Self-Priming Ability Limited Excellent Good
Key takeaway: The AZPF Series strikes a balance between cost, efficiency, and durability, making it suitable for mid-to-high-pressure applications where noise is not a critical concern.
------
6. Recommendations
• For Cost-Sensitive Applications: Choose the AZPF Series over internal gear or vane pumps if budget constraints exist and noise is acceptable.
• For High-Pressure Systems: Verify the pump’s pressure rating and consider reinforced seals for durability.
• For Maintenance-Heavy Environments: Opt for models with easily replaceable wear parts.
------
7. Conclusion
TheAZPF Series External Gear Pumpis a reliable, efficient, and cost-effective solution for hydraulic systems requiring moderate to high pressure and flow rates. Its robust design, adaptability to various fluids, and ease of maintenance make it a popular choice in industrial and mobile applications.
For specific technical details or customization options, consult the manufacturer’s documentation or contact a hydraulic systems expert.
