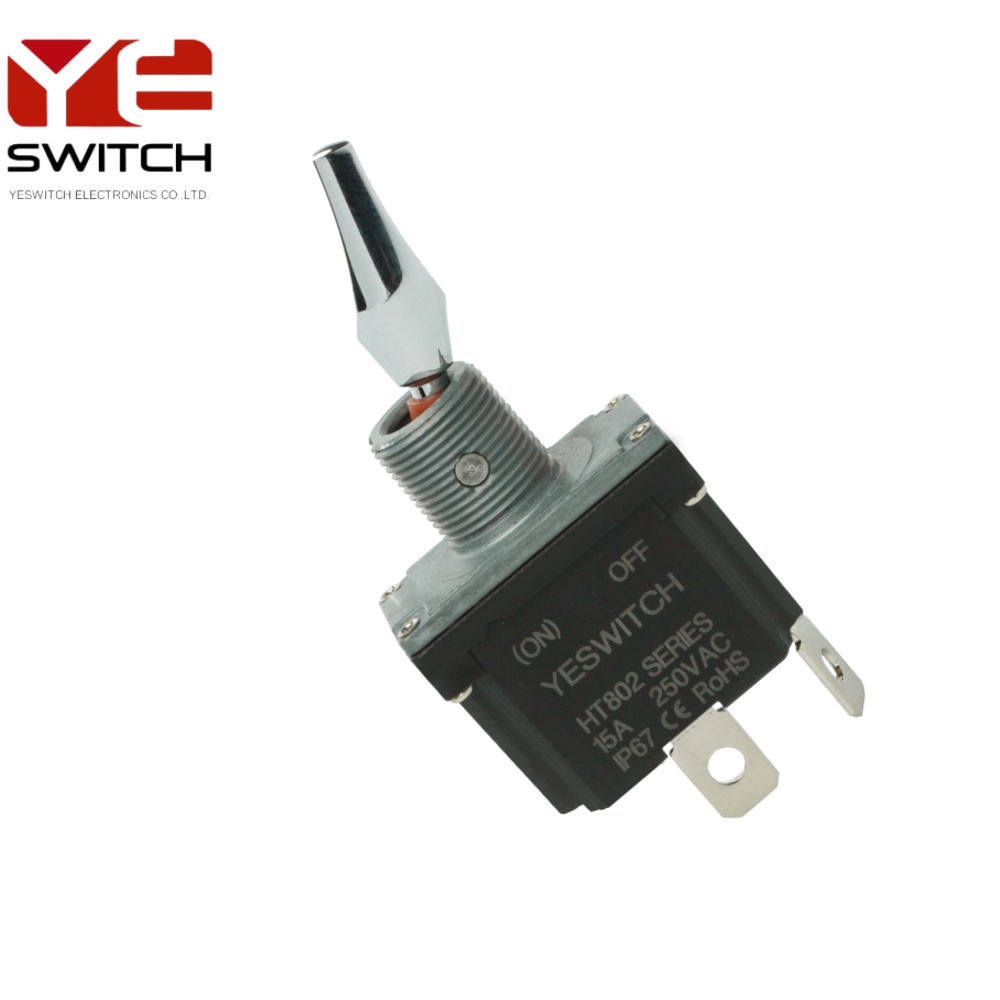

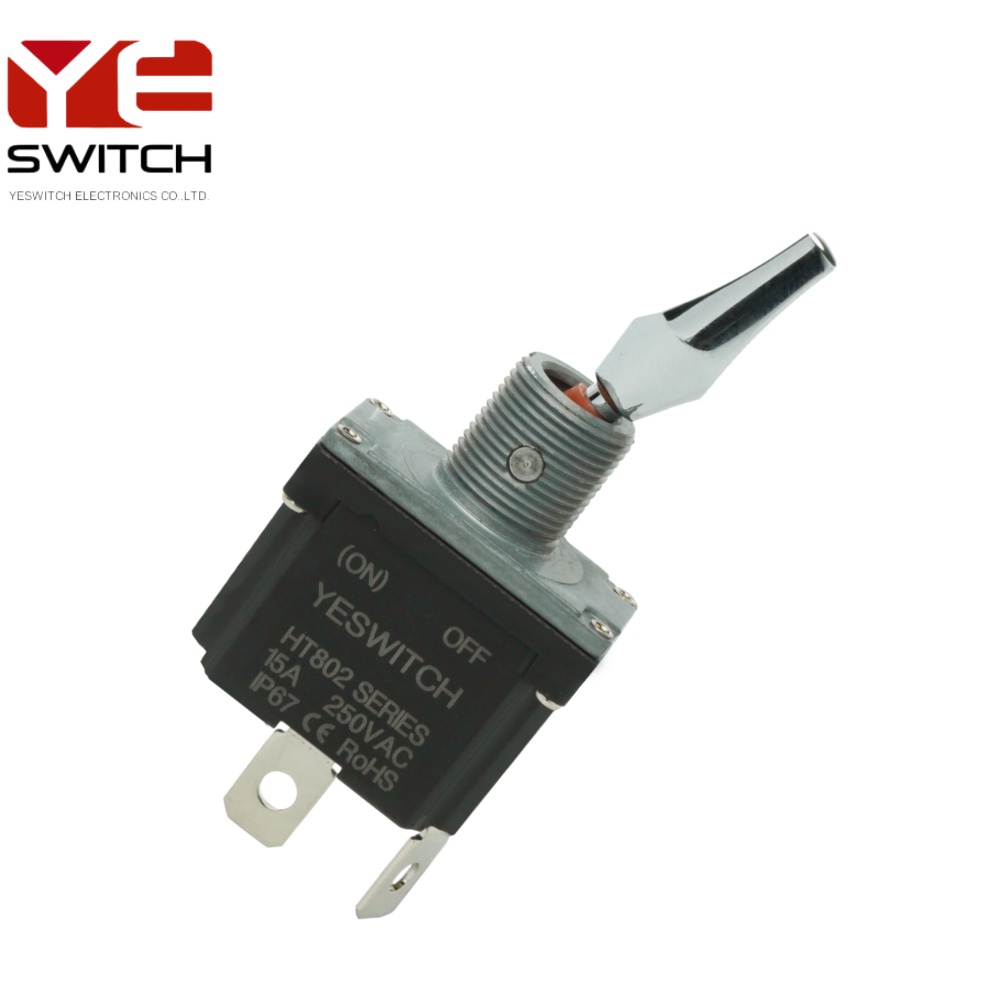

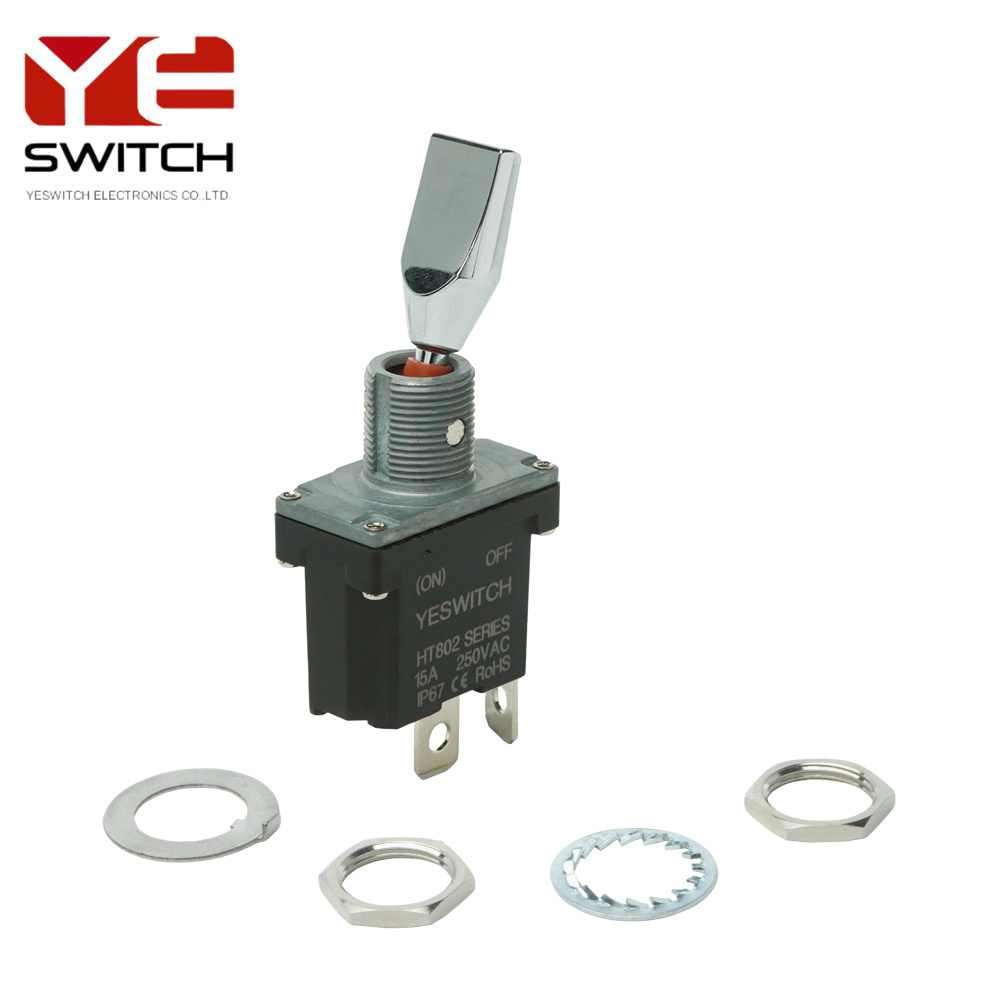

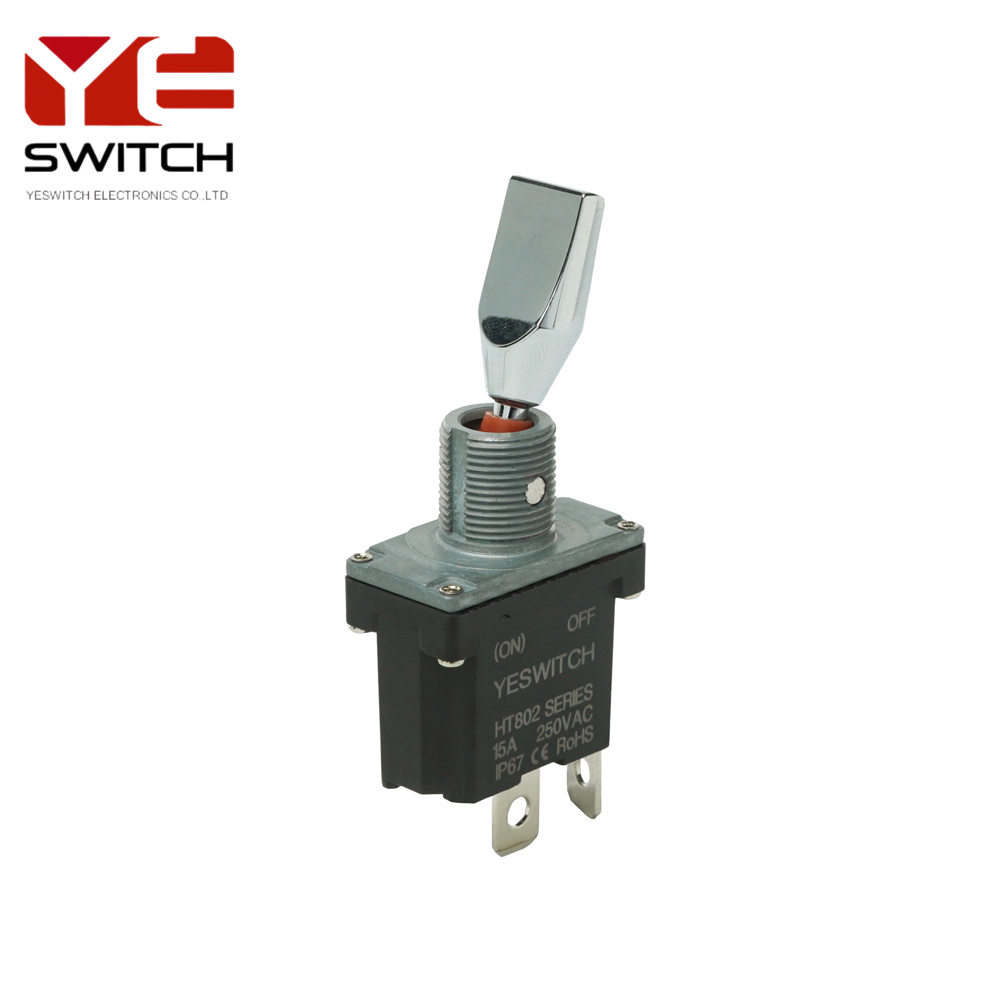

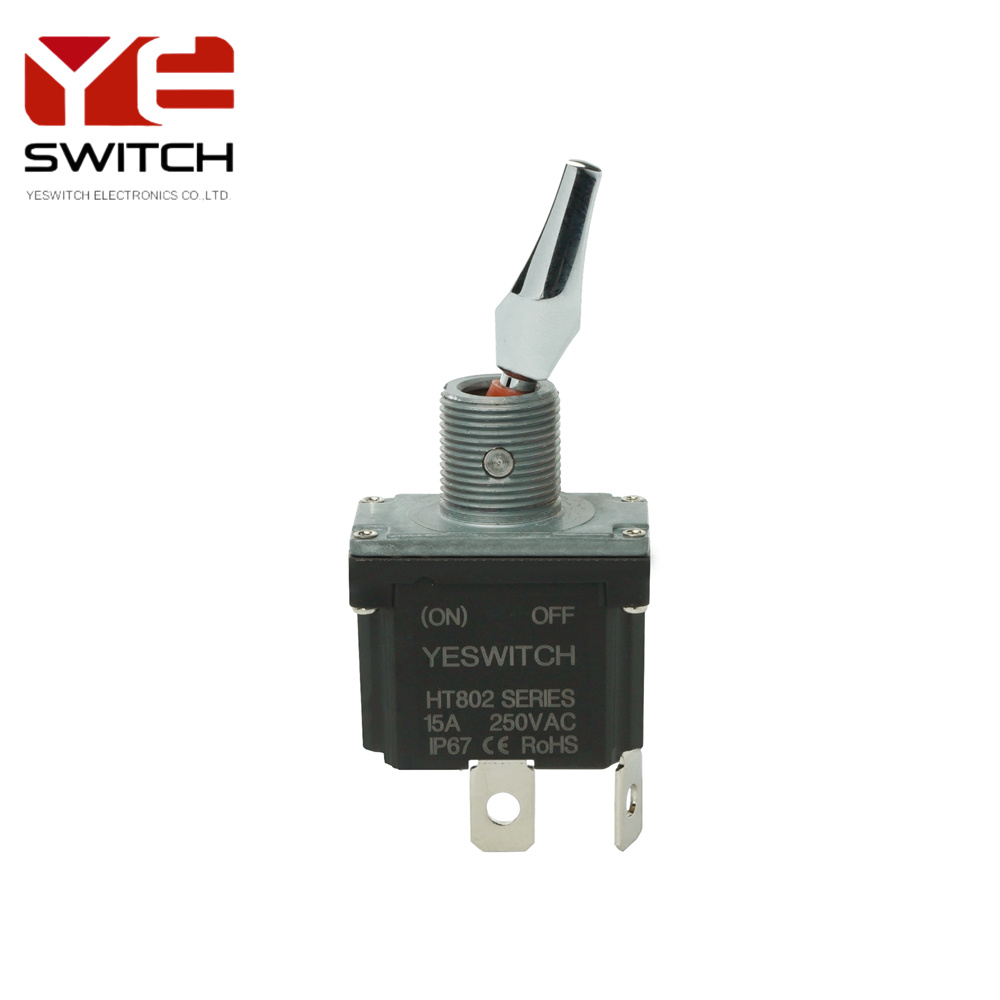

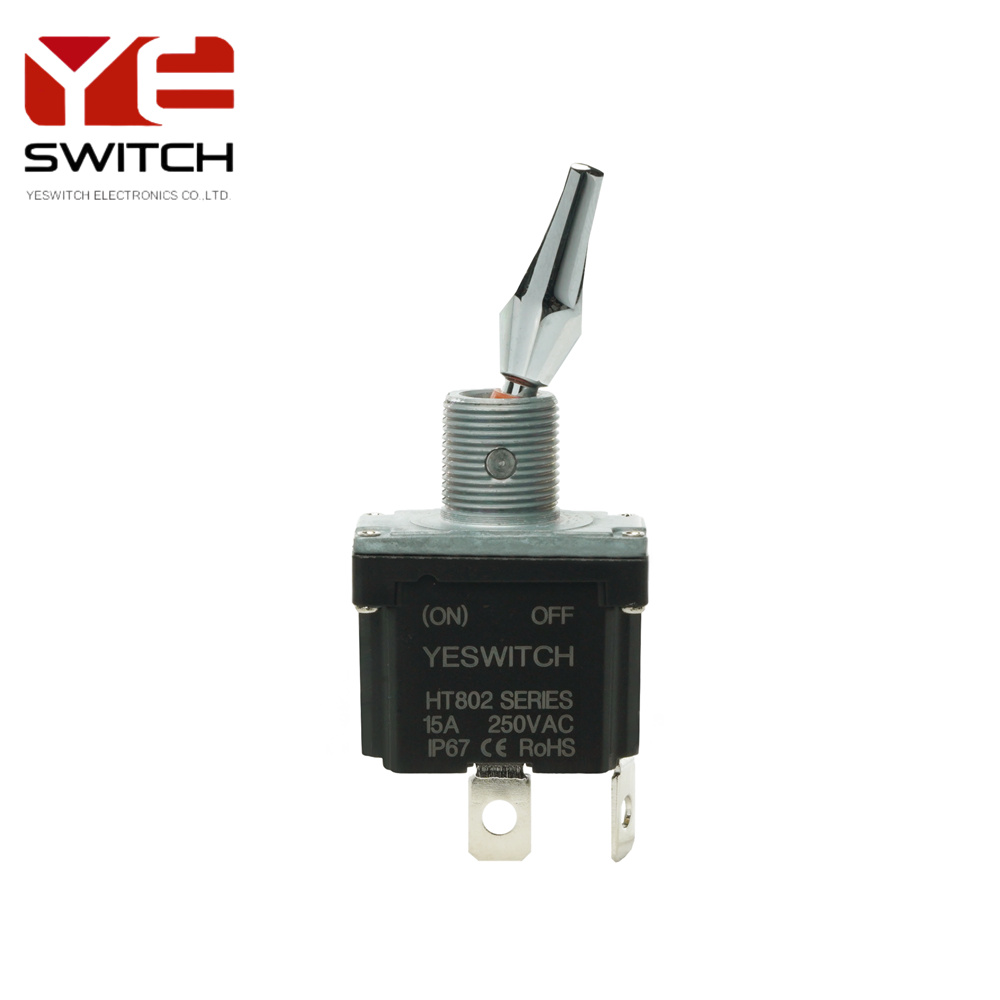

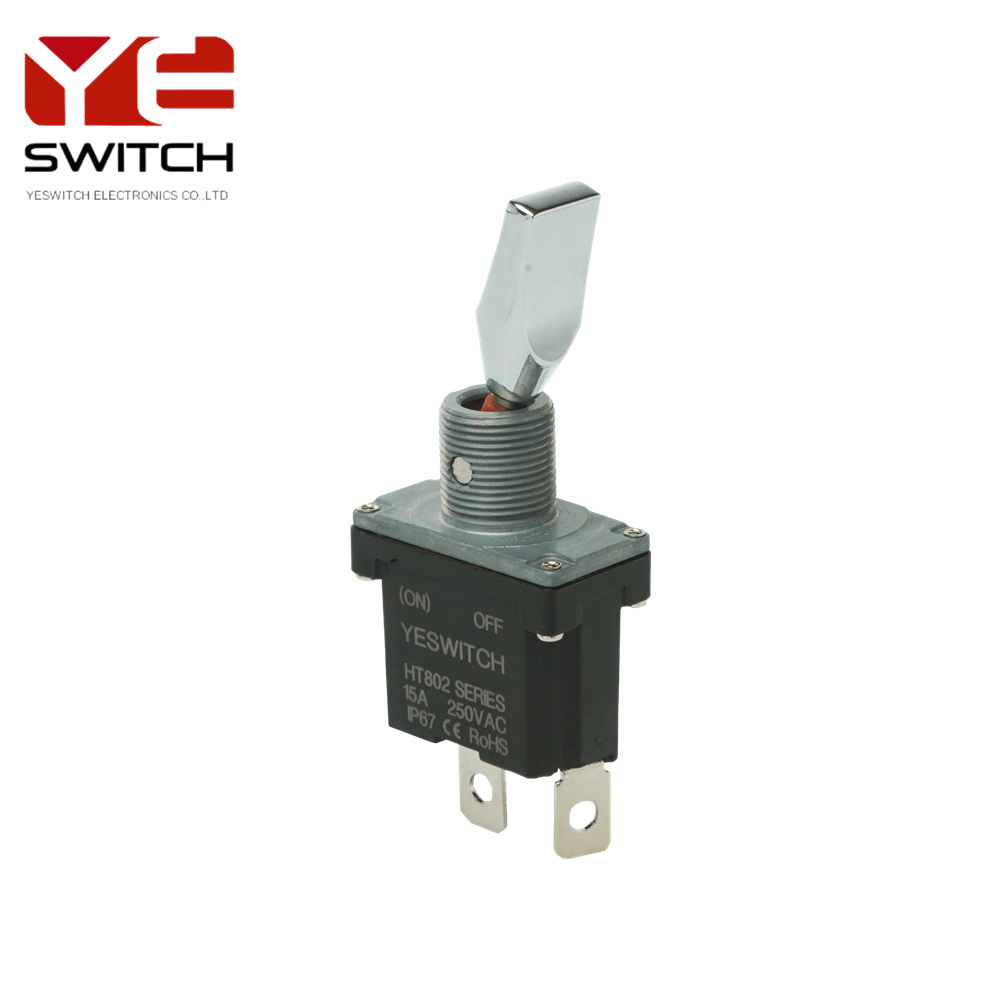

High Current IP68 Flat Metal Lever Toggle Switch with PC Terminals

YESWITCH HT802 series single-pole,single-throw (SPST) toggle switch features a robust (ON)-OFF reset function,designed for demanding applications such as aerial work platforms and other heavy-duty equipment.

Key Features:

High Current Rating:Engineered to handle substantial electrical loads reliably.

IP68 Protection:Fully dustproof and waterproof,ensuring optimal performance in harsh environments.

Flat Metal Operating Lever:Durable and ergonomic, providing a secure grip even with gloves.

PC Terminals:Enable quick and secure wire connections for easy installation.

Momentary Reset Function: (ON)-OFF action allows automatic return to OFF position when released.

Rugged Construction:Built to withstand vibrations, impacts, and outdoor conditions.

Applications:

Ideal for construction machinery,aerial work platforms (AWPs),marine equipment,and industrial controls where moisture resistance and high-current switching are critical.

SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

RATING

RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC

MATERIAL

ACTUATOR:COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
