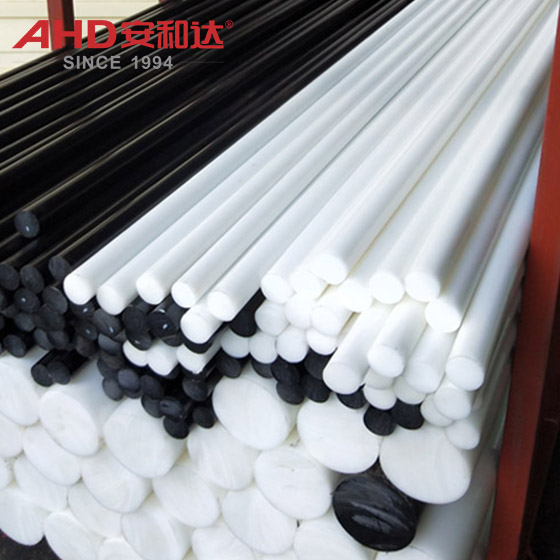

High Purity Polyoxymethylene POM Rods

POM rod (Polyoxymethylene Rod) is a thermoplastic engineering plastic rod made of polyoxymethylene (POM) resin through extrusion process. It is known as "Super Steel" because it has strength, rigidity, wear resistance and dimensional stability comparable to metal, while also having the lightweight and easy processing properties of plastic. It is widely used in the fields of automobiles, electronics, precision machinery, medical equipment, etc.

With its "super steel" characteristics (high strength, high rigidity, high wear resistance) and processing flexibility (easy to machine, no moisture absorption and deformation), POM rods have become the preferred material for metal replacement in the fields of precision machinery, automobiles, electronics, etc. Through formula modification (such as glass fiber reinforcement, flame retardant, antistatic) and processing technology optimization (such as precision turning, injection molding), it continues to expand high-end application scenarios. Driven by the demand for lightweight, high precision and long life, the market demand has grown steadily.

Since the industrial production of POM rods in the 1960s, they have been widely used in the automotive, electronics, and machinery manufacturing industries due to their high rigidity, low friction coefficient, excellent fatigue resistance, and dimensional stability. They have become a high-end material solution to replace metals (such as zinc alloys and aluminum alloys) and engineering plastics (such as PA6 and PBT).

polyoxymethylene rod

Data Sheet

Properties	Standard	Unit	Test Data
Specific gravity	ISO 1183	g/cm3	1.41
Water absorption	ISO 62	%	0.2
Flammability	UL94		HB
Mechancial Properties
Yield stress	ISO 527	Mpa	68.5
Elongation at break	ISO 527	%	10
Tensile modulus of elasticity	ISO 527	Mpa	2890
Notched impact strength	ISO 179	kJ/m2	6.93
Flexural strength	ISO 178	Mpa	104
Flexural modulus	ISO 178	kJ/m2	3270
Shore hardness	ISO 868	scale D	88

POM rod is a highly crystalline thermoplastic engineering plastic rod. Its base resin is polymerized from formaldehyde (homopolymer POM-H or copolymer POM-C), and is formed into a rod-shaped material by extrusion process:

Homopolymer (POM-H): higher crystallinity (>75%), better strength, rigidity, and heat resistance, but slightly worse impact resistance and processing fluidity;
Copolymer (POM-C): by introducing comonomers (such as ethylene oxide) to adjust the molecular chain structure, the impact resistance and processing fluidity are better, but the strength and heat resistance are slightly lower than homopolymer.

Typical morphological characteristics:

Diameter range: 8-500mm;

Length: standard length 1m;

Color: white, black.

Specific application areas and components:

Precision machinery and automobile manufacturing

Gears and bearings: automotive air conditioning compressor gears, power tool reduction gears, industrial sewing machine bearings

Bushings and bushings: engine valve tappet bushings, gearbox shift fork bushings

Connectors and fasteners: automotive door lock buckles, seat adjustment bolts

Electronics and home appliances

Switches and connectors: home appliance power switch levers, electronic connector pins

Gearbox components: printer/copier paper feed gears, sweeping robot drive gears

Structural parts: power tool handles, small appliance housing support frames

Industrial equipment and automation

Conveying system components: automated production line guide rails, conveyor belt rollers

Valve and pump body components: chemical pump seals, valve stems
