RD5000 hydraulic Inner check relief directional control valve
RD5000 series valves with middle-high pressure monoblock construction is developed based on North America technology.
-Inner check valve: The check valve inside the valve body is to insure the hydraulic oil will not be returned.
-Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
-Oil way: Parallel circuit, power beyond option
-Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.

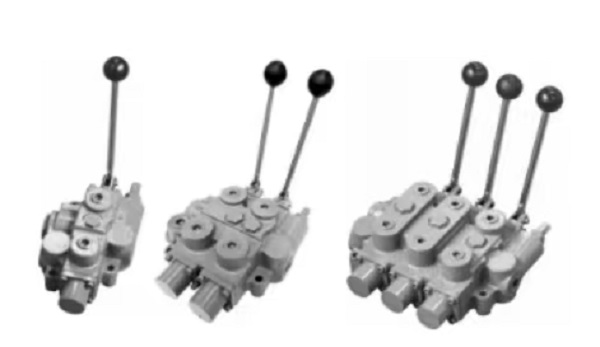

-Valve construction: monoblock construction,1-3 levers.
-Spool Function:O,Y, P,A.
-Option: Hydraulic lock is available to be added on A and B port.
-Available manual, pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.
RD5000 Series Monoblock Directional Control Valves
1. Product Overview
The RD5000 series monoblock directional control valves are advanced hydraulic components designed for precise control of flow direction in hydraulic systems. These valves integrate multiple functions into a single compact unit, eliminating the need for complex piping and reducing system complexity. The RD5000 series is widely used in industrial machinery, mobile equipment, and other hydraulic applications requiring reliable and efficient directional control.
2. Key Features
• Monoblock Design: Integrates multiple valve functions into a single block, reducing space requirements and installation complexity.
• High Flow Capacity: Designed to handle high flow rates, ensuring efficient operation in demanding hydraulic systems.
• Precise Control: Provides accurate and rapid directional control of hydraulic fluid, enhancing system performance and responsiveness.
• Durable Construction: Built with high-quality materials and advanced manufacturing processes to ensure long service life and minimal maintenance.
• Customizable Options: Available with various spool configurations, control methods, and port sizes to suit specific application requirements.
3. Working Principle
The RD5000 series monoblock directional control valves operate by using a spool mechanism to control the flow direction of hydraulic fluid. When the spool is moved by an external force (such as a manual lever, solenoid, or hydraulic pilot), it opens or closes ports within the valve body, directing the flow of hydraulic fluid to the desired actuator or circuit. This mechanism provides precise and rapid control over hydraulic flow direction, ensuring efficient system operation.
4. Technical Specifications
• Valve Type: Monoblock directional control valve, available in various spool configurations (e.g., 2-way, 3-way, 4-way).
• Flow Rate: Varies by model, with options available to suit different hydraulic system requirements (typically up to several hundred liters per minute).
• Working Pressure: Rated for high working pressures, depending on the specific model and application (often up to 350 bar or higher).
• Control Methods: Supports manual, solenoid, hydraulic pilot, or pneumatic control, depending on the model.
• Port Sizes: Available with various port sizes to match hydraulic system requirements (e.g., G1/2, G3/4, etc.).
5. Applications
• Industrial Machinery: Used in production lines, machine tools, and other industrial equipment for precise hydraulic control.
• Mobile Equipment: Applied in construction machinery, agricultural equipment, and other mobile hydraulic systems for improved control and efficiency.
• Aerospace and Defense: Used in hydraulic systems for aircraft, missiles, and other defense applications requiring reliable and precise directional control.
6. Advantages
• Compact and Lightweight: Monoblock design reduces space requirements and installation complexity, making it ideal for applications with limited space.
• High Efficiency: Provides precise and rapid directional control of hydraulic fluid, enhancing system performance and responsiveness.
• Durable and Reliable: Built with high-quality materials and advanced manufacturing processes to ensure long service life and minimal maintenance.
• Customizable: Offers various spool configurations, control methods, and port sizes to suit specific application requirements.
7. Selection and Installation Considerations
• System Requirements: When selecting an RD5000 series monoblock directional control valve, consider the specific requirements of your hydraulic system, including working pressure, flow rate, and control method.
• Valve Configuration: Choose the appropriate spool configuration (e.g., 2-way, 3-way, 4-way) based on your hydraulic system's needs.
• Control Method: Select the control method (manual, solenoid, hydraulic pilot, or pneumatic) that best suits your application's requirements.
• Installation Environment: Ensure that the installation environment meets the valve's specifications for temperature, humidity, and other environmental factors.
• Maintenance and Support: Consider the availability of spare parts, technical support, and maintenance services when selecting a valve supplier.
