stainless steel squatting toilet with lid

2 week ago
3 0
Product details

​​304 Stainless Steel Squat Toilet with Cover (Premium Anti-Slip Model)​

​​​Material​​: Food-grade 304 stainless steel (1.2mm thick sheet)
​​Surface Treatment​​: Brushed matte finish (anti-fingerprint/scuff-resistant)
​​Dimensions​​: 700×700×230mm (L×W×H)
​​Drain Hole Size​​: Standard Φ100/150mm (customizable)


​​I. Core Structural Features​

This ​​stainless steel squatting toilet​​ exemplifies industrial-grade hygiene and innovation. As a ​​customized stainless steel squatting toilet​​, it features a robust 304 stainless steel body (1.2mm thickness) with a brushed silver finish, ideal for high-traffic environments.

​​1. Innovative Flushing System​

  • ​​Dual Turbo Boost Design​​:
    Utilizes two interconnected turbine blades (main + auxiliary) to create a powerful vortex flush with 30% less water than conventional squat toilets.
  • ​​Flywheel Flow Guide Technology​​:
    Water is accelerated through guide plates and impacts a flywheel mechanism, forming a fan-shaped water curtain for full-coverage rinsing.
  • ​​Clutch Drain Valve​​:
    Push-button activation triggers a mechanical clutch for instant response (0.3s), eliminating spring valve jams.

​​2. Ergonomic Anti-Slip System​

  • ​​3D Grooved Anti-Slip Platform​​:
    Wave-patterned grooves (5mm depth) with anti-slip granules (friction coefficient ≥0.6) ensure stable footing even when wet.
  • ​​Balanced Buoyancy Support​​:
    Six-point suspension base evenly distributes weight to prevent deformation.

​​3. Multi-Functional Cover Design​

  • ​​Honeycomb Drain Cover​​:
    316 stainless steel perforated lid (8mm holes, 42% open area) blocks odors while allowing ventilation and rapid drainage.
  • ​​Silent Slow-Close Hinge​​:
    Hydraulic hinge enables 0-85° rotation with noise-free automatic closing.

​​II. Six Key Advantages​

  1. ​​Military-Grade Durability​​:
    One-piece pressed 304 stainless steel passes 72-hour salt spray tests, with a lifespan ≥15 years.

  2. ​​Effortless Cleaning​​:
    No hidden corners—stains rinse away instantly; compatible with pressure washers.

  3. ​​Tool-Free Installation​​:
    Includes universal adapter flange (fits 110/160mm pipes) for recessed or surface mounting.

  4. ​​Universal Adaptability​​:
    Operates reliably from -30°C Arctic conditions to coastal high-salinity environments, ideal for:

    • Camping sites/mobile toilets
    • Basements/areas without drainage
    • Chemical/food processing plants
  5. ​​Enhanced Safety​​:
    Cover doubles as a temporary shelf (50kg capacity); fully rolled edges (R≥3mm) prevent cuts.

  6. ​​Customization Options​​:
    Laser engraving, hole pattern customization (round/slot), and size adjustments (±50mm).


​​III. Technical Specifications​

Parameter Value Test Standard
Corrosion Resistance No rust after 500h neutral salt spray GB/T 10125
Drainage Rate ≥1.8L/s (0.2MPa water pressure) GB/T 6952
Cover Lifespan ≥50,000 open/close cycles QB/T 3564
Operating Temp. -30℃~80℃ ASTM D543

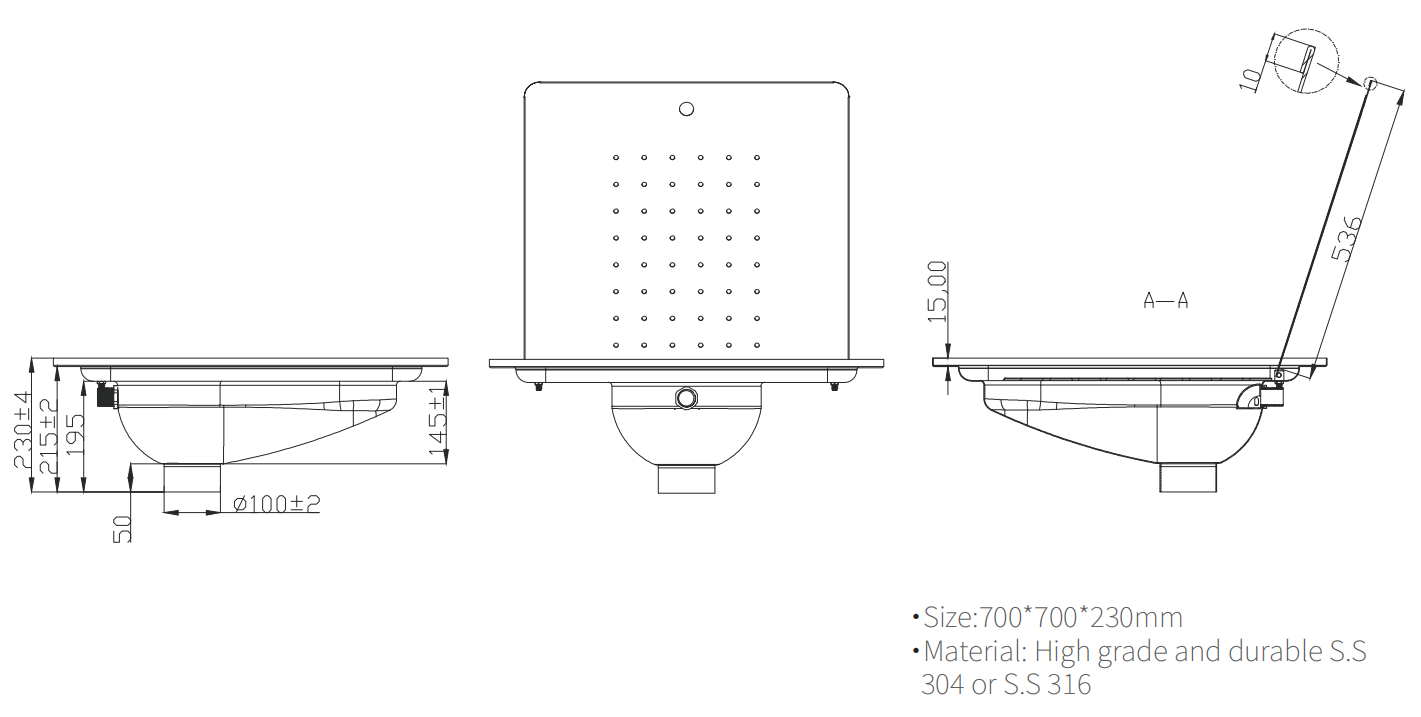

​​IV. Installation Diagram​

  1. ​​Recessed Installation​​: Requires 720×720×250mm pit.
  2. ​​Surface Mounting​​: Secured with expansion bolts (includes waterproof gaskets).
    squatting toilet
