C150 Counterbalance Electric Stacker - Small Working Aisle, High Efficiency

Maximum load capacity of 1.5 tons, maximum lifting height of 4.5 meters. Minimum working aisle width less than 2.3 meters, very suitable for operations in narrow aisles.

The unique layout design of the C150 electric stacker makes its operating space requirements much smaller than other similar products. It uses engineering vehicle seat backrest, increasing comfort and greatly improving operator efficiency. The spacious operating area makes it easier for drivers to operate. Simple operation, no professional forklift operation license required. The forward position of the operator provides a wider field of vision and more convenient operation. The height-adjustable overhead guard can meet the requirements of operators of different heights and effectively protects the human body.

This electric stacker uses a ride-on operation mode, making operation more comfortable, effectively reducing work fatigue and improving work efficiency. The unique delayed power-off design effectively reduces the impact generated during lifting or tilting movements. Using five-point technology, the vehicle runs more smoothly with higher safety. The unique drive shock absorption technology effectively improves operator comfort while protecting the transmission. The adjustable seat can meet the requirements of operators of different heights. Magnetic battery cover makes battery maintenance more convenient. Side-out battery loading and unloading method is simple and convenient (right door can be opened).

The C150 Electric counterbalance forklift mast system has a tilting function to meet more operating conditions.

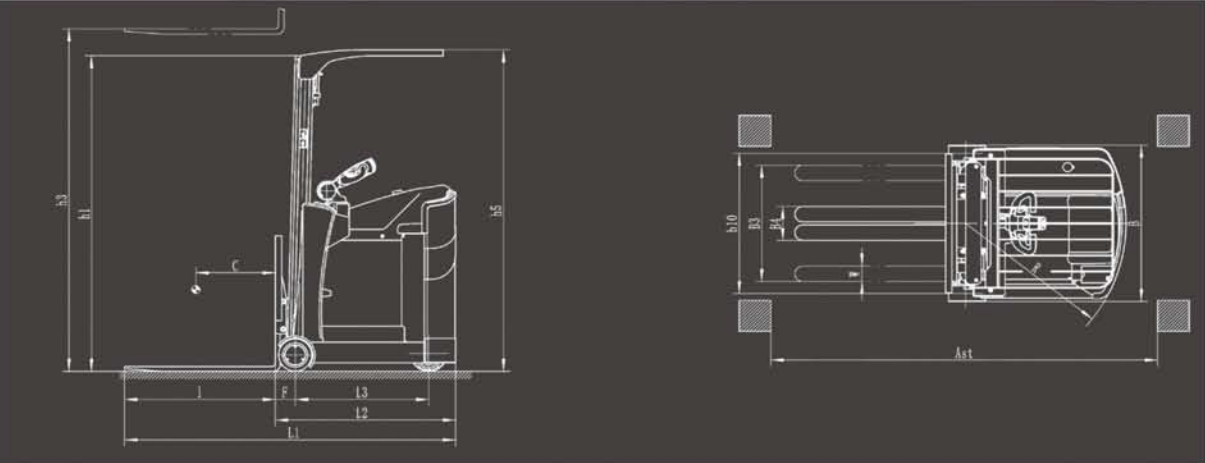

Technical Parameters of C150 Counterbalance Electric Stacker

The C150 electric stacker forklift has a rated load capacity of 1500kg with a load center distance of 500mm. It performs excellently in travel speed, reaching 7.0km/h with load and 8.0km/h without load. For lifting performance, the lifting speed with load is 100mm/s and 120mm/s without load; for lowering speed, it's 120mm/s with load and 85mm/s without load. Its climbing ability is 5% gradient with load and 7% without load. The C150's standard maximum lifting height is 3000mm, and the minimum fork height from ground is only 55mm, offering operational flexibility. The fork adjustment spacing is flexible, with a maximum of 750mm and a minimum of 215mm. The standard fork size is 35x100x950mm. Its minimum right-angle aisle width is 1950mm, and the minimum turning radius is 1500mm. For power, this Modoga forklift is equipped with a 1.8kw drive motor, providing strong and lasting power support to meet various warehouse logistics operation needs.
