KY-S063 150℃ High Temperature Soldering Tin Terminal

Product Description
  The high temperature soldering tin terminal is designed for one-step completion of wire connection, soldering heat shrink protection, and waterproofing. With an integrated design, it consists of a transparent heat shrinkable tube and solder, providing complete insulation and reducing installation costs. Colored hot-melt adhesive is applied to both ends of the heat shrink tube to facilitate accurate matching with wire sizes.

Features
  Shrinkage ratio: 2:1
  KYNAR casing with high temperature resistance and excellent flame retardancy
  Insulation and stress relief
  Waterproof function with hot-melt adhesive
  Hot-melt adhesive color indicates applicable wire sizes
  Solder ring design for easy construction

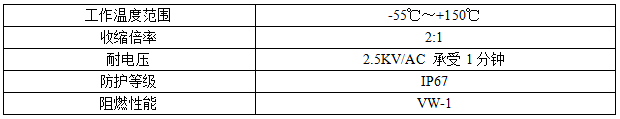

Operation Temperature Range
  Working temperature: -55℃~150℃
  Initial shrinkage temperature: 150℃
  Solder initial melting temperature: 200℃
  Solder complete melting temperature: 225℃

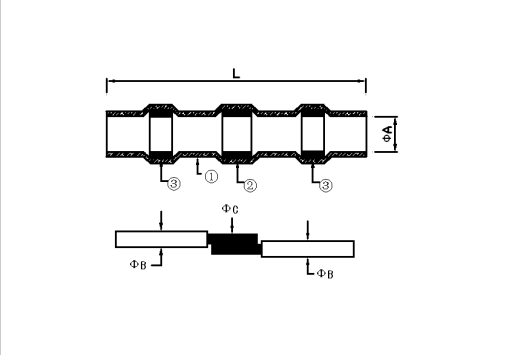

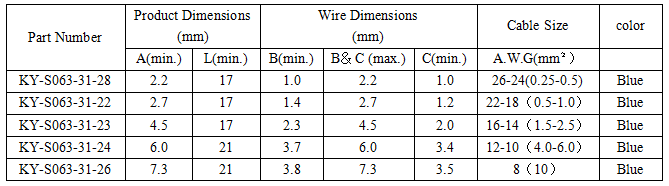

Product Dimensions
KY-S063
Note: All the products of the above specifications can be customized with temperature-indicating paint
Product Properties
KY-S063
(1)PVDF heat shrink tubing
(2)solder sleeve
(3)Waterproof hot melt adhesive
KY-S063
