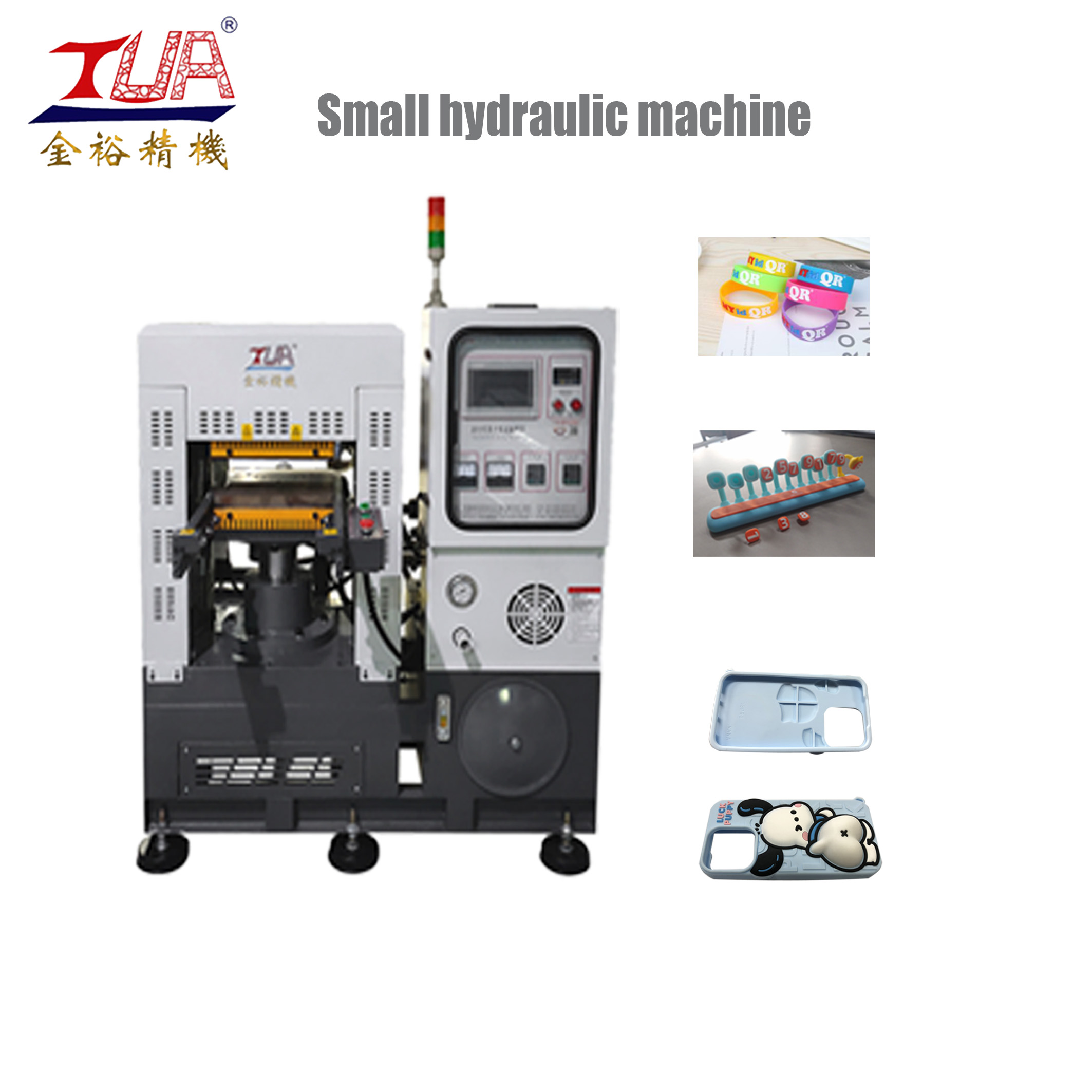

Hydraulic High Pressure Press Machine For Rubber Stationery

This machines used for solid silicone. The hydraulic machines are mainly used to make single-color silicone products. And it is made of solid silicone raw materials, with a simple process, mainly vulcanization molding.

Hydraulic press (also called flat plate vulcanizing machine): This is a necessary equipment for molding silicone products. The pressure, mold temperature, vulcanization time and other conditions required for molding are all determined by this equipment.

silicone hydarulic machine

Name	30T single head hydraulic machine	50T single head hydraulic machine	63T single head hydraulic machine	100T single head hydraulic machine
Model	JY-A02V	JY-A02V	JY-A02V	JY-A02V
Voltage	380V	380V	380V	380V
Max working pressure	30	50	63	100
Wore area	300*300mm	350*350mm	400*400mm	450*450mm
Power	3.7kw	5.5kw	5.5kw	5.5kw
Heating Power	10.8kw	10.8kw	10.8kw	10.8kw
Total Power	16kw	17.8kw	20.3kw	20.3kw
Max temp	400℃	400℃	400℃	400℃
Main cylinder diameter	150mm	180mm	200mm	250mm
Main cylinder stroke	160mm	160mm	250mm	250mm
Vacuum pump power	1.5kw	1.5kw	4kw	4kw
Cylinder stroke of vacuum hood	100mm	100mm	200mm	200mm
Size	125015301550mm	135016501650mm	156020202060mm	157021502060mm
Weight	1200kg	1500kg	2500kg	3000kg

Jinyu vacuum vulcanizing hydraulic machine is a hot press that integrates heating, pressure maintaining, pressure compensation, vacuuming and vacuum breaking. The whole machine adopts servo closed-loop control system, which has the advantages of energy saving and low noise. Vacuum heat press and silicone hydraulic press are mainly suitable for new material silicone mobile phone cases, silicone trademark gifts, silicone bracelets, Ipad tablet cases, silicone key chains, electric toothbrush cases, silicone U disk cases, silicone tea coasters, silicone zipper pulls, etc. Hot pressing molding of various silicone rubber products.

silicone production

silicone hydraulic machine

Hydraulic equipment is one of the main equipment of silicone molding manufacturers(silicone machine). It mainly takes the mold as the core, and solidifies the rubber in the molding at high temperature through pressure and temperature. The machine has a large electric power, so it is also necessary for the production of silicone products. Mechanical equipment, Jinyu Precision Machinery silicone hydraulic presses are available in standard sizes of 30, 50, 63, and 100 tons, and also support customization of other sizes. There also are dispensing machine, intelligent oven, mixing machine, cutting machine, etc. for silicone production process line.
