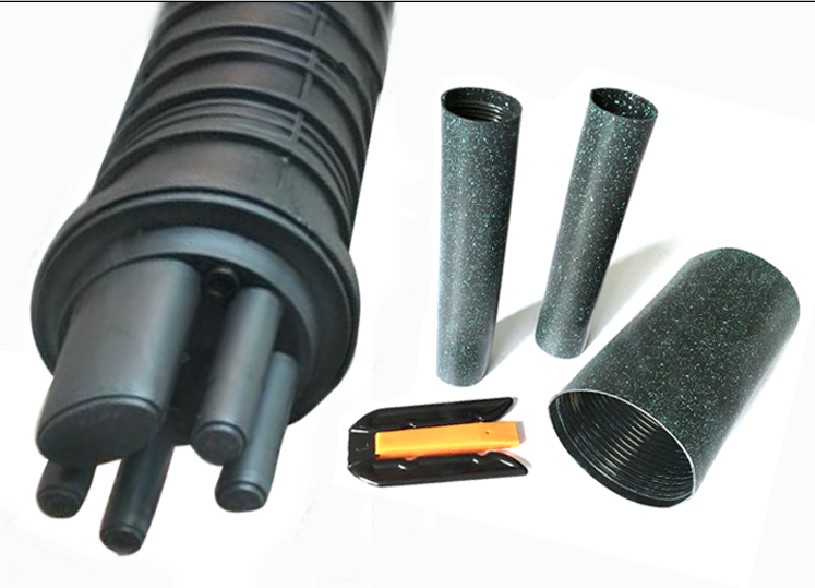

TXC Protective optical cable splice box sleeving

The outer layer of the middle wall structure is made of semi-hard insulating polyolefin (PE) material, and the inner layer is hot melt adhesive (EVA or PA), which provides excellent mechanical protection performance for the connection between the optical cable splicing box and the cable. The inner layer hot melt adhesive (available in two types: spiral type and direct coating type) has the functions of bonding and waterproof sealing. The advantage of spiral gluing is that it does not slip during the construction process, has a better gas retention effect, and the high shrinkage ratio makes it more convenient to apply to irregular shapes and large-sized connections.

Product Features

Shrinkage ratio: 3:1, UV resistant

Efficient electronic insulation protection and excellent mechanical protection performance

Excellent sealing performance: anti-corrosion, moisture-proof, moisture-proof

The outer color-changing paint is convenient for understanding the heat shrinkage situation

Standard color: Black

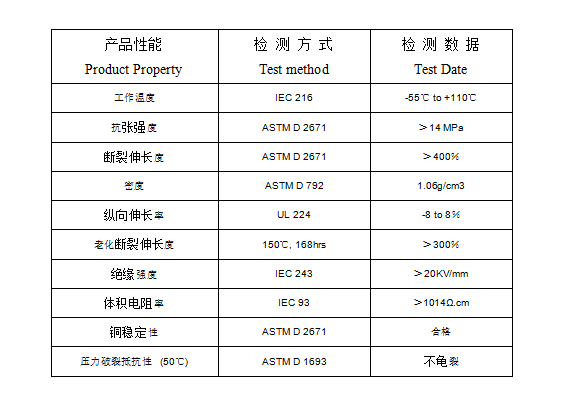

Operating indicators

Initial temperature: 75℃

Final shrinkage temperature: 125℃

Operating temperature: -55℃ to 110℃

Conformity: Approvals

Compliant with ROHS environmental protection, 110℃

Standard Color: Black.

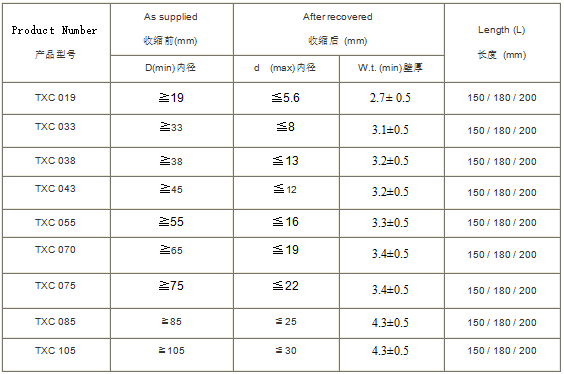

Specified size, cutting can be provided separately according to customer needs
