MP-1KV Busbar heat shrinkable sleeving

2 month ago
3 0
Product details
   MP- 1KV Heat Shrinkable Tube For Basbar 2:1

Product Description

MP- 1KV Energy Heat Shrink Tubing,  Busbar Heat Shrink Tubing known as copper bar protection tube, is made by cross-linked environmental protection polyolefin PE heat shrinkable materials which is bombarded by high power electron beam. Busbar heat shrink sleeve with good resistance to bending and scratching, high insulation strength and resistance to electric carbon mark, Heat Shrinkable Busbar Energy Heat Shrink Tubing, Heat Shrink Tubing for Busbar applies to switchgear, substation bus, busbar, electrical equipment for anti-corrosion and insulation protection. Busbar Heat Shrink Cable Sleeve, Heat Shrink Tubing it`s widely used in electric power industry.

1KV Busbar heat shrinkable electrical tubes, Large Energy Heat Shrink Tubing for Typical applications include insulation of electrical bus bar with 1KV or lower voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars, copper or aluminum bus bars, metal-clad switchgear, metal-enclosed bus bar, substation switchgear etc.

 Busbar Heat Shrink Cable SleeveBus Bar Heat Shrink Insulation
Features & Benefits:

with superior insulated and chemical properties.

meets:GB/T 1059-2007
Shrink ratio:2:1 (1 kV, 35 kV, 10 kV busbar )
Tracking resistant, low smoke emitting, high strength, flexible, flame retardant,resistance to flame and corrosion.
Min. shrink temperature:≥84°C
Min. full recovery temperature:≥120°C
Continuous operating temperature:-55 degrees C~125 degrees C
RoHS compliant 1KV Busbar heat shrinkable electrical tubes
Standard colors:red, yellow, green and other colors available on your request


Up to standard: Approvals

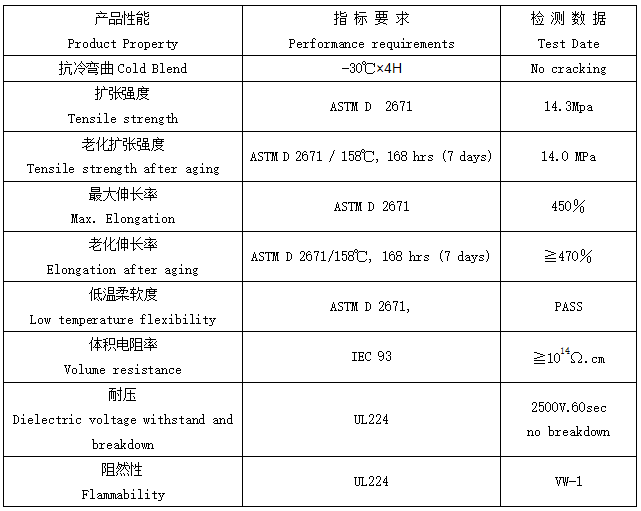

Product Properties

MP-1KV

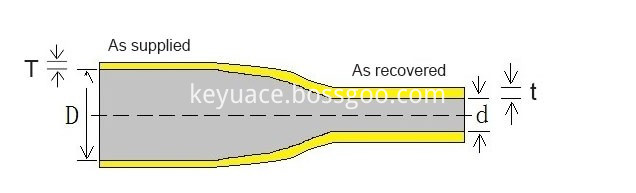

Product Dimensions

Single wall heat shrink tubing

MP-1KV

Product View
Certification
Factory show

Shipping
