MP-10KV Busbar Heat Shrink Tubing

2 month ago
6 0
Product details
  MP-10KV Bus Bar Heat Shrinkable Sleeve

Product Description

MP-10KV Bus Bar Heat Shrinkable Sleeve known as copper bar protection tube, is made by cross-linked environmental protection polyolefin PE heat shrinkable materials which is bombarded by high power electron beam. Bus Bar Heat Shrink Insulation, Large Energy Heat Shrink Tubing with good resistance to bending and scratching, high insulation strength and resistance to electric carbon mark,Busbar Heat Shrink Tubing, Heat Shrink Tubing for Busbar applies to switchgear, substation bus, busbar, electrical equipment for anti-corrosion and insulation protection. Busbar Heat Shrink Sleeving , Heat Shrink Tubing it`s widely used in electric power industry.

Energy Heat Shrink Tubing it restricts the hazardous substance in PBB, PBBD, PBBE and other heavy metal, and supplies high dielectric strength and voltage withstand performance. It prevents bus-bar from chemical corrosion effected by strong acid, alkali, salt etc.



Busbar Heat Shrink SleevingBus Bar Heat Shrinkable Sleeve

Features & Benefits:

with superior insulated and chemical properties.

meets:GB/T 1059-2007
Shrink ratio:2:1 (1 kV, 35 kV, 10 kV busbar )
Tracking resistant, low smoke emitting, high strength, flexible, flame retardant,resistance to flame and corrosion.
Min. shrink temperature:≥84°C
Min. full recovery temperature:≥120°C
Continuous operating temperature:-55 degrees C~125 degrees C
RoHS compliant 1KV Busbar heat shrinkable electrical tubes
Standard colors:red, yellow, green and other colors available on your request


Up to standard: Approvals

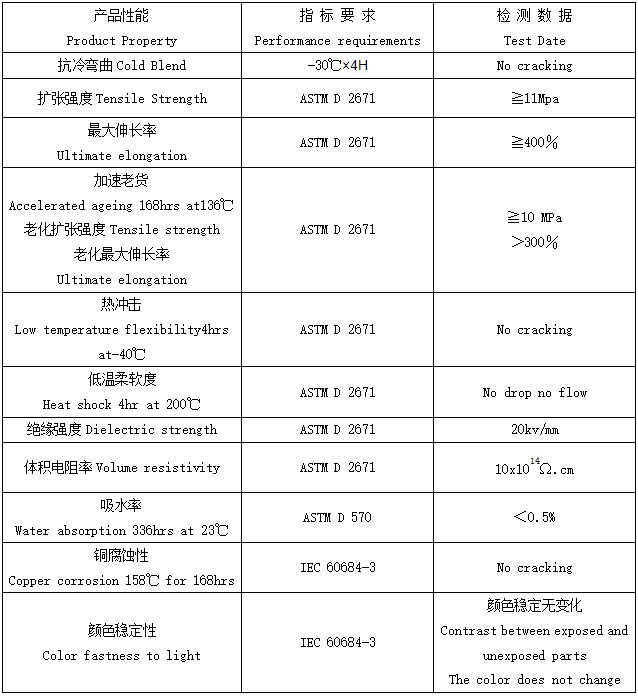

Product Properties

MP-10KV

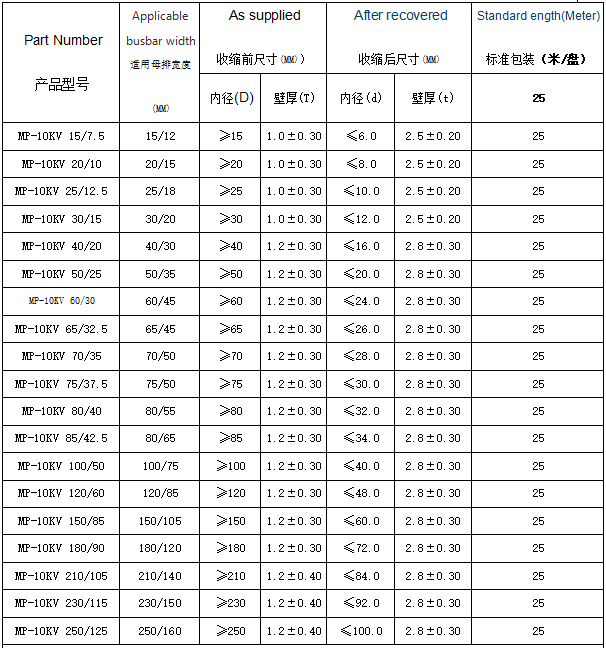

Product Dimensions

MP-10KV

Single wall heat shrink tubing



Application:

busbar tube for application

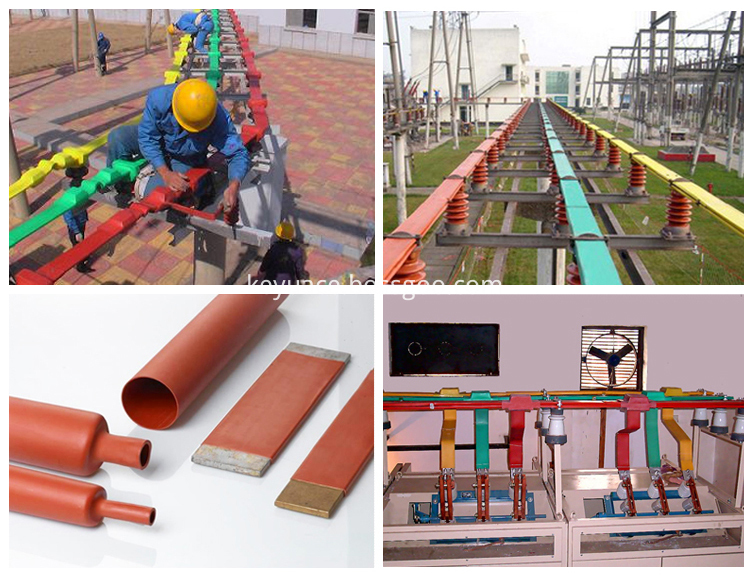

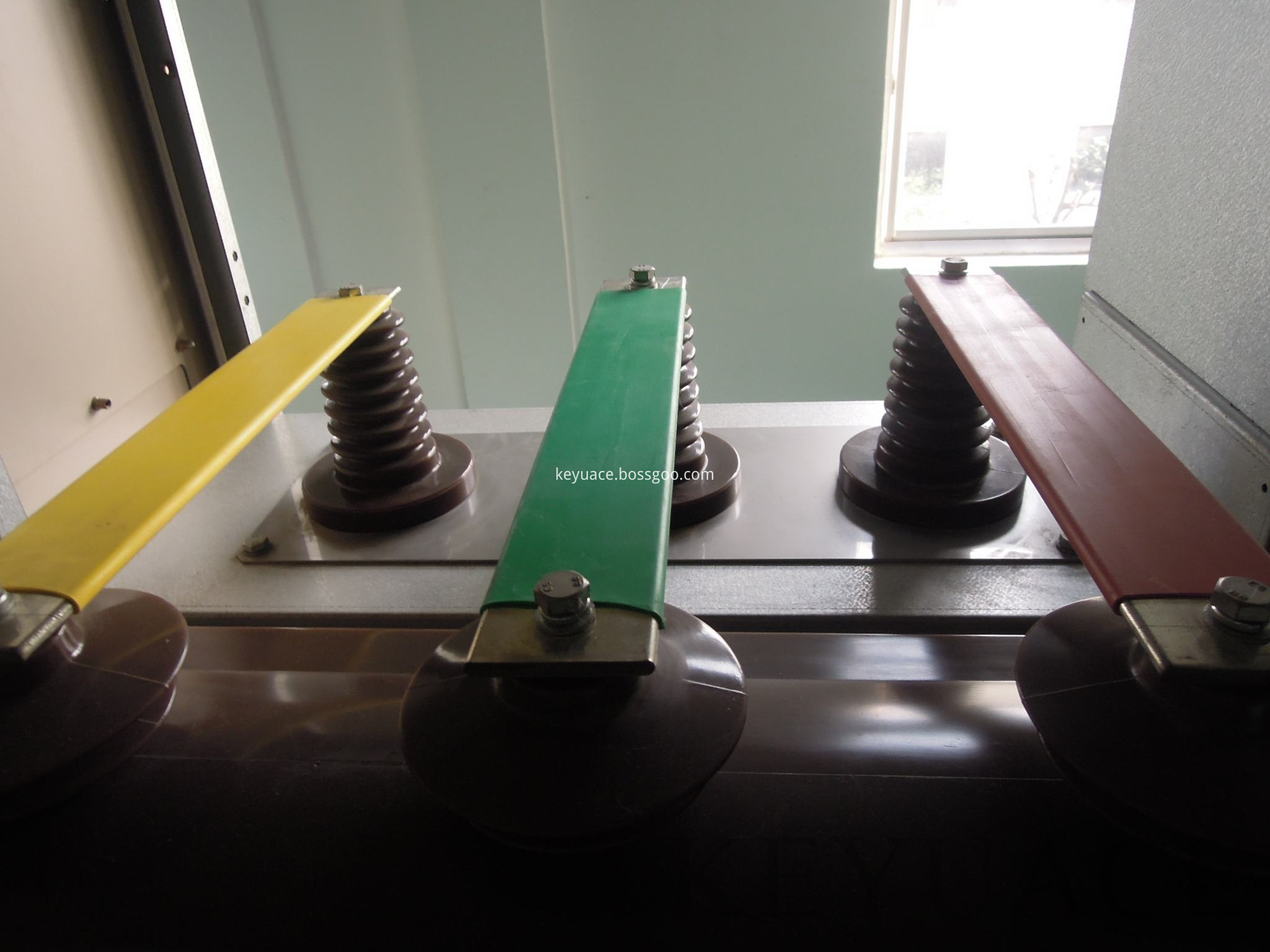

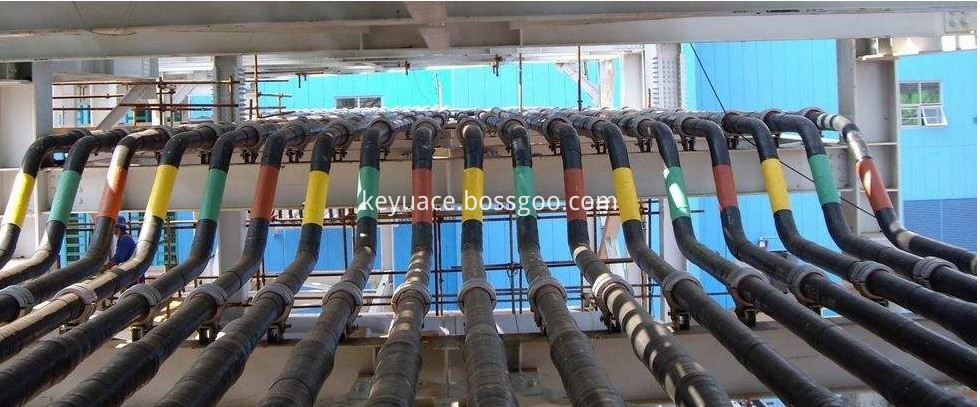

Busbar Application

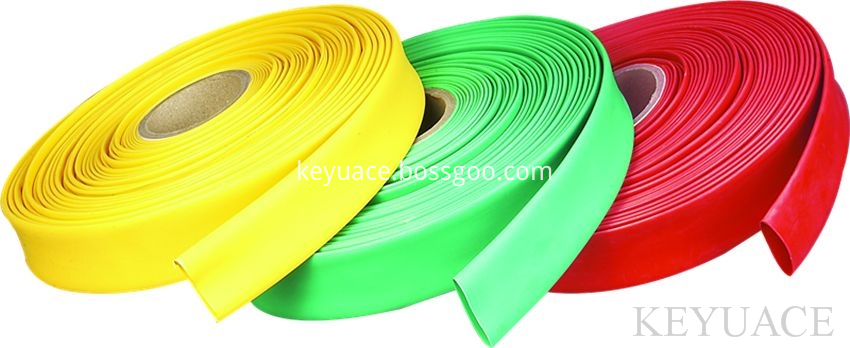

Product View
Certification
Factory show
Shipping
