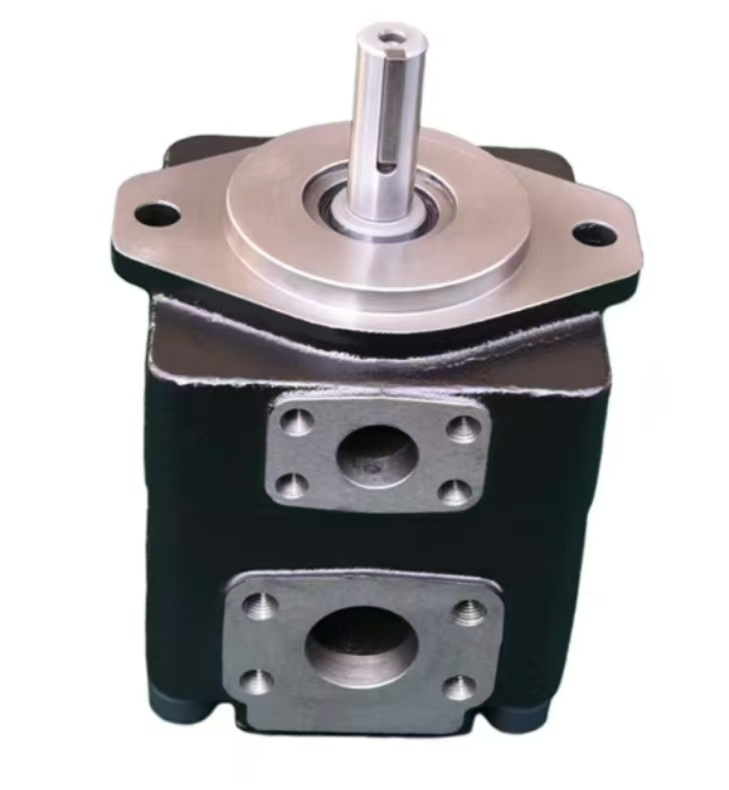

T6C-06 Hydraulic Oil Pump Denison Vane Pump

T6C-06 Hydraulic Oil Pump Denison Vane Pump

2 month ago

1 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 3 year year

Product details

T6C-006 is the one of the exact model of Denison T6C series hydraulic vane pump

The geometric displacement is 21.3mL/r, undertake max 21 MPa pressure in instant work and max 17.5MPa in continuous work

Product Introduction

Dowel-pin type vane pumps, known for their high pressure capability and performance, find extensive application across diverse industries including plastics processing, metal casting, metallurgy, presses, process equipment, construction machinery, and marine systems.

Key Advantages:

1.Dowel-Pin Vane Design: Ensures reliable high-pressure operation, reduced noise levels, and extended service life.

2.Fluid Flexibility & Temperature Range: Capable of handling hydraulic fluids with a wide viscosity spectrum, supporting reliable cold starts and sustained high-temperature operation.

3.Bilabial Vane Structure: Enhances resistance to oil contamination and enables operation across a broad rotational speed range

1. Model Interpretation: T6C-06

• T: Denison vane pump series code, indicating a vane-type design with low noise and high efficiency.

• 6: Displacement class, typically corresponding to displacement per revolution (e.g., 6 cm³/rev), subject to Denison’s official specifications.

• C: Structural or design variant identifier, potentially related to mounting type, shaft end configuration, or seal type.

• 06: May denote a sub-model within the series, used to differentiate pressure ratings or configurations.

2. Core Technical Features of Denison Vane Pumps

(1) Working Principle

• Vane Design: Rotor rotation drives vanes sliding in stator slots, creating volumetric changes for oil suction and discharge.

• Double-Acting Structure: Two suction/discharge cycles per rotor revolution, minimizing flow pulsation and ensuring smooth operation.

(2) Performance Parameters

• Rated Pressure: Typically 210 bar (3,000 psi), with a maximum pressure of up to 280 bar (4,000 psi), varying by model.

• Speed Range: 600–1,800 rpm, adaptable to diverse operating conditions.

• Flow Range: Based on displacement class, the T6C-06 offers approximately6–18 L/min(refer to manual for exact values).

• Efficiency: Volumetric efficiency ≥92%, total efficiency ≥85%, delivering significant energy savings.

(3) Structural Advantages

• Compact Design: Short axial length, ideal for space-constrained installations.

• Low Noise: Optimized flow path design, with noise levels ≤65 dB(A).

• Long Lifespan: High-strength alloy steel rotors, carbon graphite vanes, and wear-resistant bearings ensure lifespans exceeding 10,000 hours.

• Versatile Control: Supports constant pressure, constant flow, and load-sensing control modes for complex systems.

3. Typical Applications

• Industrial Hydraulics: Injection molding machines, die-casting machines, and machine tools requiring precise pressure control.

• Mobile Hydraulics: Hydraulic drive systems in construction machinery (e.g., excavators, cranes) and agricultural equipment.

• Marine & Shipboard: Steering gears, deck machinery, and corrosion-resistant, high-reliability applications.

• Energy & Power: Pitch control systems in wind turbines and hydraulic controls for gas turbines.
