High-transparency TPU hose for water treatment

High-transparency TPU hose for water treatment

5 week ago

0 0

Dong Guan KE YU New Material Technology co.,LTD

 8 year year

Product details

High-transparency large inner diameter TPU flexible hose specially designed for municipal water treatment tanks

Product Overview

The highly transparent TPU hose for the water treatment system is made of imported raw materials, which can be used in the tubular aeration system of the sewage treatment tank, supports aeration and perforation processing, and the TPU casing is widely suitable for water treatment and breeding scenarios in many fields.

Application scope

It is applicable to high-density livestock farms, biological contact oxidation tanks, petrochemical, oil refining and other industrial and urban sewage fields. It can achieve functions such as fine bubble supply, oxygen supply for nitrification of activated sludge, and water body restoration. It is also used for aeration in sedimentation tanks, aeration in aerobic aeration tanks, and aquaculture. It can also be used for agricultural irrigation and drainage, and sewage pipes.

Performance advantage

Raw materials and basic properties: Made of imported brand-new polyether particles, it is tear-resistant, high-pressure resistant, oil-resistant, weather-resistant, corrosion-resistant, highly elastic and strong, non-toxic, odorless, environmentally friendly, hydrolyzable, and weighs less than 40% of PVC, silicone, and rubber.

Oxygen utilization and energy conservation: The oxygen utilization rate exceeds 40% (affected by water depth and other conditions, the actual rate of conventional sewage tanks is about 30%), the resistance loss is less than 3000pa, which is more energy-efficient than EPDM and silica gel aeration. It has a wide aeration range (1-18 Nm-2/h · m), fine and uniform bubbles, and a high oxygen transfer rate.

Durability and maintenance: The diaphragm is free of softeners, tear-resistant and wear-resistant (mechanical strength is 2.5 to 4 times that of EPDM and silicone), resistant to microbial hydrolysis, oil, water, and mold, with excellent chemical properties, free of softeners and halogens, and renewable. After installation, it can clean up pollution and prevent clogging through venting/inflation, maintain uniform aeration, have a service life of ≥5 years, and support the replacement of damaged pipes without stopping the machine.

Specification and size

Common specifications: 65 mm (folded width approximately 100MM), 78 mm (approximately 120MM), 93 mm (approximately 145MM), 115 mm (approximately 185MM). Customization is supported.

Service support

We offer a full package of project services including solution design, manufacturing, installation and commissioning to help water treatment systems operate efficiently.

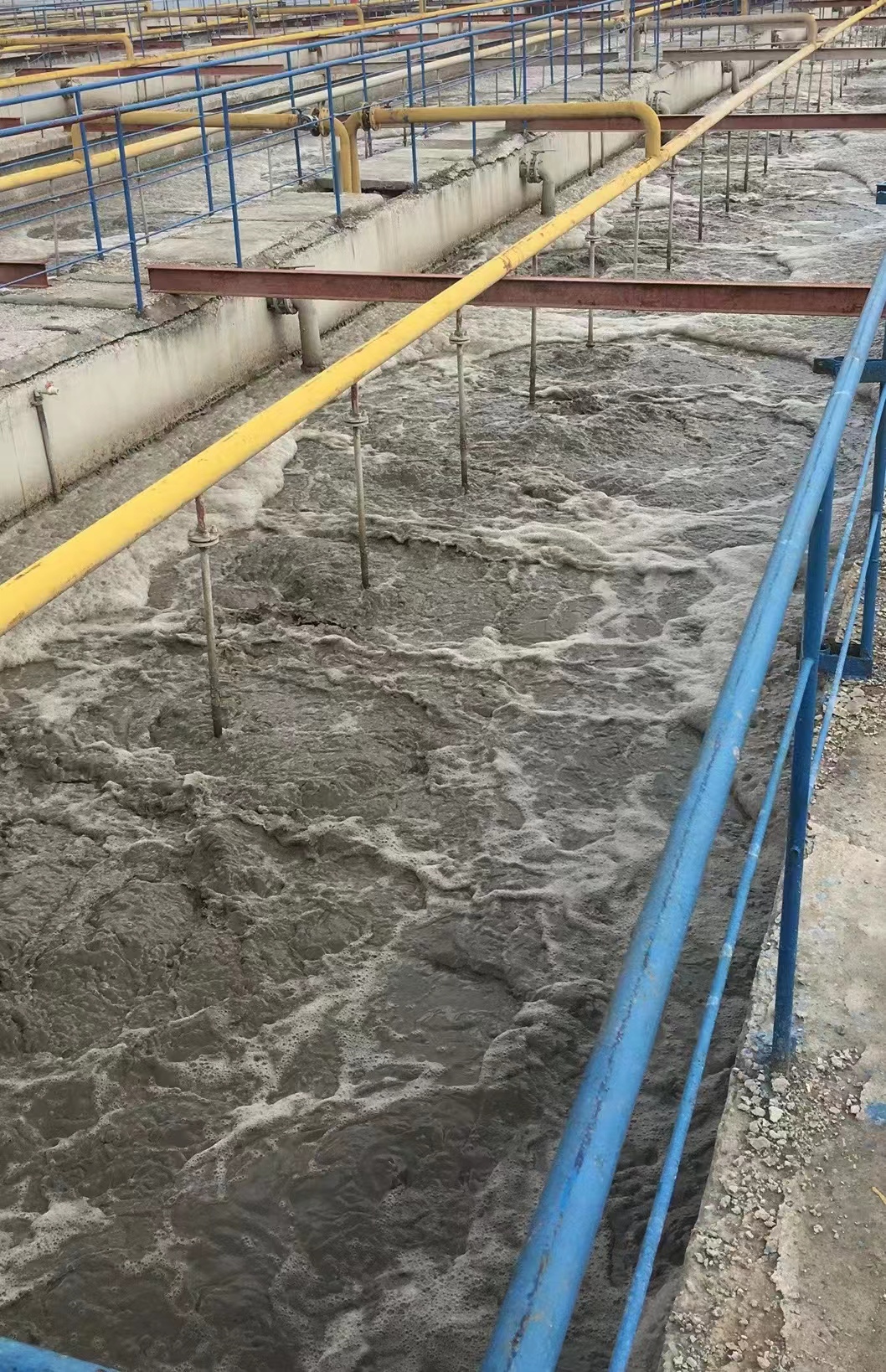

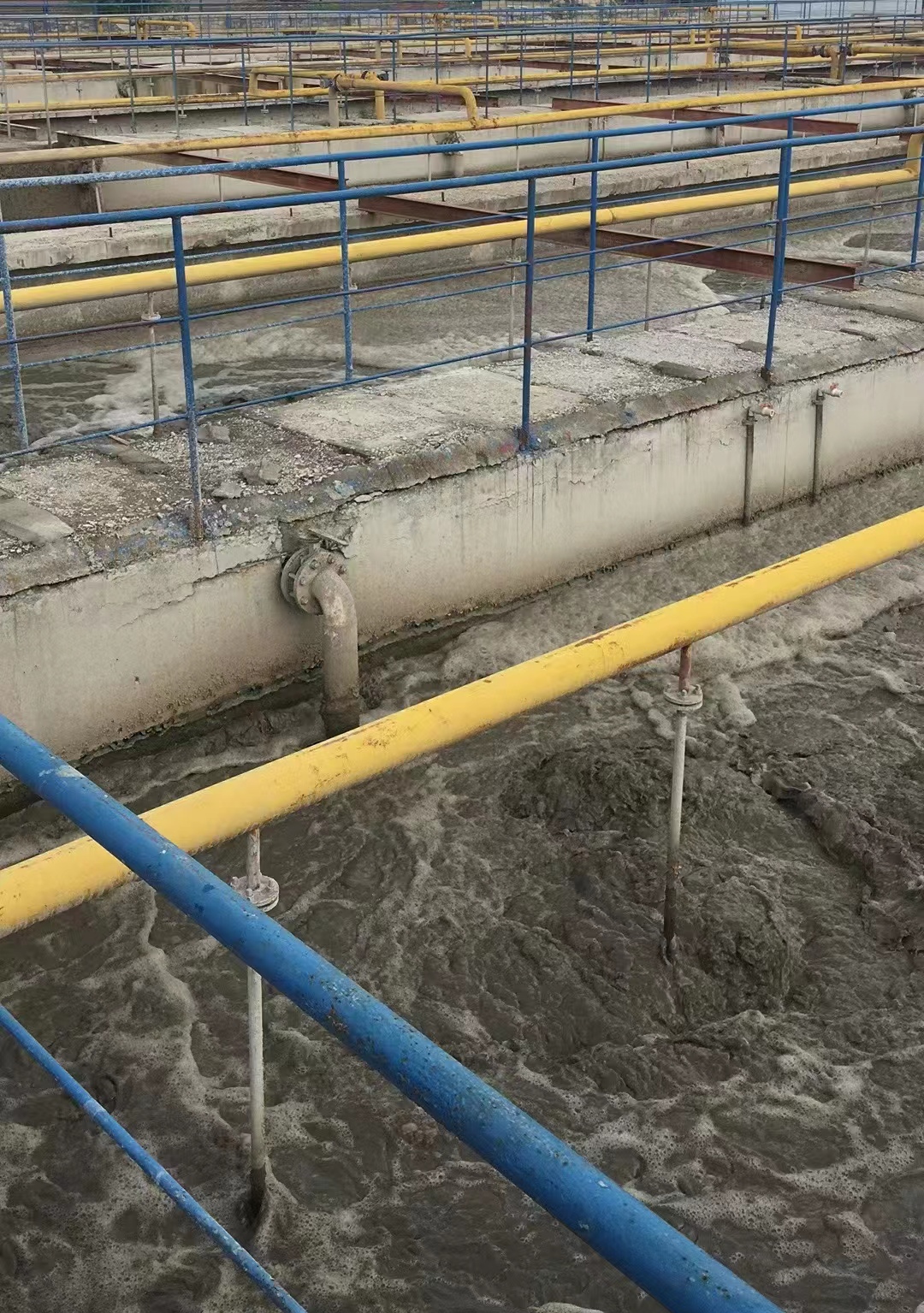

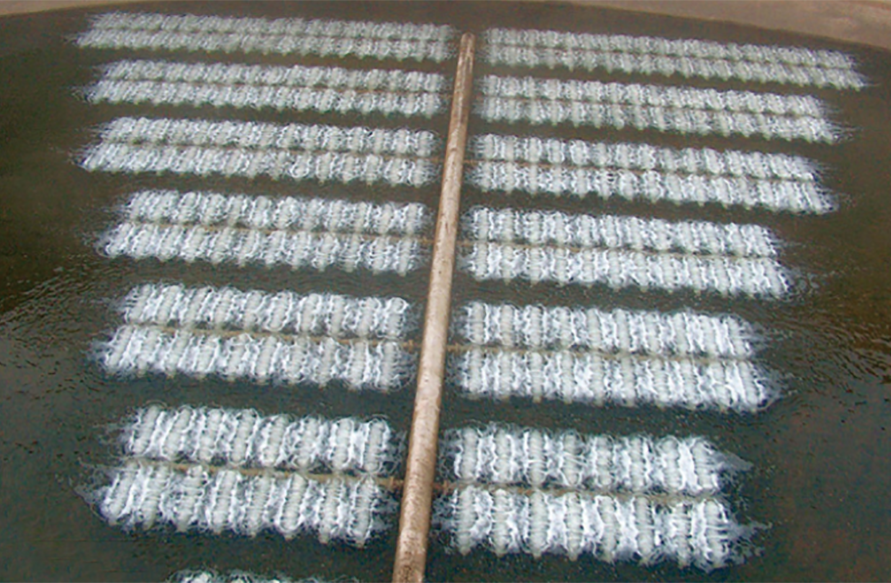

Application Engineering Case
