KY-TSB Spark splash resistant flame retardant tube

KY-TSB Spark splash resistant flame retardant tube

5 week ago

1 0

Dong Guan KE YU New Material Technology co.,LTD

 8 year year

Product details

PU double-layer flame retardant pipe

Product Introduction

This splash-proof flame-retardant pipe adopts a double-layer composite structure. The outer layer is made of high-quality flame-retardant PVC material, and the inner layer is a high-resilience TPU (polyurethane) pipe. Double-layer synergy can effectively achieve flame retardancy, spark prevention and splash prevention functions, providing a solid safety protection for pneumatic welding scenarios.

This casing features a variety of outstanding properties: it is environmentally friendly and odorless, with high tensile strength, high tear resistance, wear resistance, bending resistance and impermeability. It is suitable for a wide temperature range from -40℃ to 100℃ and has excellent hydrolysis resistance. It has excellent resilience and a long service life. According to authoritative tests, the flame retardant effect reaches V0 level. It extinguishes immediately after being removed from the fire source, ensuring safety and reliability.

Installation Instructions

After determining the installation length of the quick connector, use a dedicated stripping tool to only strip the outer layer of PVC and directly install the inner layer of TPU pipe onto the quick connector. The operation is simple and efficient, meeting the rapid deployment requirements of welding scenarios.

Application scenarios

Professionally adapted to pneumatic welding sites such as welding fixtures and welding robots, it provides fire and splash protection for the air pipe system during welding operations, ensuring the stable operation of equipment and reducing safety hazards.

Product features

Non-toxic and odorless, with excellent flexibility and an extremely small bending radius design, it is suitable for wiring in complex welding environments.

It has good seismic resistance and is lightweight, which can reduce the load on equipment. It has excellent chemical stability and minimal pressure loss inside the pipe, ensuring efficient pneumatic transmission.

With constant hardness, it can still serve stably for a long time in scenarios of frequent bending and high-pressure pneumatic circulation.

It has a wide range of adaptability to working temperature and pressure, and can operate reliably in an environment from -40℃ to 100℃ and under a pressure of 0 to 1.2MPa (there may be differences among different specifications, please refer to the specific product).

Compliance standards

Compliant with the ROHS environmental protection directive, it strictly controls harmful substances such as lead and mercury, is environmentally friendly and green, and is suitable for various industrial scenarios with strict environmental protection requirements.

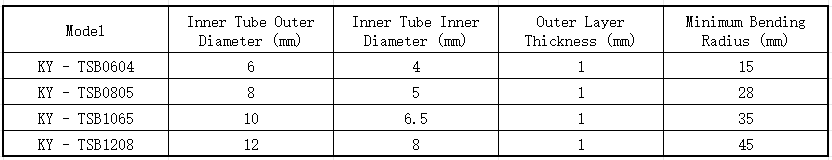

Product Dimensions

The color can be customized as needed and is easy to identify through pipelines.
