High Temp 0.5-6mm Thick PTFE plastic Roll Natural Color Sheet

Core advantages summary:

✔ Chemical stability: resistant to aqua regia, hydrofluoric acid, organic solvents, outdoor service life ≥ 20 years

✔ Temperature resistance: -200℃ to +260℃ continuous use, short-term temperature resistance 300℃

✔ Electrical properties: dielectric constant 2.0 - 2.1, volume resistivity ≥10¹⁸ Ω·cm

✔ Processing characteristics: rolling accuracy ±0.01 mm, surface energy can be increased to 30 - 40 mN/m through processing

PTFE Roll Sheet (Polytetrafluoroethylene Roll Sheet) is a roll sheet made of polytetrafluoroethylene (PTFE) resin as the base material through calendering or extrusion process. PTFE is a polymer material synthesized by free radical polymerization of tetrafluoroethylene (TFE, CF₂=CF₂) monomer under the action of initiator (such as ammonium persulfate). Its molecular chain is composed of repeated -CF₂-CF₂- units. It has extremely high chemical inertness, low friction coefficient and excellent temperature resistance, and is known as the "King of Plastics".

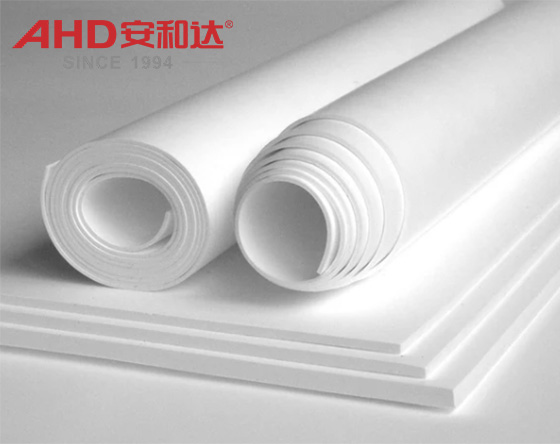

PTFE roll sheet

Data Sheet

Properties	Standard	Unit	Test Data
Specific gravity	ISO 1183	g/cm3	2.2
Water absorption	ISO 62	%	0.0
Flammability	UL94		V-0
Mechancial Properties
Yield stress	ISO 527	Mpa	23
Elongation at break	ISO 527	%	300
Tensile modulus of elasticity	ISO 527	Mpa	590
Notched izod impact strength	ISO 180	kJ/m2	11
Notched impact strength	ISO 179	kJ/m2	11.2
Flexural strength	ISO 178	Mpa	15.5
Shore hardness	ISO 868	scale D	50-55

Application fields

Chemical industry and energy

Chemical equipment seals: PTFE roll sheets are used for reactor gaskets and pipeline flange seals, which are resistant to strong acids and alkalis and have no swelling;

Proton exchange membrane substrate for fuel cells: Ultra-thin PTFE sheets are used as proton exchange membrane carriers after sulfonation modification, which have both high chemical stability and proton conductivity.

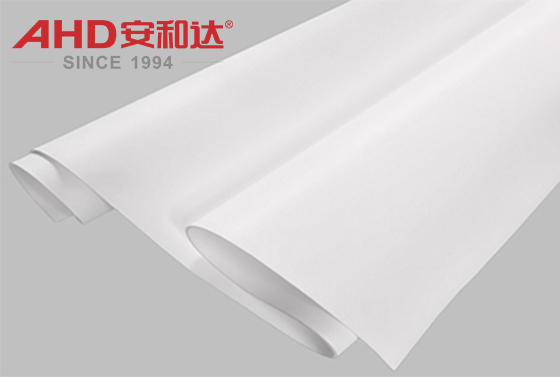

PTFE roll material

Electronics and semiconductors

High-voltage cable insulation layer: PTFE roll sheets are used for the insulation shielding layer of ultra-high voltage cables, with a voltage resistance of ≥60 kV/mm and low dielectric loss;

Semiconductor manufacturing carrier tray: Ultra-high purity PTFE sheets are used for carrier trays in silicon wafer etching processes, which are resistant to plasma corrosion.

Aerospace and defense

Aircraft fuel system seals: PTFE roll sheets are used for aircraft engine fuel pipeline sealing, which are resistant to aviation kerosene and high and low temperature;

Missile radome: Low dielectric loss PTFE sheets are used for missile radar radomes to reduce signal attenuation.

Buildings and civil facilities

Building waterproofing membrane: PTFE roll sheet is used for large roof waterproofing, UV-resistant and self-cleaning;

High-end kitchenware non-stick coating substrate: Micro-powder-modified PTFE sheet is used as non-stick pan coating substrate, with a friction coefficient as low as 0.04.
