Product details

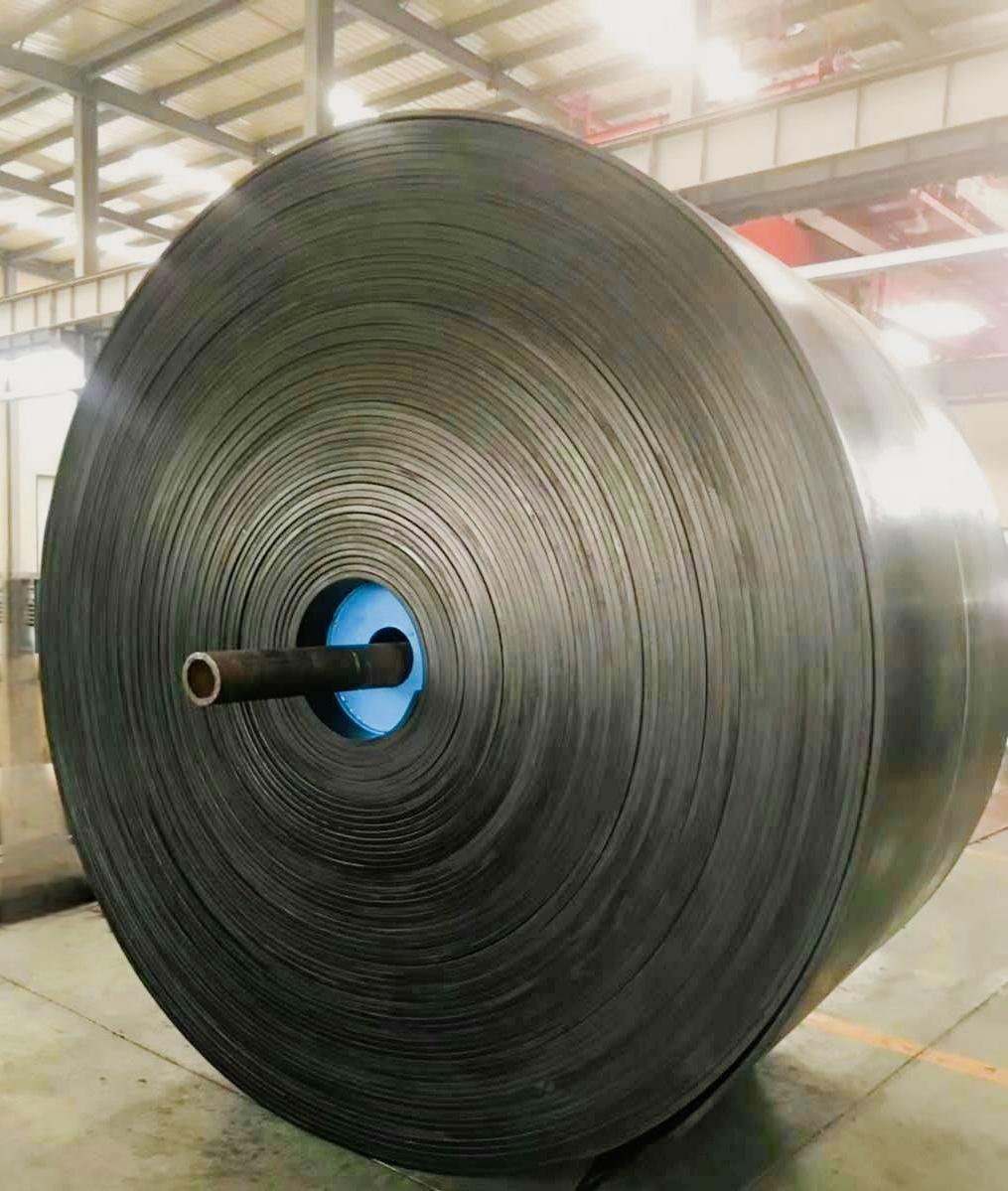

ST630 Steel Cord Conveyor Belt

Structure and Materials : Using steel wire ropes as the skeleton material, the diameter of the steel wire ropes usually ranges from 3.0 to 11.3 mm. They are covered with rubber on the outside, forming a conveyor belt with high strength and good wear resistance. The rubber covering layer has properties such as oil resistance, acid and alkali resistance, heat resistance, cold resistance, and wear resistance, and can be selected according to different working conditions for different performance rubbers.

Specifications and Parameters:

Tensile Strength: Longitudinal tensile strength is 630 N/mm, capable of withstanding significant pulling force, suitable for long-span and long-distance material conveyance.

Belt Width: The belt width range is relatively wide, generally between 800 and 2200 mm, and can be chosen based on actual usage needs.

Thickness: The thickness typically ranges from 4 to 30 mm, suitable for different working environments and load requirements depending on the thickness.

Product Feature :

High strength: Can withstand significant material weight and tensile force, suitable for large-scale material transportation scenarios such as large mines and ports.

Minimal elongation: Has minimal elongation during use, requiring only a short tensioning stroke to maintain stable operation and reduce maintenance workload.

Good flexibility: Allows the use of smaller diameter drive rollers, making the equipment more compact and space-saving while also facilitating bending and turning conveyance.

Excellent troughability: The conveyor belt can effectively form a trough shape, preventing material spillage and improving conveying efficiency.

Application fields: Widely used in industries such as coal, mining, ports, power plants, metallurgy, and construction for long-distance, large-span, high-speed transportation of bulk materials like coal, ore, cement, sand, and gravel.

Compliance standards: Meets various international and domestic standards such as DIN 22102, GB/T 7984-2001, AS 1332, BS 490, ensuring product quality and performance stability.
