Product details

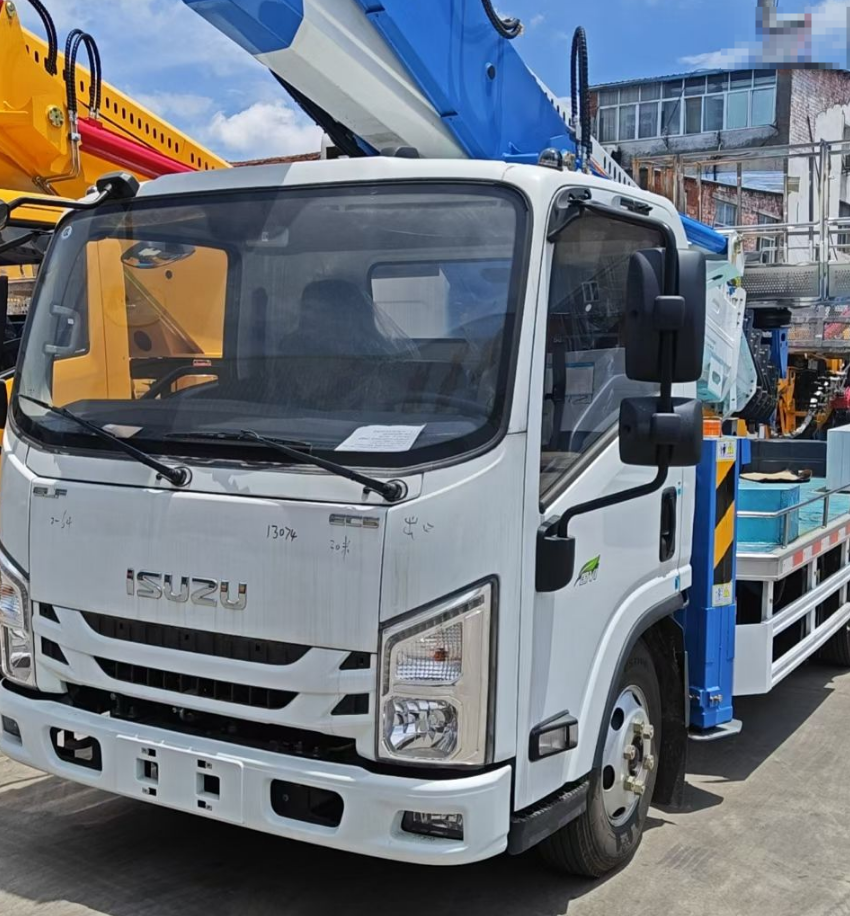

Regarding this small 33 meter aerial work vehicle, we have already produced 33 meter aerial work vehicles with chassis from brands such as Dongfeng, Jiangling, Jianghuai, Jiefang, Foton, Isuzu, etc. These different chassis have slightly different cab configurations and engine horsepower sizes. However, we have found that exported 33 meter aerial work vehicles are more likely to choose Isuzu chassis by users or dealers, which may be related to the engine installed on the Isuzu chassis. Many users abroad prefer Isuzu engines for their strong power and durability.

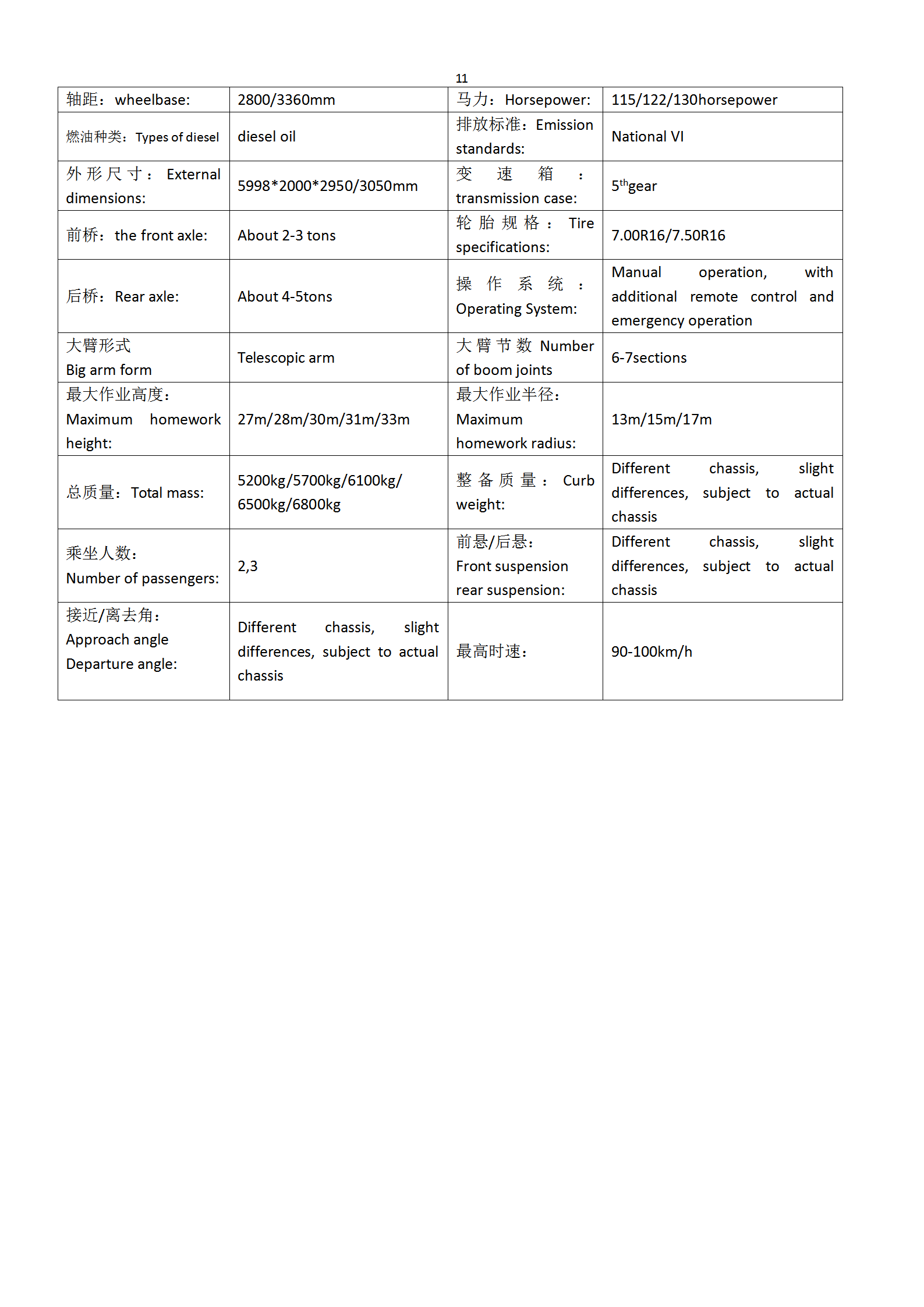

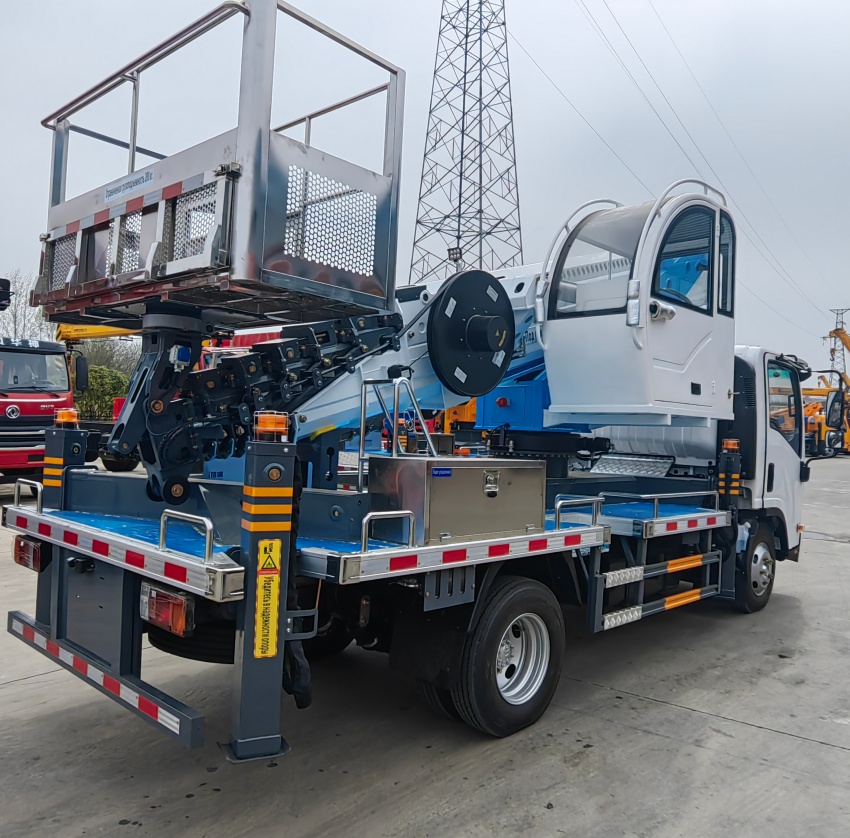

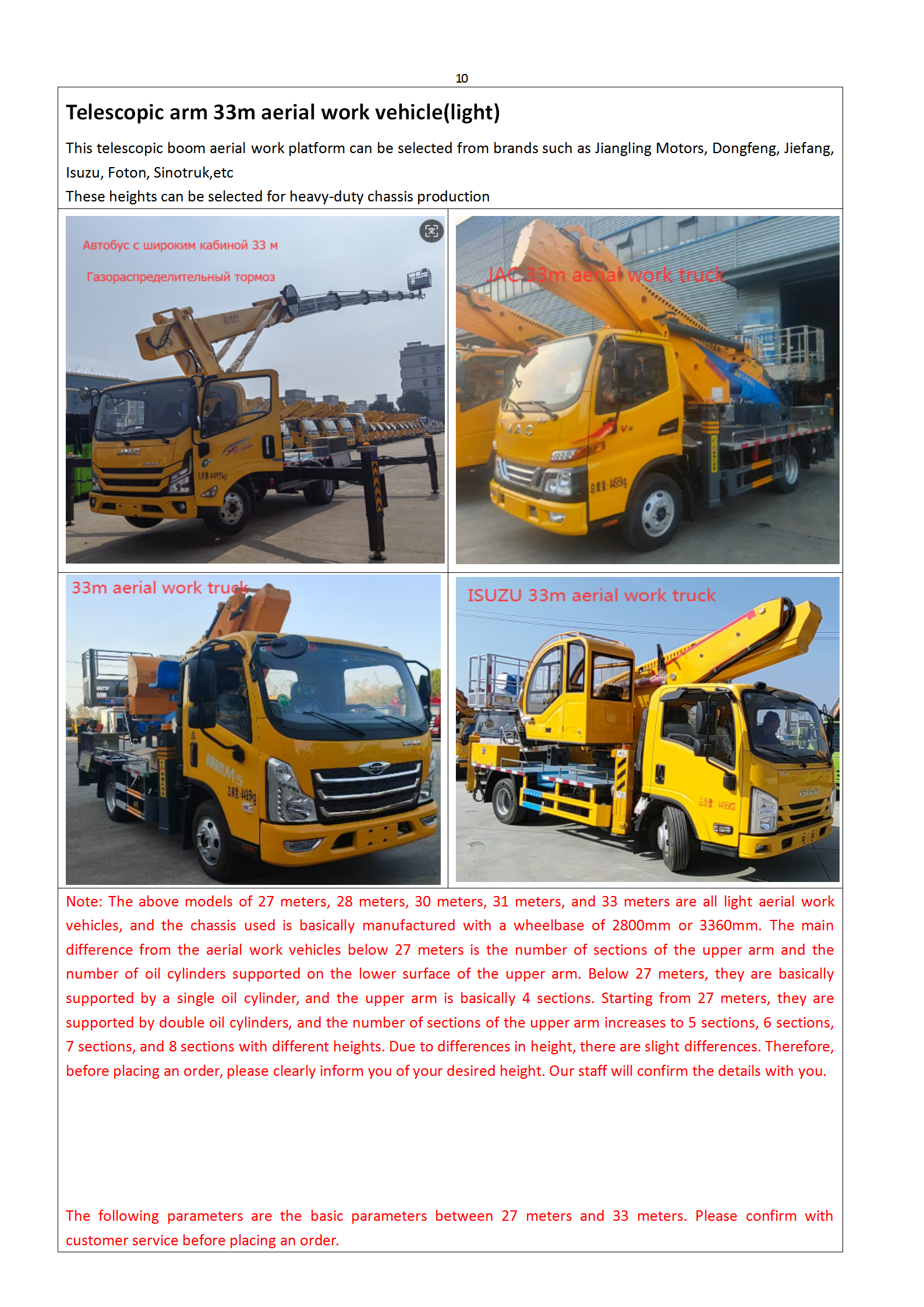

Regarding the high-altitude work platform with a straight arm Isuzu chassis, the upper part can currently be made into 27 meters, 28 meters, 30 meters, 31 meters, and 33 meters high-altitude work platforms. Please refer to the table below for the parameters of the upper part. The standard configuration includes remote control operation, computer operation, and manual operation, all of which are equipped with emergency power pumps. The working height of this Isuzu 33 meter high-altitude work platform can reach 33 meters, and the horizontal working range of the boom can reach 18 meters in the left and right directions, and 22 meters in the rear direction. The boom can rotate 360 degrees, and it rises and falls smoothly without any shaking. The load-bearing capacity of the work frame is 260kg

The following configurations can be added:

1. The size of the work frame can be customized according to needs. The standard size is 1.6 * 0.8 * 1.1m, and it can be made into 2 * 1 * 1.2m

2. Work frame weighing system; This device can real-time monitor the weight inside the work frame through the display screen to avoid overloading;

3. Vehicle 220V power socket; (Or install relative models based on the voltage in the user's location)

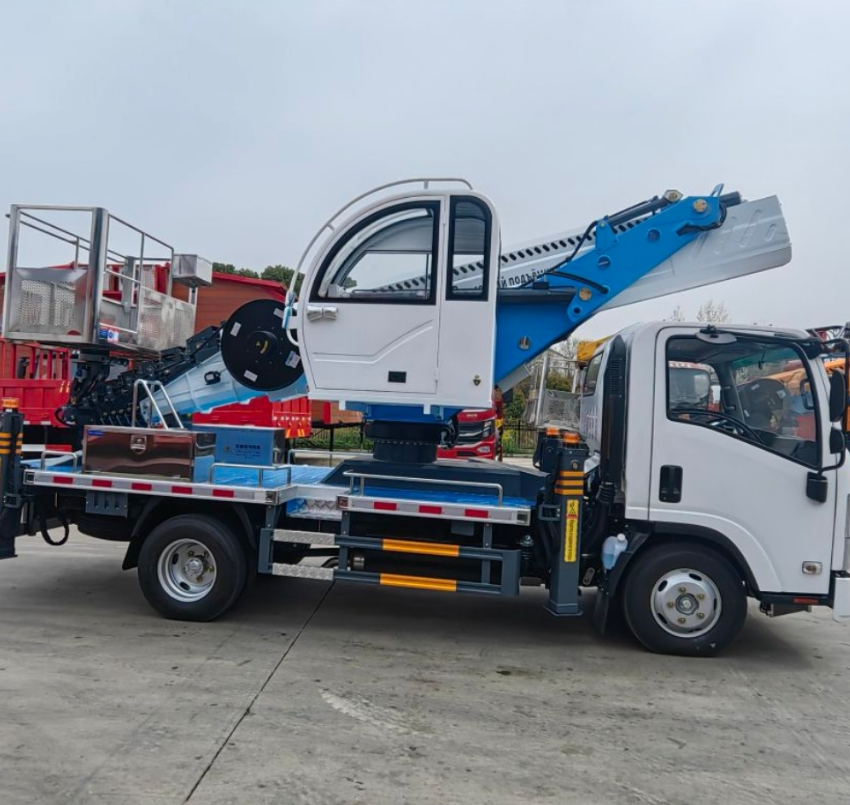

4. Operate the small cab; (At the turntable, with the addition of this device, staff can operate it in the cab during winter or rainy days.)

5. Anemometer

6. Choose a language operating system based on user needs.

7. Support leg cable sensor.

8. Devices can be installed according to user needs.
