Product details

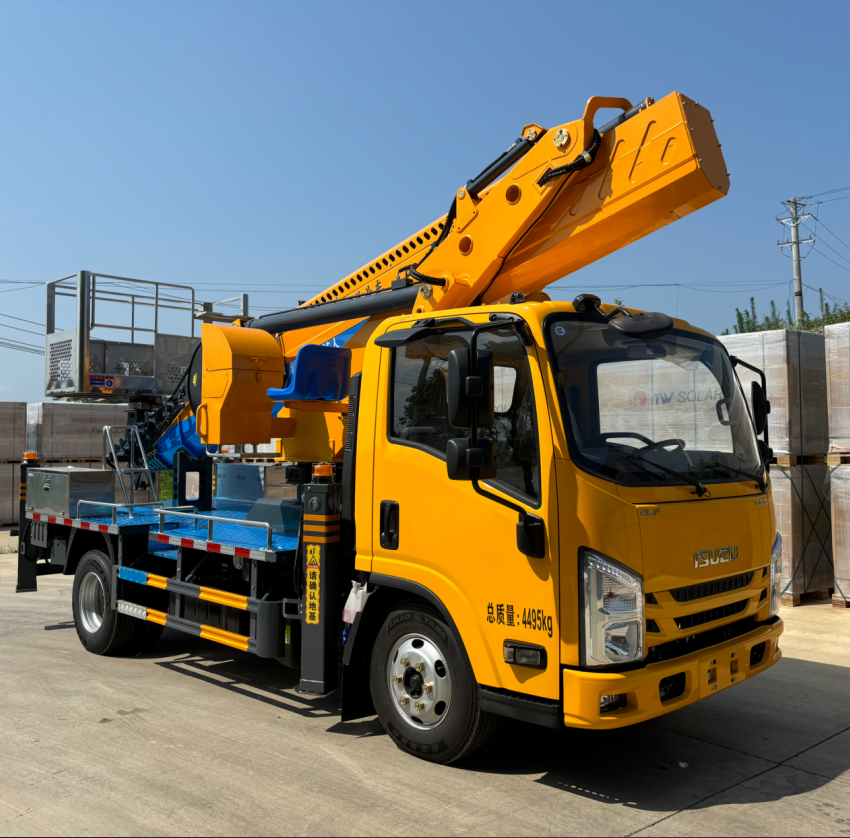

Regarding this small 33 meter aerial work vehicle, we have already produced 33 meter aerial work vehicles with chassis from brands such as Dongfeng, Jiangling, Jianghuai, Jiefang, Foton, Isuzu, etc. These different chassis have slightly different cab configurations and engine horsepower sizes. However, we have found that for 33 meter aerial work vehicles exported, users or dealers tend to choose Isuzu chassis more, which may be related to the engine carried by Isuzu chassis. Many users in foreign countries prefer Isuzu engines for their strong power and durability.

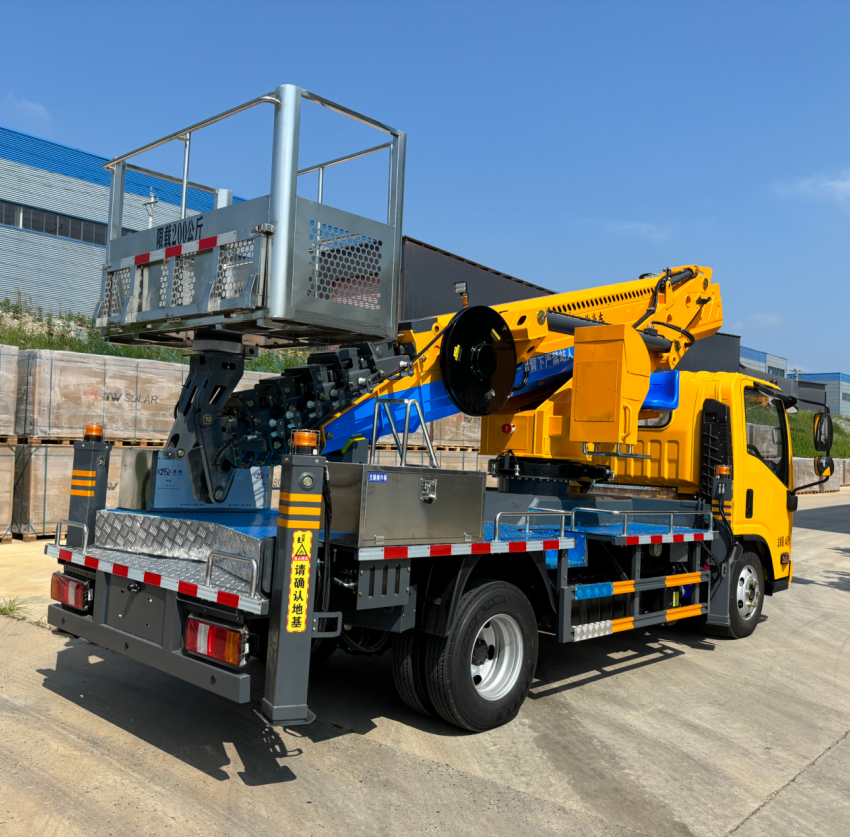

Regarding the parameters of the upper part of this straight arm Isuzu 33 meter aerial work platform, please refer to the table below. The standard configuration includes remote control operation, computer operation, and manual operation, all with an emergency power pump. The working height of this Isuzu 33 meter aerial work platform can reach 33 meters, and the horizontal working range of the boom can reach 18 meters in the left and right directions, and 22 meters in the backward direction. The boom can rotate 360 degrees and rise and fall smoothly without any shaking. The load-bearing capacity of the work frame is 260kg

The following configurations can be added:

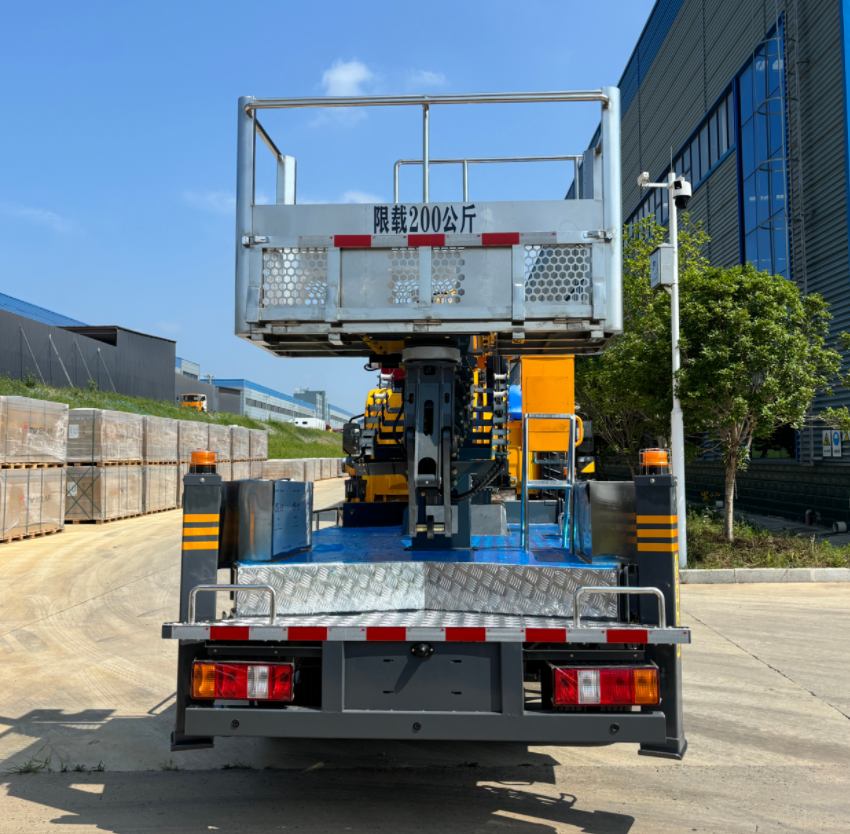

1. The size of the work frame can be customized according to needs. The standard size is 1.6 * 0.8 * 1.1m, and it can be made into 2 * 1 * 1.2m

2. Work frame weighing system; This device can real-time monitor the weight inside the work frame through the display screen to avoid overloading;

3. Vehicle 220V power socket; (Or install relative models based on the voltage in the user's location)

4. Operate the small cab; (At the turntable, with the addition of this device, staff can operate it in the cab during winter or rainy days.)

5. Anemometer

6. Choose a language operating system based on user needs.

7. Support leg cable sensor.

8. Devices can be installed according to user needs.
