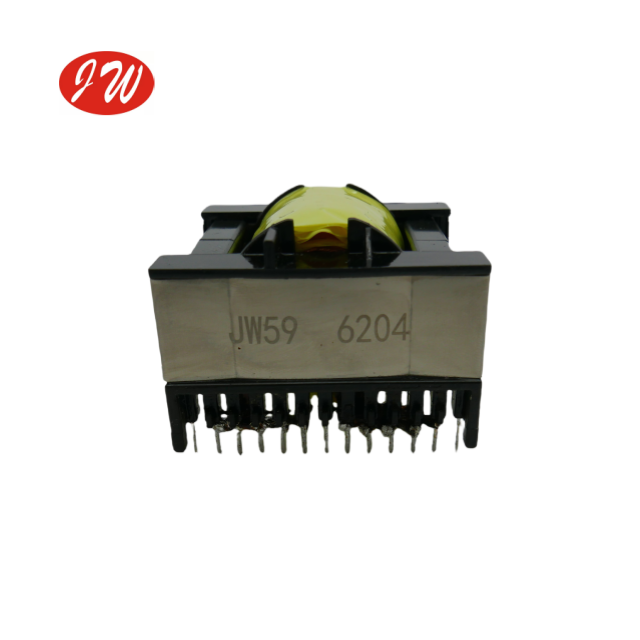

The ETD59 high-frequency transformer, model JW596204, is an option for industrial power conversion and battery-powered inverter systems. As a switch mode power supply transformer, it transfers energy between windings and supports voltage conversion within a properly designed switching circuit.
In an inverter transformer application, ETD59 may be used in the high-frequency DC-DC stage, working with switching devices, rectifiers and control circuitry to supply the inverter’s DC bus. The downstream inverter stage generates the required AC output. Power capability, insulation and temperature rise must be evaluated against the selected topology, core material, winding design and cooling conditions.
Explore our high-frequency transformer range to compare available models. Contact Jingwei with your input voltage, output requirements, switching frequency and mounting dimensions to discuss a suitable configuration.
