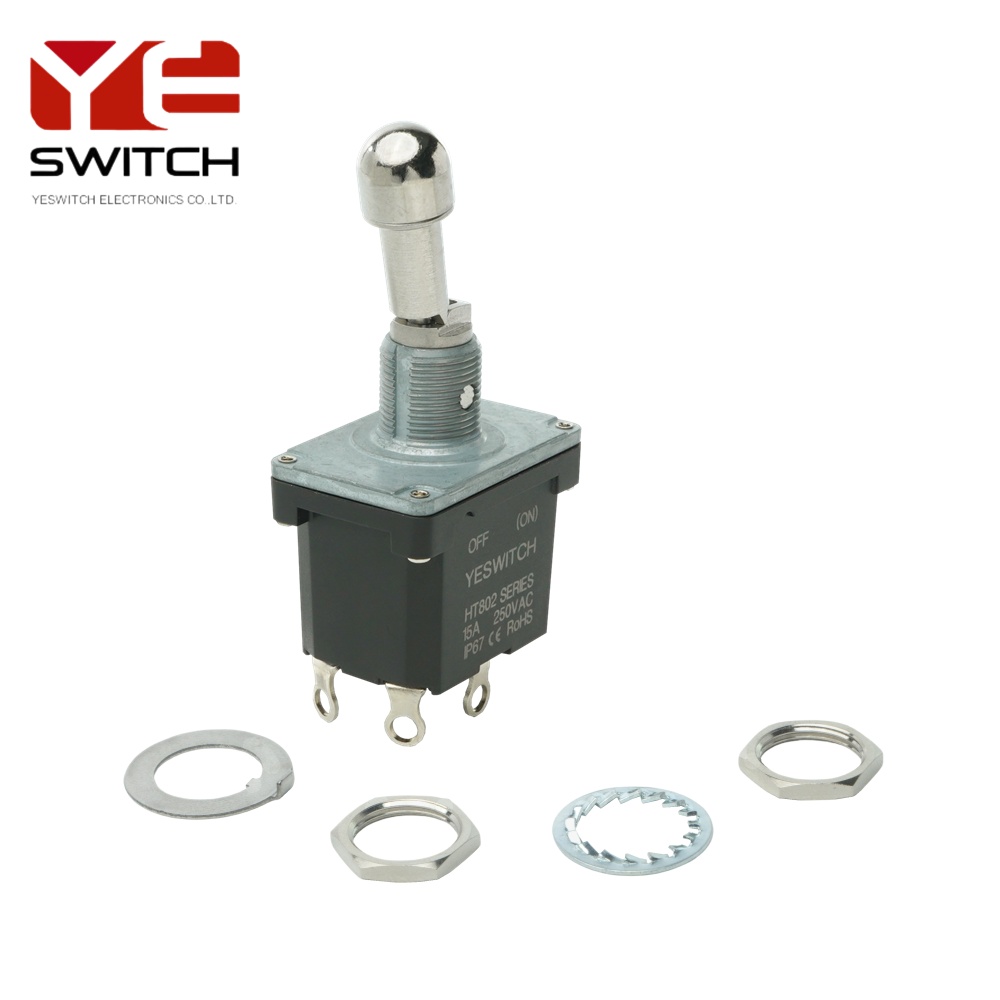

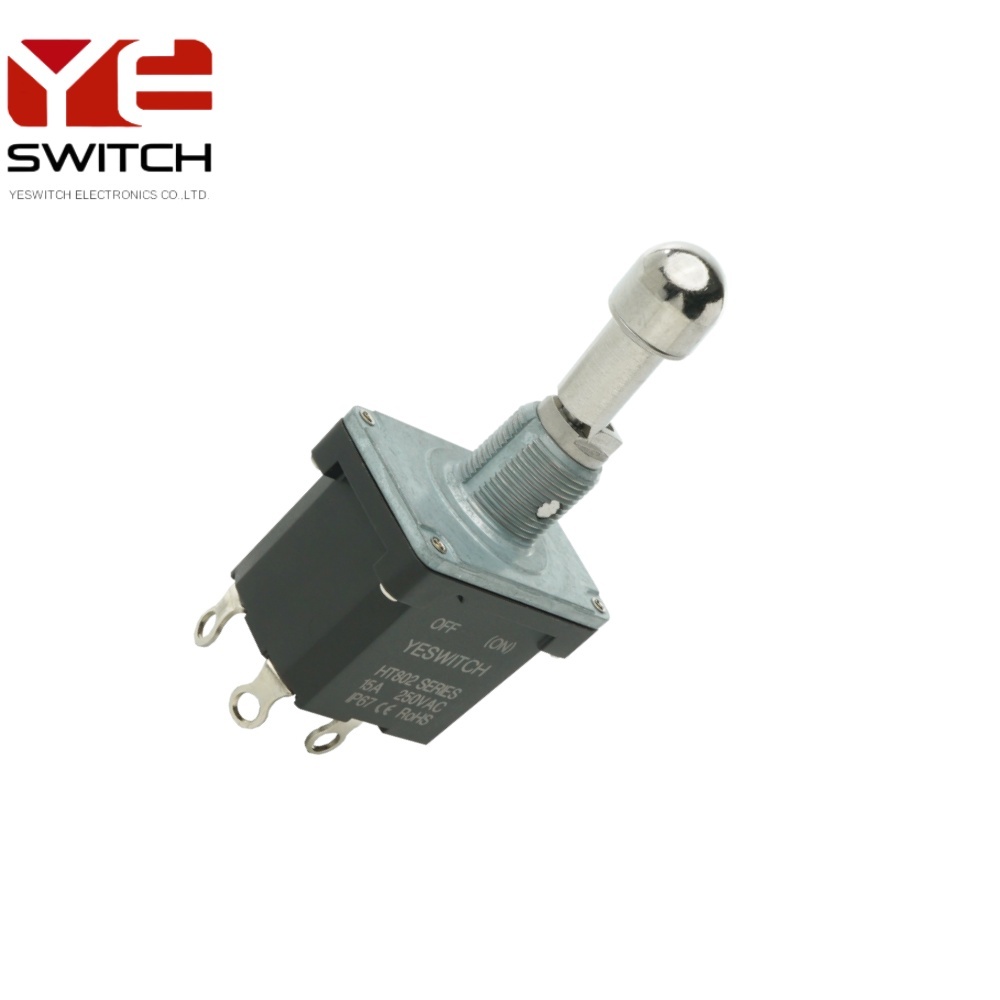

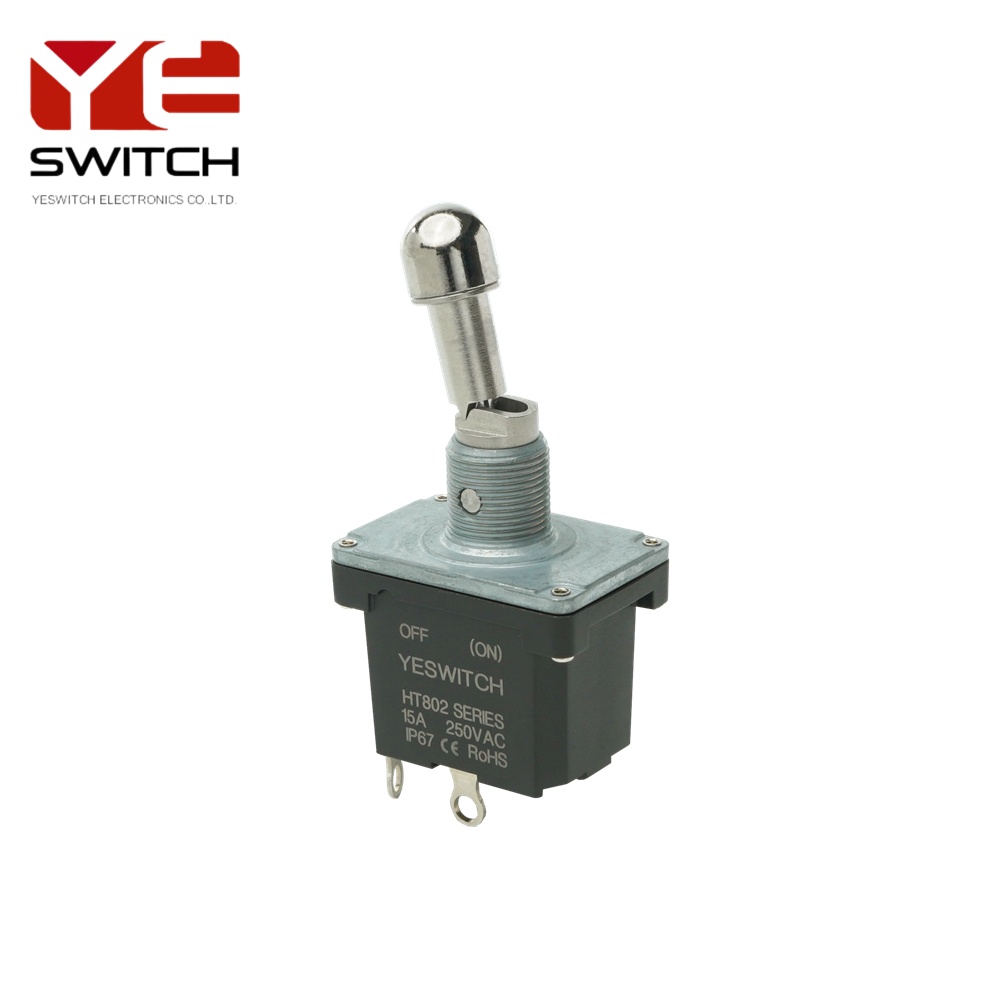

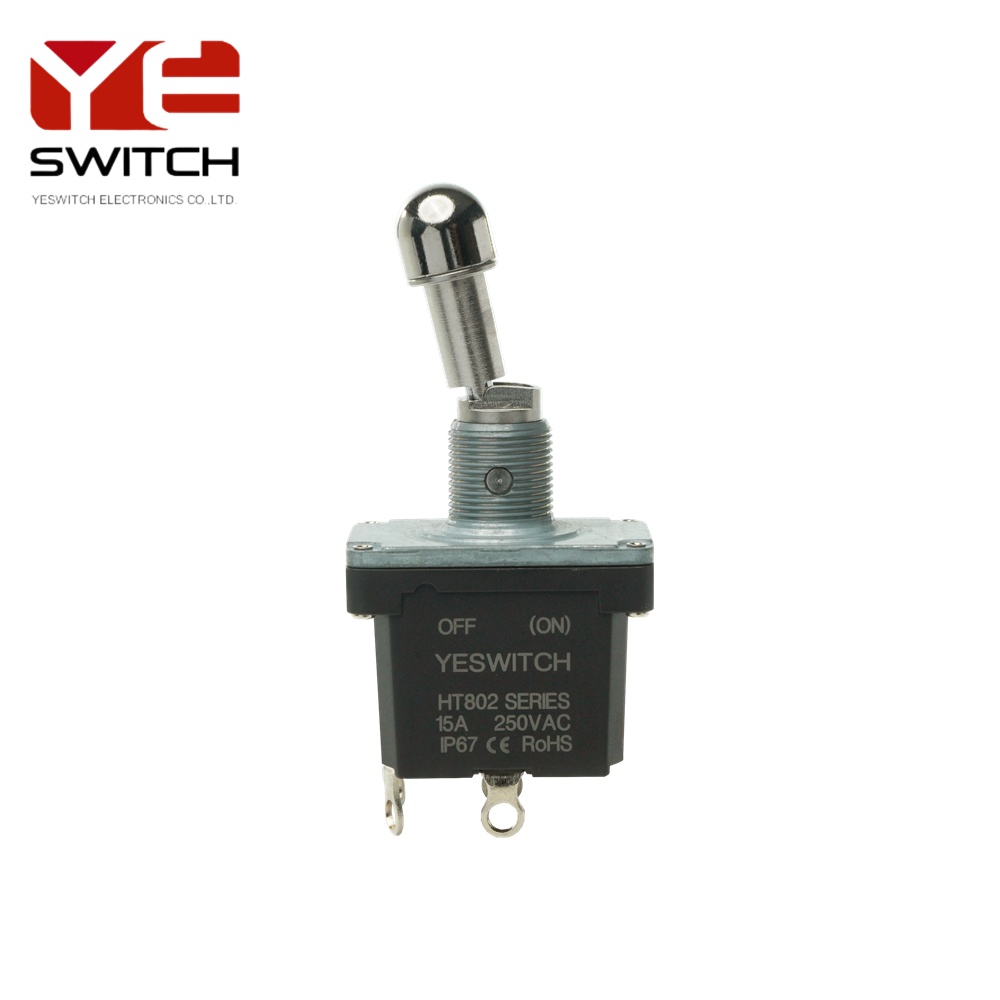

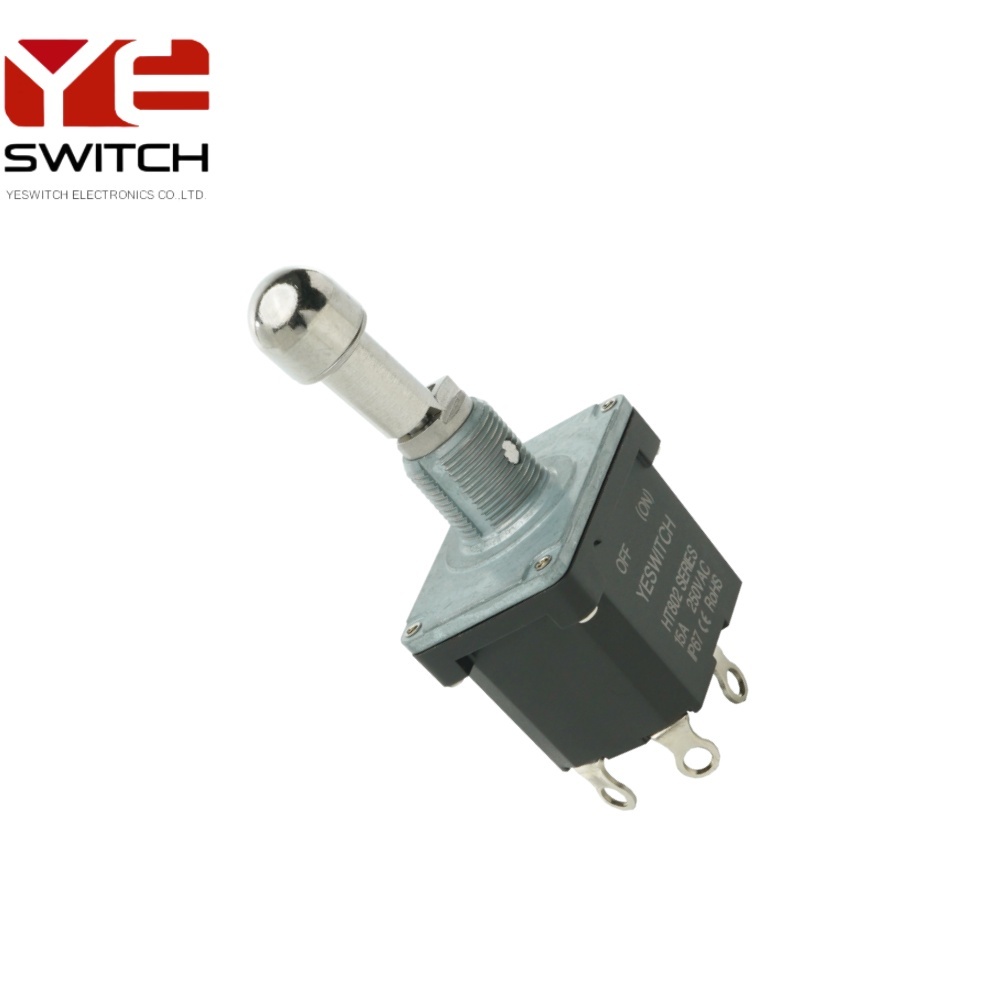

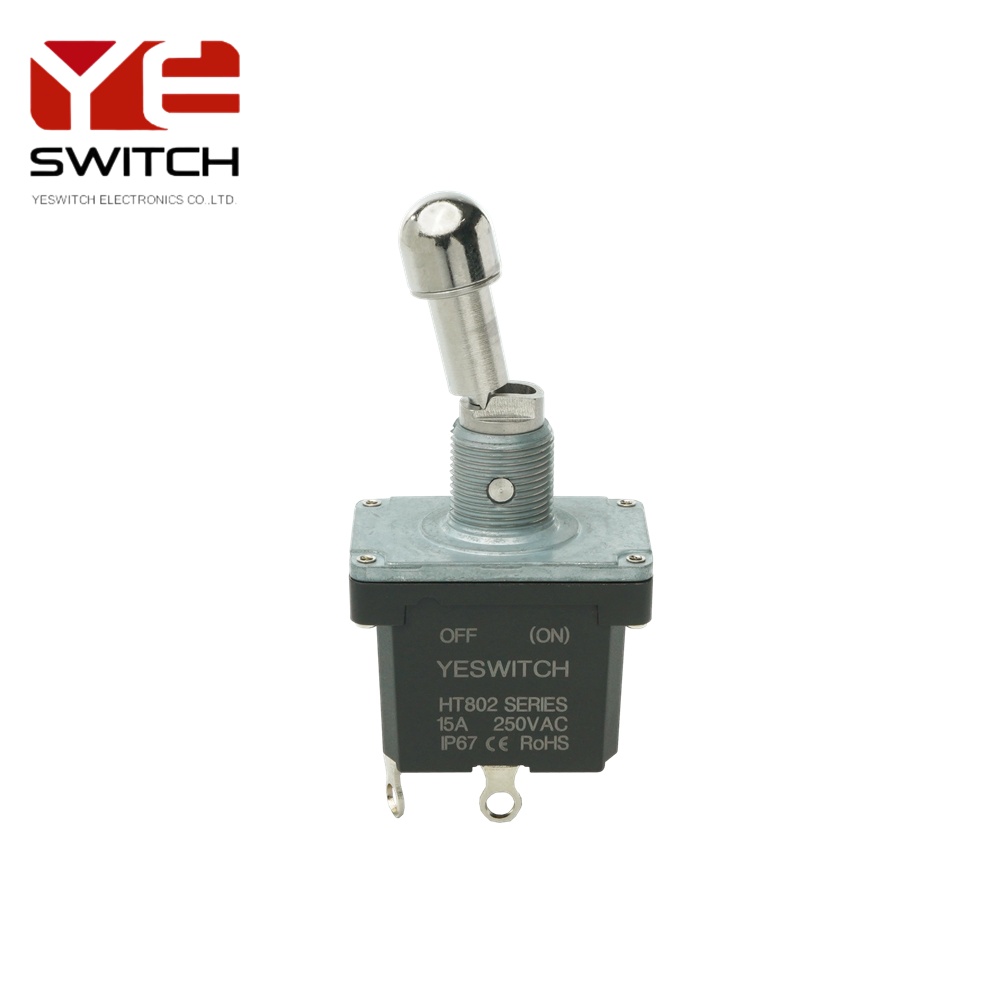

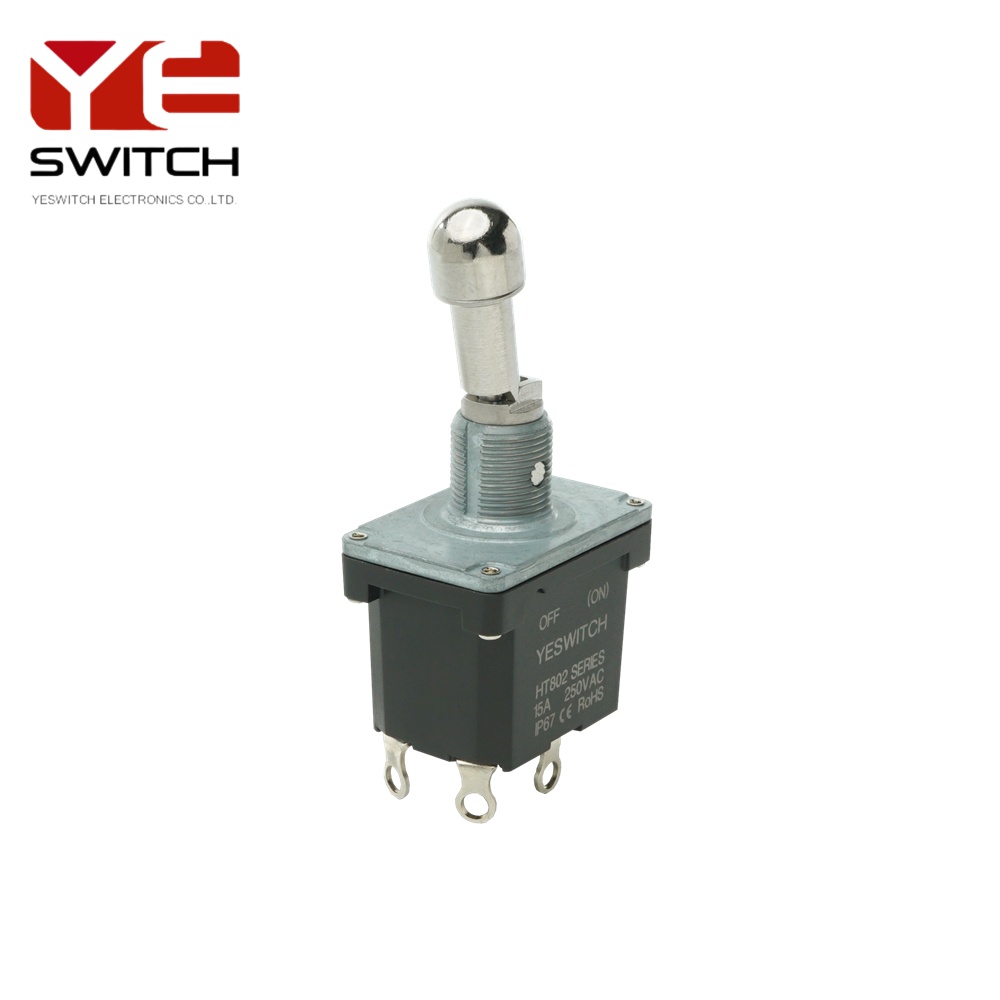

High Current IP68 Dual OFF-(ON) Reset Toggle Switch

YESWITCH HT802 series toggle switch is a high-performance switch designed for harsh industrial environments.With its excellent reliability,durability and safety,it is widely used in heavy machinery,aerial work platform vehicles, engineering equipment and other high-load electrical control systems.

Core features

Dual OFF-(ON) reset function

Adopting a dual-circuit control design,toggle switches support instantaneous triggering or self-reset operation to ensure that the equipment can quickly cut off the power supply in an emergency,or provide flexible control when a short start is required.

The momentary structure prevents misoperation and improves system safety.

Metal lock handle

High-strength metal handle design with anti-corrosion surface treatment,combining mechanical strength and durability.

The lock structure can fix the switch state to avoid accidental switching caused by vibration or impact,which is suitable for mobile devices and high vibration environments.

Solder terminal connection

Provides a stable solder interface,reduces contact resistance,and ensures the stability of large current transmission.

The terminal structure is compact,easy to install and maintain, and suitable for complex wiring scenarios.

IP68 protection level

Fully sealed dustproof and waterproof design,can resist high-pressure water washing, dust intrusion and bad weather,suitable for outdoor engineering machinery,marine equipment and other humid and dusty environments.

International certification guarantee

Passed CE (EU Compliance Certification) and RoHS (No Hazardous Substances Directive),in line with global environmental protection and electrical safety standards.

High current carrying capacity

Supports high current load (specific parameters need to refer to model specifications),meeting the high power requirements of heavy equipment and power control systems.

Typical application scenarios

Heavy machinery:power control and safe emergency stop of equipment such as excavators,cranes,loaders, etc.

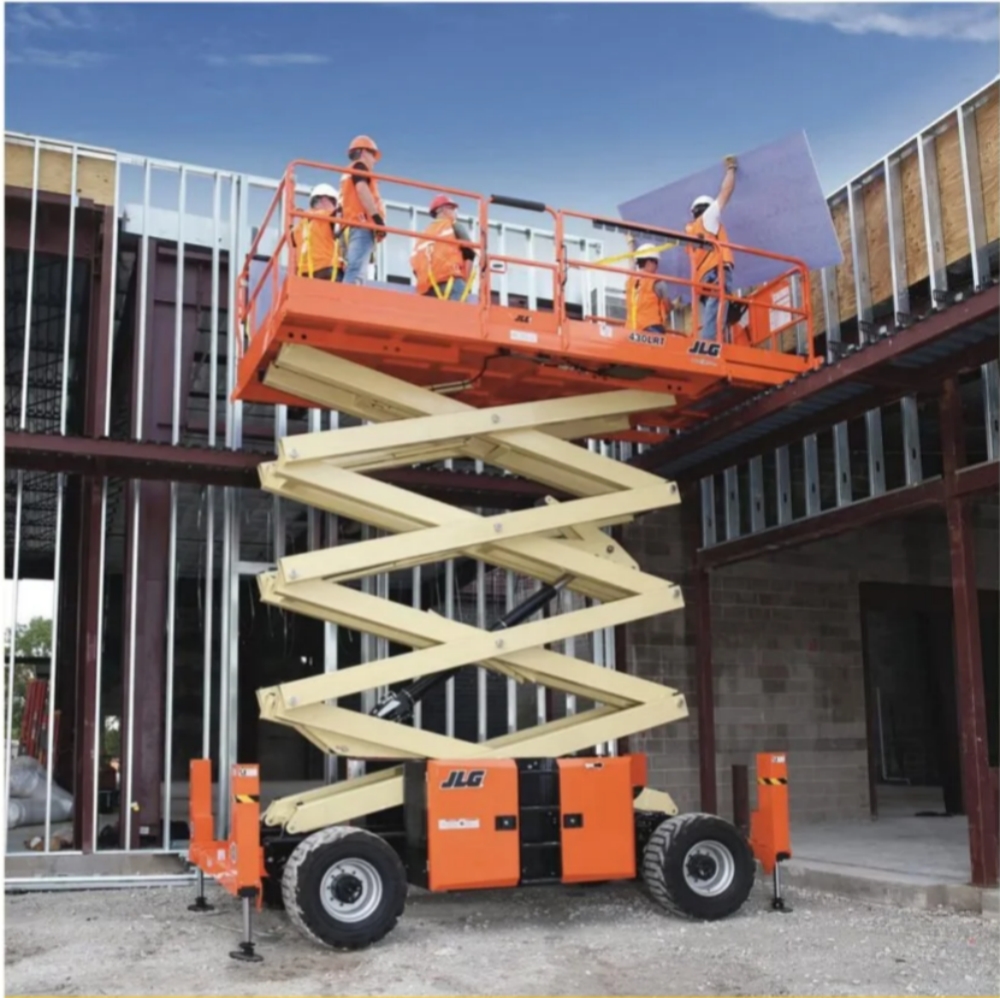

Aerial work platform vehicle:start,stop and protection of lifting mechanism and hydraulic system.

Special vehicles:electrical system switches of mining trucks and fire trucks.

Industrial automation:emergency braking of production lines, remote control modules of equipment.

SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

RATING

RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC

MATERIAL

ACTUATOR:COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
