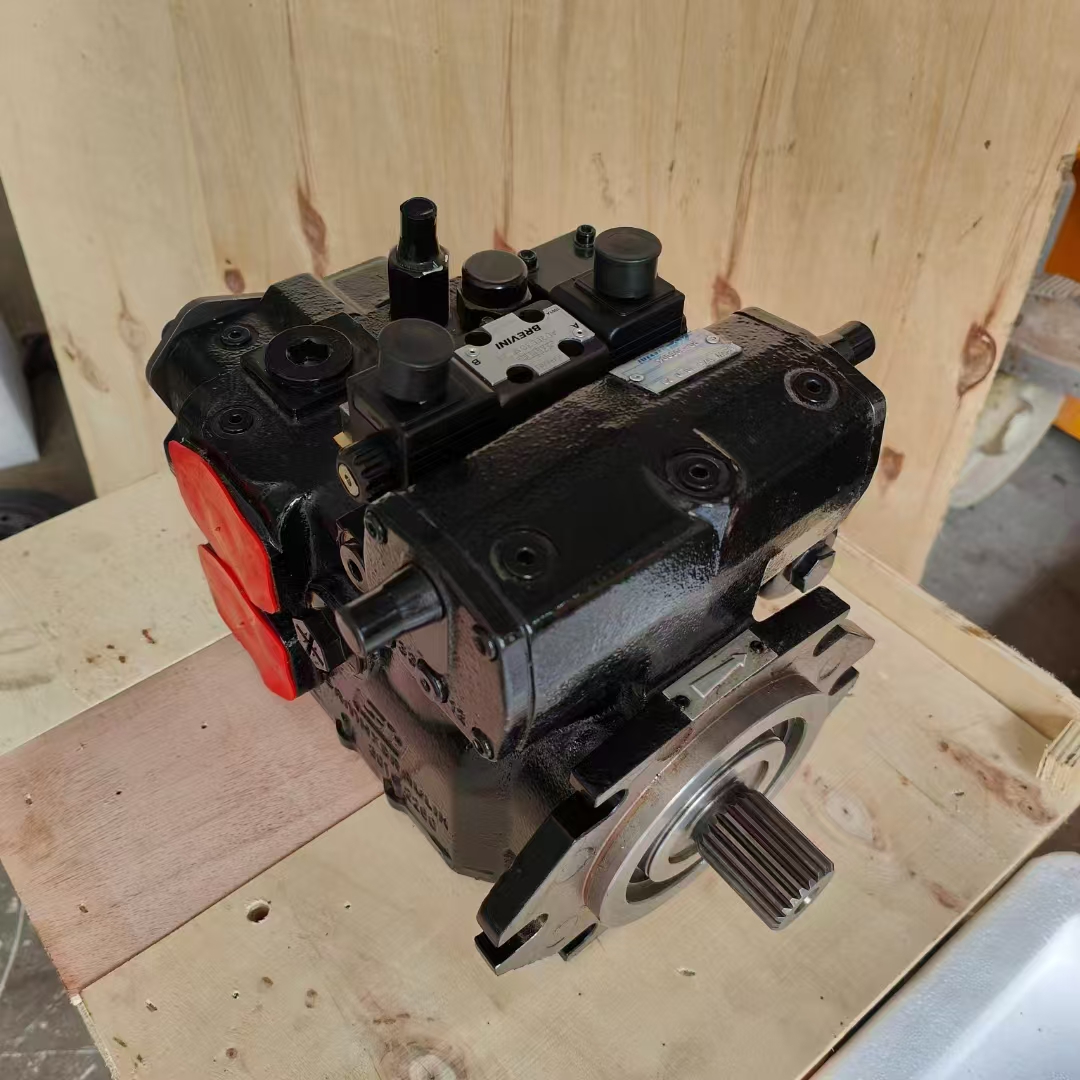

A4VTG Hydraulic pump

A4VTG Hydraulic pump

3 week ago

6 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 3 year year

Product details

Features

--Variable axial piston pump of swashplate design for hydrostatic drives in closed circuit

--The flow is proportional to the drive speed and displacement.

--The flow increases as the angle of the swashplate is adjusted from zero to its maximum value.

--Flow direction changes smoothly when the swashplate is moved through the neutral position.

--Two pressure-relief valves are provided on the high pressure ports to protect the hydrostatic transmission (pump and motor) from overload.

--The high-pressure relief valves also function as boost valves.

--The integrated boost pump acts as a feed pump and control pressure supply.

--The maximum boost pressure is limited by a built-in boost pressure-relief valve.

Product details:

Specially designed for open circuit hydraulic drive.

The flow of the pump is proportional to the speed and displacement of the pump, and the displacement can be adjusted steplessly by adjusting the inclination of its swash plate.

Load-sensing pump, suitable for occasions where the hydraulic system needs flow;

Axial plunger pump with swash plate design, plane flow distribution;

Through shaft transmission, both front and rear pumps can be connected in series

Ideal power-to-weight ratio and low noise
