Product Intro

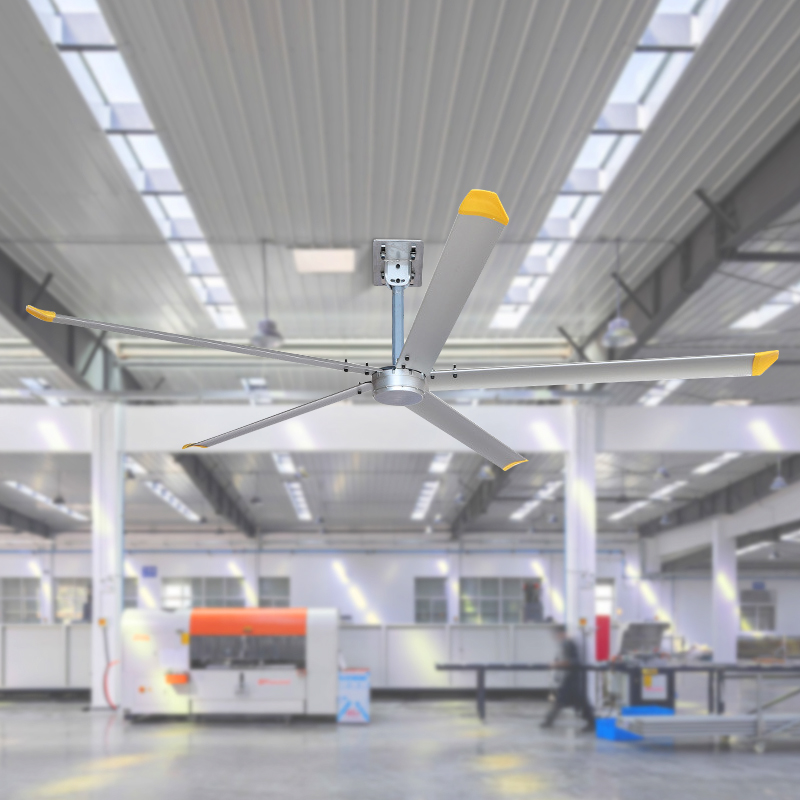

Looking for the best industrial ceiling fans to cool down your massive facilities? Our Permanent Magnet Frequency Conversion Industrial Fans are engineered for ultimate performance, safety, and energy efficiency. Designed as a heavy duty industrial ceiling fan solution, a single 7.3m (24ft) unit can effectively cover an impressive area of up to 1,700 square meters. Whether for super-large plants, logistics warehouses, or commercial areas, these industrial ceiling fans create a natural three-dimensional breeze that improves environmental comfort and boosts labor efficiency.

Key Features

Direct Drive PMSM Motor: Replaces traditional motor-gearbox reducers. Our permanent magnet synchronous external rotor motor achieves high integration, ensuring zero maintenance, high transmission efficiency, and a service life of ≥ 20 years.

Massive Coverage & Energy Saving: A single 1.5kW fan generates a maximum air volume of 16,500 m³/min, covering the same 1,700m² area that would normally require 50 traditional industrial floor fans (which would consume 13.5kW).

Aviation-Grade Streamlined Blades: Made of high-strength extruded aluminum alloy with T6+ surface bright oxidation treatment for superior corrosion resistance. The innovative energy-saving tail wing eliminates energy loss from vortexes and stabilizes fan operation.

Super Mute Operation: Advanced VVC control technology and gearless design ensure the fan operates at an ultra-low noise level of just 40 dB, perfect for both loud factories and quiet commercial spaces.

5 Levels of Security Guarantee

Safety is our top priority for overhead installations. Our fans feature a comprehensive 5-level safety system:

1.Fan Blade Integration: Eliminates accidental falling off or breaking of parts.

2.Anti-Disengagement Plate: Protects the broken shaft and bracket from breakage to ensure long-term safety.

3.Aviation Aluminum Tensile Blades: Internal reinforcement ensures high strength, good toughness, and long blade life.

4.Steel Wire Rope Traction: Ensures motor stability, prevents shaking, and stops the entire machine from accidentally falling.

5.Automatic Power-Off Protection: Ensures a timely and safe shutdown if the blade accidentally touches an object.

Technical Specifications

Parameter	Specification
Fan Diameter	3m (10ft) – 7.3m (24ft)
Max. Air Volume	6,800 – 16,500 m³/min
Max. Power	0.35kW – 1.6kW
Max. Rotating Speed	55 – 100 RPM
Noise Level	40 dB (Super Mute)
Effective Coverage Area	Up to 1,700 m²
Protection Grade	IP54
