How does the SCB10 dry-type transformer achieve a balance between safety, efficiency and suitability for various scenarios?

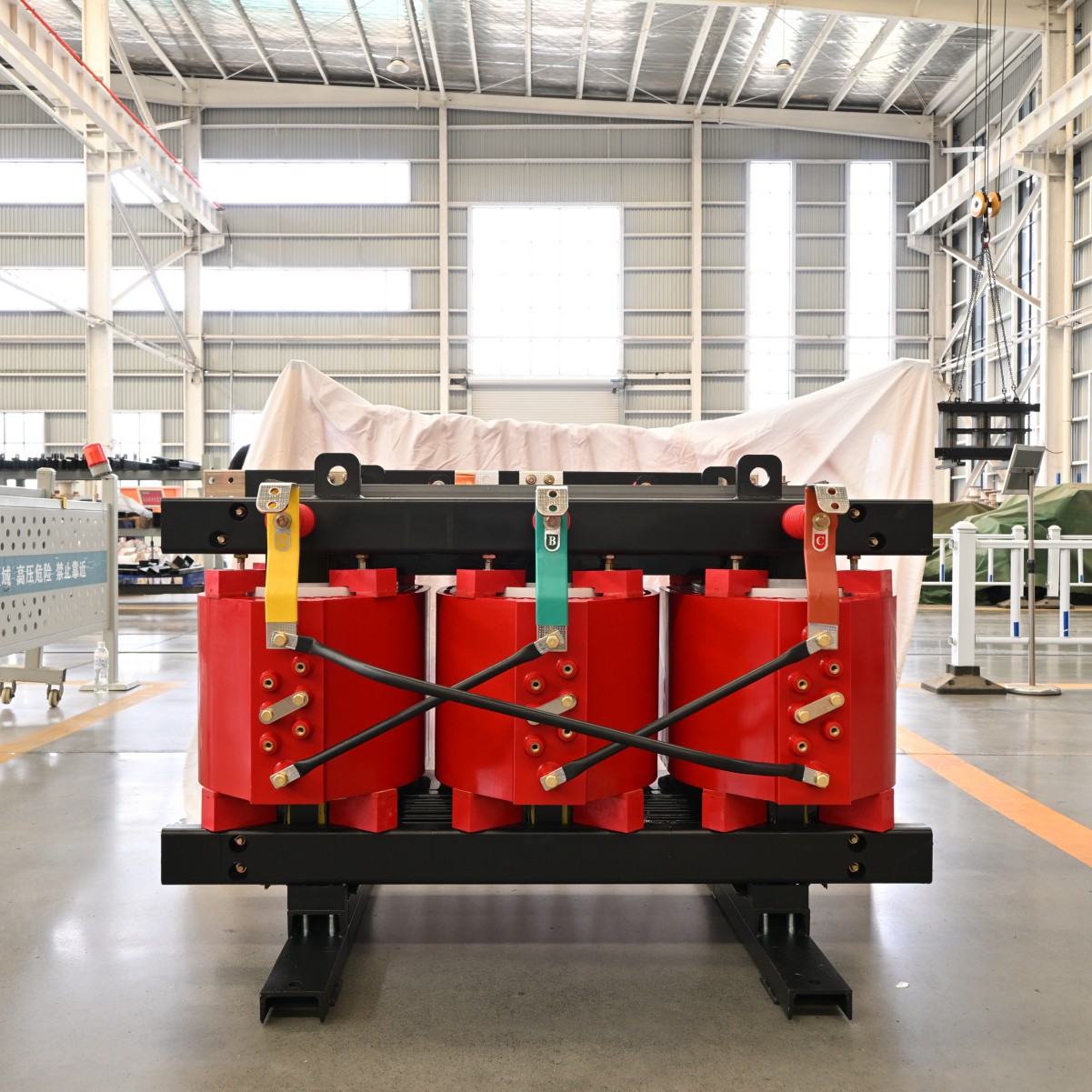

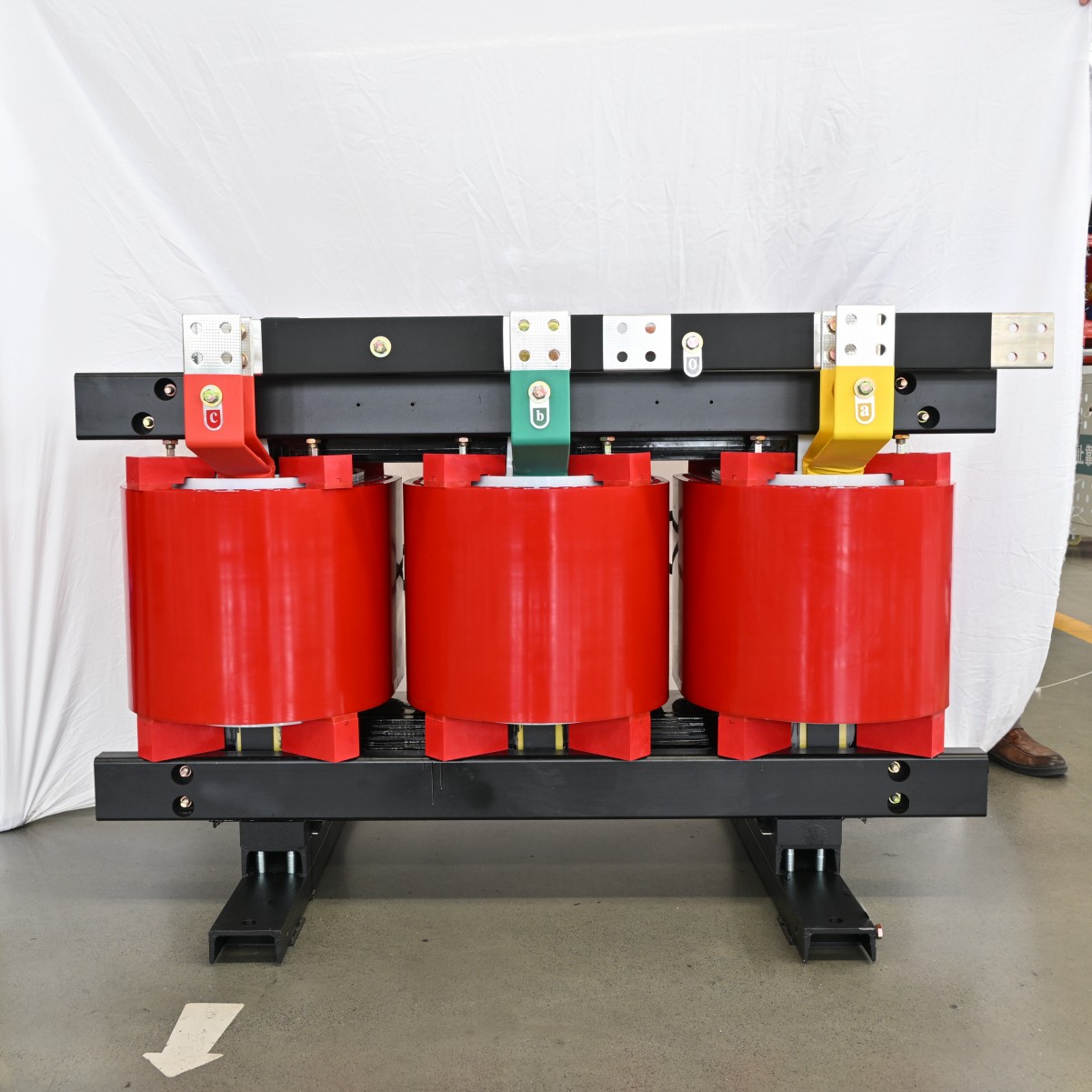

In the process of upgrading the urban power grid and renovating industrial power distribution, the strict fire protection requirements of traditional transformer substations often conflict with the intensive deployment needs of transfomer accessories. The environmental compatibility limitations of oil-Immersed transformers further increase the difficulty of selection. The 10kV SCB10 resin-insulated Dry-type Transformer, with its innovative technology, balances various demands and has become the preferred solution for modern intelligent power distribution systems.

Product Features

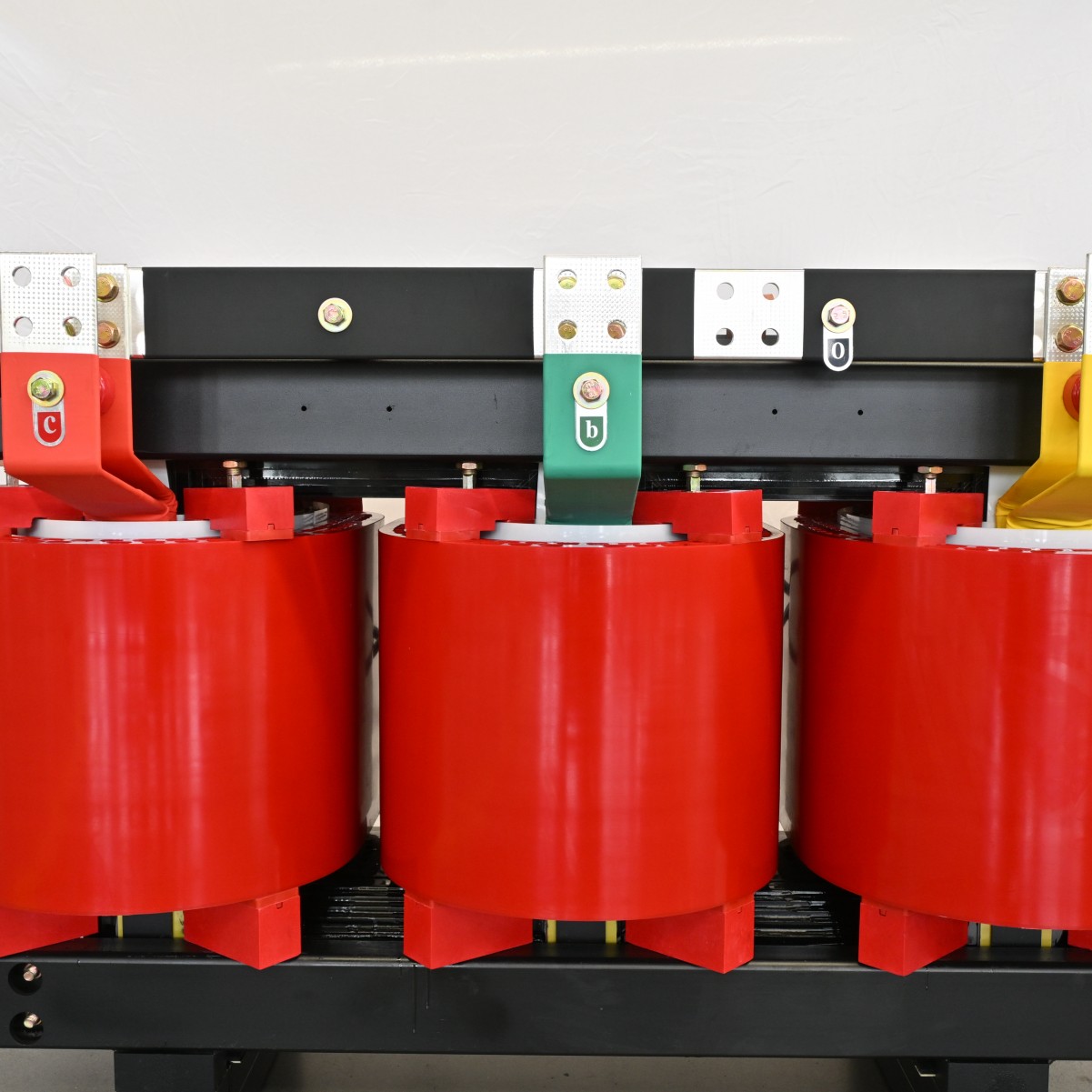

Active Safety System: The F-class insulated copper foil windings are vacuum-impregnated with resin to form a fully encapsulated protective layer, eliminating the risk of electrical arcs and meeting the fire safety standards for high-density Compact substations.

Smart Temperature Control Network: Equipped with 3 sets of BWDK temperature sensors, it can monitor the hotspots of the low-voltage windings in real time. In case of over-temperature, it automatically triggers the trip protection and activates the forced air cooling system.

Strong Environmental Adaptability: Capable of direct operation in 100% humidity environments, addressing the moisture-related risks of coastal Transformer Substations. After shutdown, it can be restarted without the need for pre-drying.

Scene Value

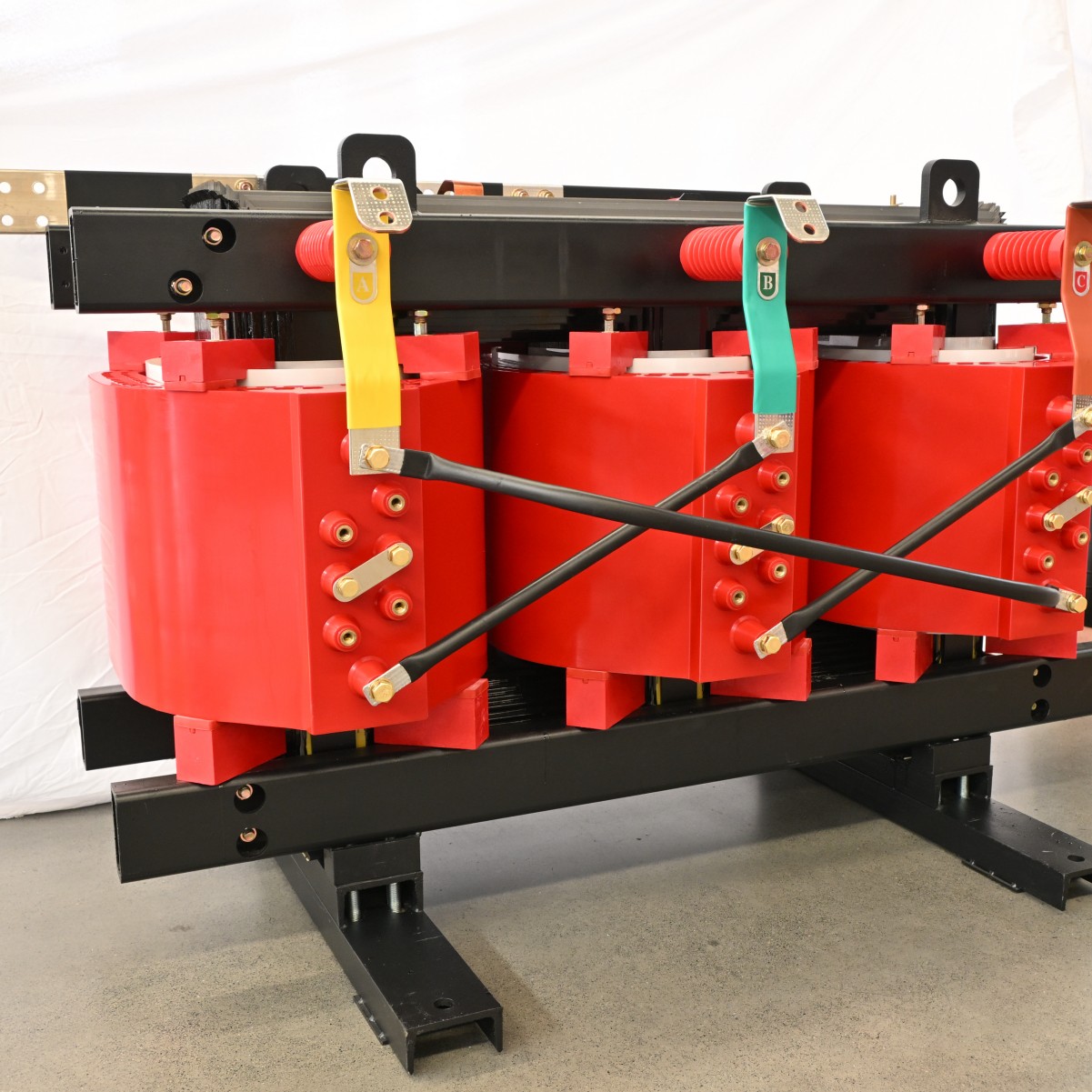

The capacity can be flexibly customized within the range of 30 - 3150 kVA, suitable for direct installation scenarios in commercial complexes, rail transit, etc. The unique box-type coil design inherits the maintenance-free advantages of Dry-type Transformers, and through argon arc welding lead wire technology, it enhances the equipment's seismic resistance, especially suitable for the renovation of old factory areas.

Tips

• When deploying in Compact substations, it is recommended to adopt a lateral convection air duct design to optimize heat dissipation.

• When mixed networking with Oil-Immersed Transformers, this product can be used as the core node to reduce system redundancy.

The SCB10 series has obtained the IEC 60076 international certification. The partial discharge quantity exceeds the industry standard. Its low noise feature gives it a unique advantage in Transformer Substations located in residential areas. Through the modular pre-installation structure, the construction period can be shortened by 30%, facilitating the efficient construction of the new power system.
