Product advantage:
1.Efficiency: Hydraulic systems are known for their efficiency in converting energy into motion. They can generate high force and torque while consuming less power.
2.Reliability: Hydraulic systems are reliable and durable. They can withstand harsh conditions and heavy loads without breaking down.
3.Precision: Hydraulic systems offer precise control over motion. They can be programmed to move in specific patterns and maintain consistent speed and pressure.
4.Flexibility: Hydraulic systems can be designed to perform a wide range of functions. They can be customized to meet the needs of different applications and industries.
5.Safety: Hydraulic systems are generally safer than other types of machinery. They are designed to operate at lower pressures and temperatures, reducing the risk of accidents and injuries.
THE MODELS FOR EXCAVATOR
FOR HITACHI
EX40-1 EX40-2 EX55 EX60 EX60-2 EX60-3 EX60-5 EX70 EX75
EX100 EX110 EX120 EX120-1 EX120-2 EX120-3 EX120-5 EX130-1 EX200-1
EX200-2 EX200-3 EX200-5 EX220-3 EX220-5 EX270 EX300 EX300-1 EX300-2
EX300-3 EX300-5 EX300A EX330 EX370 EX400-1 EX400-2 EX400-3 EX400-5
EX450 ZAX30 ZAX55 ZAX200 ZAX200-2 ZAX330 ZAX450-1 ZAX450-3 ZAX450-5
ZX110 ZX120 ZX200 ZX200-1 ZX200-3 ZX200-5G ZX200LC-3 ZX210 ZX210-3
ZX210-5 ZX225 ZX240 ZX250 ZX270 ZX300 ZX330 ZX330C ZX350
ZX450 ZX450LC ZX500 ZX500LC ZX520 ZX670 ZX690 ZX870 ZX130
ZX170 ZX170LC ZX195 ZX260 ZX360 ZX360LC ZX400 ZX470 ZX490
FOR KOMATSU
PC20-7 PC30 PC30-3 PC30-5 PC30-6 PC40-7 PC45 PC45-2 PC55
PC120-6 PC130 PC130-7 PC200 PC200-1 PC200-3 PC200-5 PC200-6 PC200-7
PC200-8 PC210-6 PC220-1 PC220-3 PC220-6 PC220-7 PC220-8 PC270-7 PC202B
PC220LC-6 PC220LC-8 PC240 PC300 PC300-3 PC300-5 PC300-6 PC300-7 PC300-7K
PC300LC-7 PC350-6/7 PC400 PC400-3 PC400-5 PC400-6 PC400LC-7 PC450-6 PC450-7
PC600 PC650 PC750 PC800 PC1100 PC1250 PC2000 PC360 PC460
FOR CATERPILLAR
E200B E200-5 E320D E215 E320DL E324D E324DL E329DL E300L
E320S E320 E320DL E240 E120-1 E311 E312B E320BL E345
E324 E140 E300B E330C E120 E70 E322C E322B
1. Product Overview

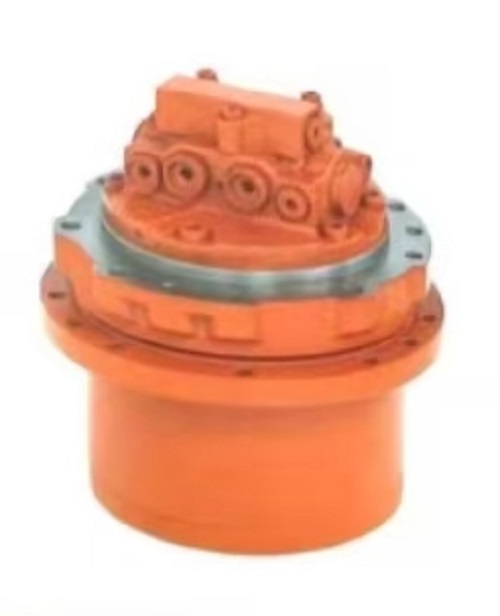

TheZTM06(9) TRAVEL MOTOR ASSYis an integrated hydraulic travel motor assembly widely used in the chassis drive systems of construction machinery (e.g., excavators, loaders, drilling rigs). Its core function is to convert hydraulic energy into mechanical energy to drive vehicle movement or steering. The model designation "ZTM" typically represents the manufacturer or product series, while "06(9)" may indicate displacement class or compatible machine specifications.
2. Key Technical Specifications
【表格】
Parameter Typical Value/Range Description
Displacement 6 mL/rev to 9 mL/rev Volume of hydraulic fluid discharged per revolution, directly affecting torque output.
Rated Pressure 25–35 MPa Maximum operating pressure under normal conditions; must match hydraulic pump output.
Peak Pressure ≤40 MPa Short-term allowable maximum pressure for overcoming transient loads.
Speed Range 0–150 rpm Adapts to varying travel speed requirements across work conditions.
Torque Output 50–120 Nm (pressure/displacement-dependent) Torque = Displacement × Pressure × Efficiency; critical for climbing and traction.
Brake Type Wet multi-disc/spring brake Wet brakes suit frequent starts/stops; spring brakes provide emergency stopping.
Rotation Direction Bidirectional (reversible) Supports forward, reverse, and steering functions.
3. Structural Components
• Hydraulic Motor Section:
• Piston or gear design (ZTM06(9) typically uses high-pressure piston motors).
• Key parts: port plate, cylinder block, pistons for efficient fluid distribution.
• Reduction Gearbox:
• Planetary gear system to reduce speed and increase torque.
• Alloy steel gears with surface hardening for wear resistance.
• Brake System:
• Wet multi-disc brake: hydraulically released, spring-applied for frequent operation.
• Brake torque must meet full-load safety stop requirements.
• Housing & Seals:
• Aluminum or cast iron housing for structural strength and heat dissipation.
• Dual seals (O-ring + lip seal) prevent oil leakage and external contamination.
