Silicone zipple puller making process

8 month ago

18 0

Dongguan Jinyu Automation Equipment Co., Ltd.

 10 year year

Product details

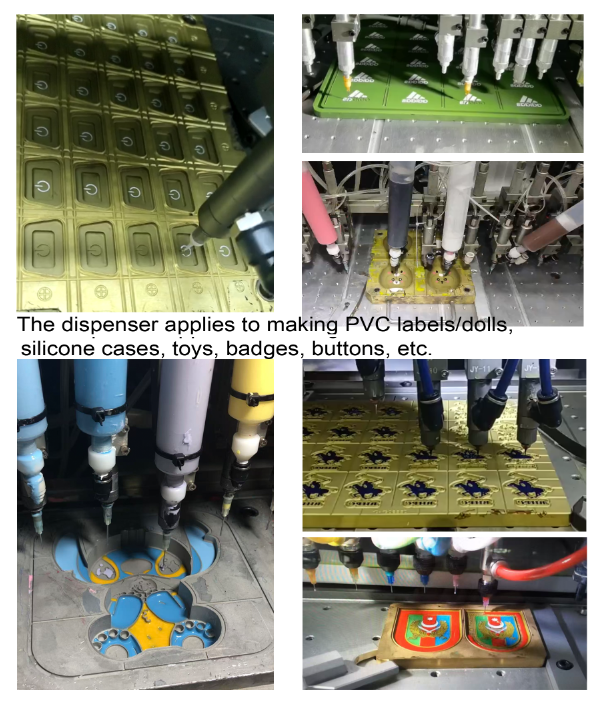

The upgrade of Jinyu Machinery's automatic dispensing machine goes far beyond the appearance. The machine is more ergonomically designed, and all internal components have been upgraded to high-brand accessories—such as motors, booster pumps, dispensing valves, pneumatic valves, as well as small details like shortcut keys, indicator lights, lead screws and guide rails. It works with other PVC machines or Silicone machines, to buid a full p[roduction line, and widely used in the rubber product processing machinery industry. It is mainly suitable for producing silicone labels, PVC keychains, mobile phone cases, 3d dolls, etc. Adopting the method of precisely dispensing liquid materials of different colors into molds, it features high dispensing accuracy (up to 0.01mm) and stable glue application.

Name	12 Colors	18 Colors
Model	JY-B02	JY-B03
Voltage	220V/50Hz	220V/50Hz
Number of valve	12	18
Wore area	620*370mm	920*370mm
Motor power	3*0.4kw	3*0.4kw
Heating Power	0.6kw	0.6kw
Power	1.2kw	1.2kw
Air pressure	6~8/kgf/cm-2	6~8/kgf/cm-2
Dispensing speed	400/mm.s-1	400/mm.s-1
X.Y.Z axis stroke	47036090mm	70036090mm
Size	133010001720mm	130011501550mm
Weight	450kg	550kg

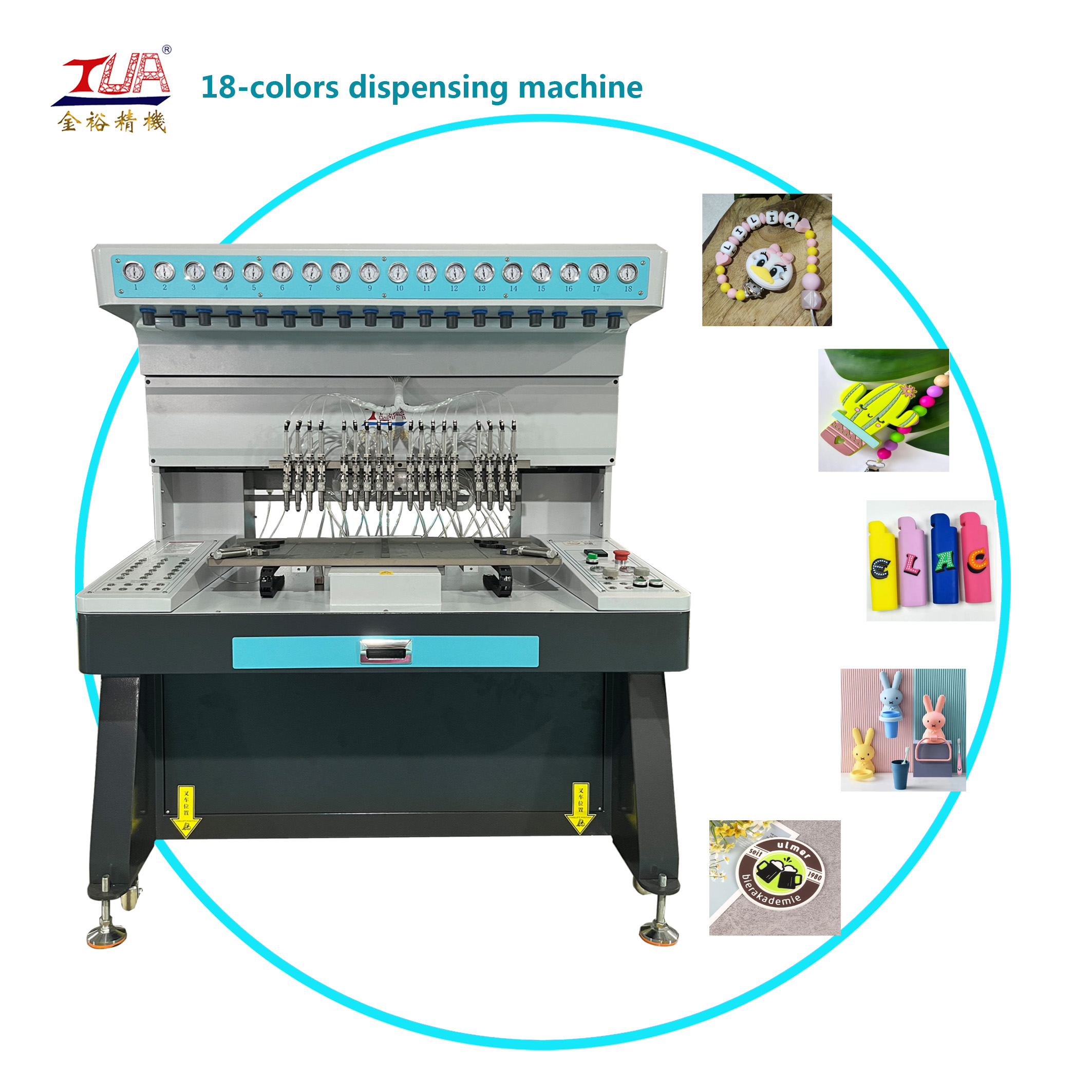

This dispensing machine will undoubtedly improve your production efficiency and reduce energy consumption. This is Jinyu's latest 18-color dispensing machine. It has not only changed in appearance but also is more in line with ergonomics. When workers sit in front of the machine, their legs do not need to bend and there is enough space. The shortcut keys of the machine are more convenient to use. The dispensing valve has also been upgraded, with a braking function and a dovetail groove design, which can ensure no glue leakage during the machine's operation, stable dispensing, and high precision in repeated dispensing. In addition, the worktable of the machine has a heating function, and a pressure stabilizing pump is configured inside to stabilize the air pressure, further improving the dispensing precision and repeatability. The weight of the machine body has also increased to ensure that it will not shake during work, making the dispensing more stable. The programming of the machine has also been upgraded to increase the running speed. The rear of the machine is equipped with a large material barrel and a convenient barrel lifting device. The main air pressure valve, as well as each air pressure gauge and air pressure control, have been upgraded. Overall, this machine is excellent from the outside to the inside.

Jiny Machinery's core businesses and products include the R&D and manufacturing of key equipment, focusing on liquid silicone/PVC dispensing machines, silicone vulcanizing machines, clothing label silicone glue-absorbing machines, and covering automatic compression molding machines, injection molding machines, dispensing machines, PVC vacuum integrated machines, intelligent batching machines, embossing production lines, etc. These products are suitable for various production line scenarios and multiple application fields, being widely used in the production of clothing labels, shoe materials, luggage, gifts, silicone electronic protective cases, silicone kitchenware, PVC toys, dolls, trendy figurines and other gifts and accessories. They cover multiple industries such as clothing, footwear, and gifts.

In terms of supporting service guarantees, the company not only provides customized equipment solutions but also offers pre-sales demand communication, in-sales production progress tracking and quality control, as well as sample making, technical guidance and other training for customers. For after-sales services, it provides 24/7 technical support, equipment installation, commissioning, operator training and lifelong maintenance.

This is the silicone drip molding production process—one-piece molding via silicone drip technology. This specific product is a silicone wristband featuring 3D embossed/debossed letters. The same process can be applied to manufacturing one-piece wristbands and cup sleeves alike. All you need is one automated dispensing machine and one silicone compression molding machine—two machines to get the job done!
