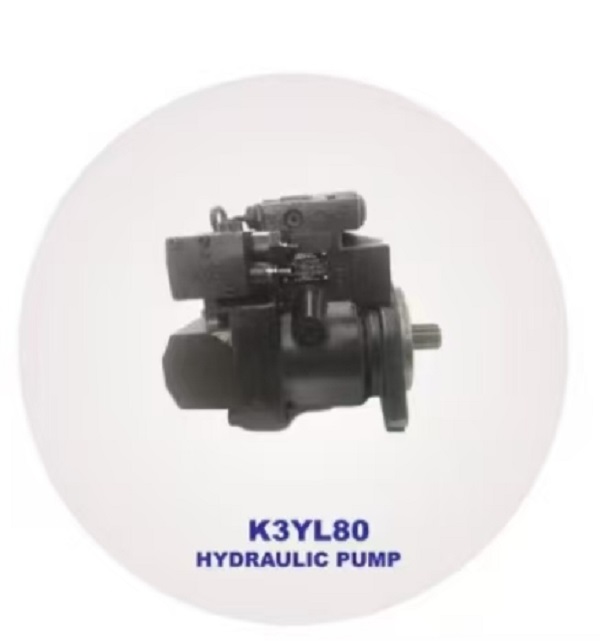

K3YL80 Hydraulic Piston Pump Product Overview
TheK3YL80is a high-performance, high-pressure hydraulic piston pump designed for industrial and heavy-duty machinery applications. Its core advantages include high efficiency, reliability, and long service life, making it suitable for scenarios requiring continuous high-pressure output, such as construction machinery, metallurgical equipment, hydraulic presses, and marine systems.
------
Key Design Features
1. Double-Acting Piston Structure
• Achieves continuous oil suction and discharge through bidirectional piston movement, ensuring superior flow stability compared to single-acting pumps.
• Precision-fitted piston and cylinder reduce leakage, with volumetric efficiency exceeding95%.
2. High-Pressure Capability
• Rated pressure:35 MPa (5,075 psi); peak pressure up to40 MPa (5,800 psi).
• Ideal for high-pressure hydraulic systems, such as hydraulic breakers and injection molding machines.
3. Wear-Resistant Materials & Surface Treatment
• Piston, cylinder, and valve plates are made ofhigh-strength alloy steel, hardened to HRC58-62 via quenching and nitriding for excellent wear resistance.
• Seals usefluororubber (FKM) or polytetrafluoroethylene (PTFE), compatible with temperatures from-30°C to +120°Cand corrosive environments.
4. Low Noise & Vibration
• Optimized flow channel design minimizes hydraulic shock, while precision bearings reduce mechanical vibration (operating noise ≤75 dB(A)).
5. Modular Design
• Pump body, drive shaft, and control valves are independently replaceable, lowering maintenance costs by30%.
------
Key Technical Specifications
【表格】
Parameter K3YL80 Specifications
Theoretical Displacement 80 cm³/rev (4.88 in³/rev)
Rated Pressure 35 MPa (5,075 psi)
Peak Pressure 40 MPa (5,800 psi)
Speed Range 500–2,000 rpm
Drive Power Max. 55 kW (74 HP)
Weight Approx. 45 kg (99 lbs)
Viscosity Range 10–500 cSt (kinematic viscosity)
Filtration Requirement NAS Class 6 (≤10 μm)
------
Typical Applications
1. Construction Machinery
• Hydraulic power systems for excavators and loaders (driving travel, swing, and attachments).
2. Metallurgical Industry
• Continuous casting mold oscillation and rolling mill press systems requiring high pressure and precise control.
3. Hydraulic Presses
• Metal stamping and forging equipment demanding large flow rates and high-pressure output.
4. Marine & Offshore Engineering
• Deck machinery (anchors, winches) and steering systems adapted to saltwater corrosion.
5. Test Benches & Simulation Systems
• Structural fatigue testing and hydraulic servo-control systems requiring rapid response.
------
Selection & Configuration Recommendations
1. Pressure Matching
• Ensure system operating pressure does not exceed the pump’s rated pressure (35 MPa), with a10% safety margin.
2. Speed & Flow Rate
• Select speed range based on load: low-speed (500–1,000 rpm) for heavy-duty applications; high-speed (1,500–2,000 rpm) for light-duty tasks.
3. Fluid Compatibility
• Standard hydraulic oils: Use standard seals.
• Fire-resistant fluids (HFA/HFB): Require special seal materials.
4. Cooling Method
• For continuous operation, equip with air or water cooling to prevent oil overheating (recommended ≤80°C).
------
Maintenance & Troubleshooting
1. Daily Inspections
• Oil level: Maintain at 1/2–2/3 of the tank capacity.
• Temperature: Monitor for abnormal rises (indicating internal leakage or cooling issues).
2. Periodic Replacements
• Hydraulic oil: Replace every 2,000 hours or annually (adjust based on environment).
• Filters: Replace every 500 hours to prevent contaminant ingress.
3. Common Faults
• Insufficient flow: Check suction lines for blockages or internal pump leakage.
• Pressure fluctuations: Adjust relief valves or inspect safety valves for sticking.
• Abnormal noise: Tighten couplings or replace worn bearings.
------
Comparison with Similar Products
【表格】
Parameter K3YL80 Standard Gear Pump Vane Pump
Pressure Range 35 MPa (High Pressure) ≤25 MPa (Medium Pressure) ≤21 MPa (Medium Pressure)
Efficiency 92%–95% (Volumetric) 80%–85% 85%–90%
Noise Level ≤75 dB(A) (Low Noise) ≥80 dB(A) ≤70 dB(A) (High Pulsation)
Fluid Compatibility Mineral oil, synthetic oil, fire-resistant fluids Mineral oil only Mineral oil (viscosity-limited)
Cost Medium-High (Performance-Oriented) Low Medium
------
Summary
TheK3YL80 Hydraulic Piston Pumpis an ideal choice for high-pressure, high-reliability applications, particularly in industrial equipment requiring continuous and stable output.
