(all pictures and videos are taken from real factory scenes)
Yellow stone brick patterned metal exterior wall insulation decorative panels feature a specific surface pattern.
The surface of these panels exhibits a marble-like pattern or pattern. In this case, the surface features a yellow stone brick pattern. This decorative panel not only offers aesthetic appeal but also provides thermal insulation. It is typically made from metal sheets (such as galvanized color-coated steel sheets) treated with special processes such as embossing and lamination, and then combined with insulation materials (such as polyurethane foam) and a protective layer (such as aluminum foil). This panel is suitable for exterior wall decoration in a variety of building types, including buildings and light steel villas.
Yellow Long Stone Brick Pattern Metal Exterior Wall Insulation Decorative Panel size specifications
| Product Name |
Yellow Long Stone Brick Pattern Metal Exterior Wall Insulation Decorative Panel |
| Material |
Surface: Galvalume-coated steel |
| Interlayer: Rigid polyurethane foam |
| Base: Aluminum foil anti-corrosion layer |
| Dimensions |
Effective width: 383mm |
| Thickness |
16mm/20mm |
| Length |
Customizable, ranging from 2-6 meters for easy transport |
| Net Weight |
3.5kg/m2 |
| Installation |
Snap-in fastener assembly |
The core advantages of Yellow Long Stone Brick Pattern Metal Exterior Wall Insulation Decorative Panel are:
1. Highly decorative: Through an embossing process, a variety of textures, including fine brick, coarse brick, and standard brick, are achieved. A rich color palette allows them to mimic the visual effects of traditional ceramic tiles and stone. They can also be combined with wood and stone grains to enhance the layered appearance of building facades.
2. All-weather adaptability: Withstanding extreme cold and heat, UV aging, and acid, alkali, and salt corrosion, these panels are suitable for humid areas or complex environments. Their surface is easy to clean, reducing ongoing maintenance costs.
3. Fire and safety performance: Using a composite structure of metal steel and polyurethane, these panels achieve a fire rating of B2 (some products are B1). They are also lightweight, earthquake-resistant, and soundproof, enhancing building safety.
Product structure and core performance parameters of Yellow Long Stone Brick Pattern Metal Exterior Wall Insulation Decorative Panels
1. Materials and structure
Brick-patterned metal exterior wall panels usually adopt a composite structure of "metal panel + polyurethane insulation layer + backing layer":
(1) Panel: Mostly 0.2-0.5mm thick color steel plate or aluminum-zinc plate, the surface is processed by embossing machine to form a brick pattern, such as JKM-S600 embossing machine can customize brick pattern, plain pattern and other flower roller patterns.
(2) Insulation layer: The core is polyurethane foam material, the insulation effect is twice that of the same thickness polystyrene board, effectively reducing heating and cooling energy consumption.
2. Key performance indicators
(1) Brick-pattern series metal exterior wall panel insulation effect: The polyurethane insulation layer has a low thermal conductivity, excellent cold-resistant and heat-insulating properties, and significant energy-saving efficiency
(2) Brick-pattern series metal exterior wall panel fire rating: The mainstream products reach B2 level, and some upgraded models reach B1 level, meeting the building fire protection regulations
(3) Brick-pattern series metal exterior wall panel service life: When using fluorocarbon paint coating, the panel weather resistance can reach more than 15 years
(4) Brick-pattern series metal exterior wall panel installation characteristics: Dry construction, lock-and-hang connection, local damage can be replaced separately, high installation efficiency and not restricted by seasons
Yellow Long Stone Brick Pattern Metal Exterior Wall Insulation Decorative Panel application scenarios and application cases
1. New buildings: brick-concrete structure, frame structure, steel structure, light steel villa, etc., such as light steel villa exterior wall, guardhouse, mobile board house.
2. Old renovation projects: Exterior wall decoration and energy-saving renovation of existing buildings, improving aesthetics while improving thermal insulation performance.
3. Special scenarios: steel structure guardhouses, container houses, mobile toilets, etc., temporary buildings that need to be waterproof and moisture-proof and quickly constructed

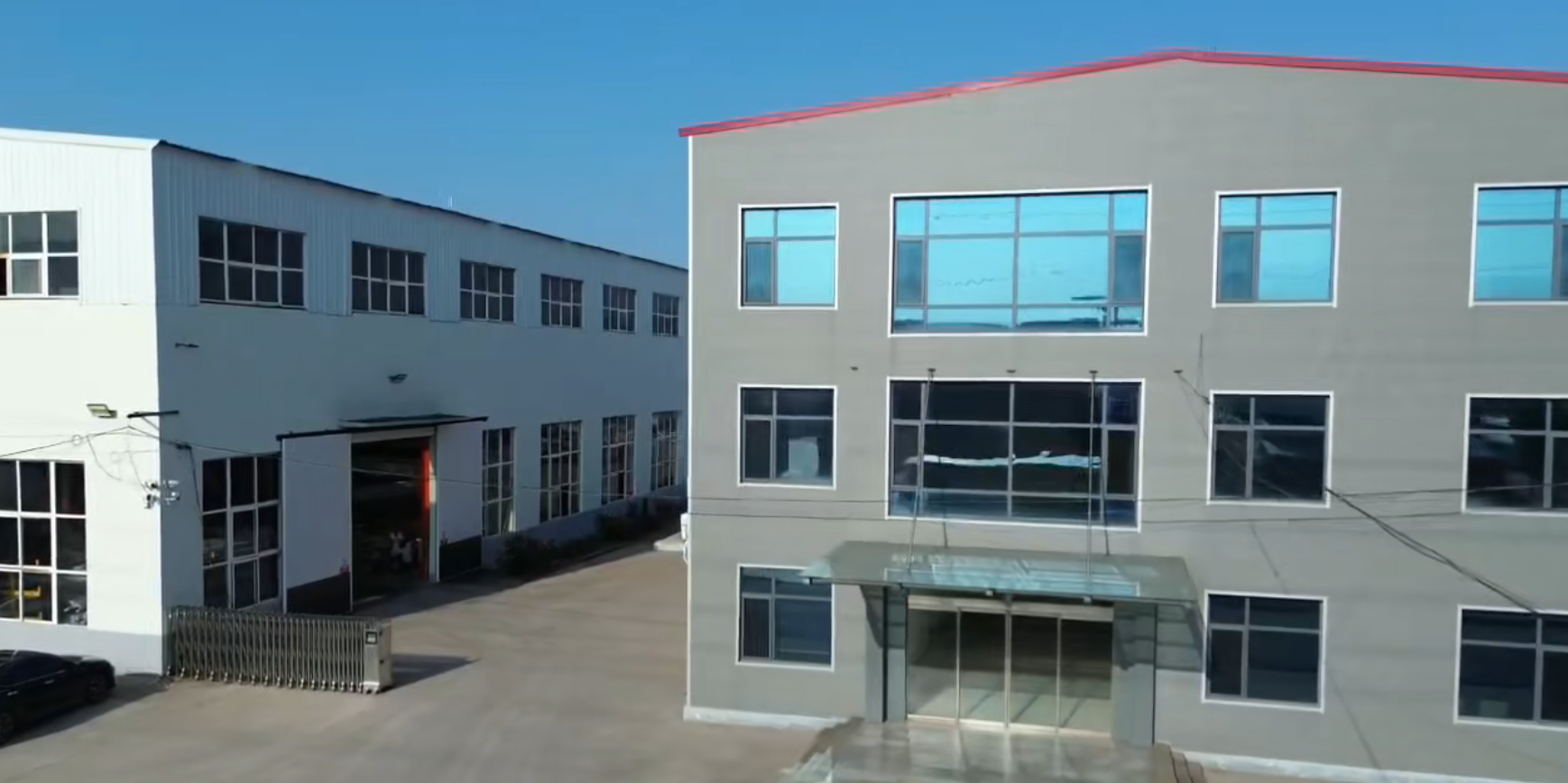

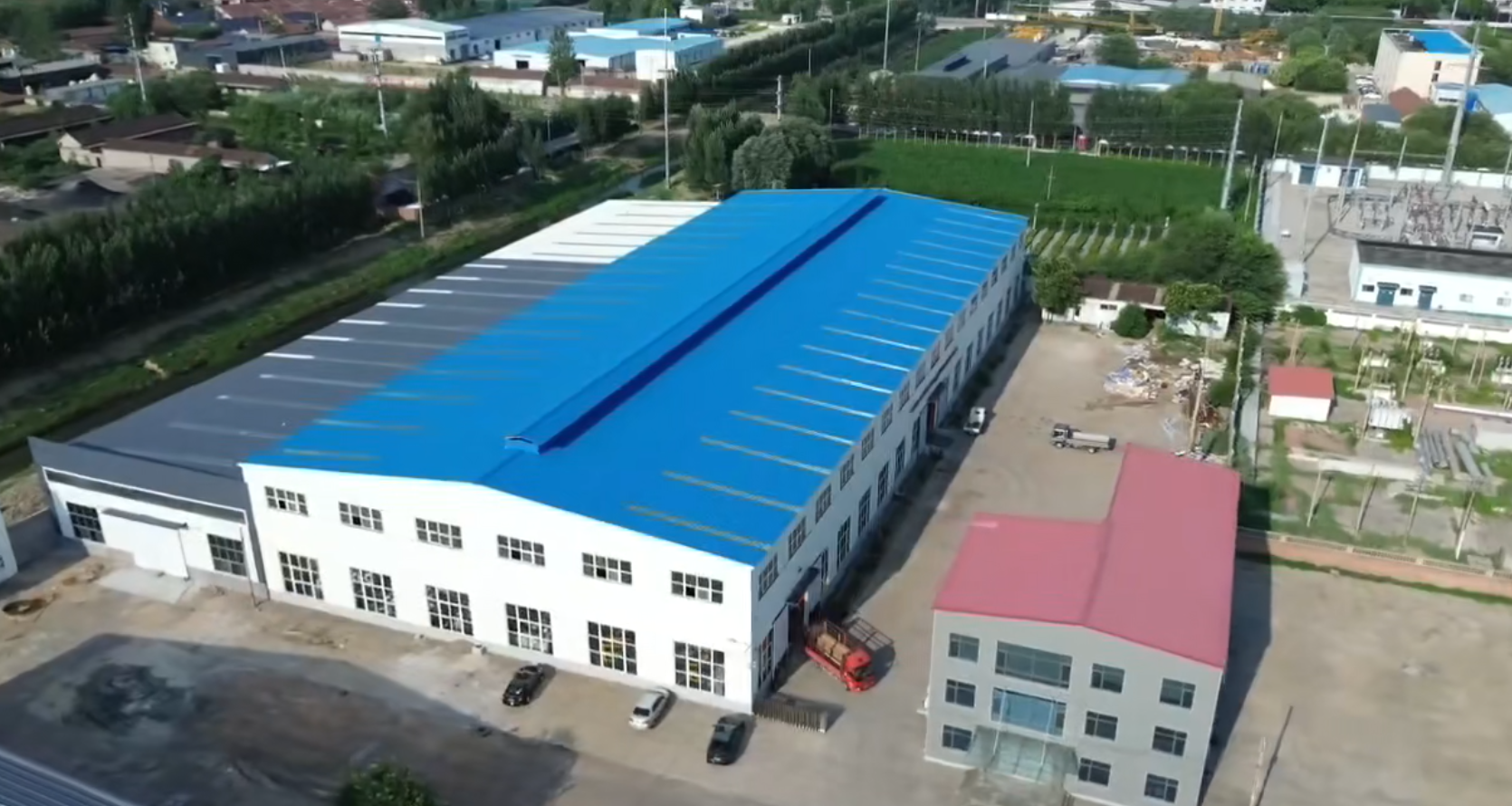

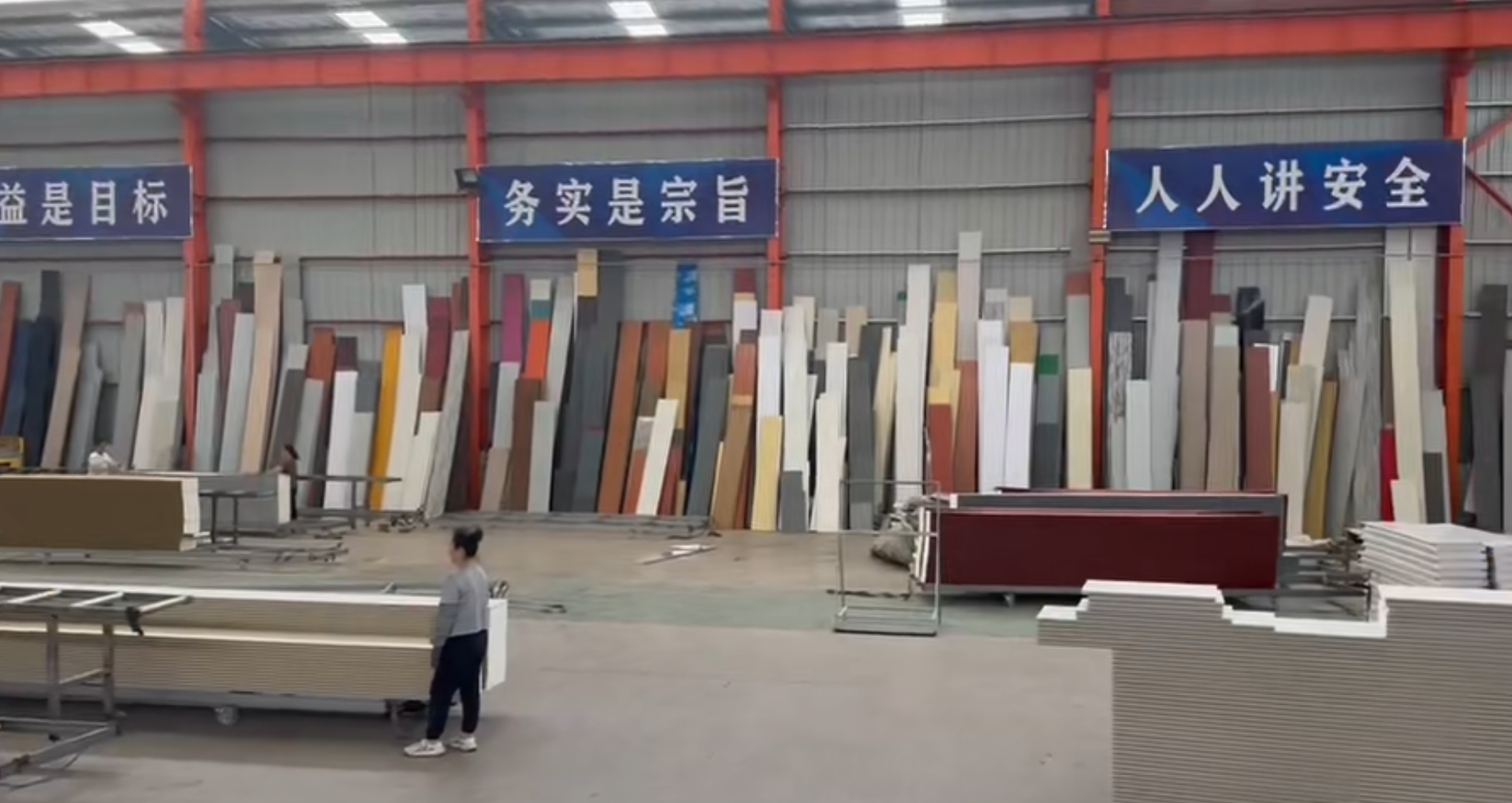

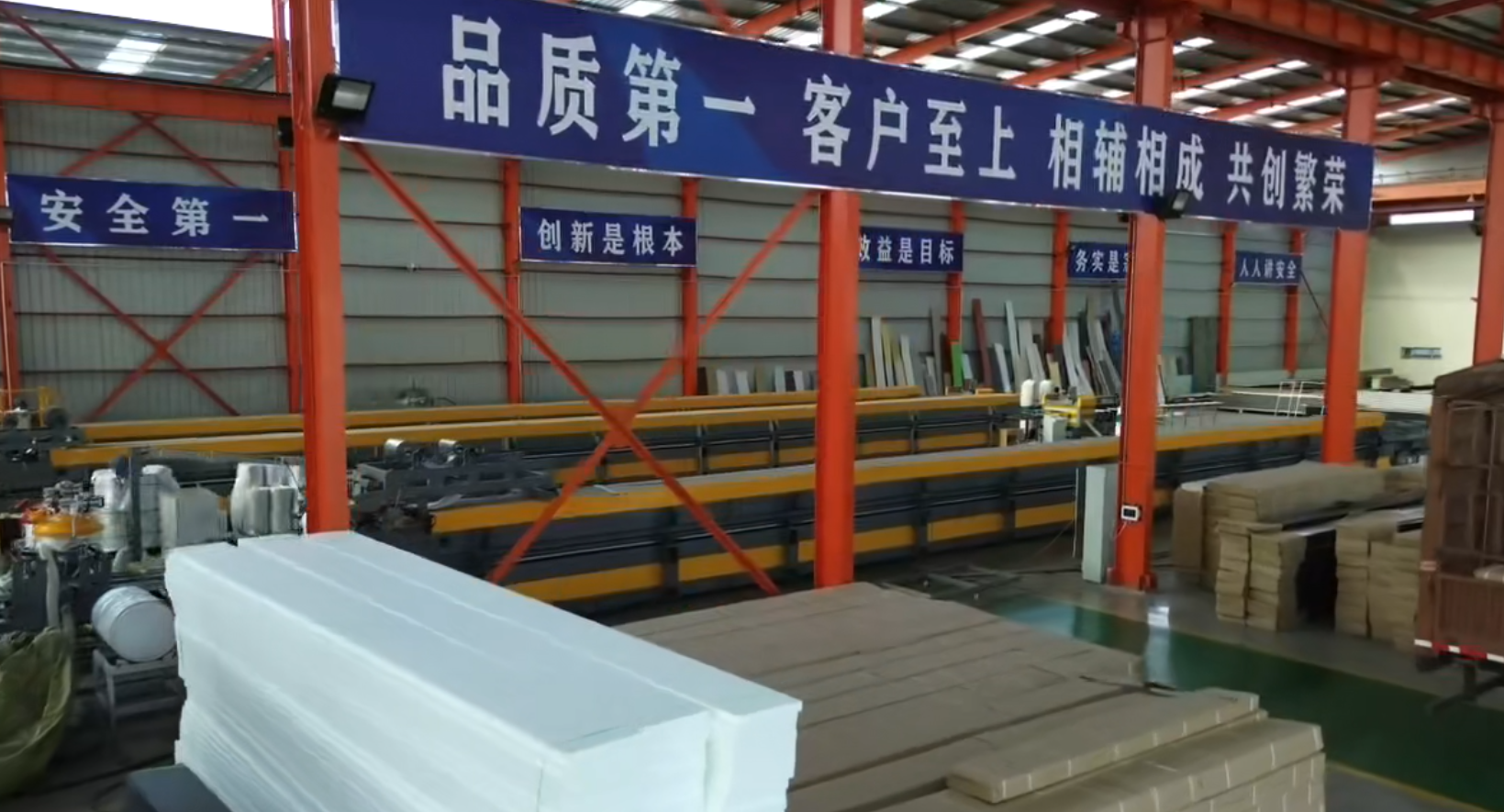

Factory display picture (all pictures are taken from real factory scenes)

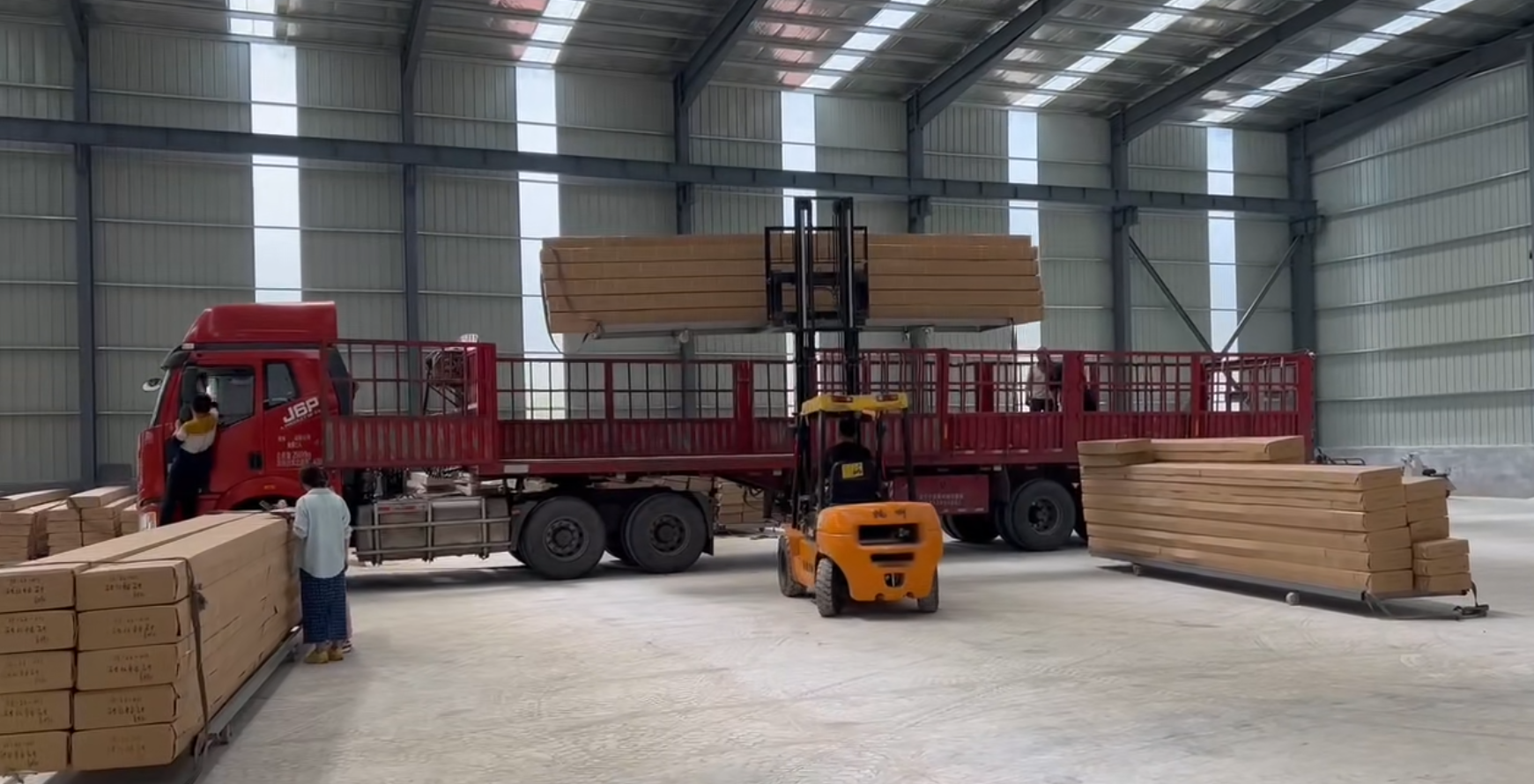

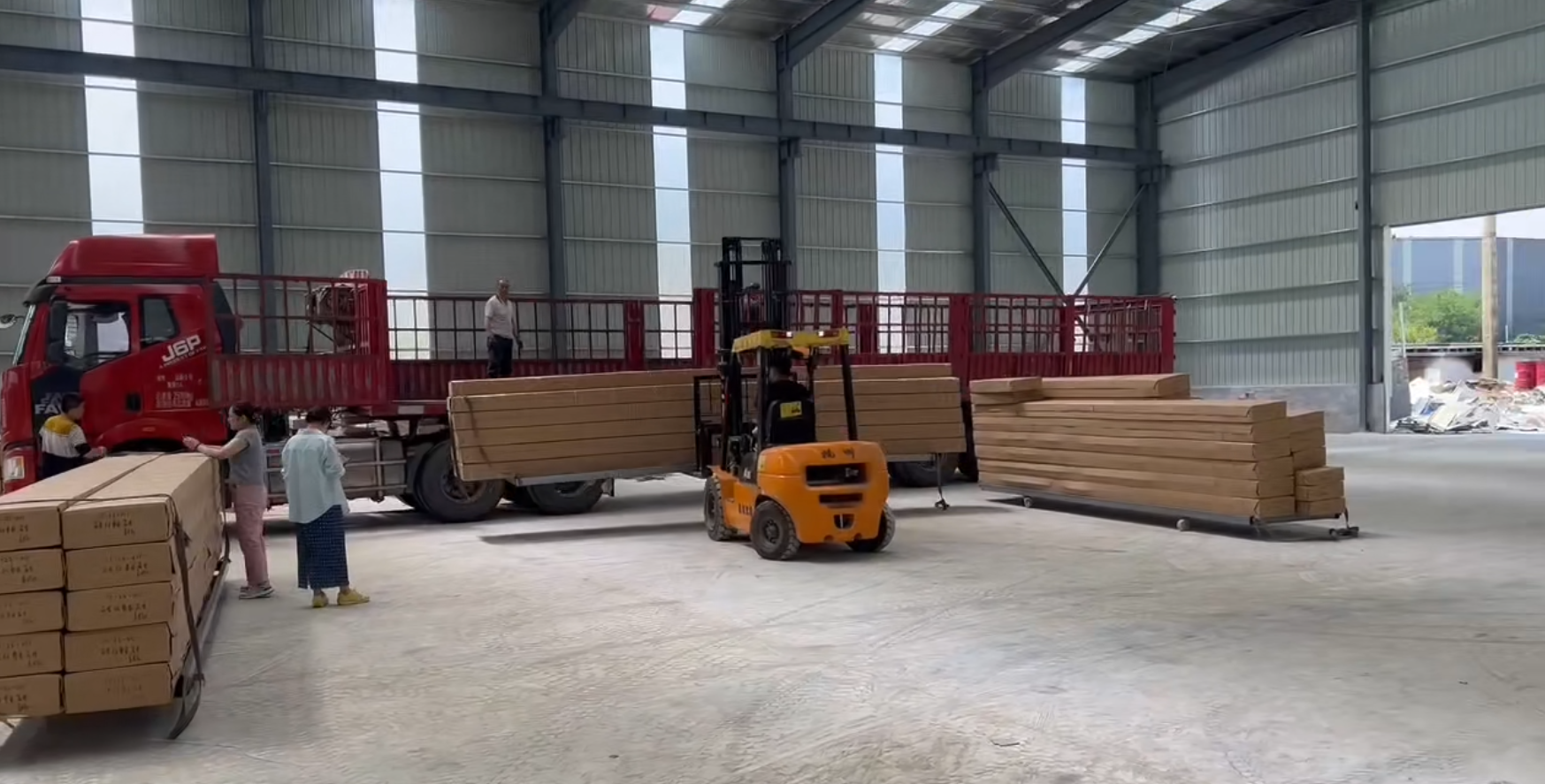

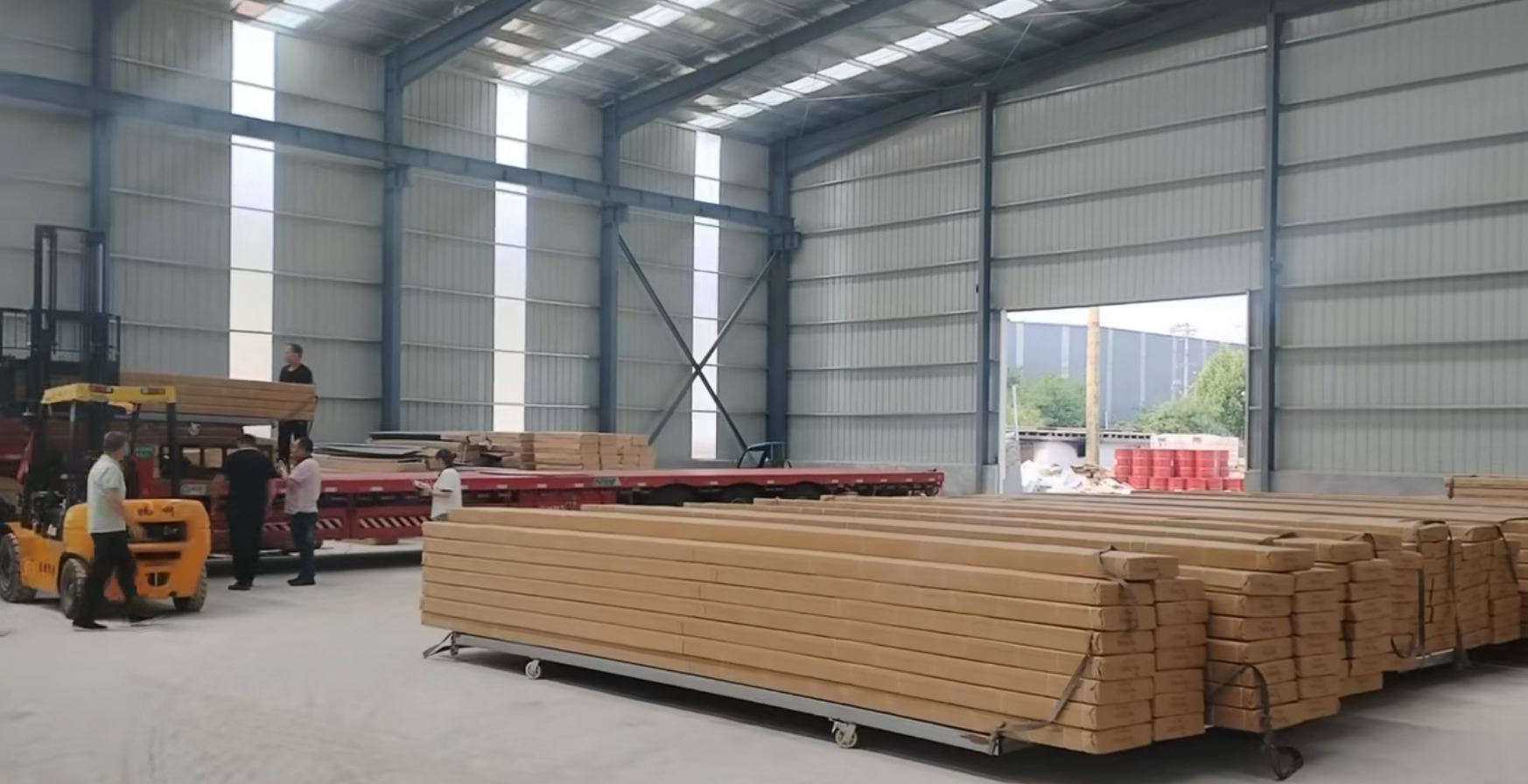

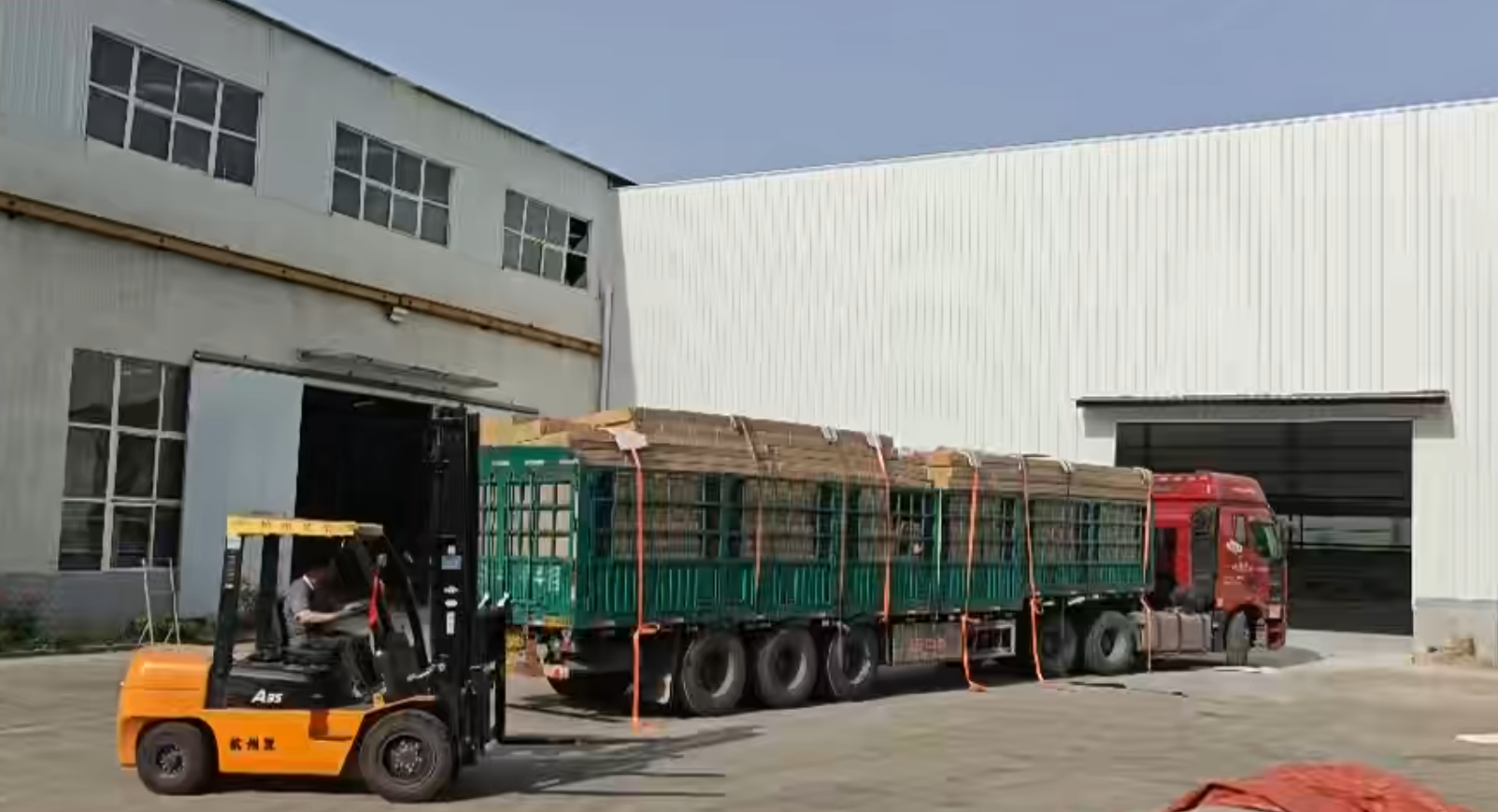

Packaging and delivery display pictures (all pictures are taken from real factory scenes)
