Bending Adjustable Hook For Tile Roof

3 week ago

3 0

Maywon PV Co.,Ltd

 6 month year

Product details

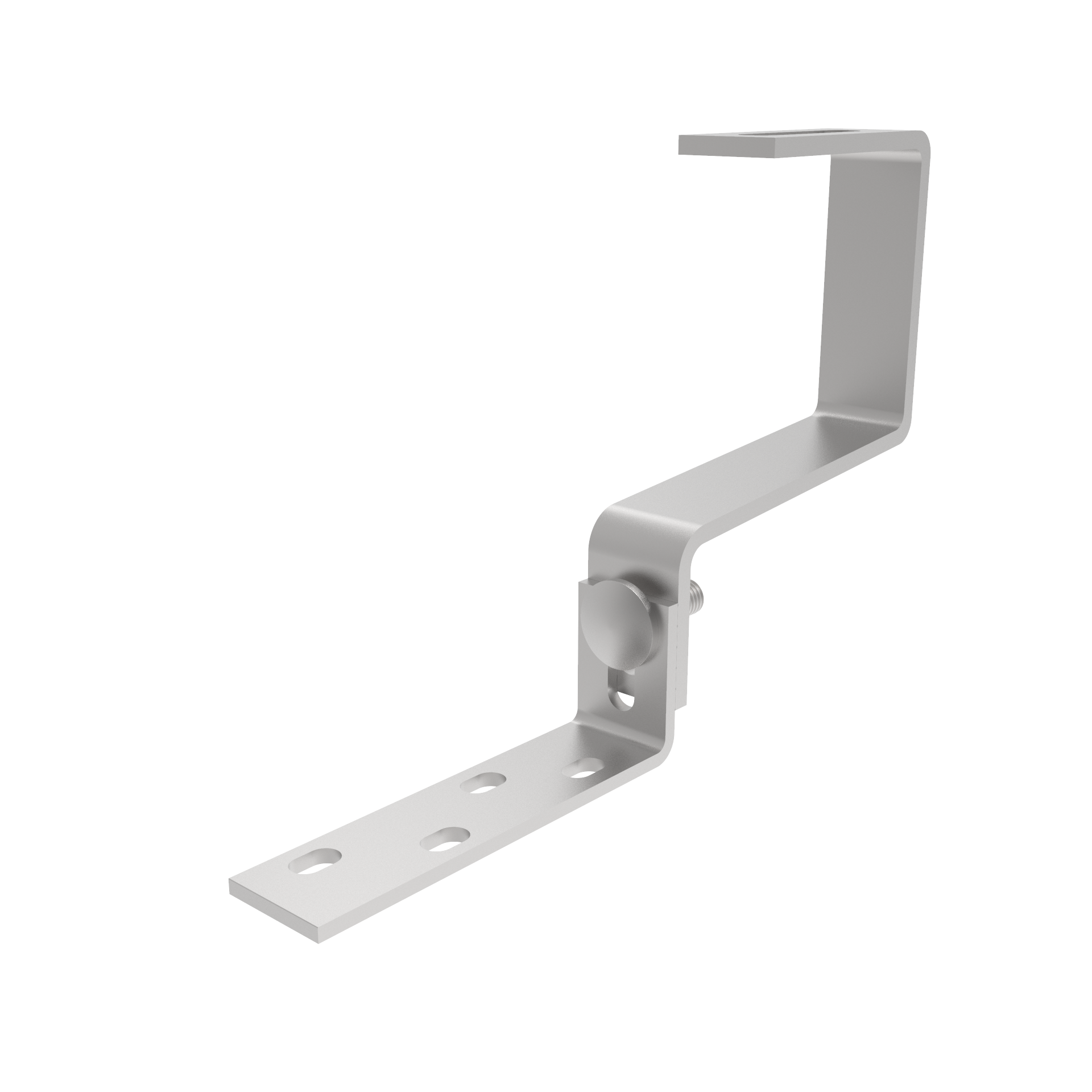

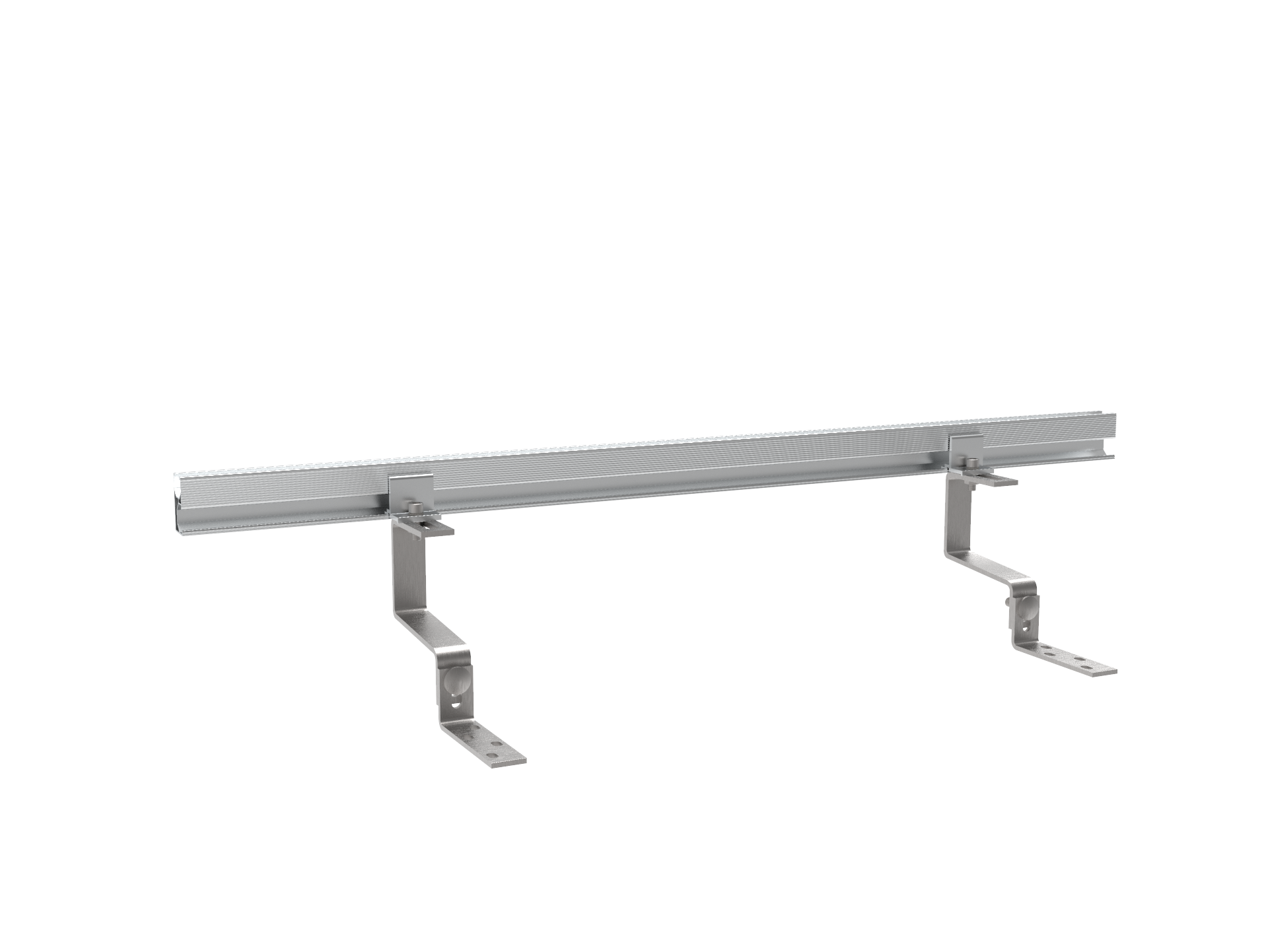

This Product Bending Adjustable Hook For Tile Roof is one of our Strength And Extension Tile Roof Hook series,which belong to Flat Roof Mounting solution.It has the similar structure to Bending Extended Hook for Tile Roof.The key design to distinguish is that this one has a connect hole to drill a screw,making it adjust different angle when installed on the roof beam.The top installation hole is mainly used at Unit State of Amercia,Austrlia and some area of South-east Asia.So usual welded type will not suitable for other places,but the adjustable design can make it spin to install in usual side way.It length is much shorter than the MW-RC-HK12,basically its length is same to MW-RC-HK15,the shorter length and raw material's high strength make it Structurally very stable,even with a connecting hole.More over its substrate also been widened like the MW-RC-15,that makes sure our product has a strong capability of holding rails which loaded many solar panels .the raw material is SUS304 it has a corrosion resistance and durability too,so this produasct‘ warrnty is about 25years which is similar to the service life of Solar Powered System.Beside,using this product can be very compatible with Solar Powered System,for example:Low Voltage Micro Inverter has sufficient space with the help of this mounting system.
