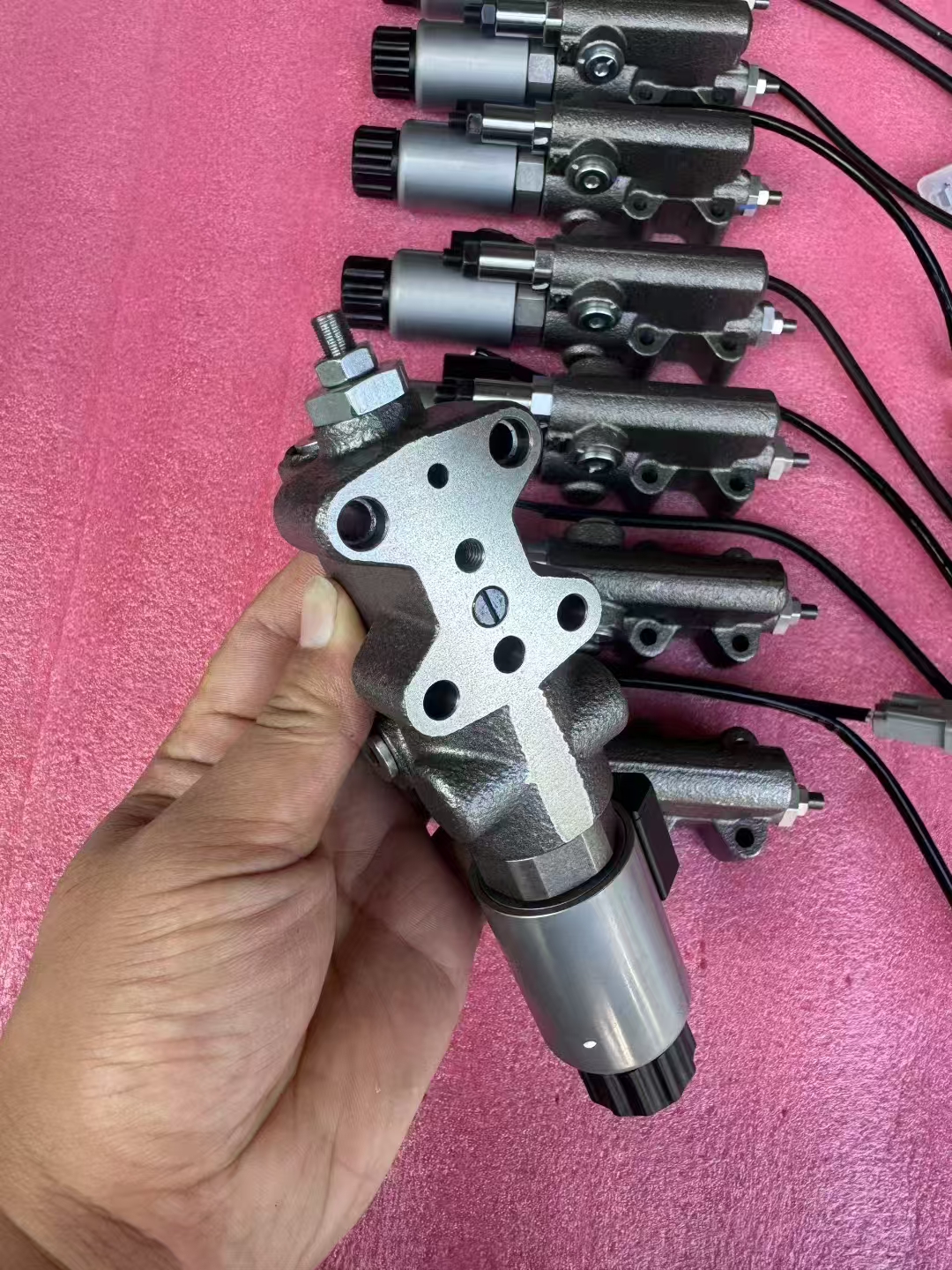

Model: Caterpillar 336D/330D Dedicated Proportional Solenoid Valve
Function:
• Controls the flow output of the fan pump (cooling system hydraulic pump) to enable stepless adjustment of fan speed.
• Precisely regulates hydraulic oil flow via PWM (Pulse Width Modulation) signals to match engine cooling demands.
Applications:
• Used in Caterpillar 336D/330D excavators, loaders, and other construction machinery for engine cooling systems.
• Replaces traditional on/off solenoid valves to enhance cooling efficiency and reduce energy consumption.
II. Technical Specifications
【表格】
Parameter Specification
Operating Voltage 12V DC (Caterpillar standard system voltage)
Control Signal PWM (Duty cycle 0%-100%, frequency 200Hz)
Flow Range 0-25 L/min (adjustable based on pump model)
Pressure Range 0-350 bar (maximum system operating pressure)
Response Time ≤50ms (from signal input to flow change)
Protection Grade IP67 (dust/waterproof, suitable for harsh environments)
Port Type DIN 43650B (electrical), M18×1.5 (hydraulic)
III. Structure & Working Principle
1. Solenoid Valve Components:
• Proportional Electromagnet: Receives PWM signals from the ECM (Engine Control Module) to generate proportional thrust.
• Spool: Adjusts valve port opening via electromagnet thrust to control hydraulic oil flow.
2. Hydraulic Circuit:
• Input: Connects to the fan pump’s high-pressure line (pressure ~200-300 bar).
• Output: Connects to the fan motor to drive cooling fan rotation.
3. Feedback Mechanism:
• Some models integrate pressure sensors for real-time monitoring of downstream pressure, enabling closed-loop control.
IV. Common Failure Modes
【表格】
Failure Mode Possible Causes Impact
Fan Inoperative Solenoid coil断路 (open circuit), PWM signal loss, spool jamming Engine overheating alarm or shutdown
Fan Speed Fluctuation Electromagnet wear, signal interference, hydraulic contamination Reduced cooling efficiency, engine overheating
Oil Leakage O-ring aging, valve body cracks, loose hydraulic connections Pressure drop in hydraulic system, environmental contamination
Abnormal Noise Excessive spool-to-sleeve clearance, spring fracture Hydraulic shock, accelerated component wear
V. Diagnostics & Repair Procedures
1. Preliminary Checks:
• Use diagnostic tools to read ECM fault codes related to the solenoid valve (e.g., P0606, P2181).
• Inspect electrical connections for looseness or corrosion.
2. Electrical Testing:
• Measure solenoid coil resistance (standard: 8-12Ω, model-dependent).
• Use an oscilloscope to verify PWM signal waveform (should be a regular square wave).
3. Hydraulic Testing:
• Start the engine and manually trigger the solenoid (temporary signal shorting) to observe fan rotation.
• Measure downstream pressure (should match ECM-commanded pressure).
4. Replacement Steps:
• Depressurize: Shut down the engine and release hydraulic system pressure.
• Disassembly: Remove solenoid mounting bolts and disconnect electrical connectors.
• Installation: Apply thread sealant and torque to specifications (typically 25-30N·m).
• Bleeding: Start the engine and cycle the fan control lever several times to purge air.
VI. Parts & Maintenance Recommendations
1. Recommended Spare Parts:
• Solenoid valve assembly (Caterpillar OEM part no.: 175-7023)
• O-ring kit (part no.: 235-4512)
• Hydraulic oil filter (part no.: 1R-0749, replace every 500 hours)
2. Maintenance Intervals:
• Clean solenoid filter screen (if applicable) every 2000 hours.
• Annually test solenoid performance (response time, flow characteristics).
3. Precautions:
• Avoid using non-OEM solenoid valves to prevent control accuracy degradation.
• Ensure ECM software is updated when replacing components (to avoid compatibility issues).
