High Current Dual OFF-(ON) Lock Handle IP68 Momentary Toggle Switch

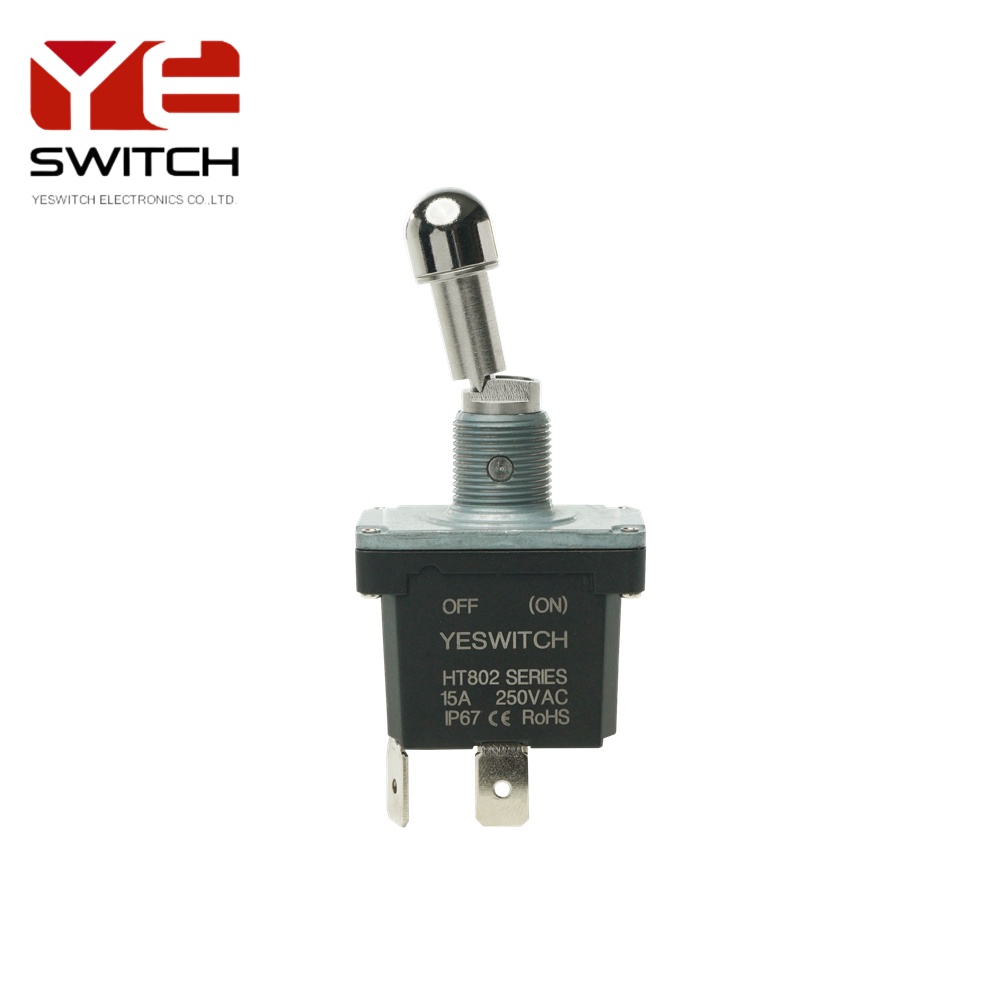

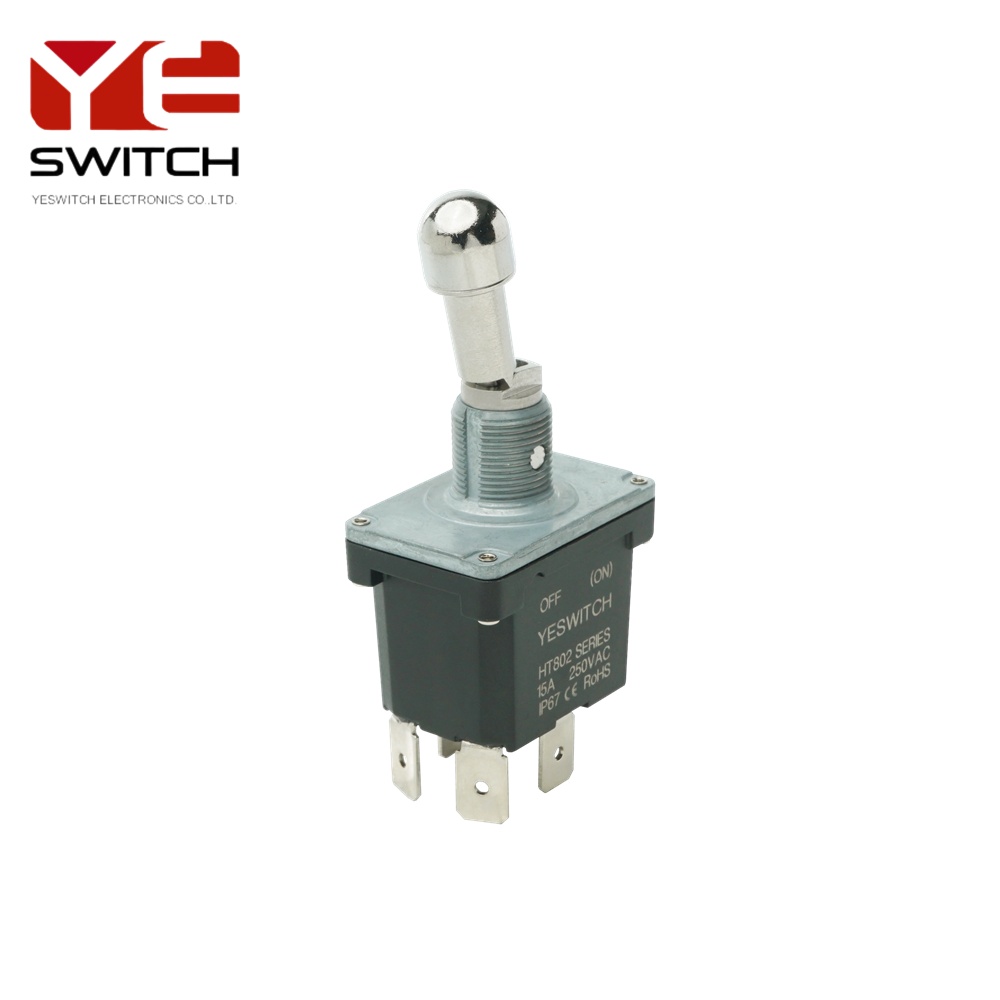

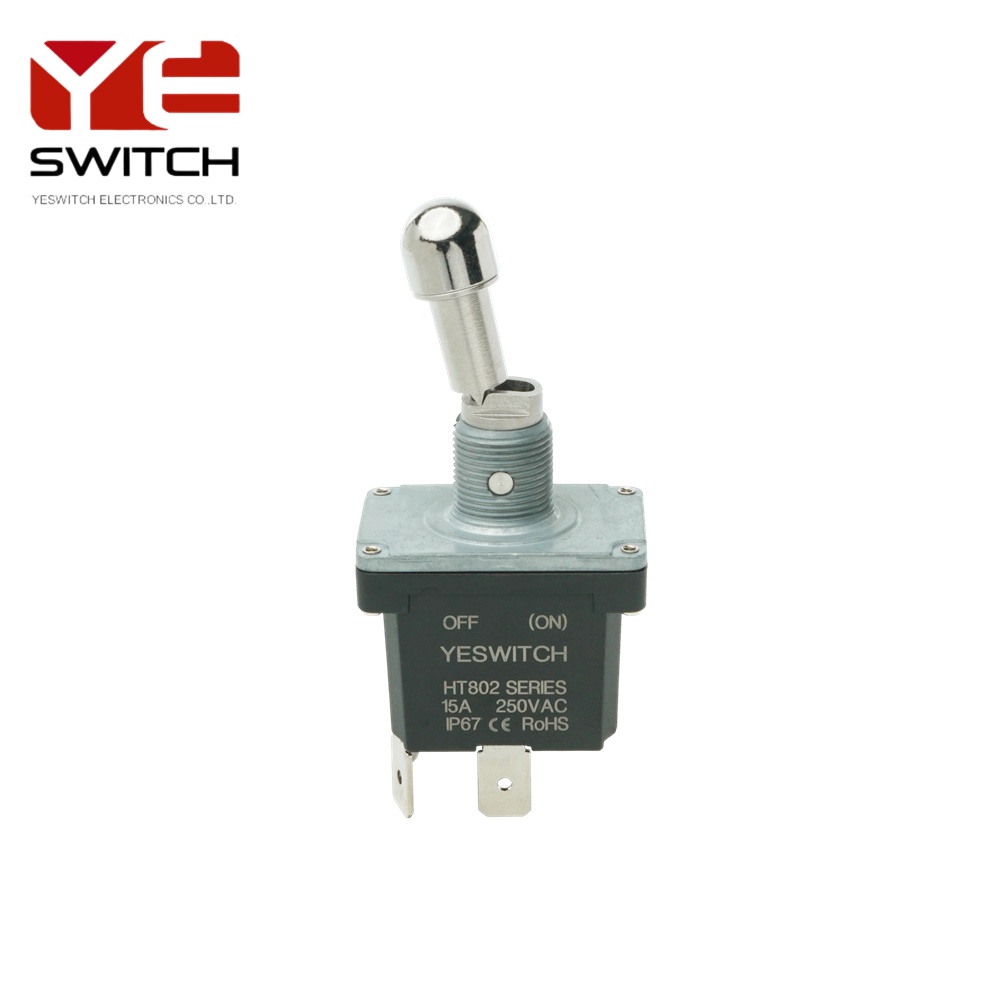

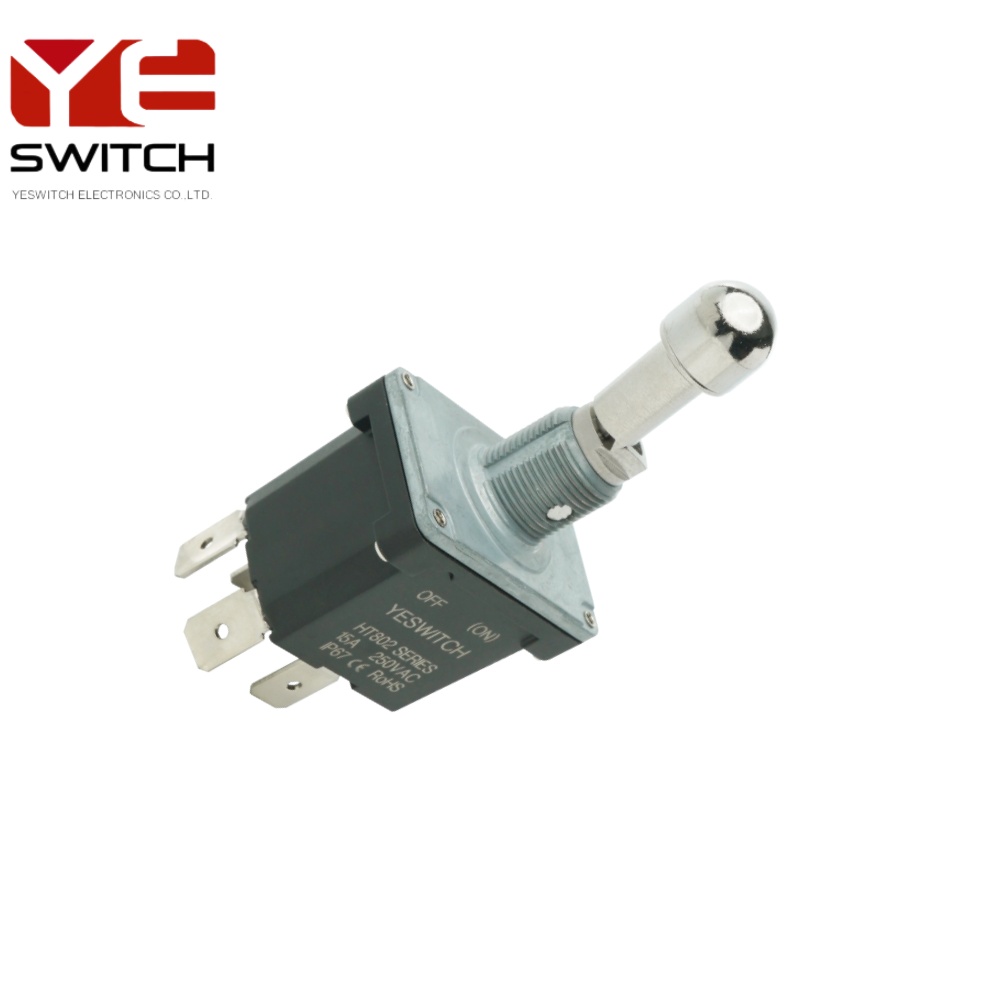

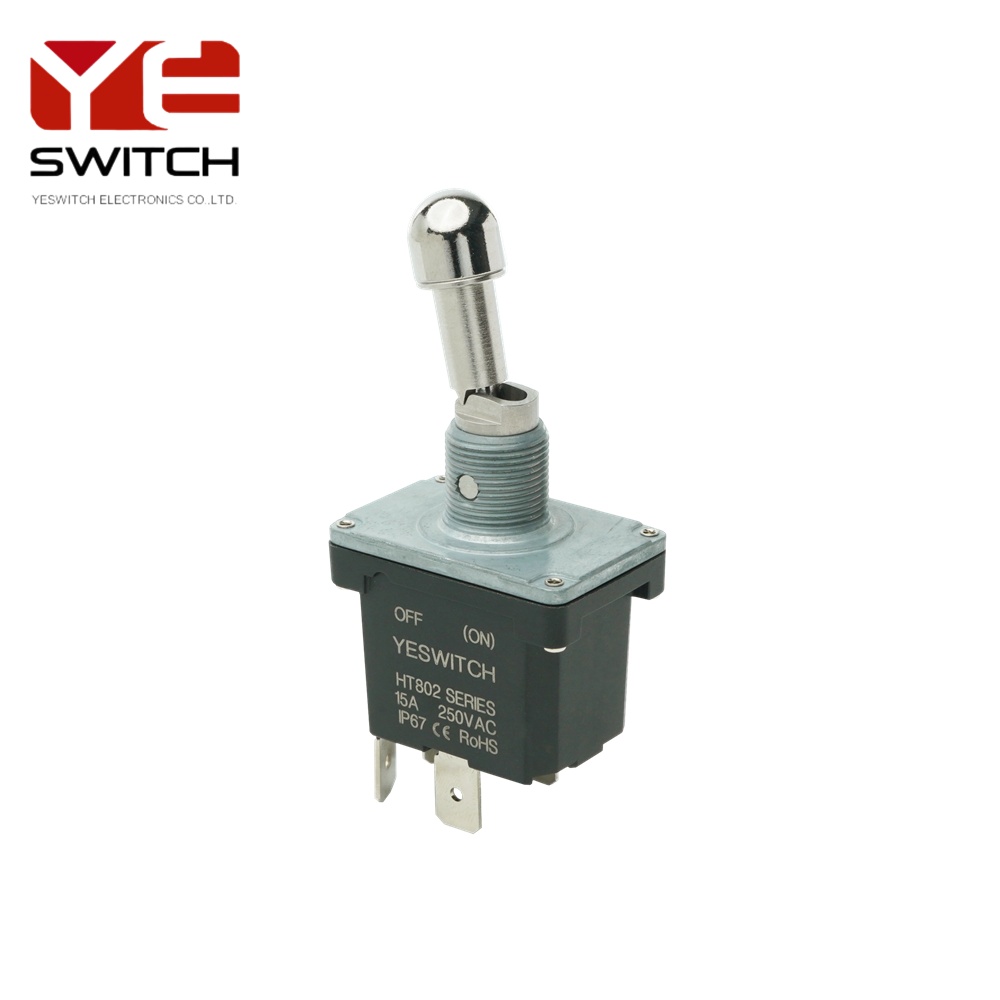

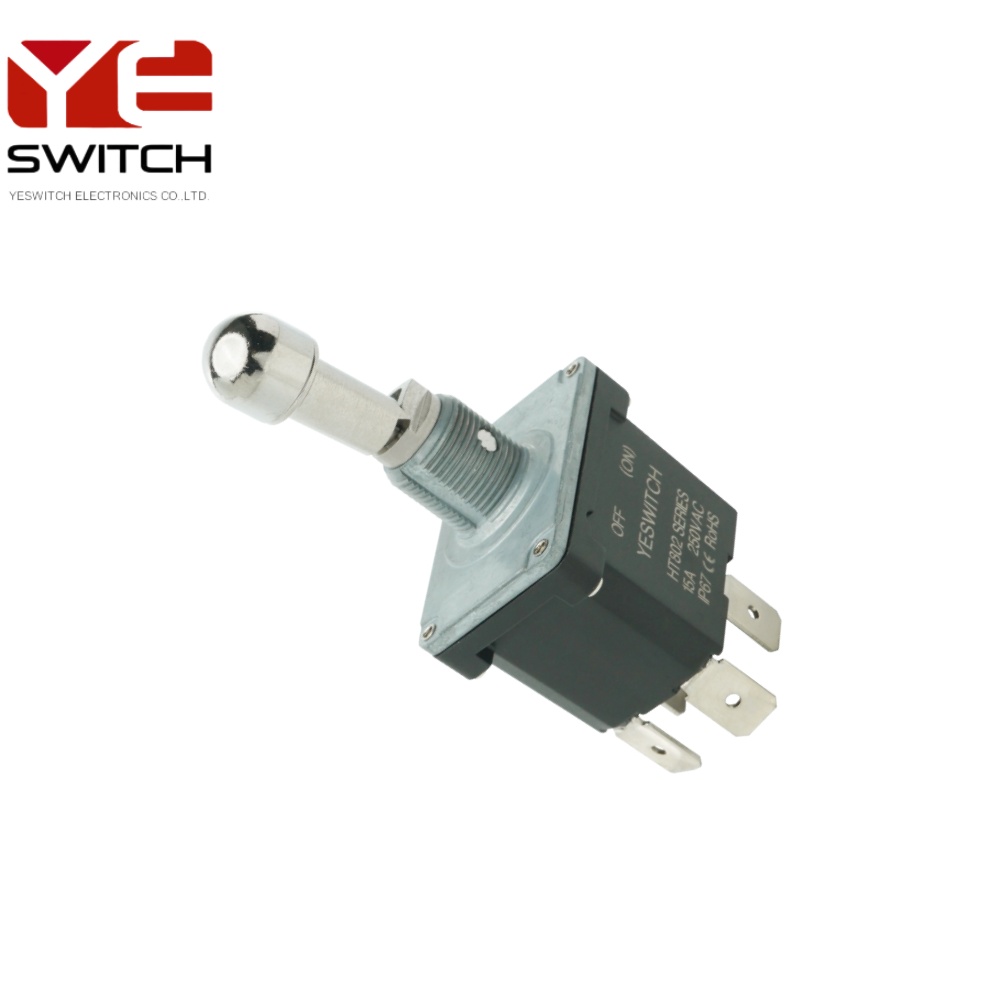

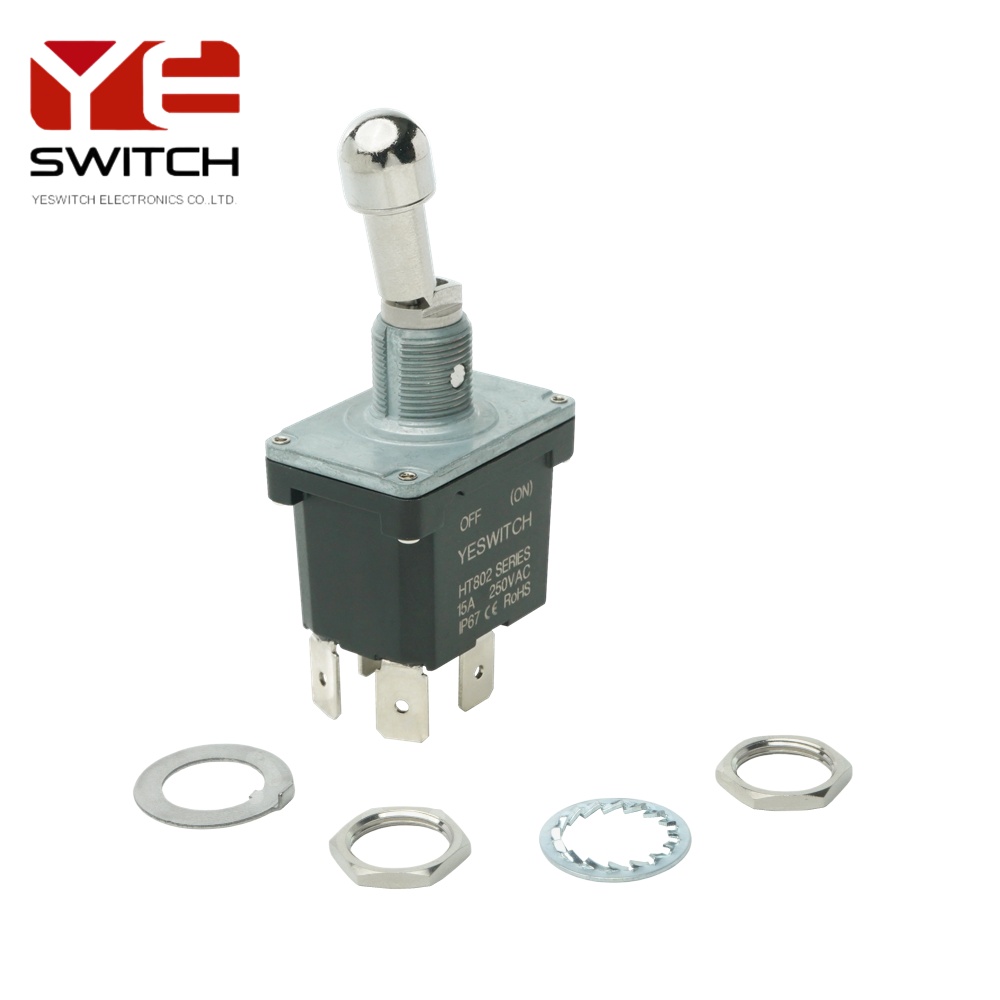

YESWITCH HT802 series is a high-current toggle switch designed for high-load and harsh environments.Toggle switches adopts dual-way OFF-(ON) reset function and metal lock handle structure.It has 16A high current carrying capacity and P68 protection level.It is suitable for heavy machinery,aerial work platform vehicles and other fields with extremely high reliability and safety requirements.

Core features

Dual-way OFF-(ON) reset function

Dual circuit control:It can independently control two circuits at the same time,and supports automatic reset to OFF position after instantaneous power-on (ON) to avoid misoperation causing continuous operation of the equipment.

Safety first:The reset function ensures that the switch is automatically disconnected without human intervention,which is suitable for emergency stop or temporary start-up scenarios (such as temporary lifting control of aerial work vehicles).

Metal lock handle

High-strength structure:Copper alloy handle,surface anti-corrosion treatment,impact resistance,wear resistance,adapt to industrial environments with frequent vibration.

Locking mechanism:The handle can be locked in the OFF position to prevent accidental triggering and improve equipment safety.

Pin terminal design

Quick wiring:straight-in terminal flat plug, simplify the installation process,reduce the risk of loose cables.

High conductivity:copper-plated contacts reduce contact resistance and ensure stable transmission of 16A high current.

IP68 protection level

Fully sealed dustproof and waterproof:the silicone seal is precisely matched with the shell,and can be immersed in water for a long time (1 meter depth) or exposed to dust environment,suitable for outdoor engineering machinery,ship equipment, etc.

16A high current carrying

Industrial load:the contacts are made of copper alloy material,support 250V AC/28V DC, 16A continuous current.

Application scenario

Heavy machinery:excavator,crane power switching,hydraulic system control.

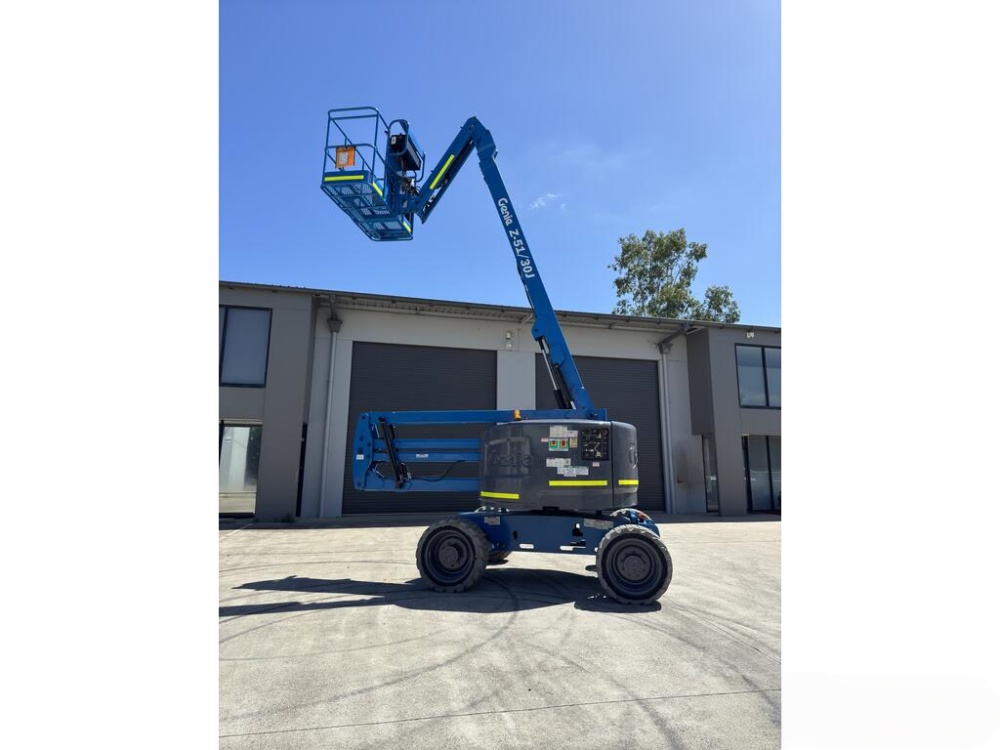

Aerial work platform vehicle:emergency stop of lifting arm,power switching.

Other fields: ship equipment,new energy charging piles,industrial automation control cabinets.

Competitive advantage

Reliability:metal handle + IP68 design to cope with extreme environments,far exceeding ordinary plastic switches.

Safety:dual-way reset function to avoid misoperation and reduce the risk of accidents.

Compatibility:CE certified and compatible with global industrial equipment standards.

SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

RATING

RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC

MATERIAL

ACTUATOR:COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
