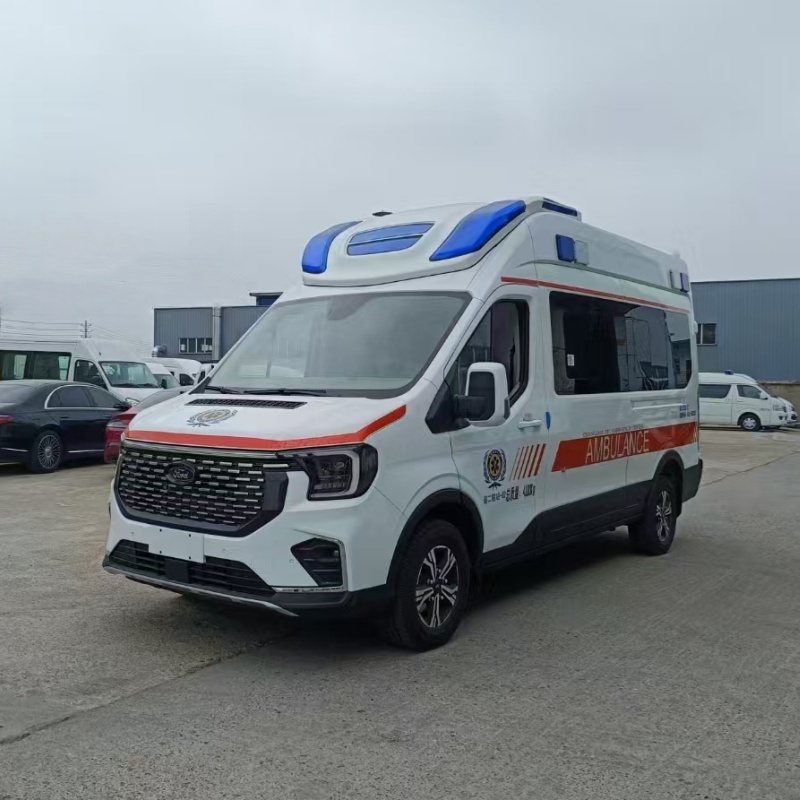

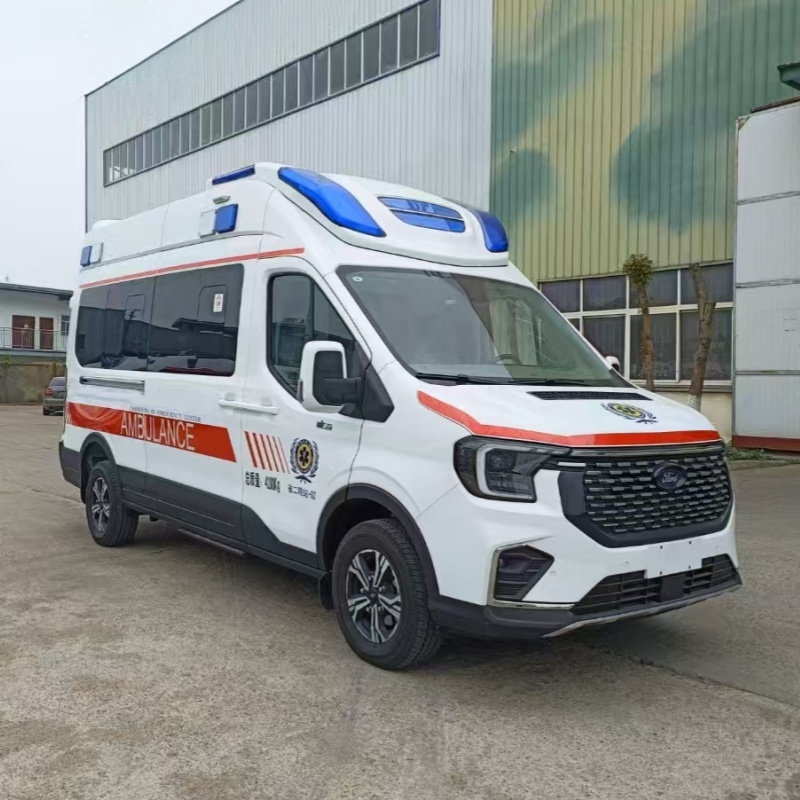

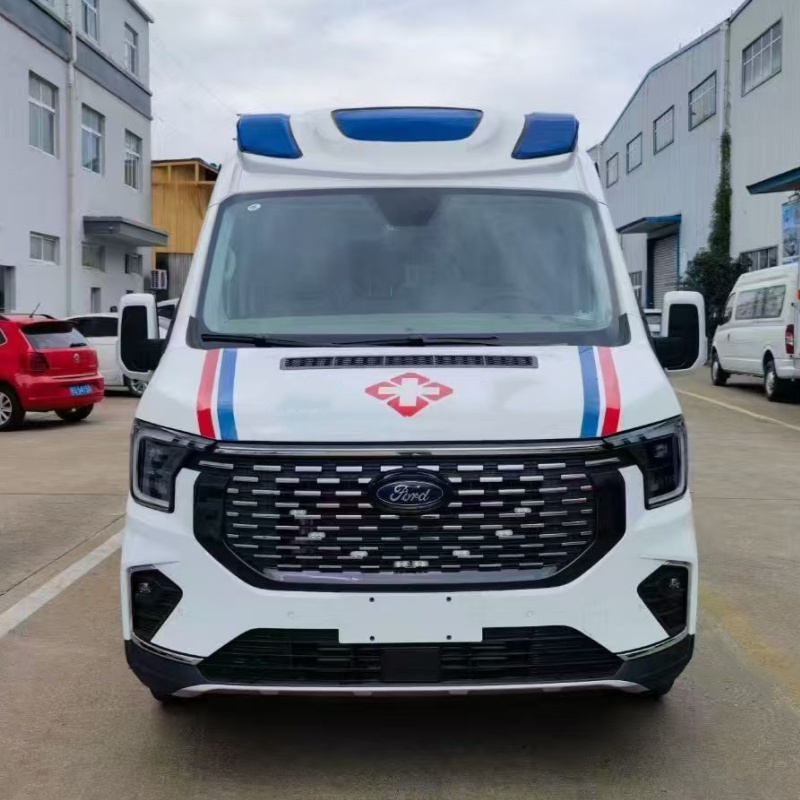

Jiangling Ford Quanshun T8 4*4 drive ambulance has rich configuration in chassis power, medical cabin facilities, safety assistance, etc.:
- Chassis: Select the mainstream of the medical industry Quanshun T8 long axis II chassis, after professional adjustment, the front and rear axle load distribution is reasonable, the maximum bearing capacity of the load-bearing body can reach 5.25T.
- Powertrain: Equipped with 2.3T diesel engine, with 173 horsepower, torque up to 430, powerful, with 8-speed automatic transmission and 4×4 drive system, it can cope with rugged road conditions.

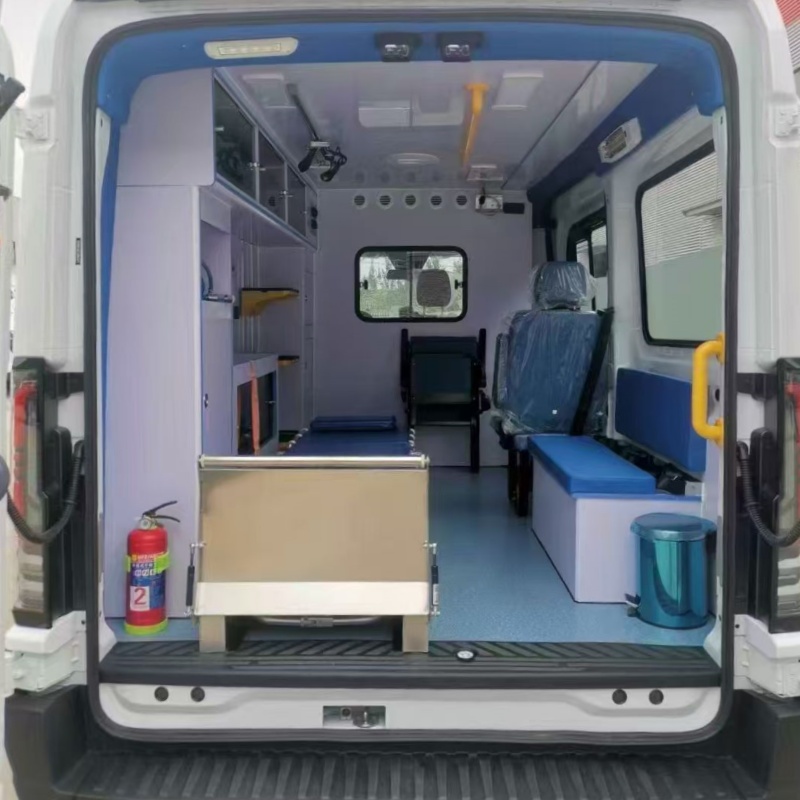

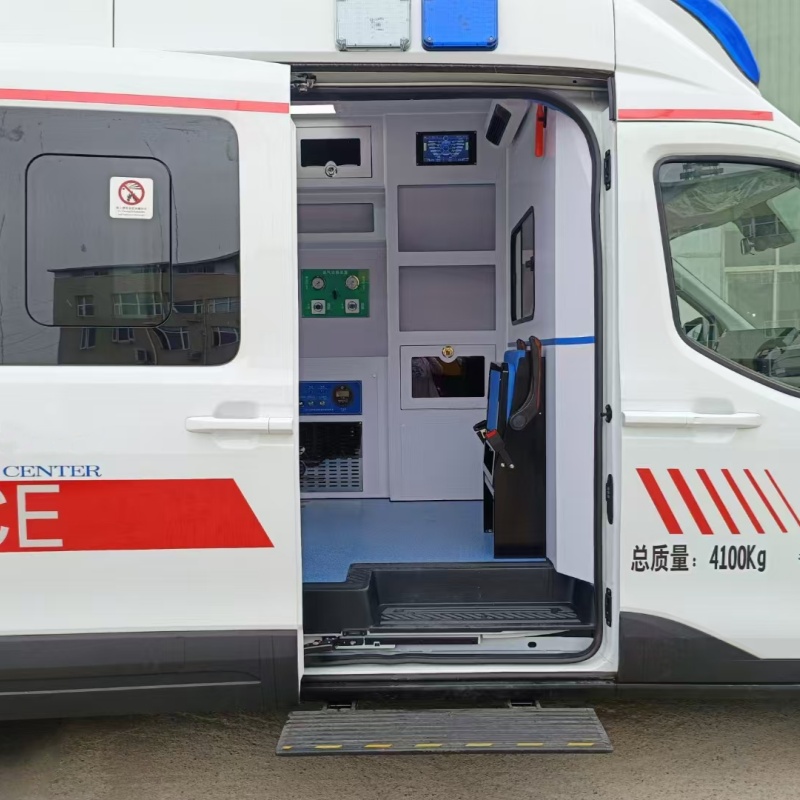

Medical bay facility configuration - Stretcher and seat: equipped with automatic stretcher and stretcher guide rail, convenient for fast and safe transfer of patients; independent seat, bench seat, etc. on the right side of the medical cabin
- Storage of medical equipment: multifunctional integrated medical equipment cabinet is installed on the left side, which can fix various medical equipment such as ECG machine, ventilator, defibrillator monitor, etc.; the top is a hanging cabinet with an upper lift door, and there are three layers of equipment racks on the left side, which can store various medical supplies and tools; there is an independent oxygen cabinet.
- Oxygen supply system: equipped with automatic oxygen supply system, which can automatically start, select, stop oxygen supply and switch oxygen cylinders for oxygen supply. There is also a central confluent oxygen supply system, which can manually switch corresponding oxygen cylinders and switch oxygen supply as needed. There are generally multiple oxygen terminals, humidification cylinders, ventilator interfaces, etc. in the cabin, and double 10-liter oxygen cylinders are also equipped to meet different oxygen supply requirements.
- Interior materials: the interior of the medical cabin adopts polymer composite plate or ABS alloy composite material, which has the characteristics of light weight, heat preservation, flame retardant, ultraviolet protection, impact resistance, deformation prevention, mildew prevention, antibacterial and easy cleaning; the floor of the medical cabin adopts washable medical wear-resistant floor, anti-skid antibacterial floor, etc.
- Power supply system: equipped with power frequency pure sine wave inverter power supply, vehicle high-power intelligent inverter system, etc., equipped with multiple sets of 220V power sockets to meet the power demand of various medical equipment; some vehicles are also equipped with automatic pop-up electrical sockets, which automatically pop up when the vehicle starts; even the roof is equipped with solar panels to supplement battery energy at any time.
- Lighting and disinfection: There are multiple groups of LED lights at the top, which are convenient for medical staff to operate; special ultraviolet disinfection lamps are equipped to disinfect and sterilize the medical cabin; there are field lights at the tail, which are convenient for night operation.
- Air conditioning and ventilation: usually equipped with independent air conditioning system in front and rear cabins, independent heating system in medical cabin; ventilation fan installed on top of medical cabin to maintain air circulation in cabin.
- Active safety: equipped with AEB (automatic emergency braking), L-W (lane departure warning and similar functions), BSD (blind spot monitoring), RMI (rollover intervention), DMS (driver monitoring system) and other high-level safety driving assistance functions; there are also 360 Panorama, ADAS driving assistance system, warning of possible dangerous situations in advance to help drivers avoid traffic accidents.
- Warning system: long row of warning lights installed at the front of the roof, blue and white flashing warning lights installed around the body, and 100W external loudspeaker
