Product brief introduction

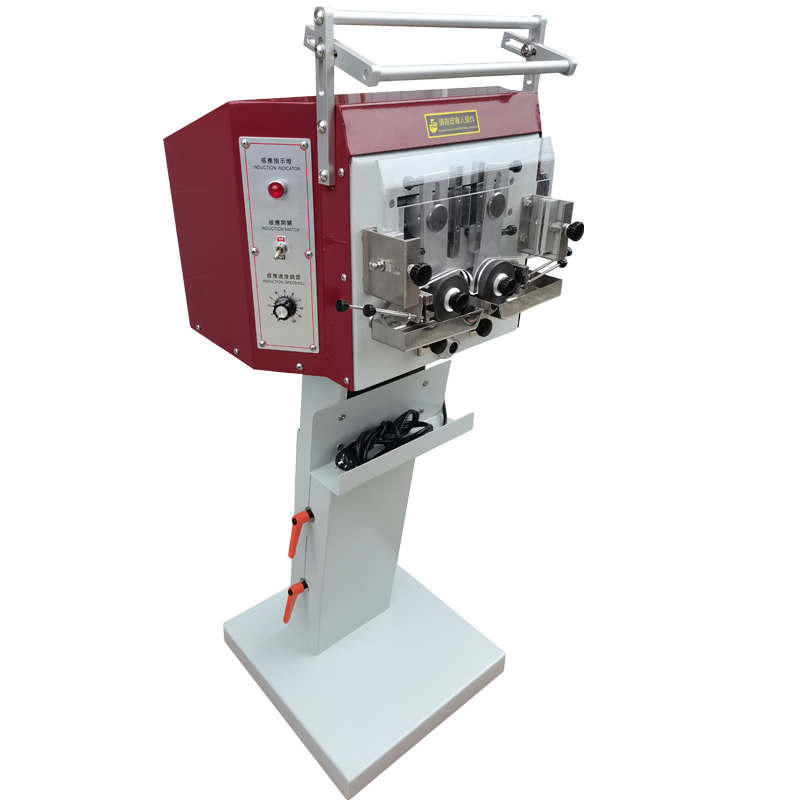

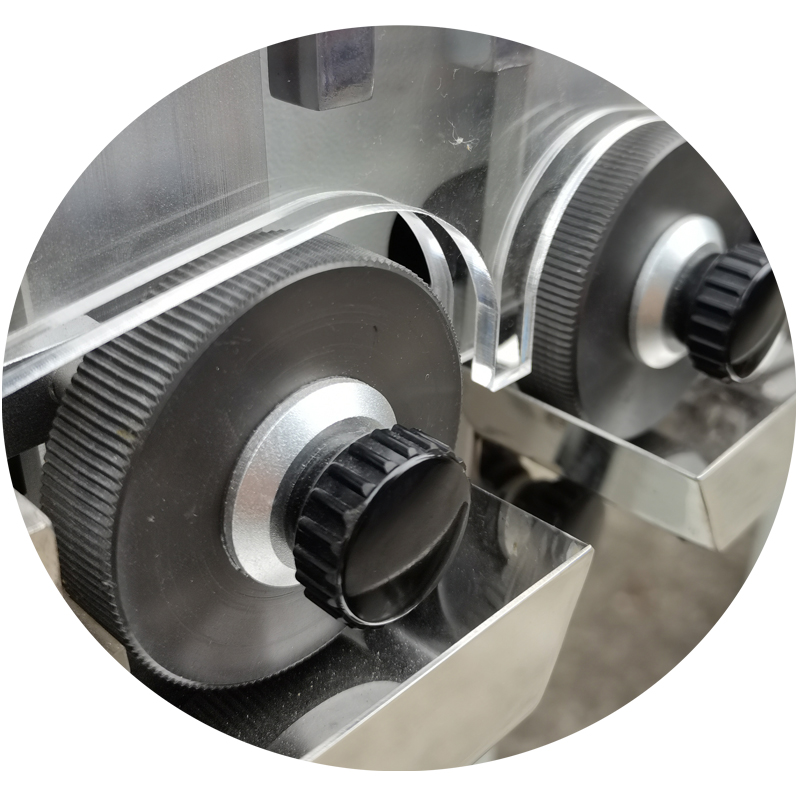

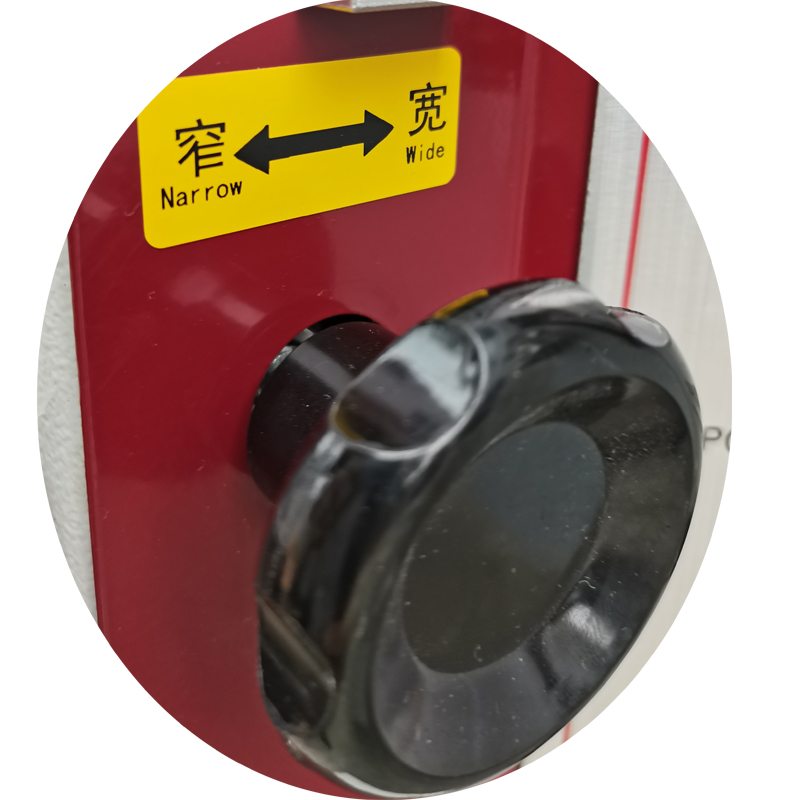

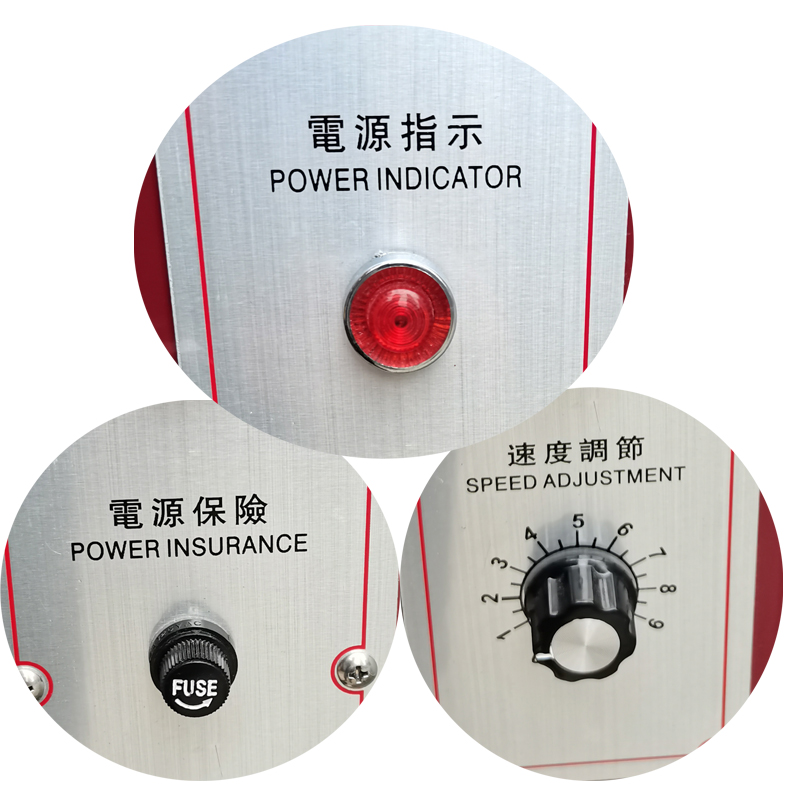

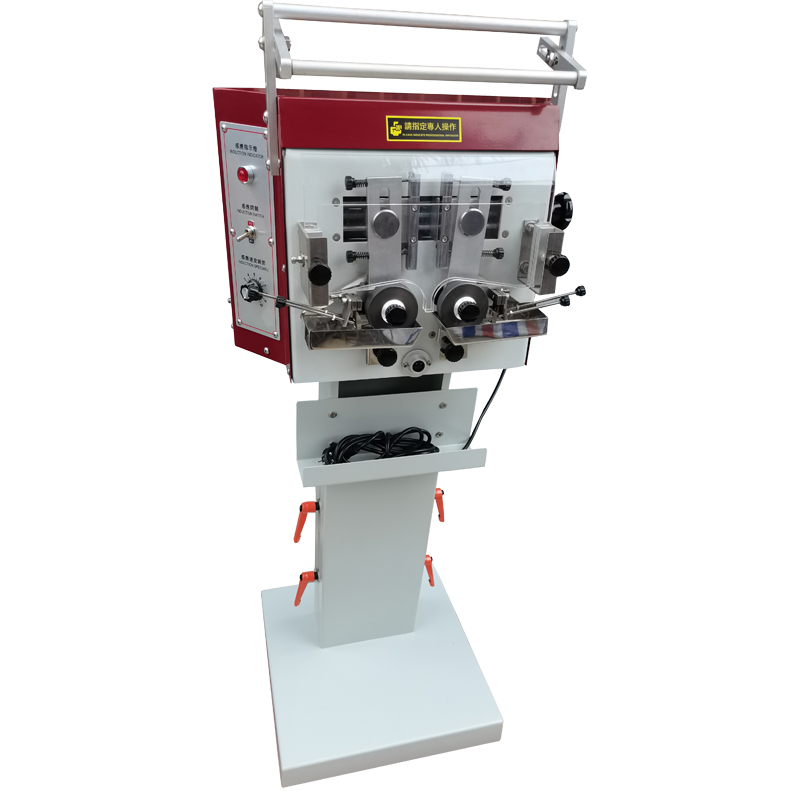

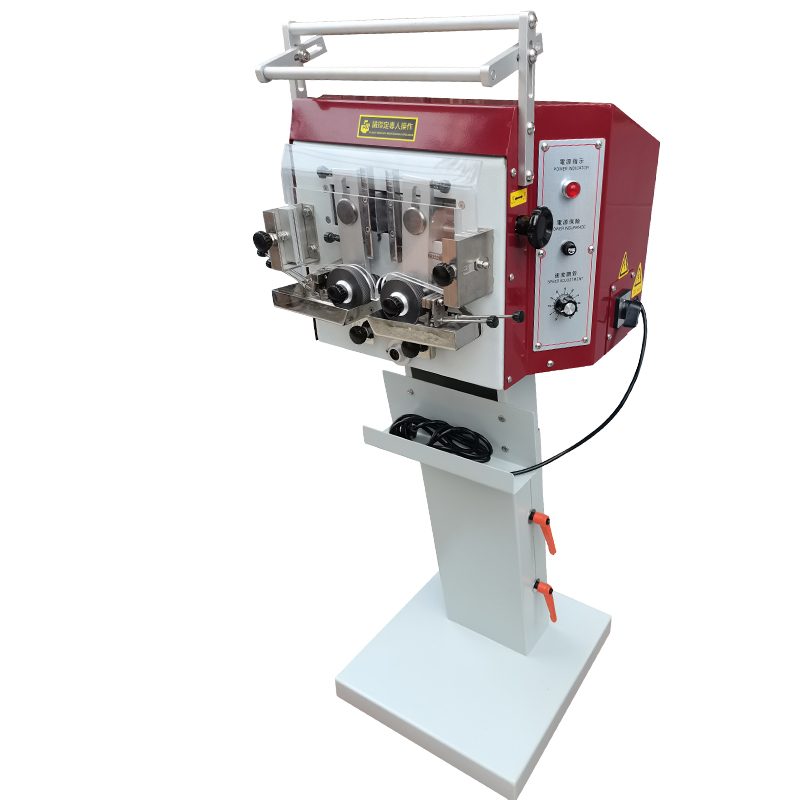

The SC - 32 Belt and Shoulder Strap Double - sided Edge Coloring and Oiling Machine is suitable for simultaneously coloring and oiling the double sides of straight strip materials such as men's and women's belts, shoulder straps, and watchbands. The width range for oiling is 5 - 80mm, the thickness is 1 - 8mm, and the length is 1370mm. The thickness of oiling can be adjusted. It is simple and convenient to replace and clean the oil wheel and oil box. The height of the machine frame can be adjusted by oneself to adapt to the lengths of various belts and shoulder straps. The machine has the function of simultaneously coloring the tail end and both sides of the belt. With the function of the electronic eye automatically controlling the speed of the second section, when coloring the tail end, the speed of the previous section is automatically slowed down, which is convenient for manual coloring of the tail end. When moving to both sides of the straight line, the electronic eye automatically jumps to the second section and speeds up oiling, saving time. It is an ideal equipment for oiling edges.
PARAMETER
Model：SC-32
Voltage：220V
Power：0.12KW
Machine Size：550*500*1250MM
NW：70KG
If you are interested in the product, contact 2bvideo.com for more information for more information
