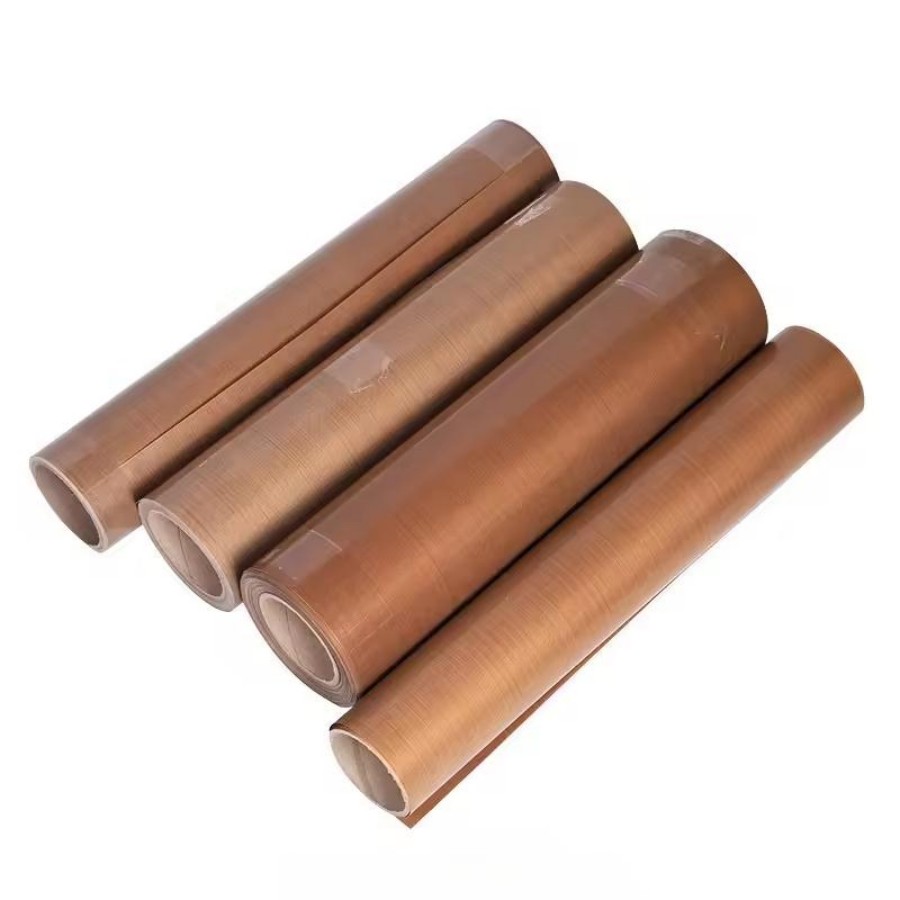

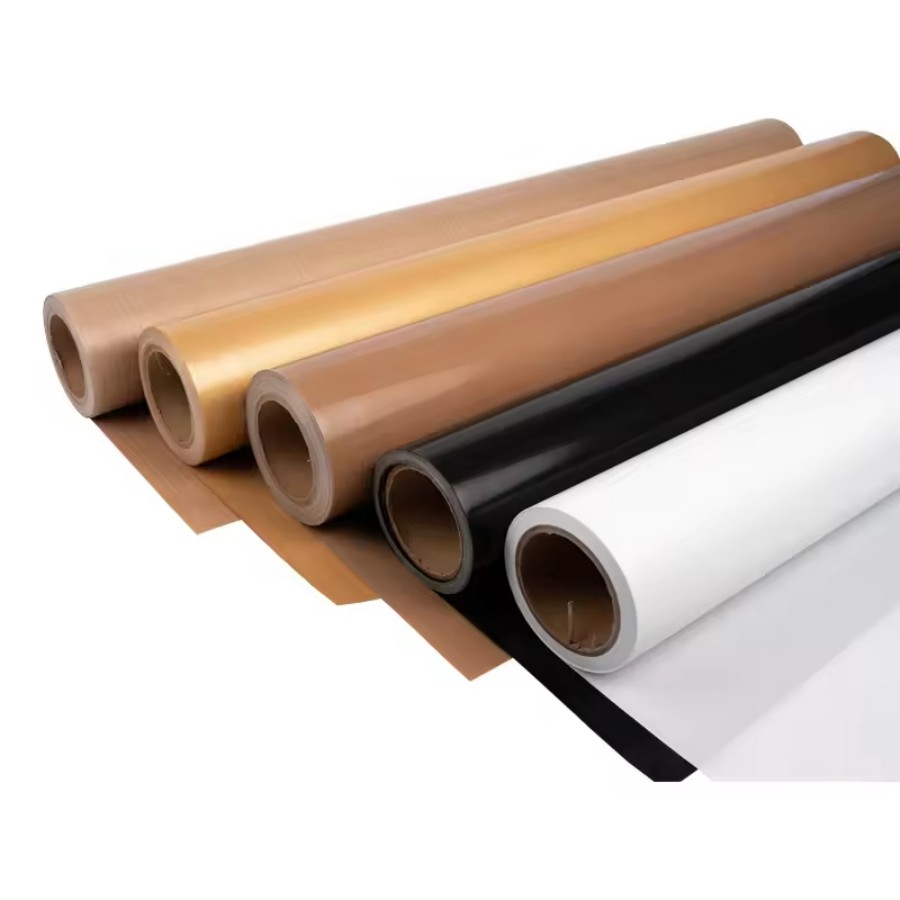

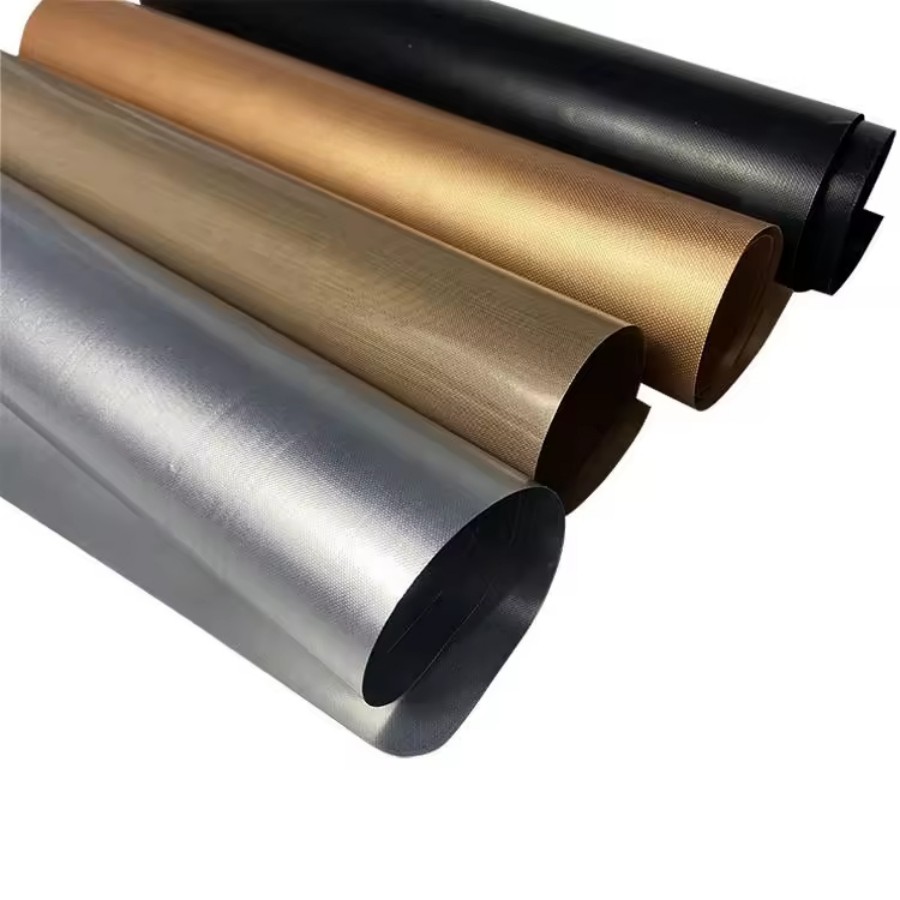

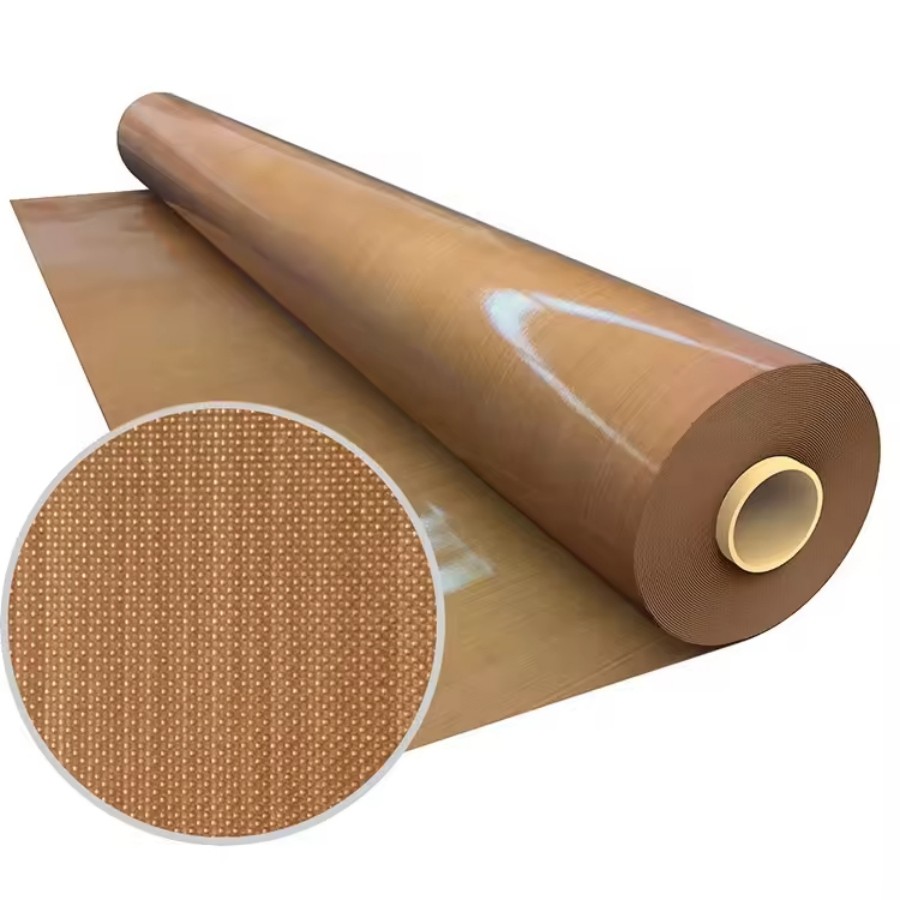

PTFE glass fiber cloth is a new type of high-performance, multi-purpose composite material made by impregnating high-performance glass fiber cloth with a suspension PTFE (commonly known as plastic king) emulsion.
Performance characteristics
1. Suitable for temperatures ranging from -196°C to 300°C, with excellent weather resistance. 2. Non-adhesive, does not easily adhere to any substances. 3. Resistant to chemical corrosion, capable of withstanding strong acids, strong alkalis, aqua regia, and various organic solvents. 4. Low friction coefficient, making it the ideal choice for oil-free self-lubrication. 5. Light transmittance of 6–13%. 6. High insulation performance, UV-resistant, and anti-static. 7. High strength. Excellent mechanical properties. 8. Resistant to pharmaceutical agents.
Application
Glass fiber-coated polytetrafluoroethylene (PTFE) products are widely used in various industries due to their excellent performance characteristics, including aerospace, papermaking, food processing, environmental protection, textile printing and dyeing, apparel, chemicals, glass manufacturing, pharmaceuticals, electronics, insulation, construction (membrane structure base fabric for roofs), abrasive discs, and machinery. They can be used for corrosion-resistant coating, linings and gaskets, anti-adhesive conveyor belts, high-frequency copper-clad laminates, building membrane materials, insulating materials, microwave drying conveyor belts, flexible compensators, friction materials, and more.
Performance Characteristics of PTFE Reinforced with Glass Fiber
Polytetrafluoroethylene (PTFE) is a plastic material with outstanding performance characteristics and is widely used in various industrial fields. However, pure PTFE still has certain performance limitations, such as insufficient wear resistance and significant creep under heavy loads. To address these issues, researchers have attempted to add glass fiber to PTFE to enhance its overall performance.
I. Advantages of PTFE reinforced with glass fiber
1. Significantly improved wear resistance: The addition of glass fiber can significantly enhance the wear resistance of PTFE. Compared to unfilled PTFE, wear resistance can be improved by nearly 500 times. This improvement gives PTFE-glass fiber composite materials a significant advantage in applications requiring high wear resistance.
2. Enhanced tensile strength and heat resistance: Glass fiber is an inorganic non-metallic material with excellent insulation, heat resistance, and corrosion resistance. When used as a reinforcing material in PTFE, it effectively enhances the composite material's tensile strength. Additionally, glass fiber has excellent heat resistance, maintaining its strength at temperatures up to 300°C, thereby enhancing PTFE's heat resistance.
3. Improved creep resistance and cold flow resistance: PTFE is prone to creep and cold flow when subjected to continuous pressure or temperature changes. However, the addition of glass fiber significantly improves these properties, enabling the composite material to maintain stable performance even in more complex working environments.
II. Limitations of PTFE with Glass Fiber
However, while the addition of glass fiber brings significant performance improvements to PTFE, it also has some limitations. As the content of glass fiber increases, the tensile strength, elongation, and toughness of the composite material decrease. Additionally, the addition of glass fiber leads to an increase in the coefficient of friction. Therefore, when optimizing the performance of PTFE-glass fiber composite materials, it is necessary to comprehensively consider various factors to achieve the best performance balance.
III. Applications and Outlook
PTFE-glass fiber composite materials have broad application prospects in industrial production. Their excellent wear resistance, tensile strength, and heat resistance enable them to perform exceptionally well in harsh environments such as high temperatures and heavy loads. Additionally, by adjusting the content and ratio of glass fibers, the performance of the composite material can be further optimized to meet the needs of different application areas.
Looking ahead, with the continuous advancement of technology and the emergence of new materials, PTFE-glass fiber composite materials are expected to play an even greater role in the future. Researchers will continue to explore new modification methods and preparation processes to enhance the composite material's overall performance and expand its application scope. Furthermore, with the growing emphasis on environmental protection, developing eco-friendly PTFE-glass fiber composite materials will also become an important research direction in the future.
