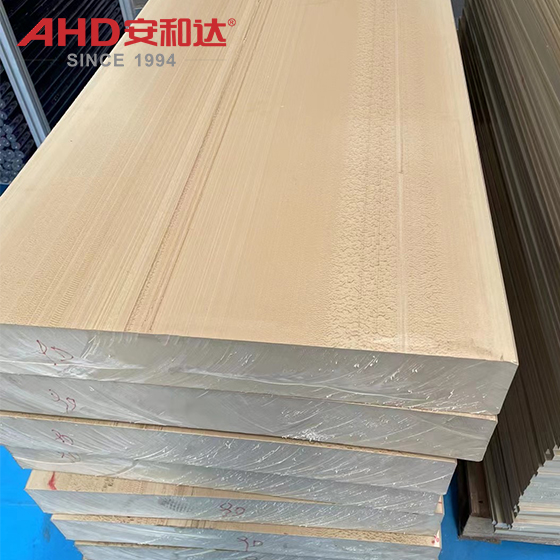

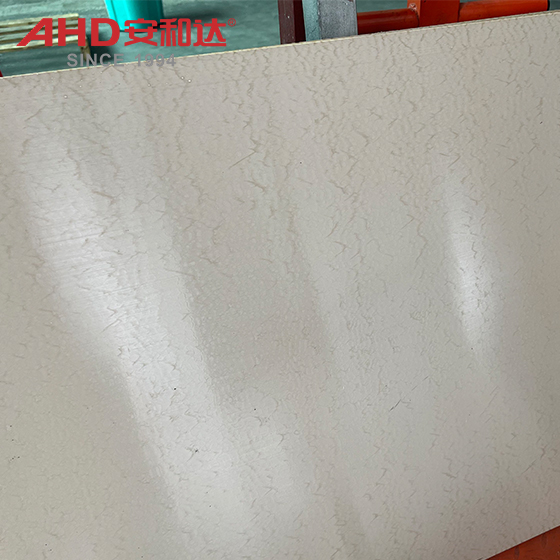

We offer PEEK sheet thicknesses ranging from 1 to 120mm, with colors available in Natural / Black . Our standard sizes are 610 mm x 1220 mm, and customized available. Contact us for more details.
PEEK (Polyetheretherketone) is a high-performance specialty engineering plastic. Its core properties, including high-temperature resistance, high strength, chemical resistance, and biocompatibility, make it an ideal alternative to traditional metals and ordinary plastics. Despite its higher cost, its reliability in extreme environments and long lifespan make it irreplaceable in fields such as medical, aerospace, and industrial precision components, making it a popular material in high-end manufacturing. Let me introduce PEEK sheet in details.
PEEK sheets offer the following core advantages in practical applications:
A lightweight alternative to metals: Low density and high strength make them suitable for weight-sensitive applications and reduce energy consumption.
Long life and low maintenance: Wear and chemical resistance reduce the need for frequent replacement.
Medical-grade safety: They can be directly implanted in the human body, avoiding the risk of rejection and secondary surgery associated with metal implants.
Adaptability to extreme environments: They maintain performance in high-temperature, radiation-induced, and highly corrosive environments, expanding the application boundaries of industrial equipment.
Design flexibility: Complex structures can be injection molded, reducing assembly costs.
Core Characteristics of PEEK Sheets
1. High-Temperature Resistance
Glass transition temperature (Tg) approximately 143°C, melting point (Tm) approximately 340°C, wide long-term operating temperature range (-50°C to 250°C), and short-term resistance to temperatures up to 310°C.
It maintains excellent mechanical properties even at high temperatures, far exceeding those of ordinary engineering plastics.
2. Excellent Mechanical Properties
Tensile strength: 107 MPa, reaching over 200 MPa with reinforcement (e.g., carbon fiber/glass fiber filling);
Elastic modulus: 3.6 GPa, close to that of metal but with a lower density;
Fatigue resistance: Superior to most plastics, resistant to fracture under cyclic loading;
Wear resistance: Excellent self-lubrication, with extremely low wear rate when rubbing against metal.
3. Chemical Resistance
Resistant to most organic solvents and weak acids/bases, soluble only in strong oxidizing acids such as concentrated sulfuric acid and nitric acid;
Stable performance in high-temperature and high-humidity environments, and resistant to hydrolysis.
4. Biocompatibility
Complies with ISO 10993 biosafety standards and is non-cytotoxic, non-sensitizing, and non-genotoxic.
The elastic modulus is close to that of human bone, making it less likely to cause "stress shielding" (bone degeneration caused by the high modulus of metal implants) after implantation.
5. Flame Retardancy and Radiation Resistance
It is inherently flame-retardant and achieves UL94 V-0 rating (0.25mm thickness) without the addition of flame retardants.
It is resistant to gamma rays and X-rays, ensuring stable performance in nuclear and medical radiotherapy equipment.
6. Processability (relative to specialty materials)
It can be formed by injection molding, extrusion, and machining, making it suitable for the manufacture of complex shaped components.
It has a wide processing temperature range (360-400°C), but thermal oxidative degradation caused by prolonged high temperatures must be avoided.
PEEK Applications (In-Demand Materials in High-End Industries)
1. Healthcare: Implantable "Human-Friendly Materials"
Orthopedic Implants: Spinal Fusion Cages (Reduces Rejection), Hip Prostheses (Bone-Integrated Coating Enhances Fixation);
Surgical Instruments: High-Frequency Electrosurgical Handles (High-Temperature Sterilization Resistant), Dental Implant Abutments (Excellent Biocompatibility);
Medical Equipment: Magnetic Resonance Imaging (MRI) Equipment Components (Non-Magnetic to Avoid Interference with Imaging), Hemodialysis Machine Tubing (Resistant to Body Fluid Corrosion).
2. Aerospace: Lightweight and High-Strength "Core Materials"
Structural Components: Aircraft Engine Mounts, Landing Gear Doors (Weight Reduction and High-Temperature Resistance);
Connectors: Avionics Connectors (Vibration and Radiation Resistance);
Interior Components: Cabin Floor Brackets (Flame Retardancy to Meet Airworthiness Standards).
3. Electronics and Electrical: High-Reliability "Insulation and Heat Resistance Experts"
High-Frequency Devices: 5G base station antenna elements (low dielectric constant, low signal loss), high-frequency connectors (high-temperature resistance);
Semiconductor Equipment: Lithography machine components (plasma corrosion resistance), wafer carriers (metal contamination-free);
Wires and Cables: Nuclear power plant/aviation cable sheathing (radiation and oil resistance).
4. Automotive Industry: High-Performance and Lightweight "Solutions"
Engine Peripherals: Turbocharger bearings (high-temperature and lubricant corrosion resistance), fuel pump housings (gasoline and diesel resistance);

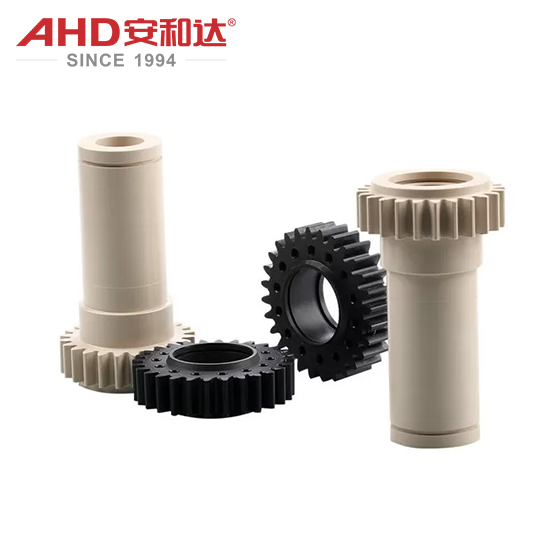

Chassis and Transmission: Transmission gears (self-lubricating to reduce wear), suspension system brackets (impact resistance);
Intelligent Driving: LiDAR housings (high-temperature and vibration resistance), sensor protective covers (chemical resistance).
5. Industry and Energy: Durable in Extreme Environments
Chemical Equipment: Reactor Seals (Strong Acid and Alkali Resistant), Pump and Valve Impellers (Corrosion and Wear Resistant);
Energy Equipment: Nuclear Reactor Internal Components (Radiation Resistant), Oil Drilling Platform Seals (High-Pressure Mud Resistant);
Rail Transit: High-Speed Rail Braking System Components (High-Temperature and Friction Resistant), Subway Signal Equipment Housings (Flame Retardant and Aging Resistant).

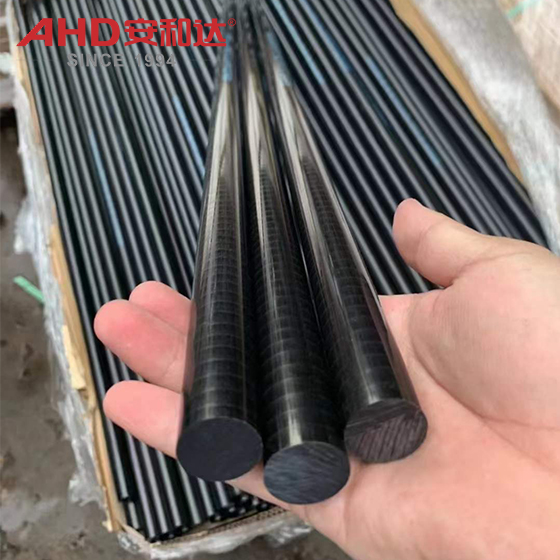

In addition to natural PEEK , AHD has other reinforced grades such as PEEK GF(glass fiber reinforced) ,PEEK CA(carbon fiber reinforced) ,PEEK HPV(with graphite), ESD PEEK(Electrostatic Discharge). Welcome to contact us for more details and we can give you more professional advice or click PEEK GF,PEEK CA Supplier,PEEK glass fiber,PEEK Rod,PEEK Sheet

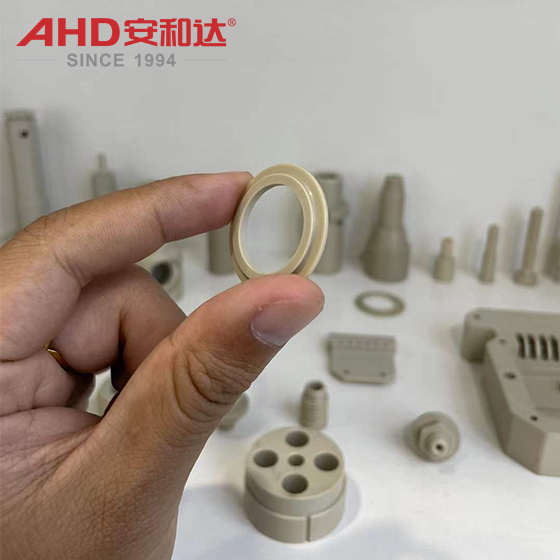

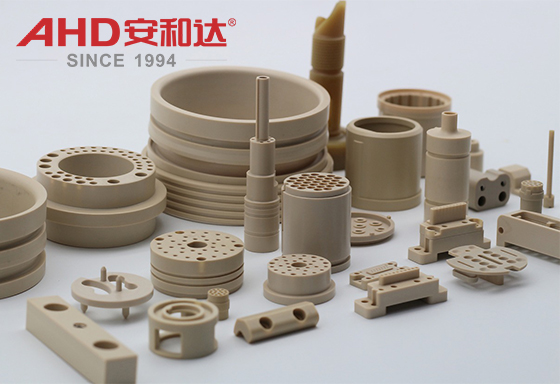

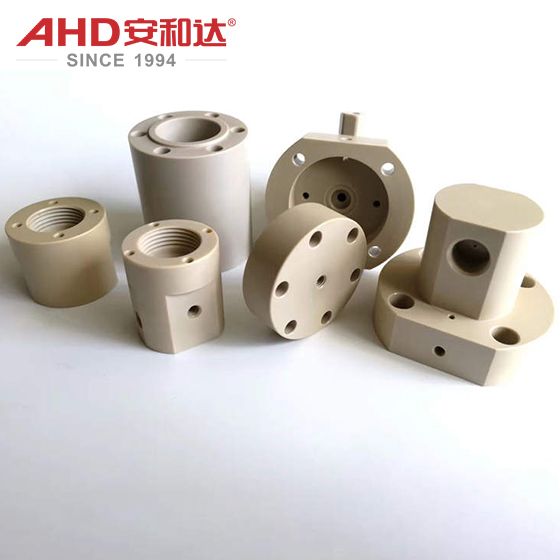

And we understand that every project has unique requirements. That’s why we offer custom machining and cut-to-size services for all our PEEK sheets. Contact us to solve your troubles. Or know more click PEEK Parts
