JLBZ nylon braided sleeving

Product Description:

The nylon braided sleeving is made of military green nylon fiber. The braided sleeving has the advantages of being particularly soft, light and environmentally resistant. In addition, the protective sleeving is easy to handle in the multi-branch cable assembly. It can be sutured and tied to ensure that the bifurcation is soft and easy to bend, and it has a good protective effect on the wire harness in the narrow cavity.

Product Application:

The product is mostly used in military electronic and electromechanical equipment, instrumentation and radio equipment for aerospace, ships and other weapons and equipment, wire harnesses or cables.

Material: Nylon

Working temperature: -60℃ — +160℃

Melting point: 240 ± 10℃

Standard color: Green

Certification: ROHS 2.0

Cutting tool: Scissors

Product size illustration：

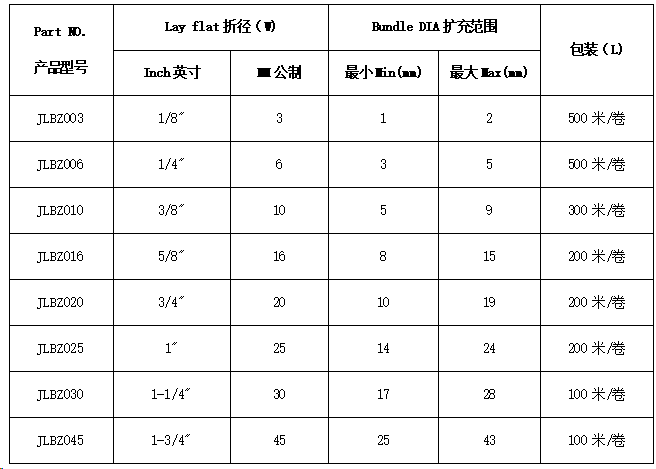

Product Specifications:

Notes:

1. Product specifications refer to the folded diameter (flat width) of the mesh tube.

2. The mesh tube is retractable and has a relatively large tolerance for flat width.

3. Our company can provide mesh tubes with special packaging, size and color according to customer requirements.

4. All the above data are common values and do not include customized sizes.

The standard is non-flame retardant, and the flame retardant can be about V2, but it needs to be post-processed (because it is added with odorous flame retardants (no red phosphorus) so the flame retardancy is not stable), and the minimum order quantity is higher, such as 5000 meters for each specification.
